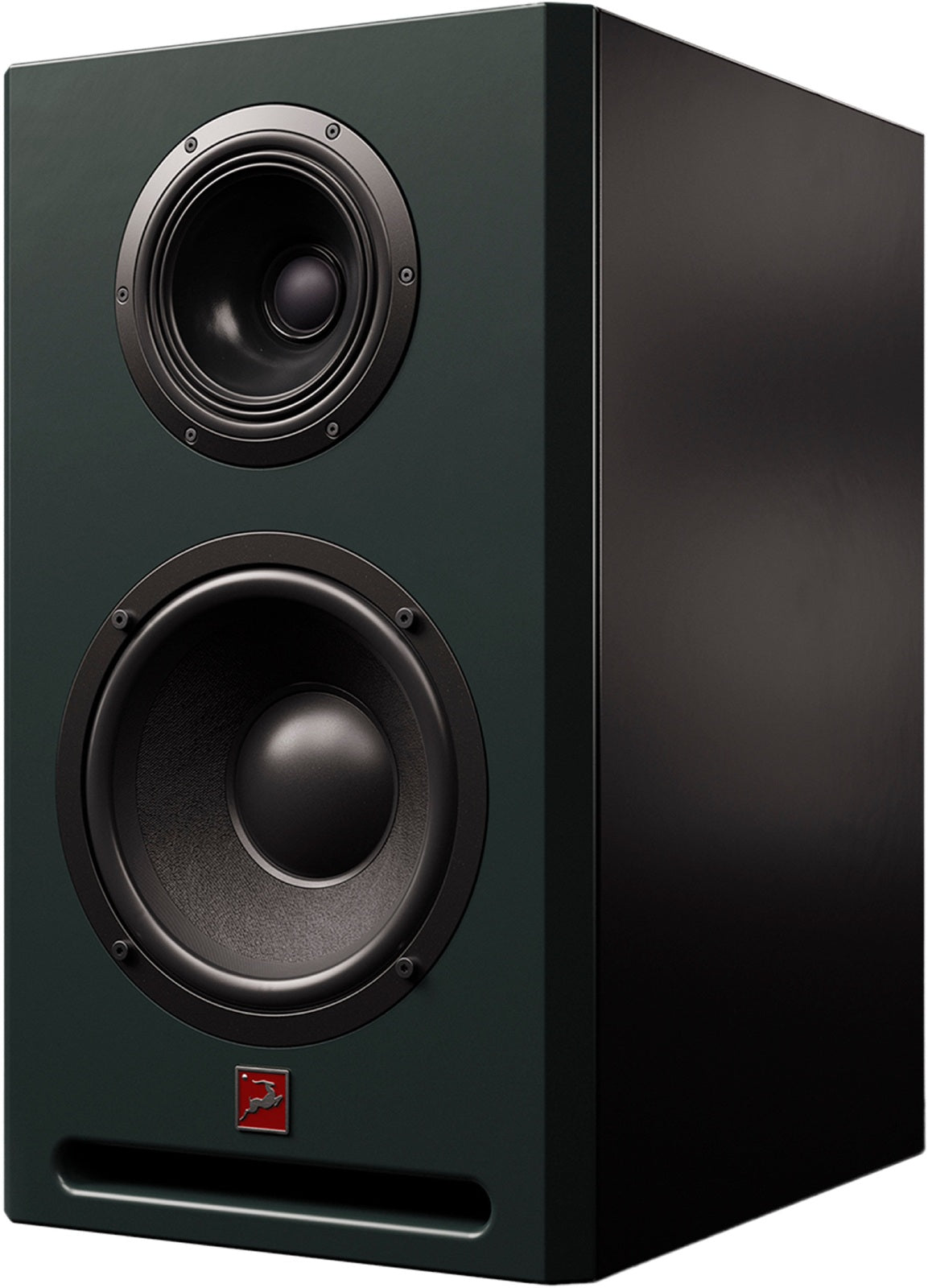

Antelope Audio's very first studio monitor is designed to provide a cutting-edge modern solution for every studio. The Atlas i8 delivers extended low frequencies and high sound pressure levels thanks to its secret weapon: two 8-inch woofers configured in an isobaric design. The Atlas i8 offers sonic accuracy, precise imaging, and a fatigue-free listening experience through meticulous acoustic engineering and decades of research and development in digital signal processing.
Less space, more bass
Two 8-inch woofers, mounted back-to-back and sealed in an isobaric configuration, deliver unmatched power and detailed bass response. The isobaric design significantly reduces cabinet size and air volume without sacrificing performance, even when the Atlas i8 is pushed to its absolute limit.
Fidelity first
To achieve a flat and time-aligned frequency response, an exclusive digital processing system was developed to operate inside FPGA chips with FIR and IIR filters, providing a deep and focused stereo image, precise transients, and fatigue-free studio sessions. The Atlas i8 is calibrated during manufacturing and rigorously tested to ensure optimal performance.

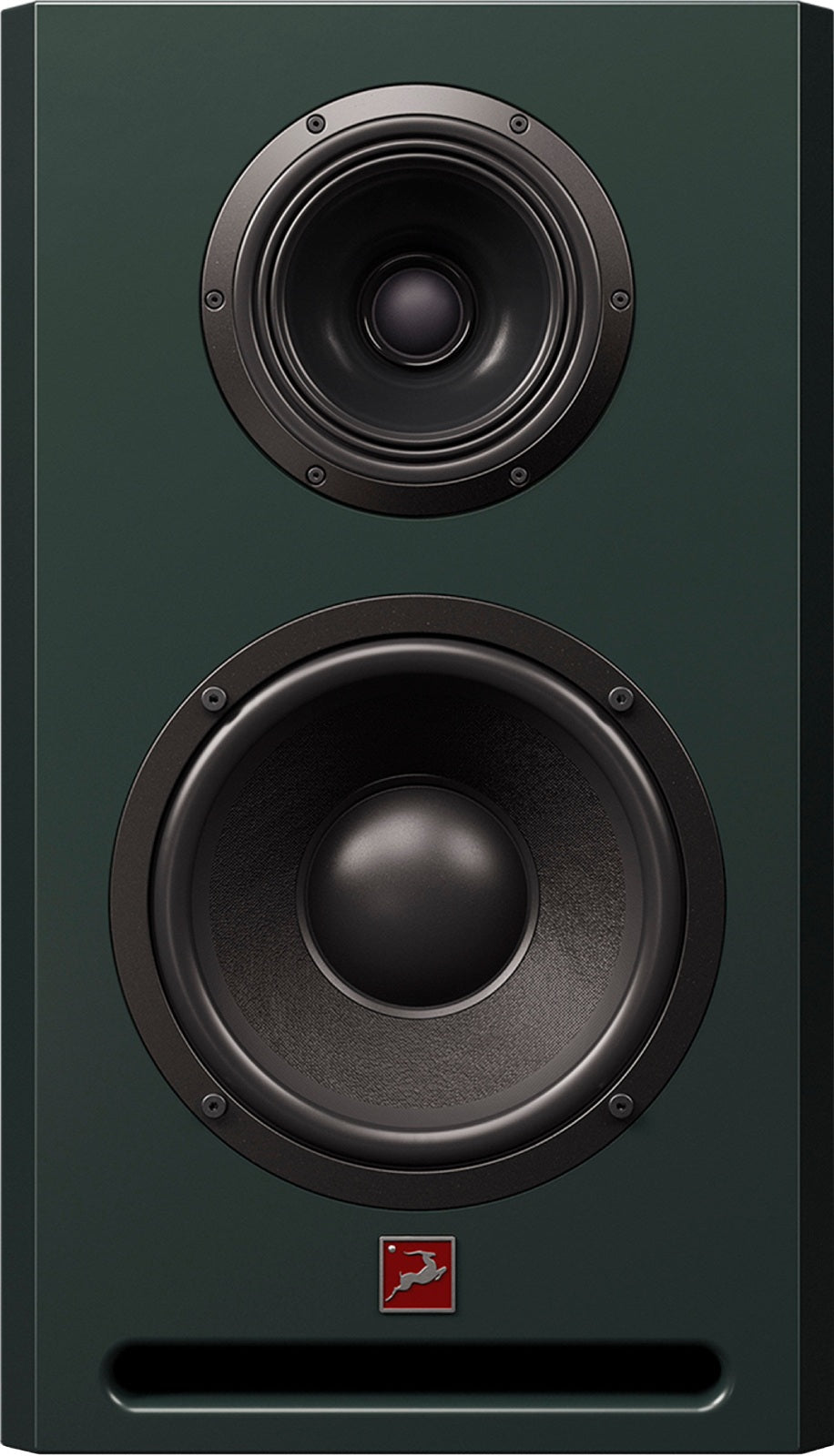

Coaxial midrange and tweeter
The tweeter and midrange driver are arranged coaxially to ensure a single source for improved phase coherence. This allows the Atlas i8 to be positioned horizontally or vertically without any risk of comb filtering or dips in the upper frequency spectrum.
Features:
- 2 identical 8-inch woofers
- Coaxial midrange (100 W) and tweeter (100 W) drivers
- Total amplification power of 400 W (Class D)
- Frequency response: 35 - 20 kHz
- Max SPL: 117 dB (1m)

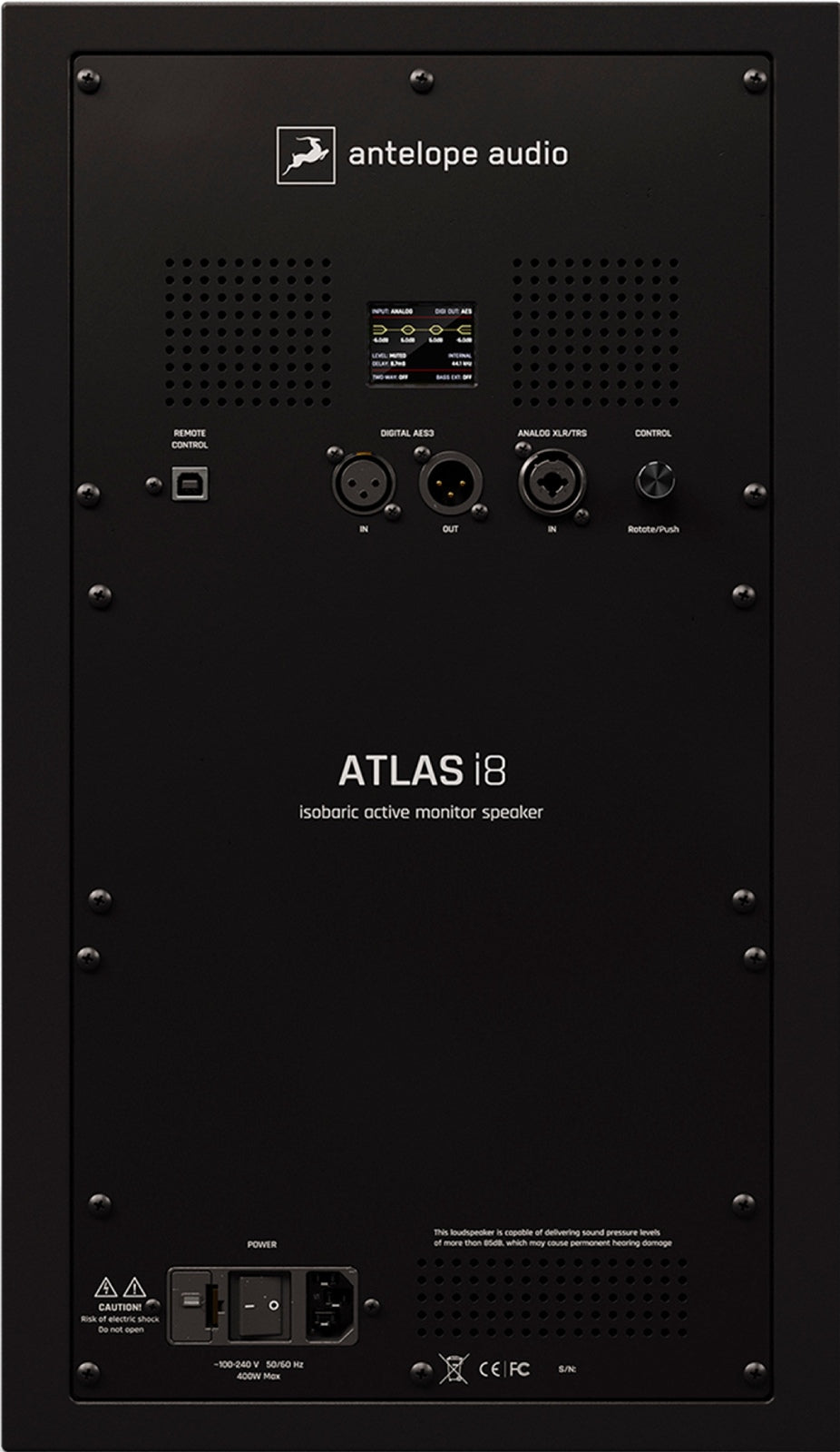

- AES/EBU digital input and output
- Sampling rate: 192 kHz
- 64-bit AFC technology
- Factory-calibrated FIR and IIR filters
- Control screen on the rear
- Dimensions: 292 x 500 x 387 mm
- Weight: 24 kg
- Finish: Dark green
Questions frequently asked
What bass response does the Antelope Atlas i8 offer?
The specified frequency response ranges from 35 Hz to 20 kHz. Two 8-inch woofers mounted in an isobaric configuration deliver the low-end in an enclosure measuring 292 × 500 × 387 mm.
Can this speaker be positioned horizontally?
The coaxial mid-high driver allows horizontal or vertical placement without the risk of comb filtering in the high frequencies.
What power and sound pressure level are specified?
The Class D amplification totals 400 W. The maximum sound pressure level reaches 117 dB at 1 meter.
What digital connectivity is available?
One AES/EBU digital input and output are integrated. The indicated sampling frequency is 192 kHz.
What are the specifics of the Stock B model?
This unit corresponds to a display model with damaged packaging. The warranty is set at 6 months. The finish is dark green and the stated weight is 24 kg.
