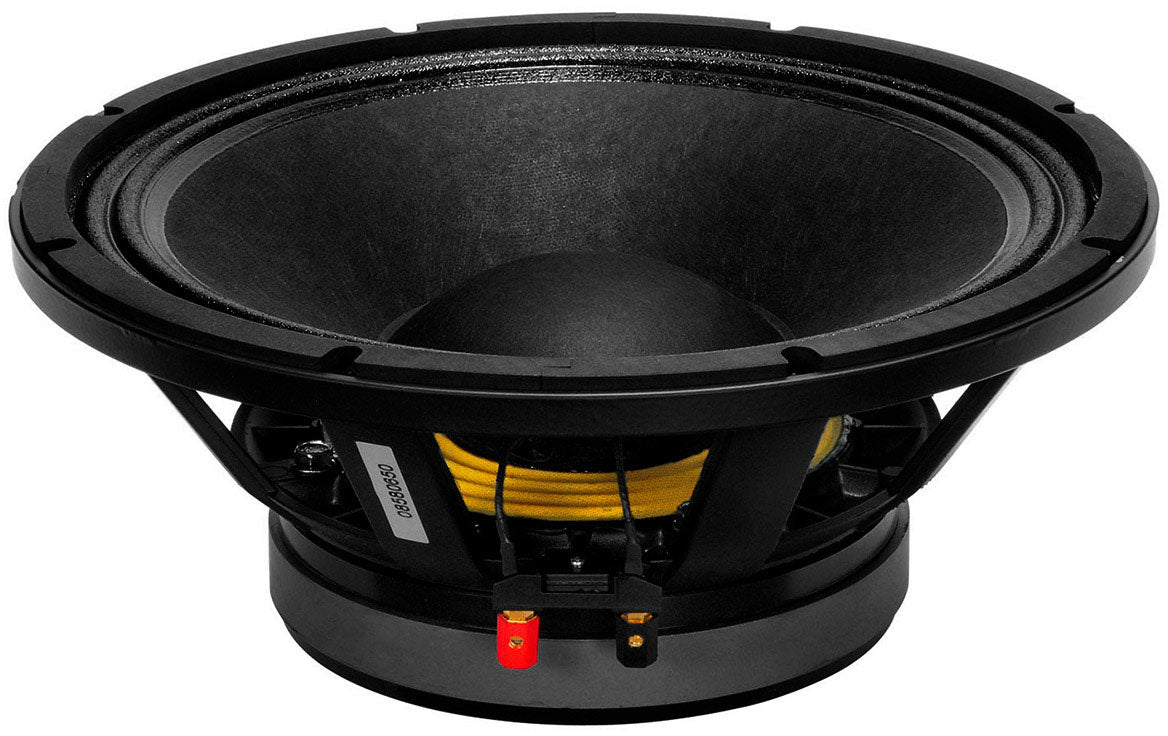

B&C Speakers 12 PLB 76

A Performance-Oriented B&C Transducer for the Midbass Range

The B&C 12PLB76 is a 12-inch (31 cm) loudspeaker designed to effectively cover the critical midbass region, where impact, projection, and much of the musical intelligibility are built. With a 98.5 dB sensitivity and a 700 W AES power rating, it fits within a "sound reinforcement" logic: delivering high output, maintaining control, and remaining reliable under demanding system use.

Its parameters (notably Fs 50 Hz and Qts 0.23 ) and recommended bass-reflex loading clearly indicate its playground: enclosures capable of delivering tight bass and energetic low-midrange, with usable response up to 2 kHz depending on crossover design and any associated horn/driver.

For Which Speakers and Users Is This 12-Inch Driver Intended?

This model targets audio professionals, integrators, and builders (DIY or workshops) seeking a high-performance 12-inch woofer for sound reinforcement speakers : versatile tops, front-of-house cabinets, powerful stage monitors, or midbass drivers in multi-amplified systems. Thanks to its specified frequency range, it can handle the low end while reaching high enough to facilitate integration with a high-frequency driver, depending on crossover frequency and slope choices.

If your specifications prioritize efficiency, power handling, and a sense of impact in the low-midrange, the 12PLB76 provides a solid foundation, provided you respect the recommended enclosure volume and tuning, as well as the specific tuning (crossover, port, damping) of your speaker.

Design and Key Points: Power Handling, Efficiency, and Mechanical Behavior

Power Handling: 76 mm Voice Coil and Endurance-Oriented Design

The 76 mm (3-inch) voice coil with aluminum wire contributes to the speaker's ability to handle high continuous power (specification 700 W AES ). In a properly ventilated and filtered enclosure, this helps maintain stable dynamics and limit thermal compression during extended use.

High Efficiency: An Effective Base for "Projecting" Systems

With 98.5 dB (1 W/1 m), the 12PLB76 clearly targets efficiency. In practice, this means you can achieve high sound levels without relying solely on additional watts, promoting a more responsive sound reinforcement system with better headroom before reaching mechanical or thermal limits.

Mechanical Behavior: Double Roll Suspension, Exponential Cone, and Single Spider

The double roll suspension helps control cone excursion and mechanical durability under heavy use. The exponential cone is a common choice to optimize the balance between stiffness, directivity, and frequency extension in the midrange, while the single spider ensures centering and stability of the voice coil in the gap.

Tuning and Loading: Clear Recommendation for Bass-Reflex

The recommended enclosure volume of 42 liters with a 65 Hz tuning provides a concrete starting point for designing a coherent bass-reflex speaker. By respecting this baseline (net internal volume, port sizing and length, losses), you maximize your chances of achieving a balanced response and clean bass while exploiting the declared useful frequency range.

Technical specifications
