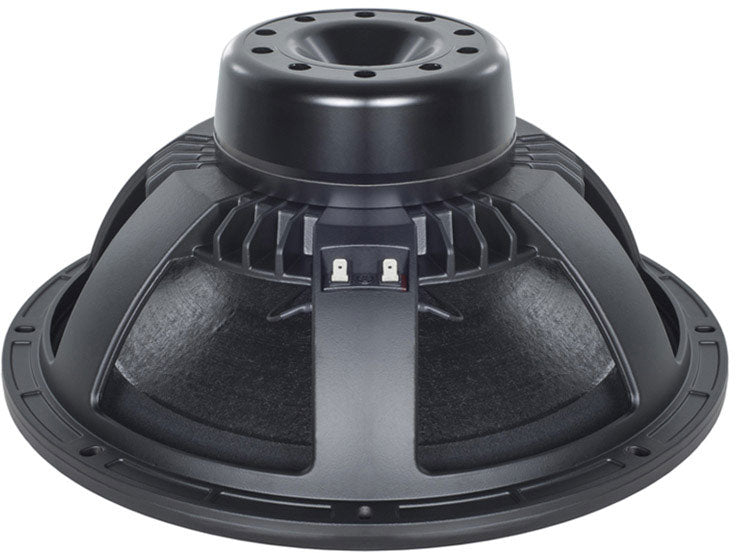

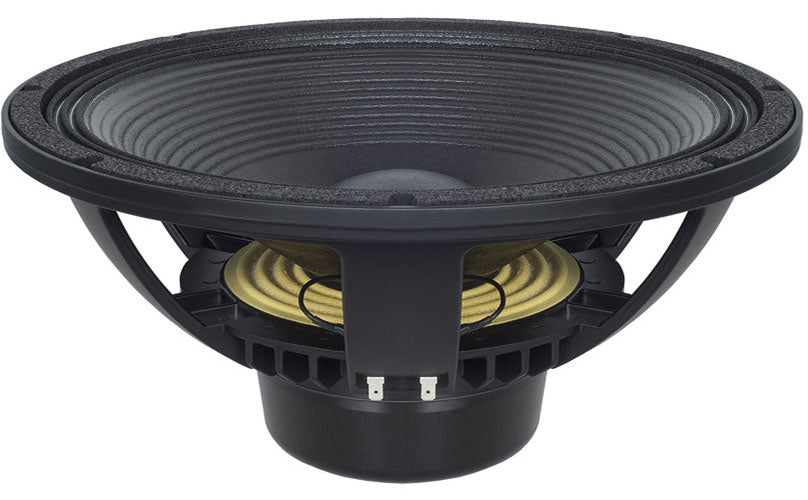

B&C Speakers 15NBX100

A B&C 15-Inch Designed for Modern Sound Reinforcement, Balancing Efficiency and Compactness

The B&C 15NBX100 follows the logic of neodymium magnet woofers: offering a 15-inch (38 cm) transducer capable of delivering high energy in the low spectrum while limiting the weight and size of the motor. This type of woofer is particularly sought after for mobile systems, compact bass-reflex subwoofers, and front speakers that need to remain performant without becoming too heavy to handle.

With its stated sensitivity and high AES power rating, it clearly targets sound reinforcement setups where dynamic reserve and reliability are priorities, whether as a replacement (recone) or in DIY speaker building projects around a high-efficiency 15-inch driver.

Who Is It For and What Are Its Uses?

This B&C woofer is aimed at integrators, rental companies, sound technicians, and speaker-building enthusiasts who want a serious 15-inch driver for stage and event use. It performs well in a bass-reflex enclosure oriented towards impact and extension, but also in two-way or three-way speakers when the crossover and enclosure are properly matched.

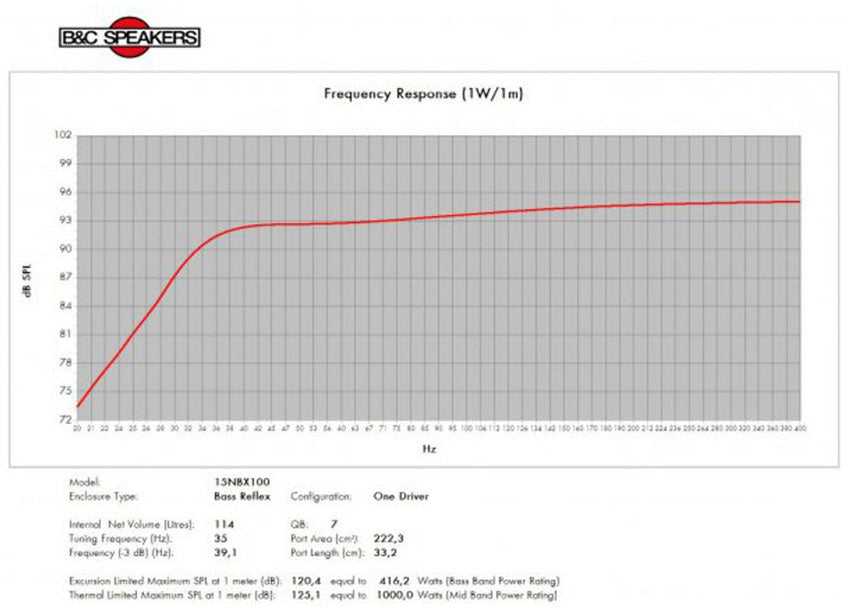

Thanks to its bandwidth up to 1.5 kHz, it can be paired with a compression driver on a horn (via an appropriate crossover) or serve as a low-mid driver in certain designs. Its recommended tuning (114 L at 35 Hz) makes it a relevant choice for achieving clean and solid bass with good control, rather than just a flattering "boom."

Design and Performance: What Makes the Difference

AES Power, Control, and Dynamics

The 1000 W AES power rating and 100 mm voice coil give the 15NBX100 a real capacity to endure prolonged high-level use. The goal is to maintain dynamics and a consistent response when the system is pushed, especially on kick drum hits, synthetic basses, and sustained bass lines at high volume.

Useful Excursion and Stable Bass

With a 10.0 mm Xmax, the woofer is designed to generate consistent bass without quickly leaving its useful operating range. The accordion suspension and double silicone spider contribute to mechanical stability: the cone movement is better guided, with less drift as the level rises, which results in clearer and cleaner bass in sound reinforcement.

Cone Geometry and Enclosure Integration

The exponential cone is a key element for balancing efficiency, power handling, and behavior in the low-mid range. In a front speaker, this helps maintain attack and good projection. In a subwoofer, it enhances efficiency in the useful range, provided the recommended volume and tuning are respected to exploit extension (35 Hz) without over-exciting the driver.

Neodymium Magnet: Power, Weight, and Practicality

The neodymium magnet allows for a high-performance motor in a lighter format than an equivalent ferrite solution, while maintaining strong cone acceleration capability. For portable systems, this is a concrete advantage: easier handling, reduced fatigue, and the ability to design more "tour-ready" enclosures without sacrificing headroom.

Technical specifications
