The "LIT" Version Illuminating the PBR Range
True to Black Lion Audio's manufacturing standards, the PBR TT-LIT represents the illuminated evolution of the PBR series' 96-point TT patchbay. It retains the studio-favored TT/DB25 topology and adds a clear, editable LED display designed to ensure reliable cabling and speed up workflow, even in low light conditions.Who Is It For and What Is It For?
Ideal for professional and hybrid studios, broadcast control rooms, or post-production suites, the PBR TT-LIT is aimed at users who frequently route insert chains, reamping, parallel processing, or complex monitoring setups. Its intelligible display reduces errors, its 2U format saves space, and its TT/DB25 connectivity streamlines cable bundles.Key Features for Uncompromising Routing

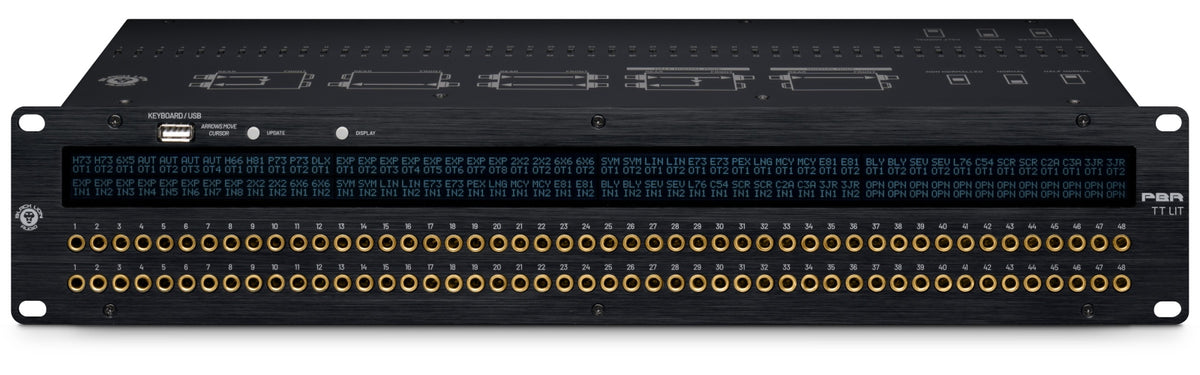

Customizable LED Display
Each patch point features a bright LED display, editable up to 12 characters to name sources and destinations. A quick press of the dedicated button turns off the display. Program directly via a USB keyboard connected on the front, or prepare your layouts in PatchCAD (Mac/Win), export to a USB drive, then load them into the unit instantly.Flexible Normalization and Accelerated Workflow
Recessed switches on the top panel offer Normal, Semi-normal, and Thru modes, perfect for creating mults, bypassing an insert, splitting monitoring, or parallel processing without repatching your bay. Designed to withstand 10,000 operations or more, they ensure long-term reliability.Premium Connectivity and Silent Operation

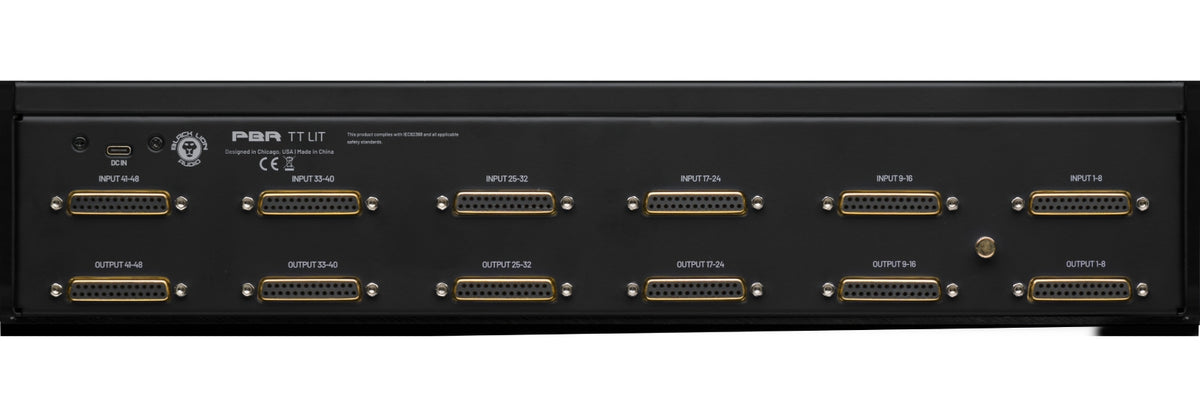

The 96 gold-plated TT jacks and 12 gold-plated D-Sub DB25 connectors provide low contact resistance and clean signal transmission throughout the audio path. A rear grounding terminal helps prevent ground loops. The black anodized aluminum front panel and reinforced steel chassis add rigidity and durability for intensive rack use.Technical specifications
| Number of channels | 96 |
| U-height | 2 |
| 3-way mode switches mounted on top | Normal, Semi-normal, and Thru |
| Dimensions (W x D x H) | 482.6 x 184.2 x 88.9 mm |
| Weight | 4.2 kg |
Questions frequently asked
How many patch points does the Black Lion PBR-TT LIT offer?
This patchbay features 96 TT jacks on the front panel and 12 gold-plated D-Sub DB25 connectors on the rear.
How to label connections on a TT patchbay with an LED display?
Each patch point has an editable 12-character LED display. Programming is done via a USB keyboard connected on the front or through PatchCAD on Mac and Windows, with import from a USB stick.
What normalization modes are available?
The recessed switches on the top panel offer Normal, Semi-normal, and Thru modes. This configuration allows bypassing an insert, creating a mult, or organizing parallel processing. The switches are rated for at least 10,000 cycles.
Does the PBR TT-LIT take up a lot of space in a rack?
The unit occupies 2U, with dimensions of 482.6 x 184.2 x 88.9 mm and a weight of 4.2 kg.
How to minimize ground loops with this patchbay?
A ground terminal located at the rear helps prevent ground loops. The front panel is made of black anodized aluminum, while the reinforced chassis is steel.
