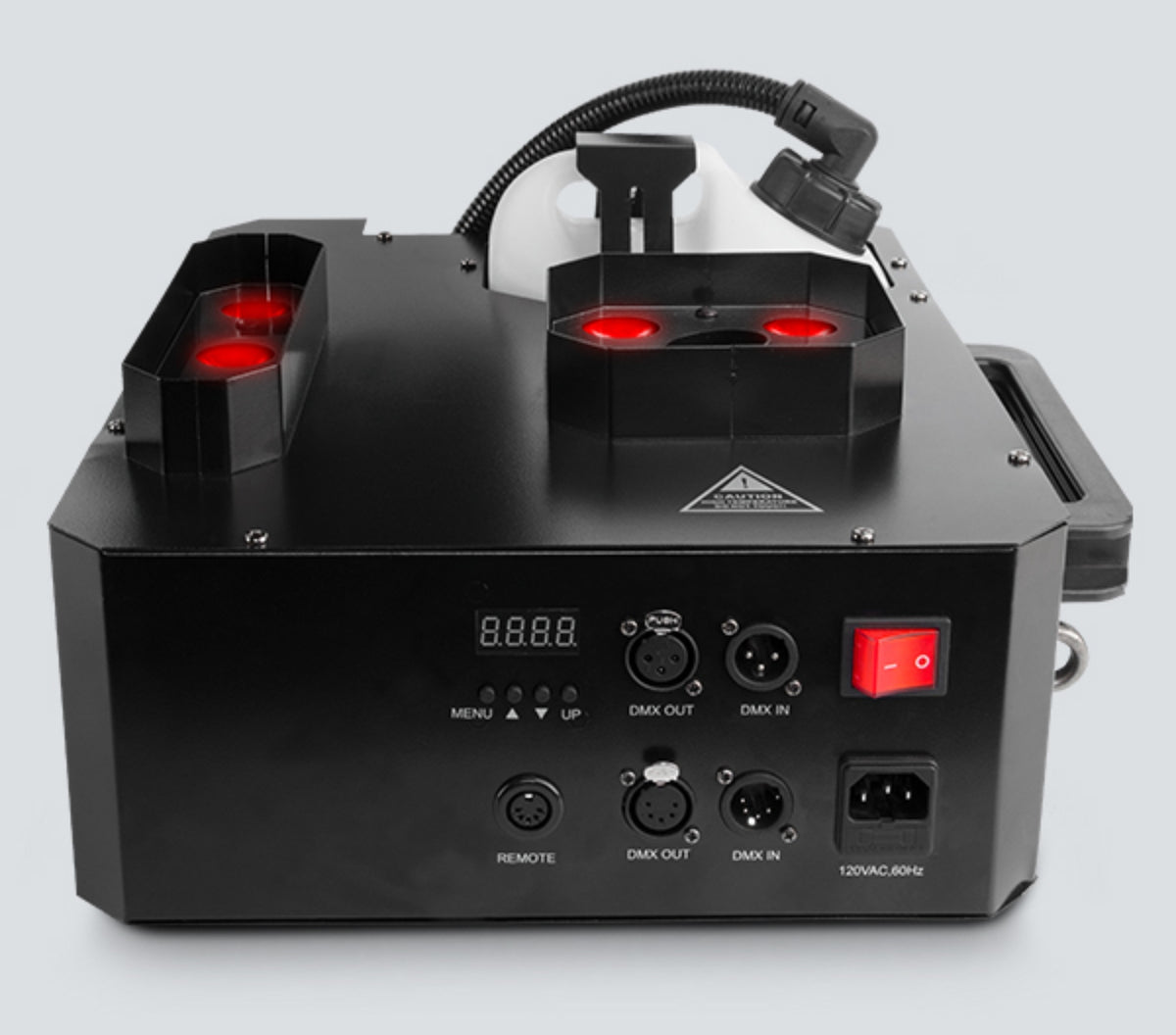

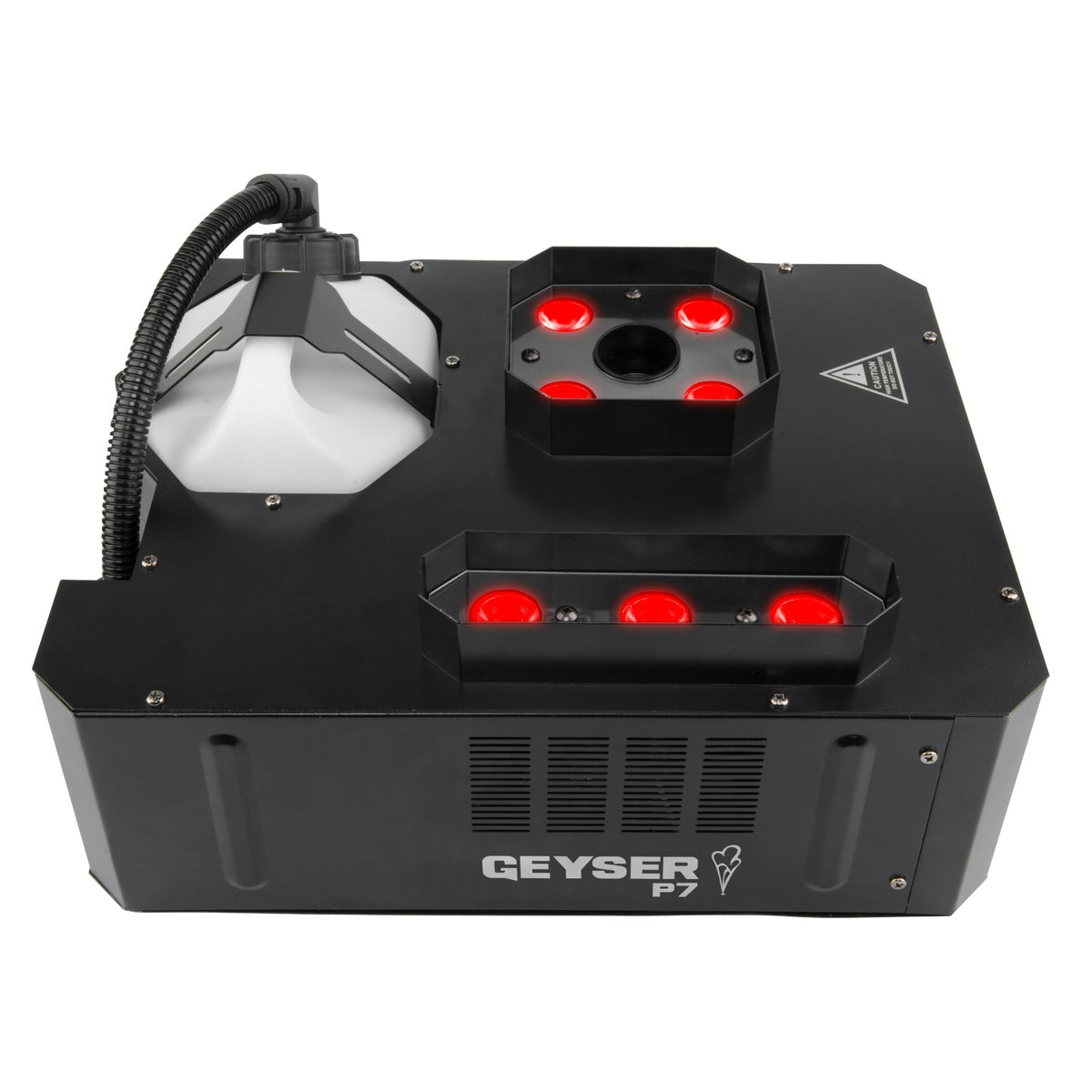

Chauvet DJ Geyser P7
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Chauvet Dj
https://www.chauvetdj.com
------------------------
Safety manager:
Chauvet Europe
Email: eutech@chauvetlighting.com
Address:
An immersive "geyser" effect for stage, club, and events
Ideal to enhance an artist's entrance, energize a drop, or punctuate a climax, the "Geyser P7" projects a vertical jet of dense smoke tinted by a crown of RGBA+UV LEDs. In clubs, on stage, during mobile DJ sets, in theater, or fixed installations (bar, restaurant, multipurpose room), it creates an instant visual impact without heavy logistics. Its integrated strobe allows rhythmizing the effect, from soft breath to powerful blast, with excellent stage visibility at both short and medium distances.
Who is this effect machine made for?
Designed for mobile DJs, lighting technicians, event companies, and venue operators, it is also suitable for caterers/reception venues seeking a signature effect for weddings and private parties. It offers immediate handling via the remote control, while the 15 DMX channels provide fine integration into a lighting desk for more demanding productions.
Features and innovations
The light core relies on 7 penta RGBA+UV 9 W LEDs, ensuring a rich color mix (amber, deep red, pastel tones, UV accents) to sculpt the jet according to the musical atmosphere. Illuminance measured at 2 m (506 lux center, 390 lux linear) guarantees a clear beam presence even with an already loaded lighting rig.
On the effect side, the output flow of 17,000 cfm and liquid consumption of 90 ml/min offer an excellent density/endurance ratio, while the 2.5 L reservoir limits refills during operation. Heat-up time is about 4 minutes, convenient for quick stage changes. Control adapts to all contexts: DMX 15 channels for detailed mapping (colors, intensity, strobe, jet trigger), or included wireless remote control for on-the-fly triggers from the front panel.
Technical specifications
| Source | 7 penta RGBA+UV LEDs, 9 W (3 A) per LED | DMX channels | 15 |
| Nominal lifespan | 50,000 h | DMX connectors | XLR 3-pin and XLR 5-pin |
| Illuminance at 2 m | 506 lux (center) ; 390 lux (linear) | Local control | included wireless remote control + Geyser receiver |
| Strobe rate | 0 to 20 Hz | Optional controllers | WMS |
| Maximum output | 17,000 cfm | Input voltage | 120 VAC, 60 Hz or 230 VAC, 50 Hz |
| Liquid consumption | 90 ml/min | Power and current | 1,290 W, 11.3 A @ 120 V / 60 Hz |
| Reservoir capacity | 2.5 L (0.7 gal) | Dimensions | 15.7 x 14.2 x 8.2 in (400 x 362 x 210 mm ) |
| Compatible fluids | QDF | Weight | 8.5 kg (18.2 lb ) |
| Heat-up time | 4 min | Approvals | CE |
Questions frequently asked
Chauvet DJ Geyser P7: what DMX connectivity is available?
DMX control uses 15 channels to manage the jet, colors, intensity, and strobe effect. DMX connectors are provided in 3-pin and 5-pin XLR formats.
What fluid should be used with this geyser machine?
The specified compatible fluid is QDF. The tank holds 2.5 L and the announced consumption reaches 90 ml per minute.
How much warm-up time is required?
A warm-up time of approximately 4 minutes is announced before use.
Do the LEDs allow coloring the smoke and creating a strobe effect?
The light ring integrates 7 RGBA+UV 9 W LEDs. It allows tinting the smoke jet with colors including amber and UV accents. The built-in strobe is adjustable from 0 to 20 Hz.
Is a remote control provided to trigger the jet?
A wireless remote and a Geyser receiver are included for local control. The WMS controller is listed as optional.
