Cordial DMX XLR 3-pin + Powercon Cable 3 M

Name: DMX XLR 3-pin + Powercon Cable 3 M
Brand: Cordial
SKU: 259965
Price: 99.00 EUR
Availability: InStock

99,00 €VAT incl.

0,05 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 259965

EAN : 4250197640220

Information

Essential Information About the 3 m DMX PowerCon XLR Cable
• Hybrid DMX and power cable ideal for neatly connecting your spotlights, LED bars, moving heads, and compatible stage equipment.
• Neutrik connectors with PowerCon and XLR for a reliable, stable connection designed for demanding installations.
• Oxygen-free copper and shielding with tinned bare copper braid to preserve DMX signal quality.
• Robust black PVC jacket, flexible and discreet, suitable for live performances, studios, clubs, and lighting control booths.

DMX XLR 3-pin + Powercon Cable 3 M

99,00 €VAT incl.

0,05 € Ecotax included

Reference price

Essential Information About the 3 m DMX PowerCon XLR Cable

Hybrid DMX and power cable ideal for neatly connecting your spotlights, LED bars, moving heads, and compatible stage equipment.
Neutrik connectors with PowerCon and XLR for a reliable, stable connection designed for demanding installations.
Oxygen-free copper and shielding with tinned bare copper braid to preserve DMX signal quality.
Robust black PVC jacket, flexible and discreet, suitable for live performances, studios, clubs, and lighting control booths.

Technical specifications

Connectors	powerCon, 3-pin XLR	Oxygen-free copper	Yes
From connectivity	XLR 3-pin female	Connector brand	Neutrik
Towards connectivity	XLR 3-pin male	Cable cross-section (mm²)	1.5 SQUARE_MILLIMETER
Category	DMX cable	Shield type	tinned bare copper braid
Format	straight	Color	Black
Sheath material	PVC	Length (m)	3 m

Questions frequently asked

What connectors does the Cordial Cable DMX XLR 3 Points + Powercon 3 M cable feature?

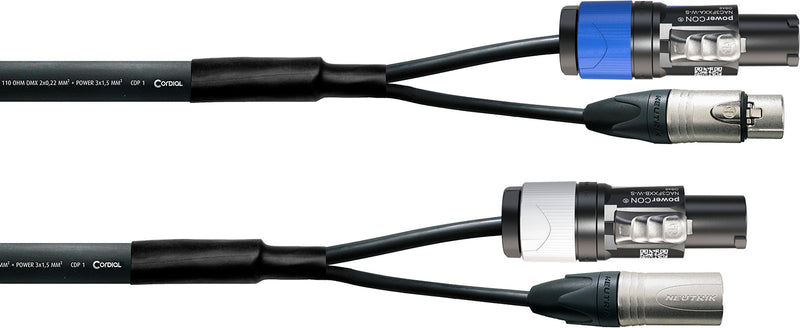

The connection includes a blue female PowerCon and a female 3-pin XLR on one end, with a gray male PowerCon and a male 3-pin XLR on the other end.

Is this DMX PowerCon cable suitable for LED spotlights and bars?

This model is compatible with stage equipment including spotlights, LED bars, and moving heads. It combines power and DMX signal in a 3-meter cable. This setup simplifies close connections on trusses, stands, or flight cases.

What is the length of the cable?

The cable length is 3 meters, suitable for short-distance connections between lighting devices.

Is the cable properly designed for a DMX signal?

Its Cordial CDP 1 cable has an impedance of 110 ohms, matching the requirements of the DMX signal. Shielding is provided by a braid of tinned bare copper.
