Definitive Audio Td 200 Pt
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Definitive Audio
https://www.definitiveaudio.co.uk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
UHF PLL Architecture Designed for Stability and Frequency Coexistence
Built around a UHF band and a PLL (phase-locked loop) circuit, this system aims for stable transmission and strong performance in crowded environments. The logic of predefined frequency groups facilitates the selection of compatible channels, while the wide tuning bandwidth (depending on the region) allows fine adjustment of the available spectrum usage. The system also includes an antenna distribution system designed to reduce interference caused by mutual radiation.
Who Is This Wireless Mic Kit For and What Are Its Uses?
This kit is particularly suited for performances where hands-free operation and consistent diction are desired: conferences, presentations, hosting, group classes, theater, or places of worship. The headset microphone offers close placement to the mouth, useful for projected voice and dynamics, while the lavalier prioritizes discretion on camera. With two pocket transmitters, you can easily alternate between two speakers or two microphone positions depending on your staging.
Key Features for Quick Setup and Controlled Sound
Infrared ACT Synchronization
The ACT function enables wireless synchronization of the transmitter via an infrared interface. Result: you save time when setting up the system, especially during quick setups and stage changes.

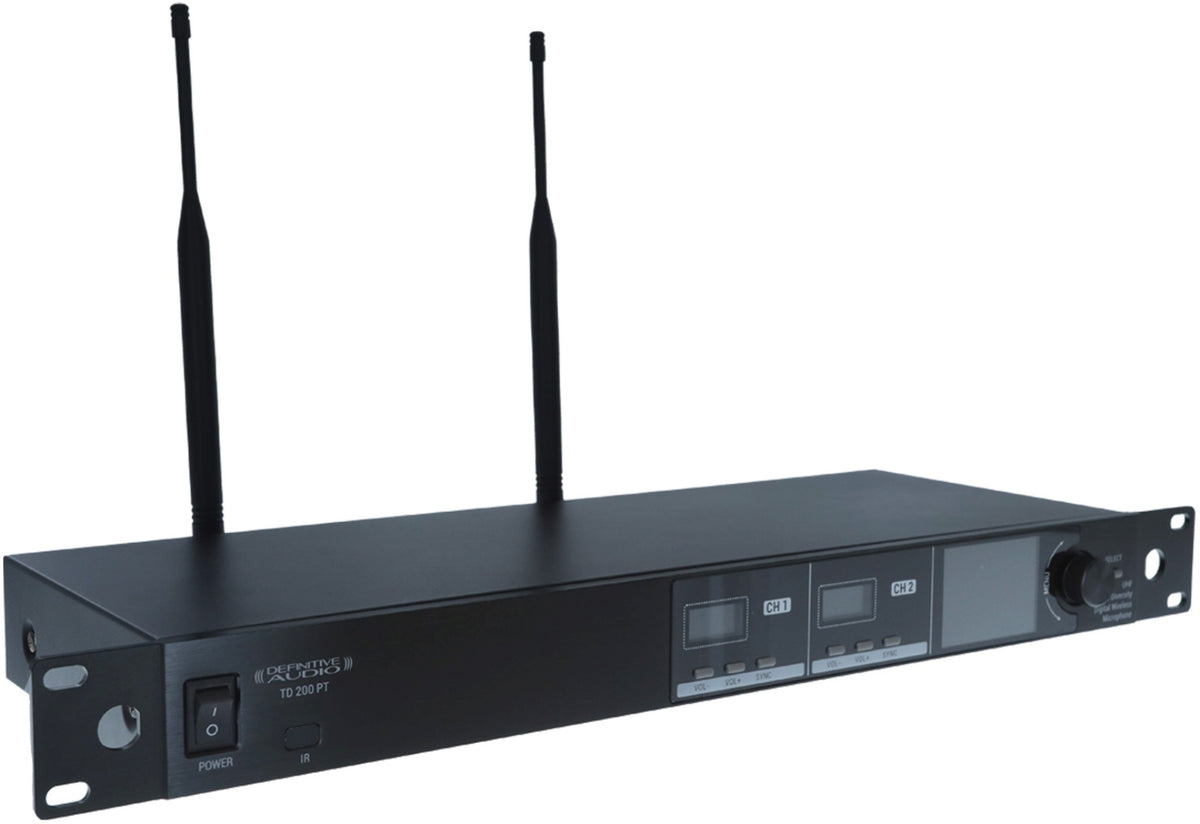

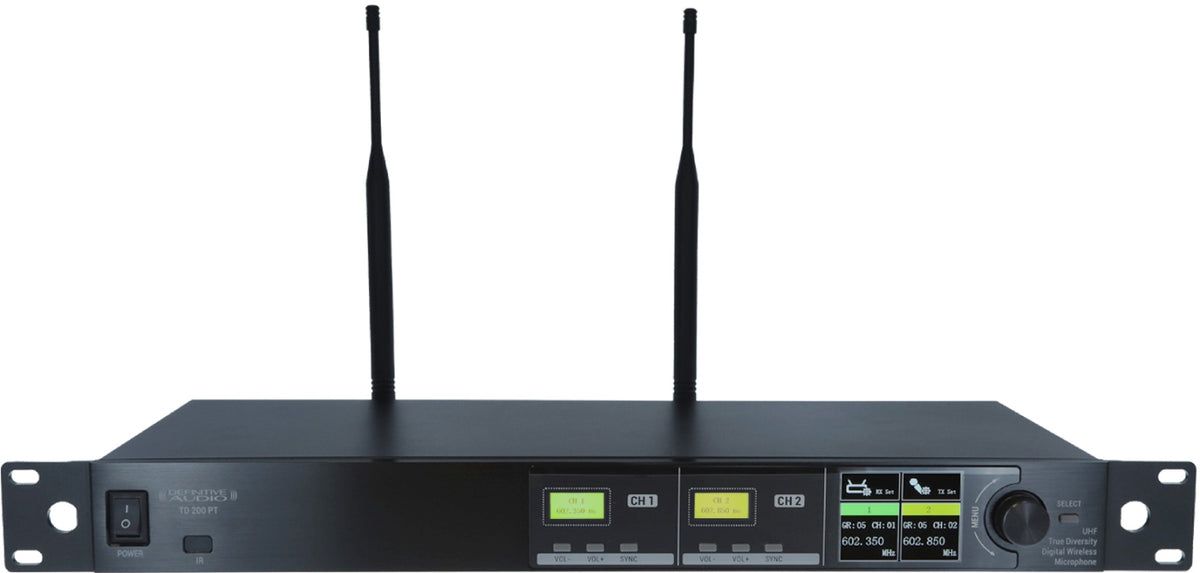

Immediate Reading Thanks to Color LCD Screens
The receiver features a color LCD screen (LCD + LED panel display announced), and the pocket transmitters also have a color LCD. The design includes a main display and four sub-displays to visualize functions, as well as an adjustable background color and color consistency between transmitter and receiver to better identify the link between components.
True Diversity Reception and Antenna Management
With two separate antennas and two mounts, True Diversity reception aims to secure the connection by minimizing losses caused by movement and multipath propagation. The integrated antenna distribution system is designed to effectively reduce mutual antenna radiation interference.
7-Band Equalization and Frequency Response
A 7-band adjustable equalizer processor helps tailor the voice to the context (reverberant room, need for presence, reduction of intrusive low mids, etc.). The frequency response is specified as 50 Hz to 16 kHz with a flat response, and an integrated frequency response on the receiver side up to 18 kHz (+/-3 dB).
Technical specifications
| Category | Complete system | Directivity | cardioid |
| Type | dual UHF microphone system with 2 pocket transmitters, True Diversity | Integrated THD | less than 0.5 percent at 1 kHz |
| Included microphones | 2 headsets and 2 lavaliers | Panel display | LCD + LED |
| Frequency band | UHF 580 to 608 MHz | Screen | color LCD |
| Circuit | PLL (phase-locked loop), stable characteristics, low harmonic radiation | Background color | adjustable (sub-display design) |
| Frequency group design | multiple predefined groups compatible with usage frequency | Function display | 1 main display + 4 sub-displays color LCD |
| Tuning bandwidth | up to 50 MHz for up to 2000 switchable frequencies (depending on region) | Chassis | 1U half-rack |
| Integrated antenna distribution system | reduces mutual radiation interference | Mounting | rack brackets included |
| ACT function | wireless synchronization of transmitter via infrared interface | Antennas | 2 antenna mounts, 2 separate antennas for improved reception |
| Equalizer processor | 7-band adjustable equalization | Output | 1 balanced XLR output |
| Declared frequency response | 50 Hz to 16 kHz (flat response) | Dimensions | 483 x 46 x 162 mm |
| Reception channel | single channel | Weight | 3.10 kg |
| Oscillation mode | PLL frequency synthesis (phase-locked loop) | Gain | adjustable gain |
| Modulation mode | FM | Maximum transmission power | 13 dBm (depending on region) |
| RF sensitivity | with 6 dBV input, S/N greater than 80 dB | Transmission power | up to 30 mW (depending on region) |
| Operating range | 60 m linear distance | Current consumption | less than 130 mA |
| Mute control mode | audio code and noise lock | Included microphone types | lavalier and headset |
| Integrated frequency response | 50 Hz to 18 kHz (+/-3 dB) | Capsule | cardioid |
Questions frequently asked
Is the Definitive Audio TD 200 PT suitable for conferences and theater?
Both bodypack transmitters can be used with either the 2 supplied headworn microphones or the 2 lavalier microphones. The cardioid capsule and the specified frequency response from 50 Hz to 16 kHz are suitable for speech. The stated range reaches up to 60 m in line of sight.

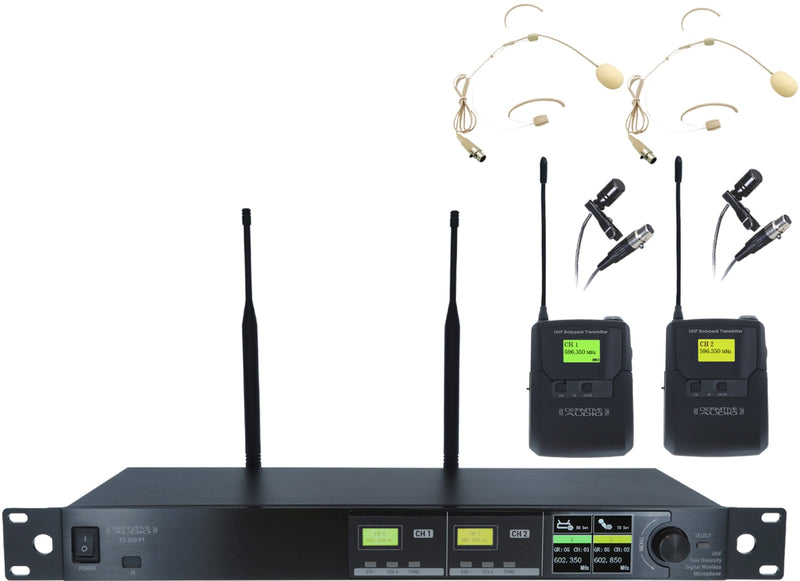

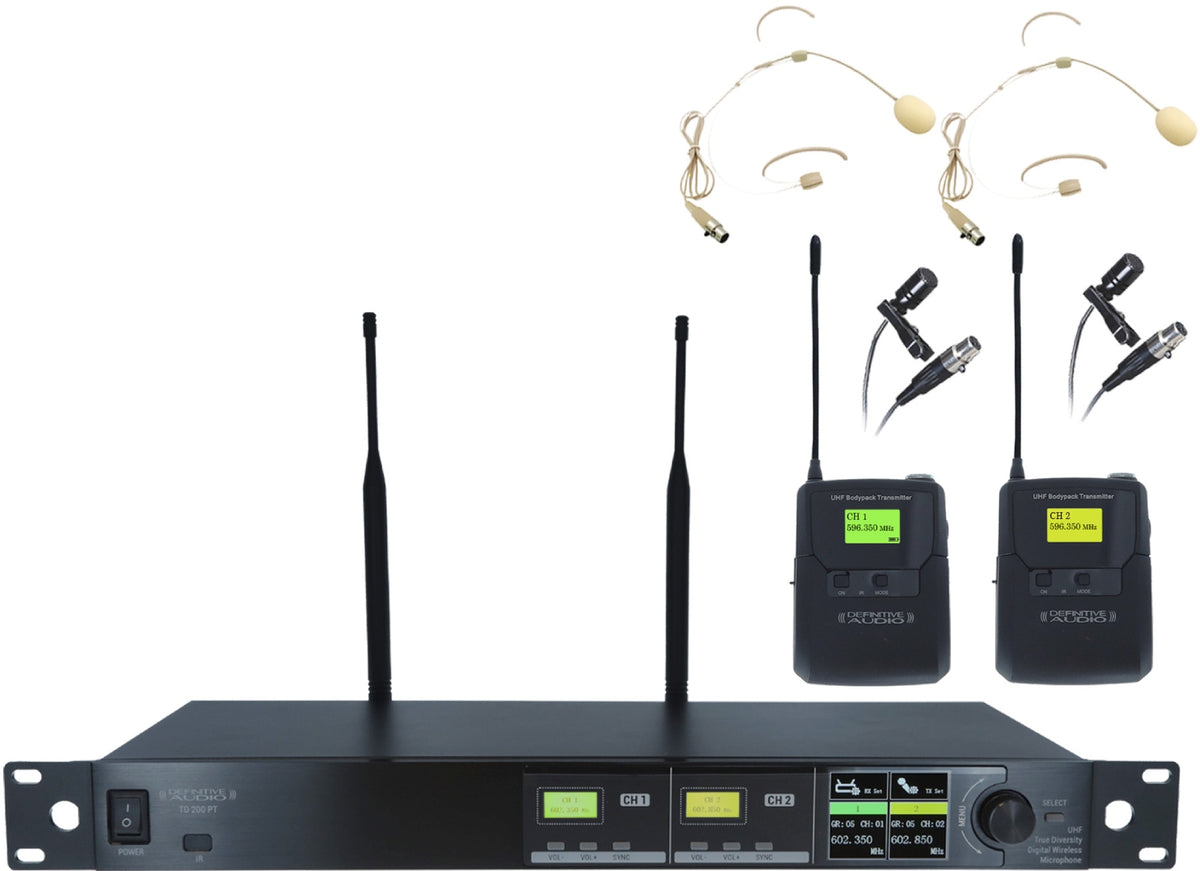

How many microphones are included with this wireless system?
The kit includes 2 bodypack transmitters, 2 headworn microphones, and 2 cardioid lavalier microphones.
How are the frequencies on the TD 200 PT adjusted?
Transmission operates in the UHF band from 580 to 608 MHz with PLL synthesis and FM modulation. Predefined frequency groups make it easy to select compatible channels. ACT infrared synchronization sends the receiver settings to the transmitter.

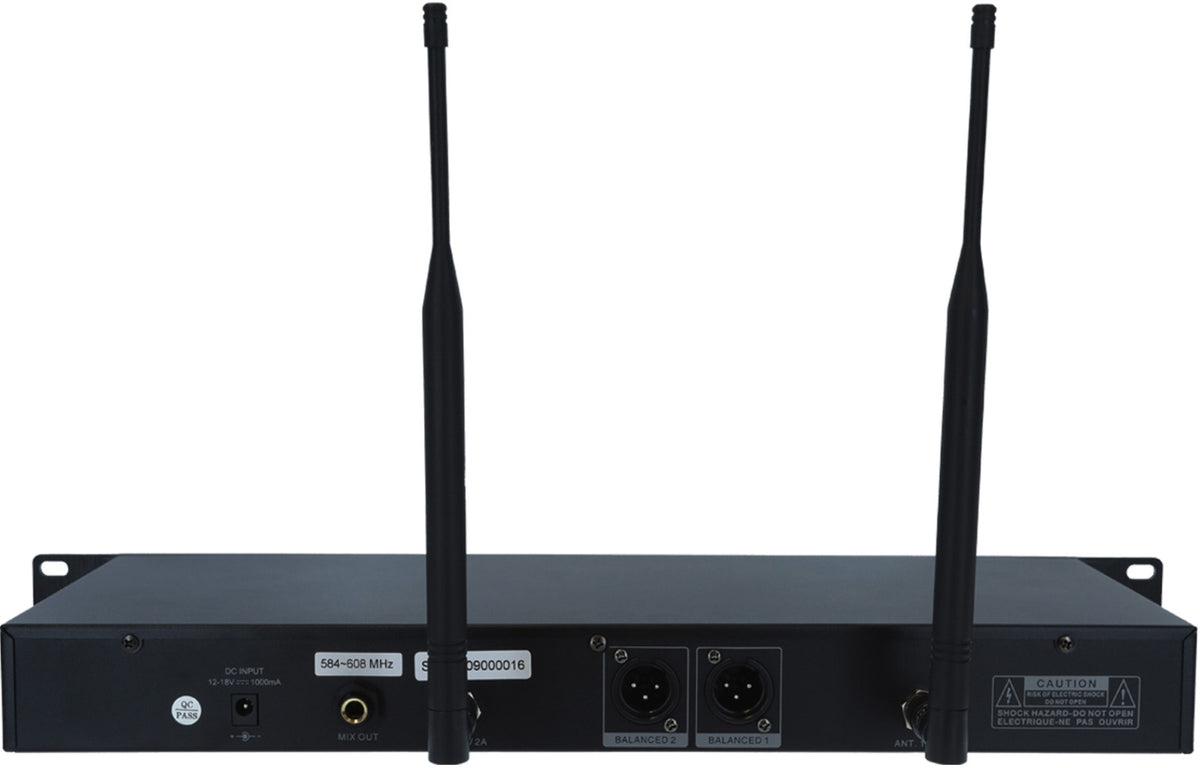

Does the receiver have an XLR output and rackmount format?
The receiver features a balanced XLR output. Its half-rack 1U chassis measures 483 x 46 x 162 mm and rack ears are included.
What reception and audio settings does this wireless microphone kit provide?
True Diversity reception uses 2 separate antennas on bases to reduce signal loss due to movement. A 7-band adjustable equalizer and adjustable gain allow tailoring the vocal sound to the venue. The color LCD displays functions via a main screen and 4 sub-displays.
