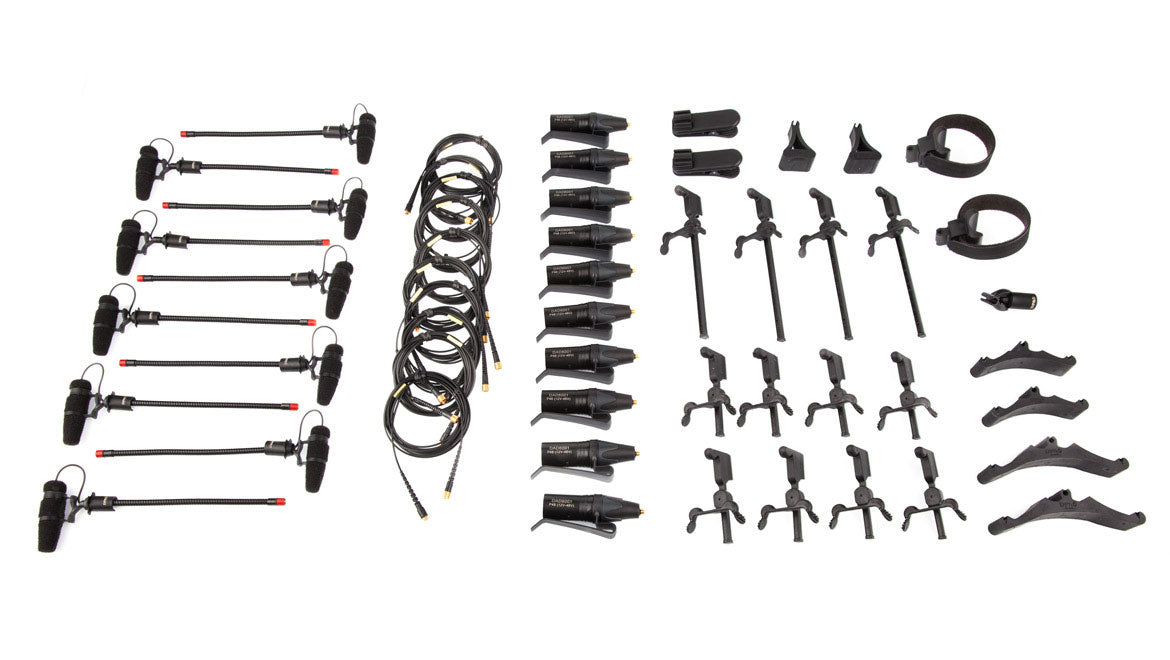

DPA KIT-4099-DC-10c

A DPA Reference for Instrument Microphones, Enhanced by CORE by DPA

Already considered a benchmark for clip-on instrument microphones, the DPA 4099 takes a step further with CORE by DPA, an internal evolution aimed at reducing distortion and improving transparency. The result: more clarity, openness, and detail-from the subtlest playing to the most pronounced attacks. Within the range, this Touring kit is intended for those who want a ready-to-go solution for live, rental, and technical setups, while maintaining the DPA signature: faithful reproduction, close to the instrument's "true voice."

Who Is It For and What Are Its On-Stage Uses?

The DPA 4099 LOUD Touring Kit is designed for musicians, sound engineers, theaters, and service providers who need an efficient system to amplify multiple instruments with a coherent sound. Its supercardioid directivity facilitates work in noisy environments (stage monitors, neighboring drums, brass, amps) while maintaining a natural timbre. The 4099 can be quickly repositioned and moved from one instrument to another (with the appropriate clip), making it particularly practical for stage changes, double bills, and quick transitions.

This Loud SPL version (red marking) is typically used in close proximity on a wide variety of instruments: strings, woodwinds, brass, guitars, piano, light percussion, etc. If you are looking for an "all-terrain" touring-oriented solution, it is an excellent choice to cover the essential needs of a band, ensemble, or orchestra.

CORE by DPA, Shock Mount, and Touring Design: What Makes the Difference

CORE by DPA: More Transparency, Less Distortion

CORE by DPA technology works at the heart of the microphone to minimize distortion and improve clarity. In practice, you get a cleaner image in transients (attacks), a more open high-frequency range, and a better sense of dynamics-particularly appreciated live when the sound capture must remain stable and intelligible within the mix.

Supercardioid: Effective Rejection and Gain Before Feedback

Thanks to its supercardioid directivity and uniform off-axis response, the 4099 helps isolate the instrument and limit unwanted noise. This design promotes a higher gain before feedback, useful when seeking a comfortable level without triggering feedback, especially with close monitors or in dense stage environments.

Optimized Mounting and Daily Reliability

The 4099 CORE features an improved shock mount to better isolate handling noise and rumble. Detachable cables are available in heavy or light versions depending on the application, and the integrated gooseneck extension facilitates quick, precise, and repeatable placement. The whole system is designed for intensive use, with a mounting system that does not damage the instrument's finish and allows for multiple positioning options.

Technical specifications

Frequency response	20 Hz - 20 kHz	Capsule	static electret
Category	instrument microphone	Color	Black

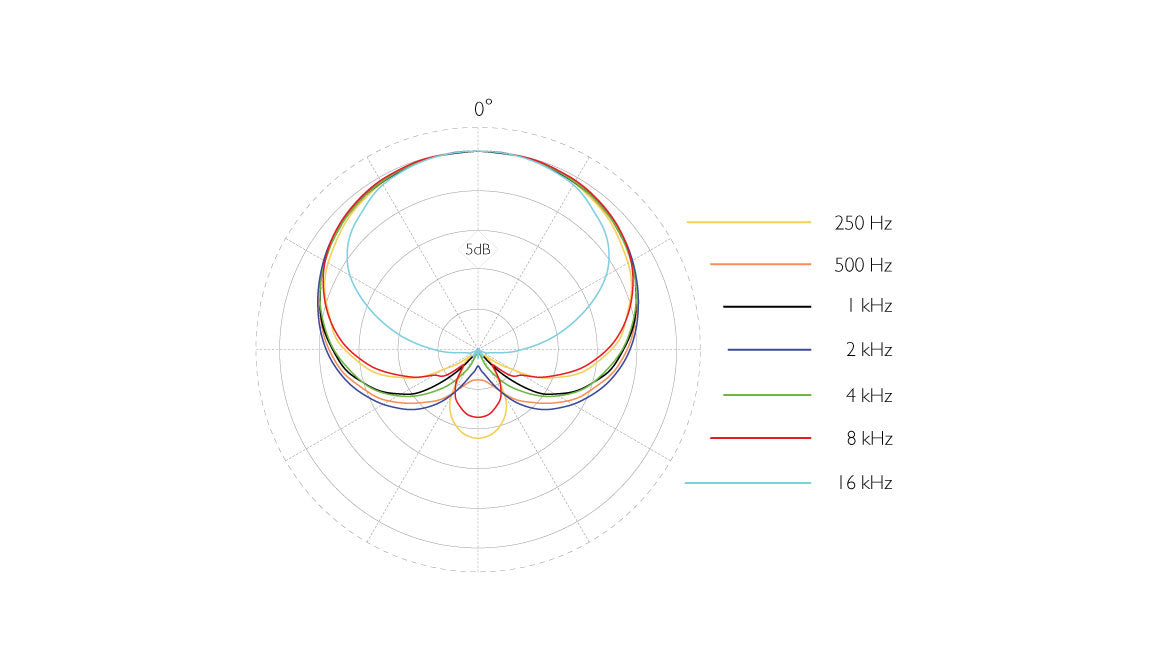

Directivity	supercardioid

Directional pattern	Supercardioid	Output balancing principle	Balanced signal with XLR adapter DAD4099-BC or DAD6001-BC
Operating principle	Pressure gradient	Common mode rejection ratio (CMRR)	Greater than 60 dB from 50 Hz to 15 kHz with XLR adapter DAD4099-BC or DAD6001-BC
Cartridge type	Pre-polarized condenser	Connector	MicroDot

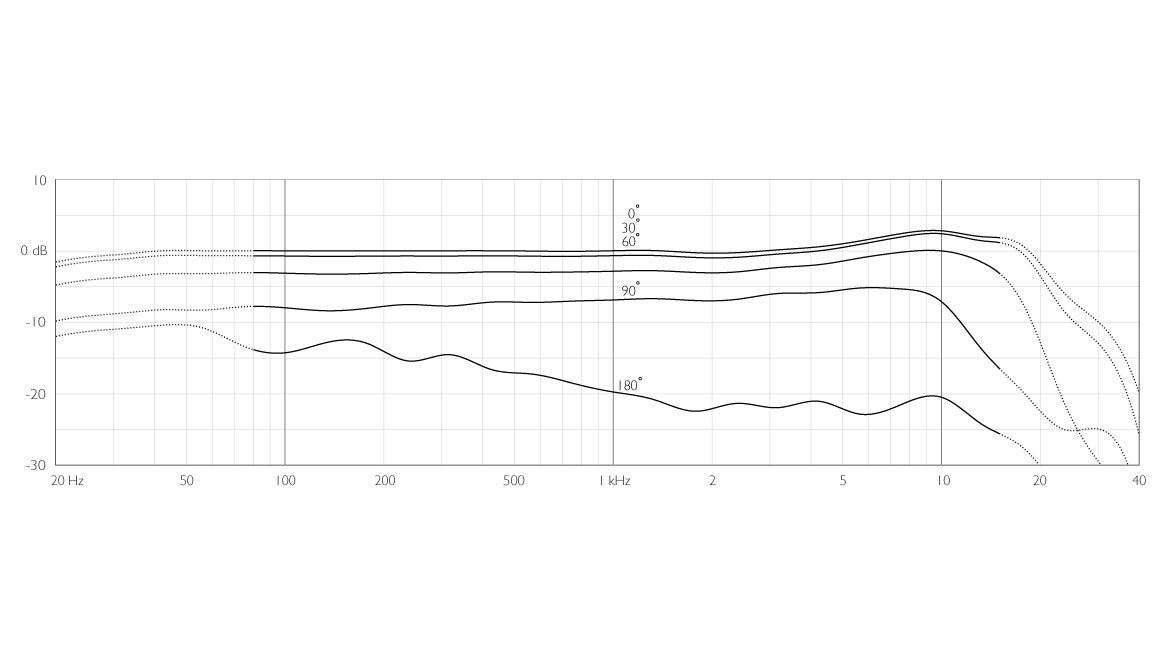

Effective frequency range +/-2 dB at 20 cm (7.9 in)	80 Hz - 15 kHz with a gentle 2 dB boost at 10-12 kHz. Second-order high-pass filter at 80 Hz with DAD4099-BC	Polarity	+V at MicroDot pin for positive acoustic pressure (and pin 2 on XLR adapter DAD4099-BC or DAD6001-BC)
Sensitivity, nominal, +/-3 dB at 1 kHz	6 mV/Pa; -44 dB re. 1 V/Pa	Power supply (for optimal performance)	For wireless systems: Min. 5 V - max. 10 V via DPA adapter; with DAD6001-BC or DAD4099-BC: P48 (phantom power). Operates from 12 V
Equivalent noise level, A-weighted	Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))	Current consumption	Typ. 1.5 mA (microphone); 3.5 mA with XLR adapter DAD4099-BC or DAD6001-BC
Total harmonic distortion (THD) below 1%	128 dB SPL RMS, 131 dB SPL peak	Weight - Microphone	17 g (0.60 oz)
Dynamic range	Typ. 108 dB	Weight - Microphone stand clip (MS4099)	27.5 g (0.97 oz)
Max SPL, 10% THD	142 dB SPL peak	Weight - Cold shoe mount with standard 6.35 mm thread (CS4099)	5 g (0.18 oz)
Nominal output impedance	MicroDot: 30 - 40 ohms. With DAD4099-BC or DAD6001-BC adapter: 100 ohms	Microphone diameter	5.7 mm (0.22 in)
Cable transmission capacity	Up to 300 m with XLR adapter DAD6001-BC/DAD4099-BC	Microphone length	45 mm (1.8 in)
