Electrovoice ELX200-12SP-W White

The ELX200 Series: Electro-Voice Performance Designed for Modern Sound Reinforcement

The ELX200-12SP-W is part of Electro-Voice's ELX200 range, designed to deliver professional sound while remaining easy to deploy. This active subwoofer favors a "ready to work" approach: built-in amplification, accessible DSP processing, and ergonomics designed for performances where quick setup is as important as bass quality. In the white version, it also meets the needs for discreet integration in venues where aesthetics are a key criterion.

What Uses Is the ELX200-12SP-W Designed For?

This subwoofer is ideal if you want to reinforce the low-end foundation in a mobile or fixed sound system setup. In DJ sets, it provides the necessary impact for kicks and synthetic basses while maintaining good clarity at high levels. In live performances, it effectively supports the kick drum and bass guitar and helps relieve the main speakers by handling less low-frequency energy.

Thanks to its 12-inch format and a maximum SPL of 129 dB, the ELX200-12SP-W is particularly suitable for performances in bars, restaurants, multipurpose rooms, small events, conferences requiring clean bass, or permanent installations seeking a compact and easy-to-adjust subwoofer.

Control, Processing, and Integration: A Subwoofer Easy to Use

QuickSmartDSP: Fast Settings, Consistent Results

The QuickSmartDSP allows you to adapt the subwoofer to your setup without needing an external processor. You have 4 presets for quick startup, a 3-band equalizer to shape the bass according to the room, and 5 user presets to save your working settings. The limiter monitoring helps keep bass clean and better manage dynamics when levels rise, while input level and main volume controls facilitate balancing with your tops.

EV QuickSmart Mobile App: Remote Control and Monitoring

For setups where the subwoofer is not easily accessible (under stage, at the back of the room, in installations), the EV QuickSmart Mobile App offers a practical solution for remote configuration, control, and monitoring. The integrated LCD screen remains an asset for quickly checking and adjusting parameters directly on the unit during soundchecks.

Sound Reinforcement-Oriented Connectivity

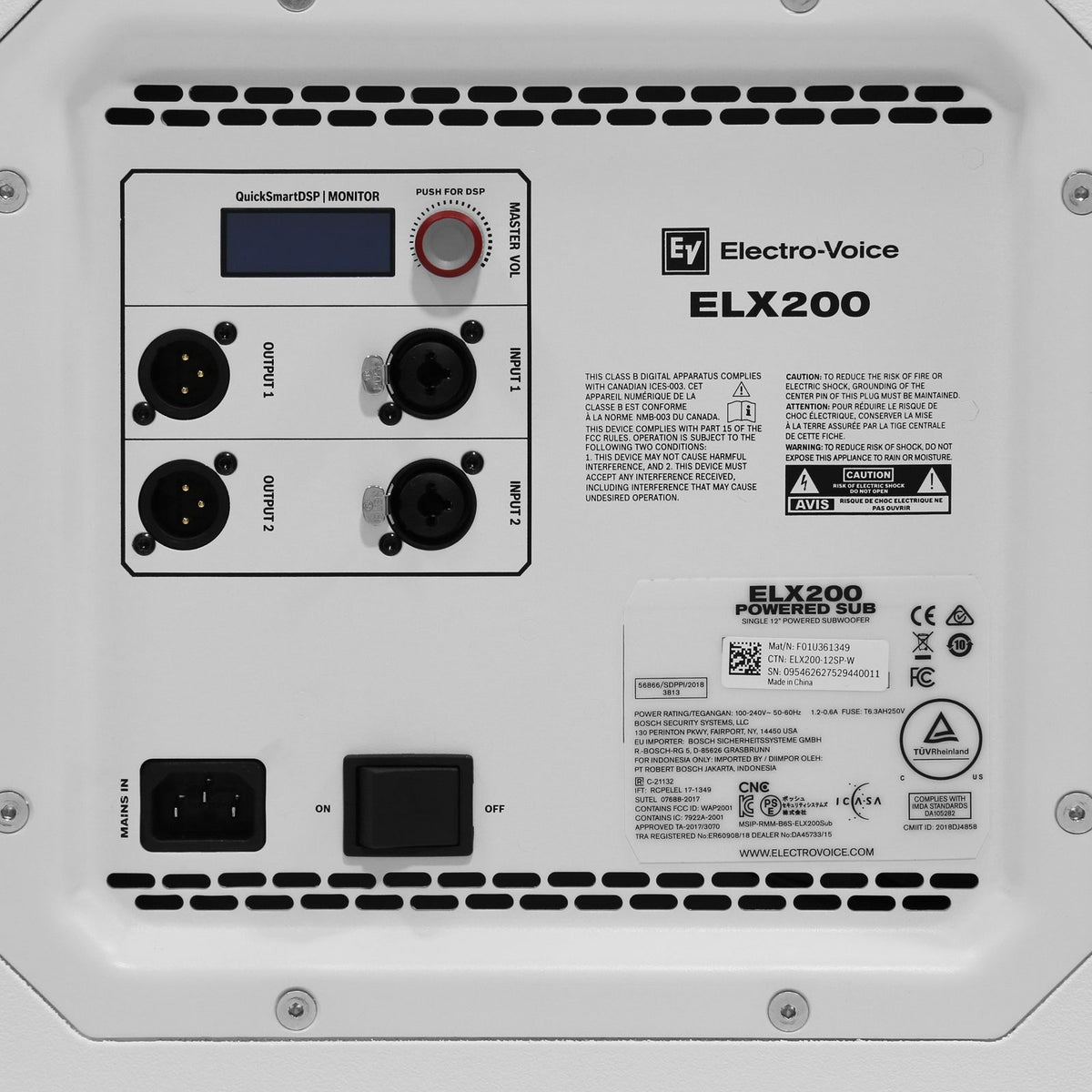

With two combo XLR / 6.35 mm TRS jack inputs and two XLR outputs, the ELX200-12SP-W easily integrates into a professional audio chain. Whether you work with a mixing console, DJ controller, or installed sound system, you have versatile connectivity to properly route the signal and daisy-chain your system.

Technical specifications

Bluetooth

No

Model	Electro-Voice ELX200-12SP-W	Inputs	2 combo XLR / 6.35 mm TRS jack
Type	active subwoofer	Outputs	2 XLR
Design	bass reflex system	Enclosure	15 mm plywood
Power	600 W continuous / 1200 W peak	Finish	durable polyurethane
Max SPL	129 dB	Color	white
Frequency response (-3 dB)	49 Hz // 135 Hz	Grille	18 AWG steel with powder coating

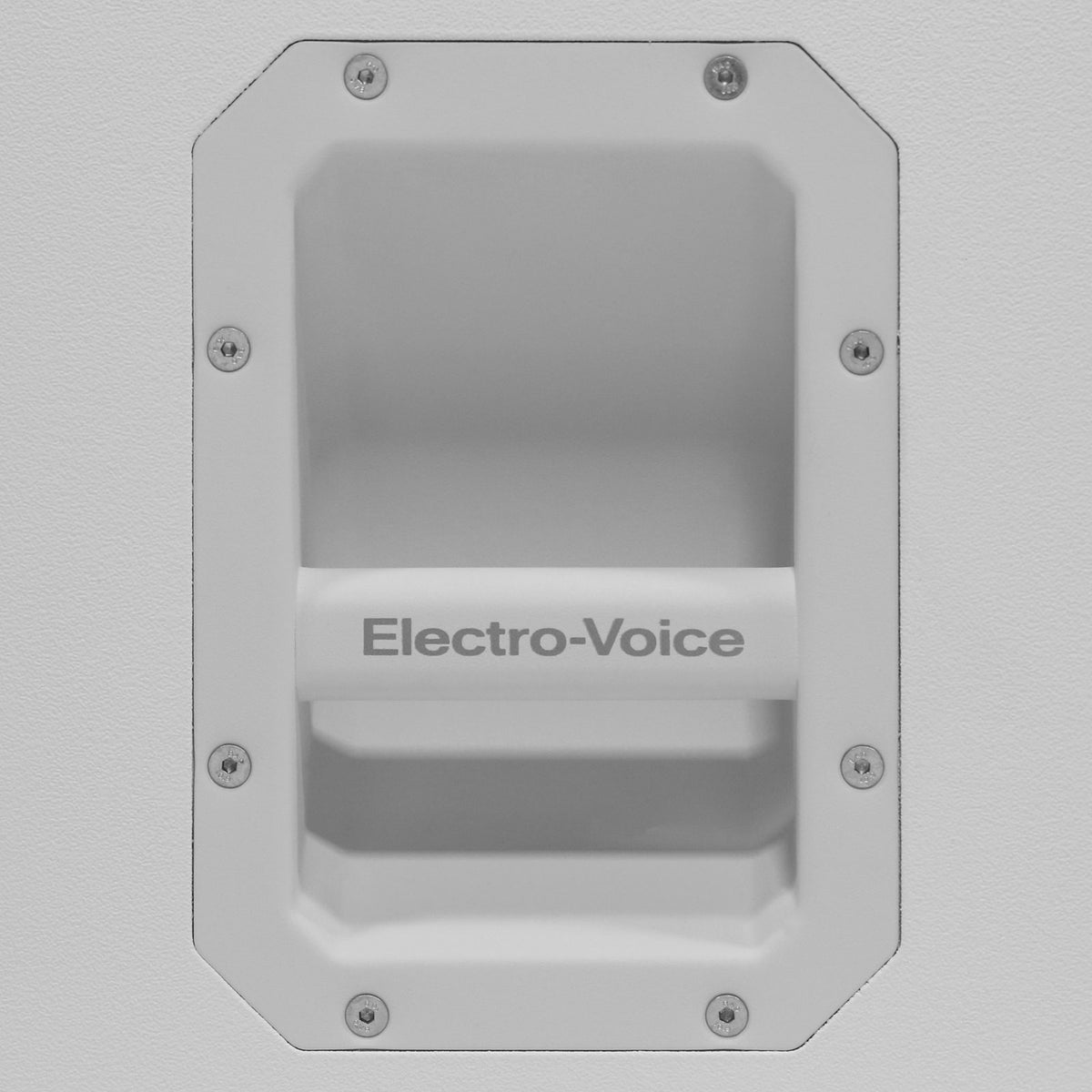

Frequency response (-10 dB)	41 Hz // 165 kHz	Handles	2

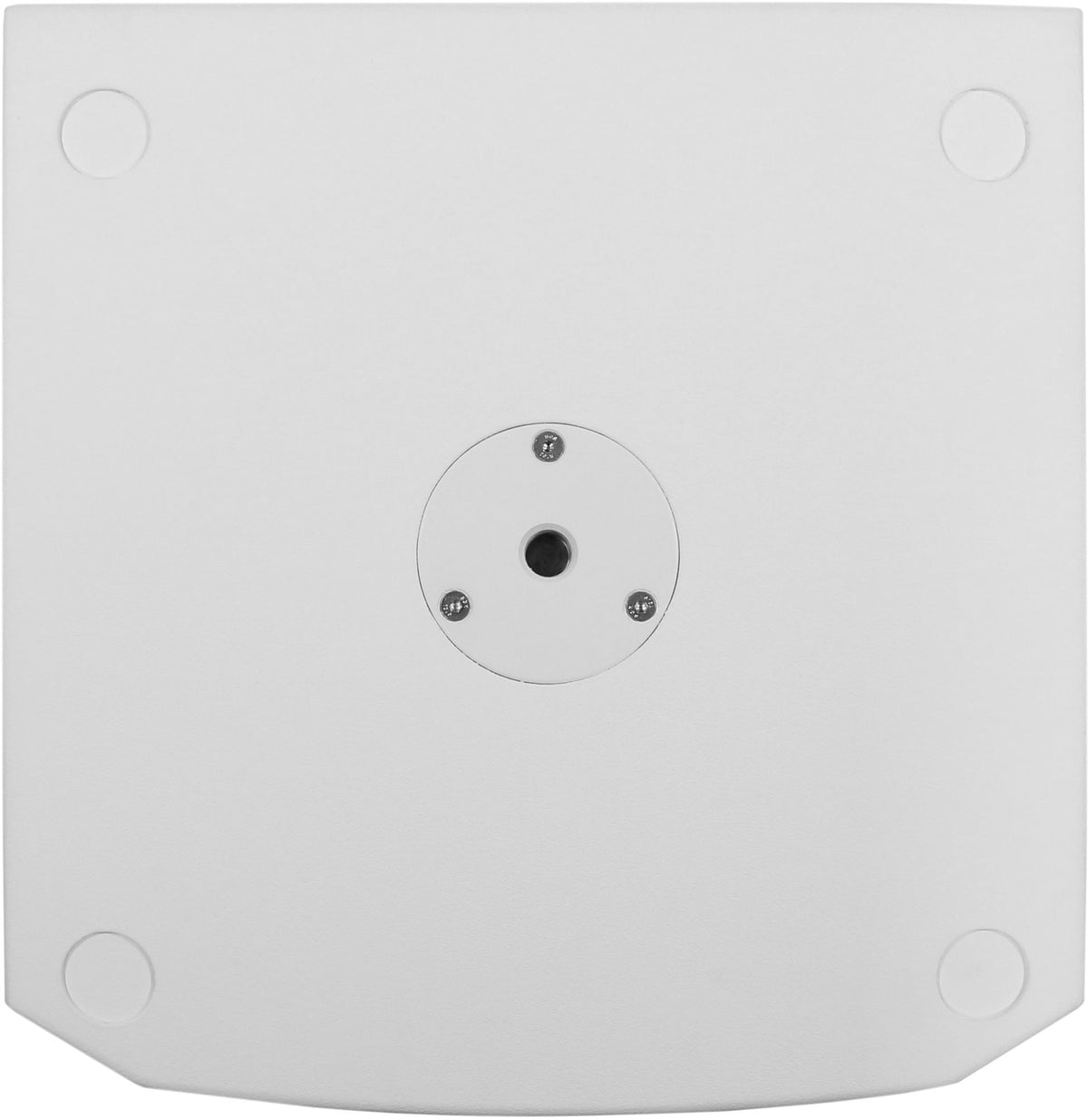

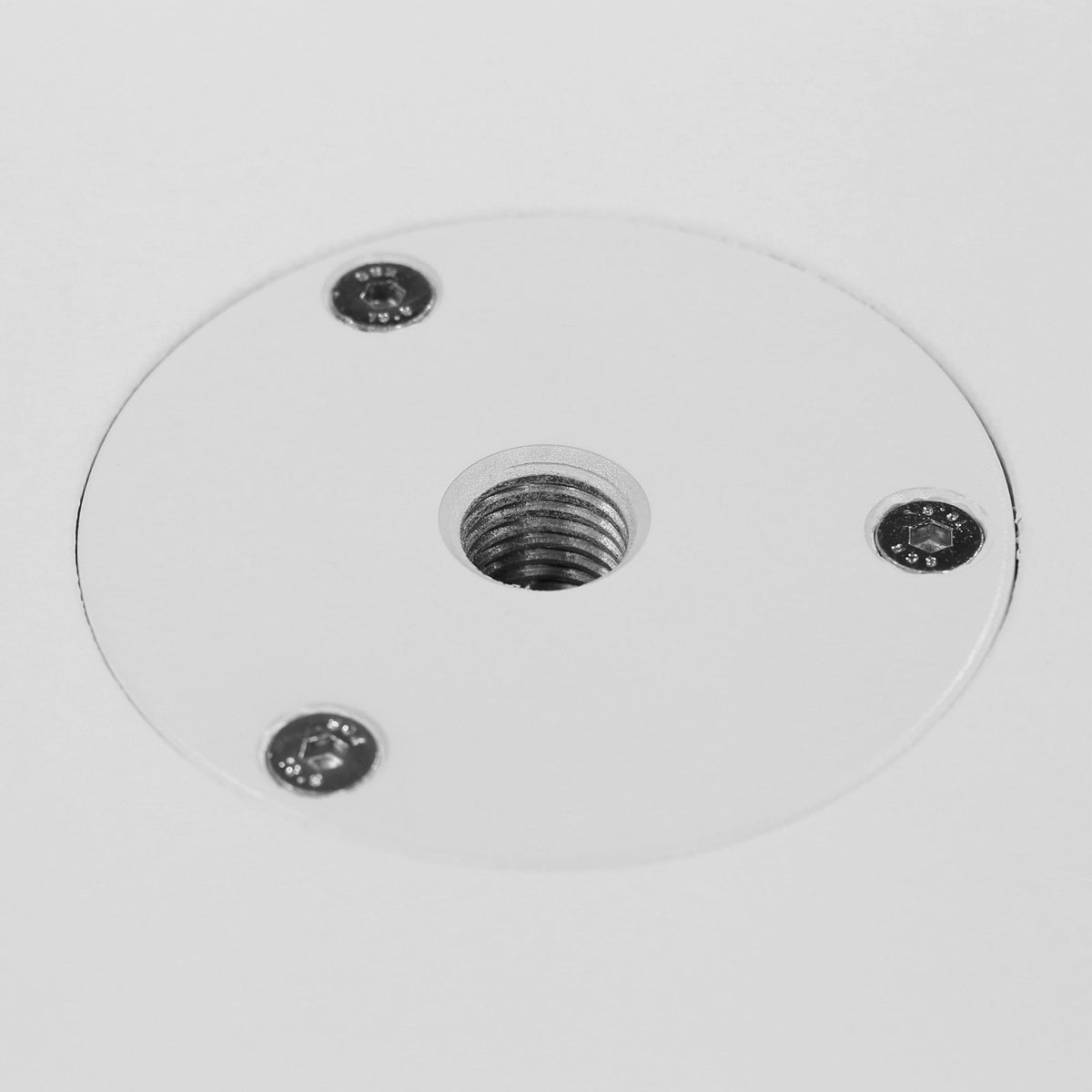

Driver	12-inch (305 mm) EVS-12L	Mounting	M20
EV QuickSmart Mobile App	remote configuration, control, and monitoring of the speaker	Dimensions	457 x 445 x 397 mm
QuickSmartDSP	4 presets, 3-band equalizer, 5 user presets, limiter monitoring, input level control, main volume control	Weight	19.1 kg
Display	LCD
