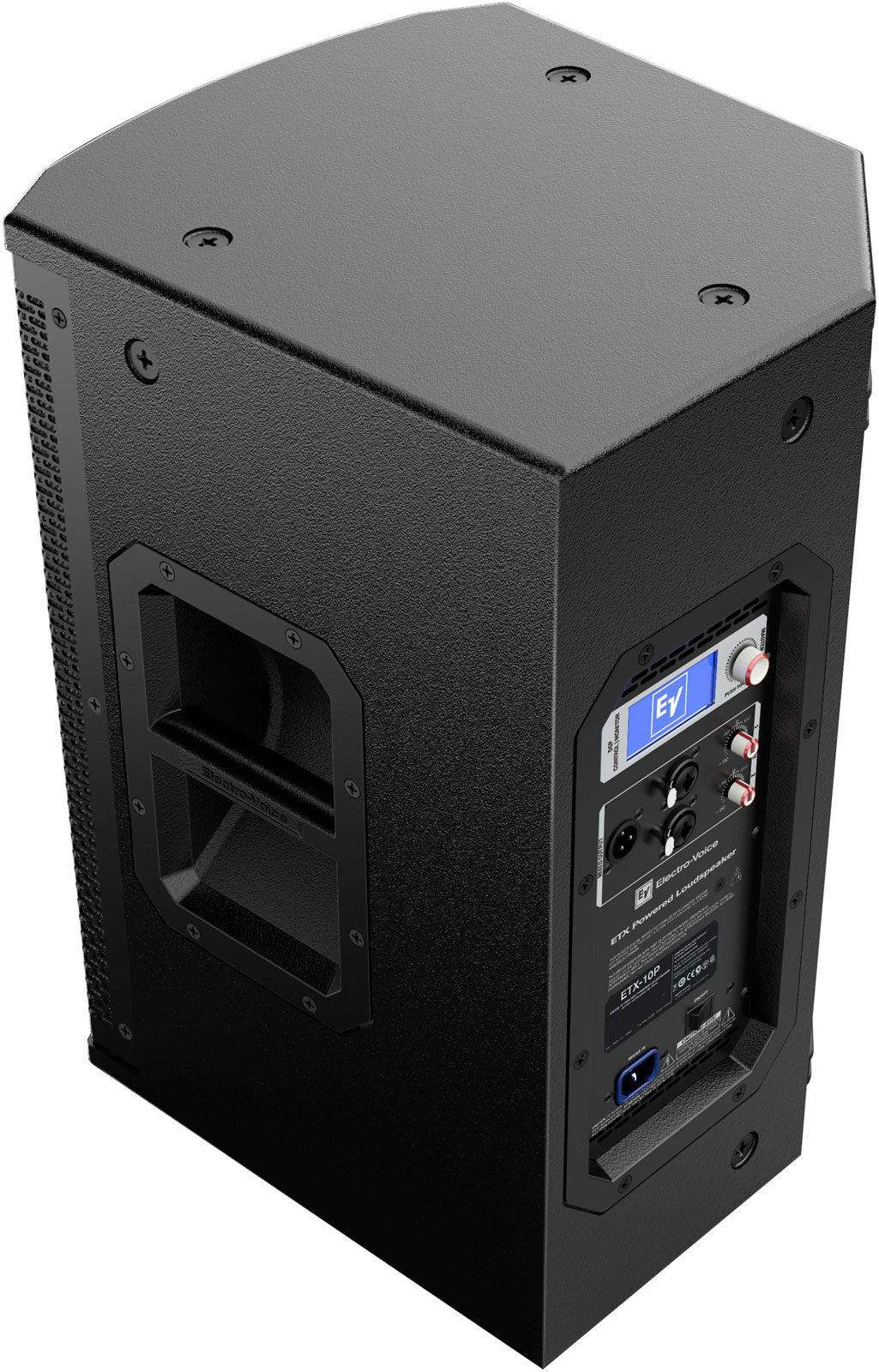

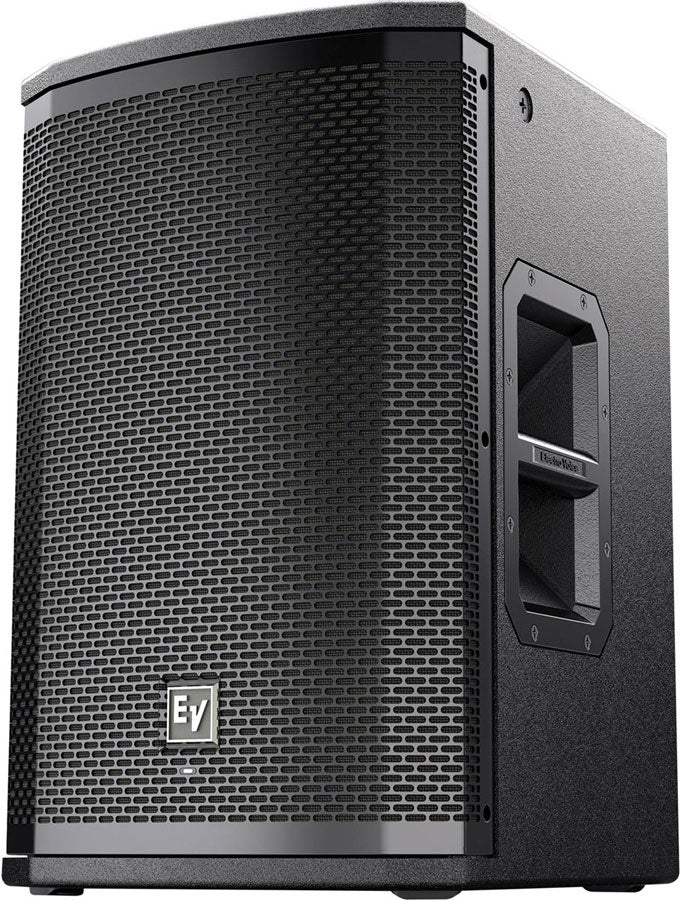

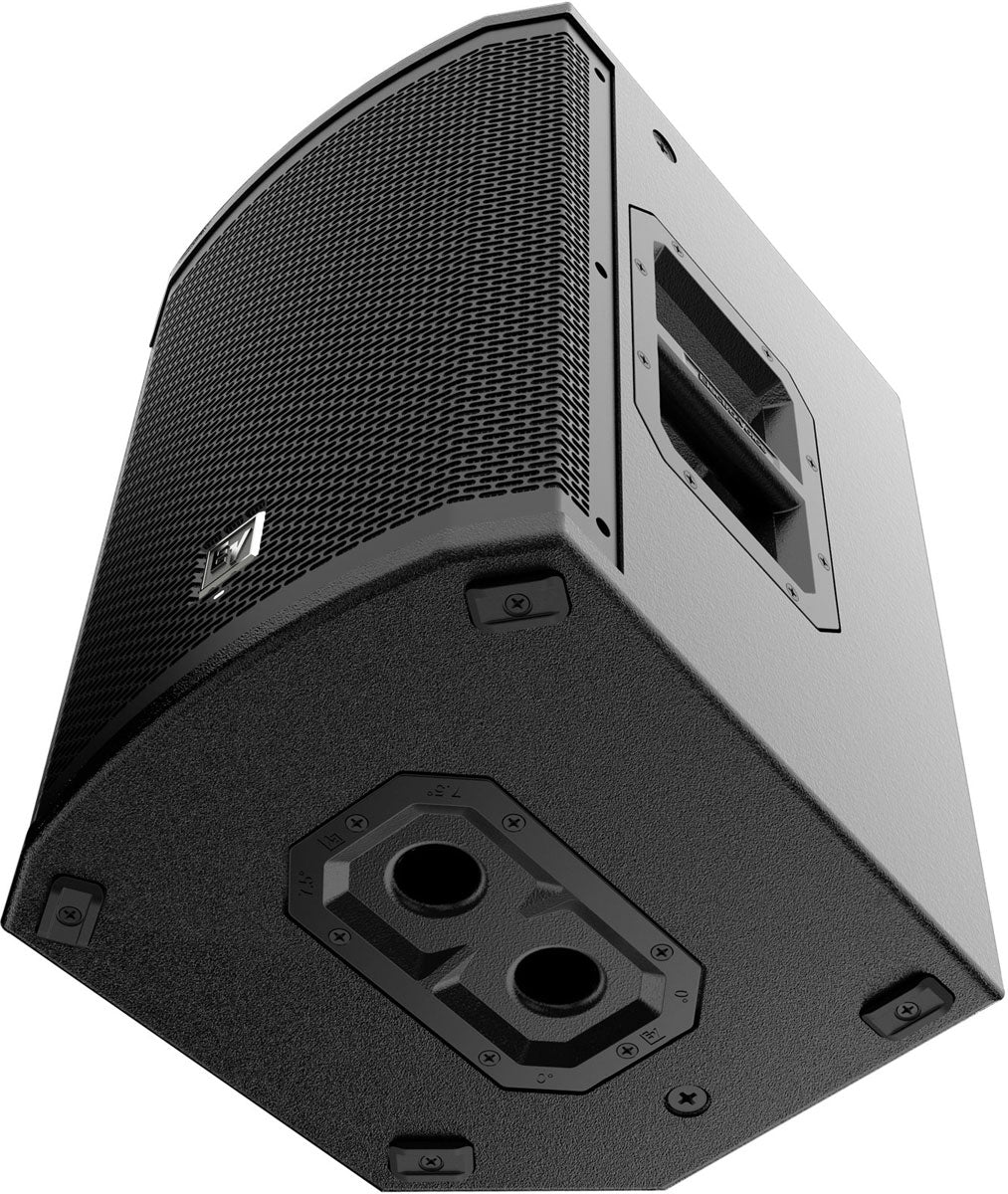

Electrovoice ETX 10P

ETX: A "High-End Portable" Approach from Electro-Voice

The ETX-10P is designed for professional performance in a transportable format: power, high sound pressure level, and advanced digital processing. Featuring a 10-inch SMX woofer and a titanium high-frequency driver, it aims for precise reproduction and good projection while remaining easy to integrate into mobile setups. This is the type of speaker built to withstand a demanding schedule of setups and teardowns without compromising perceived quality.

A Speaker Tailored for Live, DJ, and Event Applications

Thanks to its compact size and headroom, the Electro-Voice ETX-10P suits DJs seeking a discreet yet powerful front-of-house, as well as bands and sound providers who want a quick-to-deploy speaker. Its 10-inch format also makes it an excellent choice for stage monitoring when intelligibility and vocal clarity are paramount, or for sound reinforcement in conferences, houses of worship, and corporate events where message clarity is essential.

For front-of-house, it can operate solo in lightweight configurations or complement a subwoofer to extend low-end support. In space-limited events, it offers a balanced solution: clear projection, high output level, and mounting options suited for mobile sound reinforcement.

DSP Processing, Transducers, and Design: Efficiency Serving the Mix

Built-in DSP with LCD Screen: Quick Adjustments, Consistent Results

The onboard DSP, accessible via the LCD screen, facilitates adapting the speaker to the environment: placement, expected level, room constraints. The FIR filter contributes to a more controlled response, useful for achieving a more coherent sound image and cleaner high frequencies, especially on vocals, acoustic instruments, and spoken content.

2-Way Configuration: Impact and Definition

The 10-inch SMX woofer delivers punchy bass and present midrange, while the 1.25-inch titanium tweeter aims for detailed reproduction without sacrificing projection. The crossover set at 1700 Hz manages the frequency distribution between the two drivers to maintain clarity even at high levels, practical when the stage volume increases or the music demands attack (kick, snare, synths, lead vocals).

Directivity and Dispersion: Clean Coverage, Limited Spill

With a specified dispersion of 90deg x 60deg, the ETX-10P helps direct energy toward the audience rather than walls, which can improve perceived precision in reverberant rooms. The result: a more even listening experience in the useful area and better control of stage spill when the speaker is used as a monitor or in close proximity.

Technical specifications

Crossover Frequency	1700 Hz	Max SPL	134 dB
Power	1000 Watts RMS	Dispersion	90deg x 60deg
Amplifier	Class D	Color	black
Frequency Response	85 Hz to 20 kHz	Dimensions	526 x 330 x 365 mm
Frequency Range	65 Hz to 20 kHz	Net Weight	20.3 kg
