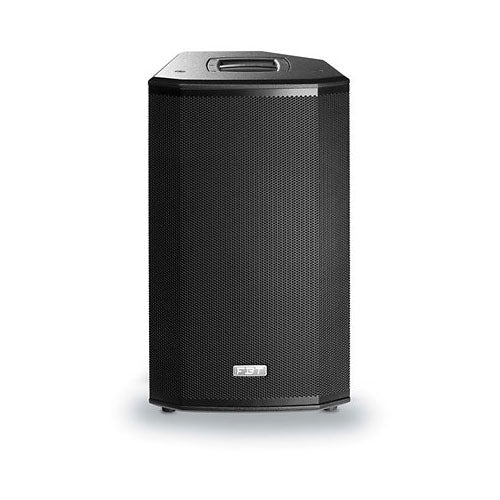

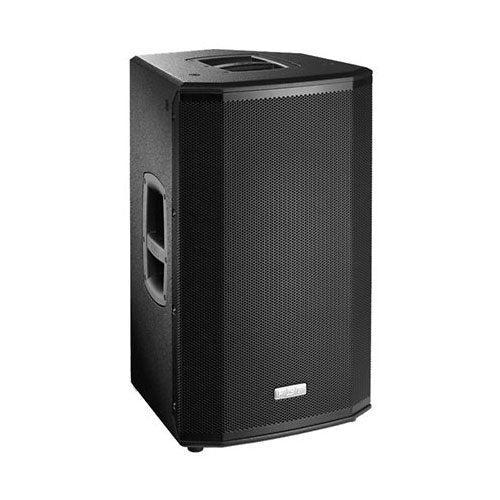

FBT Ventis 112A

A 12-inch Active Speaker at the Heart of the VENTIS Series

The FBT VENTIS 112A belongs to the VENTIS family, an approach focused on performance and versatility: a 12-inch format capable of serving as a main PA (small to medium stages), side fill, or an excellent all-around single speaker solution. Its wooden cabinet and bi-amplified design aim for stable behavior at high levels, with a clear reproduction even when the mix becomes dense.

In a modern setup, this type of 12-inch active speaker often represents the "sweet spot": enough punch for music, sufficient definition for vocals, while maintaining acceptable portability for regular gigs.

Intended Uses and Target Profiles

The VENTIS 112A targets DJs, bands, event professionals, associations, places of worship, music bars, and multipurpose venues looking for an active speaker capable of covering varied needs without multiplying equipment. On the front of house, it is perfect for voice + music playback with a comfortable output level, and can also serve as a stage monitor when clarity and projection are priorities.

Thanks to its multiple inputs (XLR, 6.35mm Jack, RCA) and 2-channel mixing function, it can also be handy in lightweight setups: microphone + stereo source, player, DJ controller, or mixer output. The XLR Link output facilitates chaining to a second speaker, convenient for quickly creating a pair or extended coverage.

Control, Sound Dispersion, and Power: A Speaker Built for the Field

Class D Digital Bi-amplification: Dynamic Headroom and Control

Its Class D digital amplification delivers 700 W for the low-frequency section and 200 W for the high-frequency section. This bi-amplified architecture optimizes the response of each transducer, providing a controlled bass feel and better stability in the high range at high volume. The result is a clean and usable sound, whether for prominent vocals, instruments, or a denser musical program.

12-inch Speaker + Compression Driver: Impact and Precision

The VENTIS 112A combines a 12-inch woofer (with a 2.5-inch voice coil ) and a 1-inch compression driver with a 1.4-inch diaphragm. This pairing aims for an effective balance: attack and presence in the midrange, solid intelligibility on vocals, and sufficient projection to retain detail at a distance. The specified frequency response (at -6 dB) of 42 Hz to 20 kHz highlights an interesting extension for a 12-inch format, useful when working without a subwoofer on moderate gigs.

Programmable DSP with Display: Quick Venue Adaptation

The programmable DSP with display offers real ease of use. On site, being able to adjust the speaker's behavior in moments is crucial: quick correction based on room acoustics, managing front of house or monitor use, and optimizing the sound depending on content (speech, music, live mix). This is a key advantage for saving setup time and securing the result, especially when moving between multiple venues.

80deg x 50deg Dispersion: Targeted Coverage and Clarity

With an 80deg x 50deg dispersion, the sound projection is designed to focus useful energy towards the audience, limit unwanted reflections, and maintain good clarity. This directivity helps better control coverage of an area (dance floor, rows of chairs, covered terrace), while keeping a coherent sound image when working in pairs.

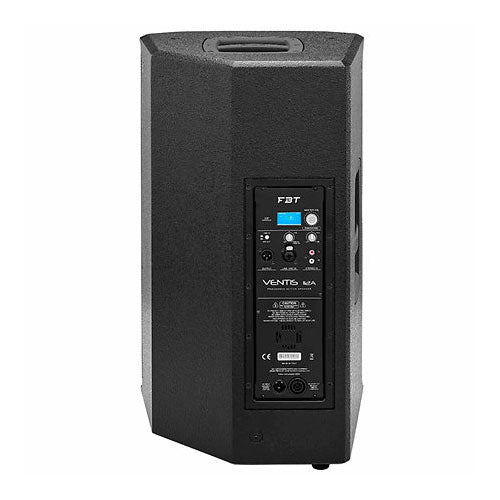

Complete Connectivity, 2-Channel Mixing, and Chaining

The connectivity meets common needs: XLR, 6.35mm Jack, and RCA inputs, practical for accepting both mixer outputs and more consumer-level sources. The XLR Link output allows sending the signal to another speaker without hassle. The presence of a 2-channel mixing function adds flexibility for simple configurations or quick transitions between multiple sources.

Transport, Installation, and Rigging

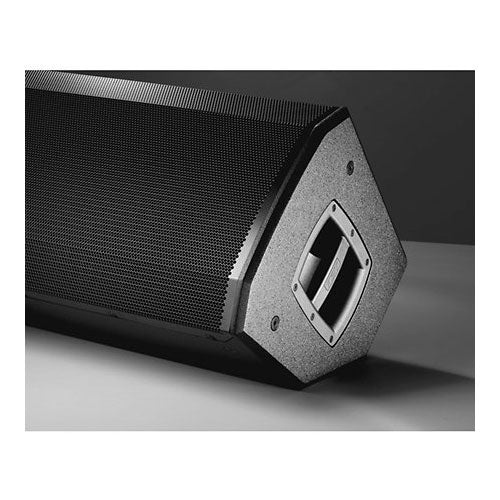

The VENTIS 112A is designed for daily use: integrated handle for handling, 35mm pole mount for stand mounting, and rigging points for installation or suspension needs (depending on your setup and suitable accessories). Its size remains consistent for a wooden 12-inch cabinet, with a net weight of 20.6 kg, allowing regular transport while maintaining a robust feel.

Technical specifications

Bluetooth

Yes

Model	FBT VENTIS 112A	Dispersion (H x V)	80deg x 50deg
Type	active speaker	DSP	programmable with display
Enclosure	wood	Mixing	2-channel mixing function
Architecture	bi-amplified	Inputs	XLR / 6.35mm Jack / RCA
Amplification	Class D digital	Output	XLR Link
Power	700 W / 200 W	Handle	integrated
Frequency Response (at -6 dB)	42 Hz - 20 kHz	Pole mount	35mm
Max SPL	126 / 133 dB	Rigging	rigging points
Low frequencies	1 x 12-inch (310 mm), 2.5-inch voice coil	Net dimensions (mm)	387 x 665 x 380
High frequencies	1-inch driver with 1.4-inch diaphragm	Net weight	20.6 kg
