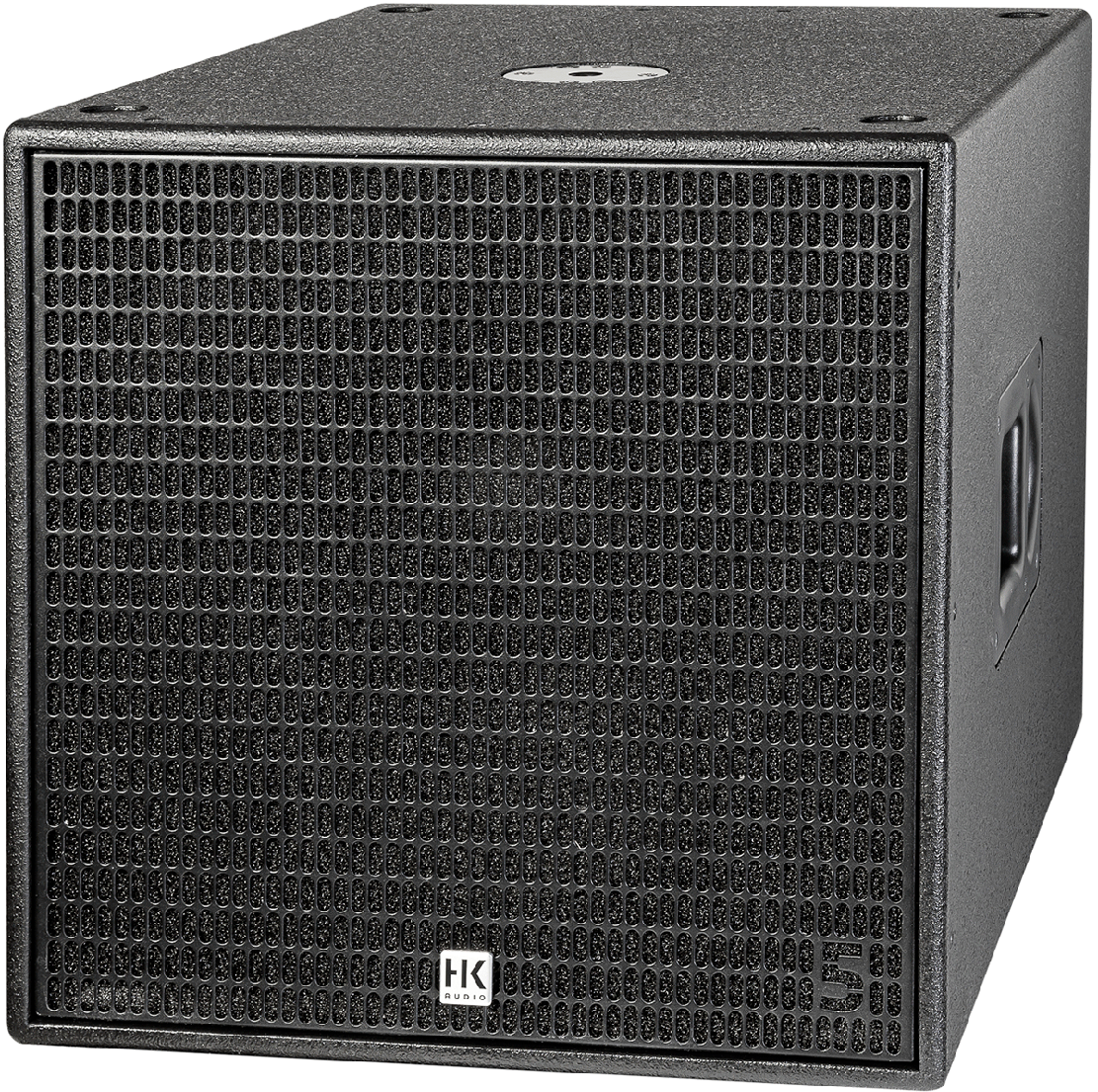

HK Audio L5MKII-118sub-a

Essential Information About the Active Subwoofer HK Audio L5MKII-118SUB-A

• 18-inch powerful and precise: 1,000 W RMS / 2,000 W peak, up to 129/131 dB SPL for deep and controlled bass.


• 10-band DSP remotely controllable via Ethernet and dedicated software, with presets including cardioid mode to manage rear energy.

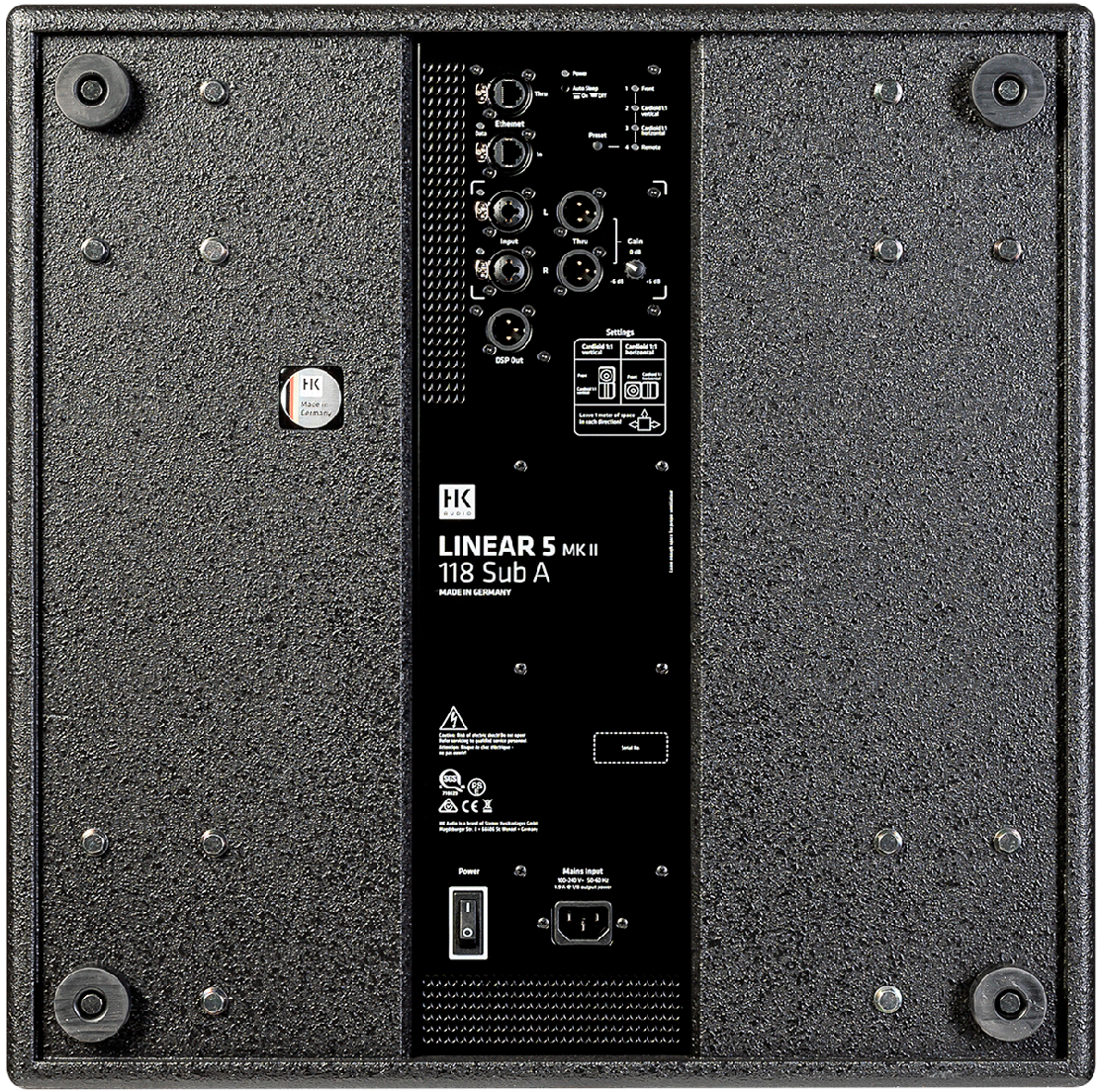

• Professional connectivity: 2 combo XLR/jack inputs, link and XLR DSP outputs, RJ45/Ethercon ports for networking.


• Robust German design: multiplex birch/MDF enclosure, 2 handles, M20 inserts, lightweight format and optimized dimensions for touring.

The New Generation of the LINEAR 5 Series

Designed and manufactured in Germany, the LINEAR 5 MKII series reimagines a mobile sound reinforcement reference. This major evolution brings advanced digital control, full network management, and a more compact footprint than the previous generation, without compromising the acoustic pressure or reliability that have made HK Audio renowned. The L5MKII-118SUB-A fits at the core of the range as a versatile subwoofer for simple setups or more ambitious systems.

Who Is It For and What Are Its Uses?

Ideal for service providers, bands, DJs, clubs, and multipurpose venues, this subwoofer delivers solid bass reinforcement for live shows, DJ sets, or fixed installations. Its power reserve and presets simplify room adaptation, while networking speeds up setup, monitoring, and scene recall during tours and repetitive performances.

Performance and Advanced Control

The L5MKII-118SUB-A features a 10-band DSP with delay, polarity, low-pass filter, limiter, and mute, remotely controllable via an Ethernet connection. This allows you to create coherent systems, including combining speakers without DSP thanks to the XLR DSP output. Presets dedicated to cardioid mode facilitate reducing bass feedback on stage and improve mix clarity. Its 1,000 W RMS (2,000 W peak) power and 18-inch driver deliver a firm foundation down to the lowest frequencies, while the M20 inserts allow mounting poles for satellites and building compact, efficient stacks.

Technical specifications

Battery	No	Cutaway	No
Category	Soundsystem	SPL Max / peak	131 dB
Type	active subwoofer	Frequency response	38 Hz - X-over
Insert type	2 x M20	SPL max	129 dB
Peak power	2000 W	Speaker structure	MDF
Peak power, type	RMS	Transport	2 handles
Number of channels	1 channel	Inputs	2 x combo XLR/jack, RJ45
Amplification	Active amplified	Outputs	link XLR, XLR DSP
Bluetooth	No	Color	Black
Connection	Combo, RJ45, Ethercon, XLR	Finishing	Wood
Controls	limiter, input gain, mute switch, low pass filter control, polarity switch, delay	Power output	1000 W
Speaker diameter	18"	Power / type	RMS
Number of speakers	1	Quantity	1
DSP	Yes	Weight	41.6 kg
EQ	10 channels	Dimensions (mm)	550 x 560 x 685

Finish	Black	Amplified	Yes
Driver diameter	18"	RMS power	1,000 W
Frequency response +/-3 dB	42 Hz to crossover frequency	RMS / peak power	2,000 W
Frequency response -10 dB	38 Hz to crossover frequency	Connectors	Combo, Ethercon, XLR
Max SPL	129 dB	Enclosure structure	multiplex birch - MDF
Max / peak SPL pressure	131 dB	Dimensions	55 x 56 x 68.5 cm
