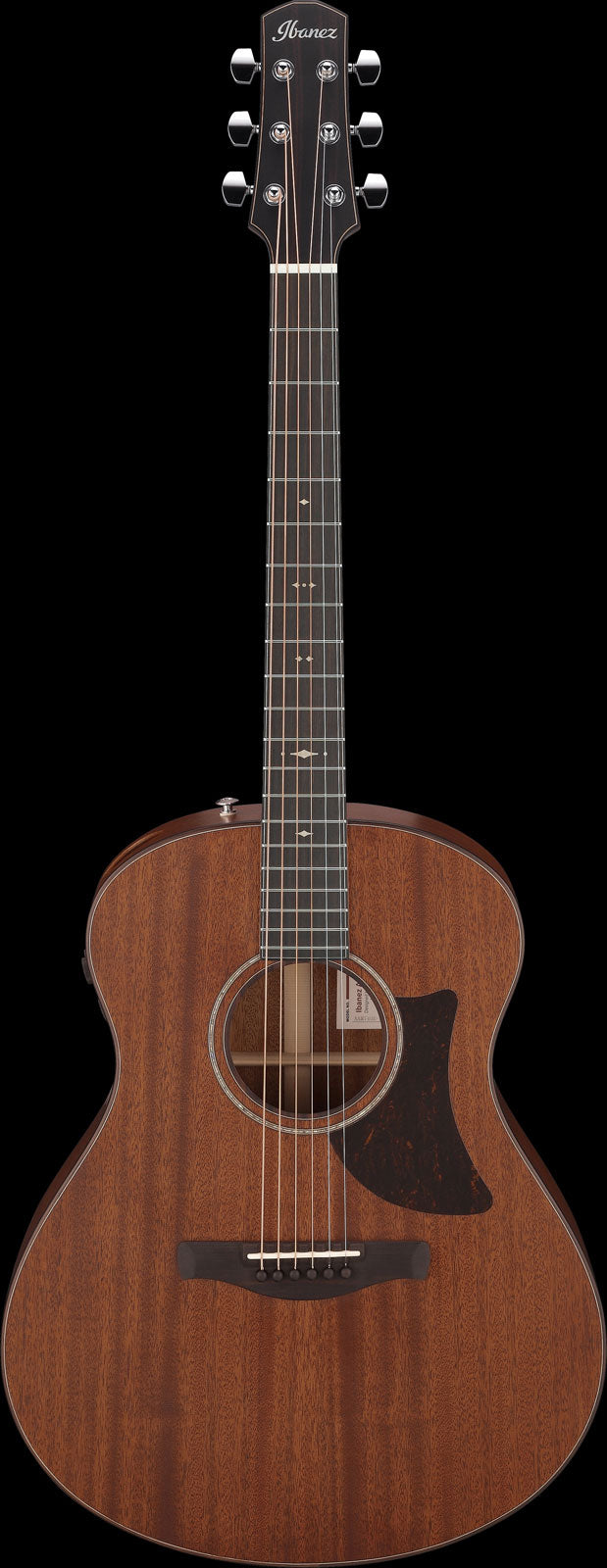

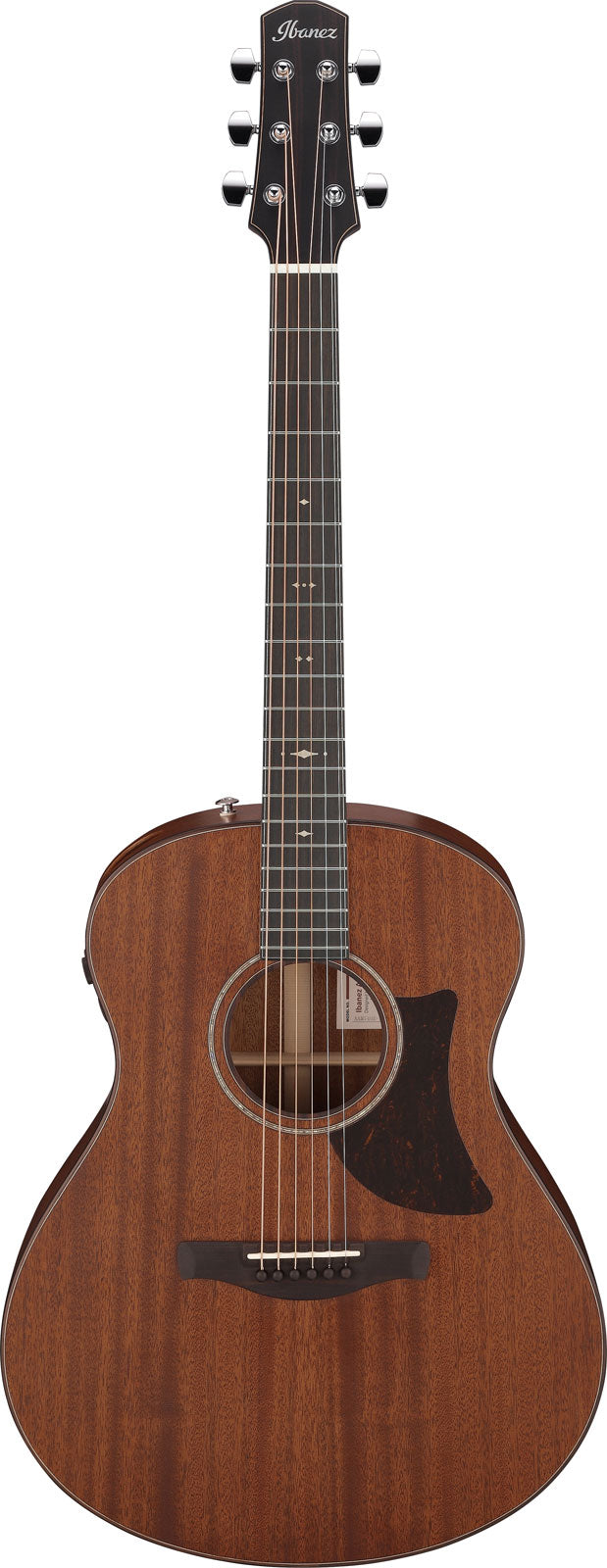

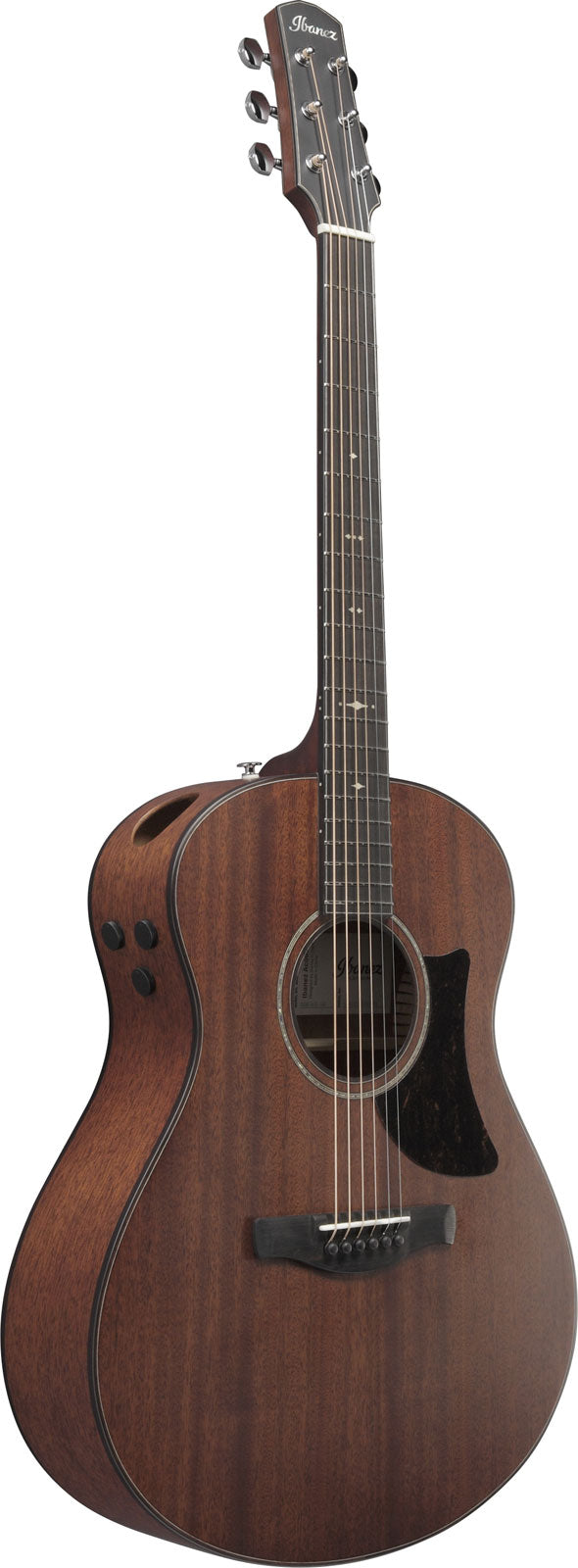

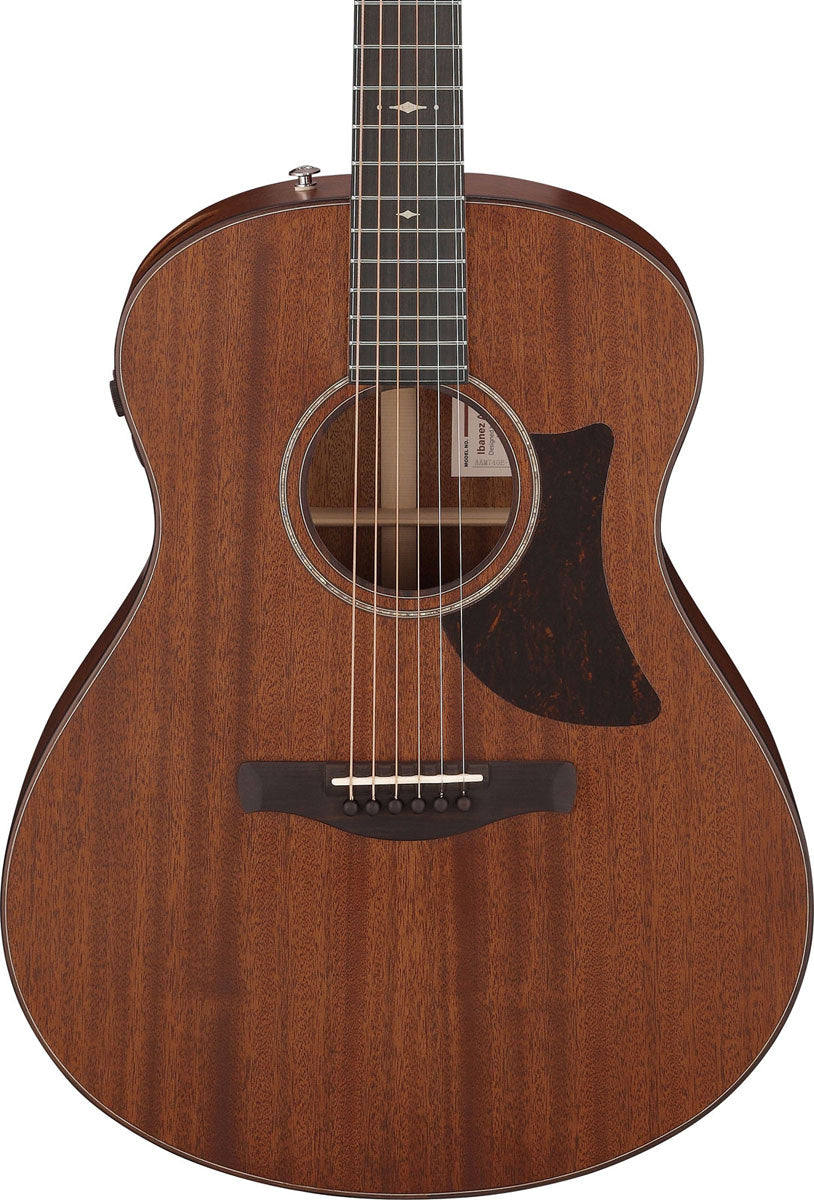

Ibanez AAM740E-LG Natural Advanced Acoustic Platinum

Platinum Collection: the top of the Advanced Acoustic series

Within the Advanced Acoustic range, the Platinum Collection emphasizes demanding lutherie choices, contemporary ergonomics, and premium finishes. The AAM740E-LG was designed as a stage and studio electro-acoustic guitar, capable of covering very subtle nuances while maintaining a strong and "woody" acoustic identity.

For which guitarists and styles?

This Advanced Auditorium targets intermediate to expert guitarists seeking a precise, comfortable, and expressive acoustic guitar. The 25" / 634 mm scale length offers a smooth feel, while the 1.7" / 43 mm nut width balances chord comfort and fingerstyle articulation. It excels in fingerstyle, modern folk, pop, blues, vocal accompaniment, and percussive playing, with a real advantage when exploiting the upper registers thanks to the cutaway.

Sound

With its 100% solid African mahogany construction, the AAM740E-LG favors a dense midrange, clear highs, and firm lows, ideal for standing out in a mix without losing its organic character. The X-M bracing enhances responsiveness and note sustain, while the A.I.R. port improves the player's feedback sensation and expands dynamics. The bone nuts and Macassar ebony scalloped bridge promote a crisp attack and clean sustain. Plugged in, the combination of T-bar under nut (definition) + Contact pickup (body and percussiveness) delivers a more "microphone-like" and less artificial sound, with separate controls and a Mono/Stereo output designed for advanced setups.

Recommended compatible accessories

To stay as close as possible to the original feel, choose a set of phosphor bronze strings 12-53 (gauges .012/.016/.024/.032/.042/.053). Also plan for a quality 9V battery for the electronics and a clip-on tuner for 6-string acoustic guitar, handy both in rehearsal and on stage.

Technical specifications

Shape	Advanced Auditorium with Advanced Access cutaway	Inlays	maple, custom design
Top	solid African mahogany	Bridge	scalloped Macassar ebony

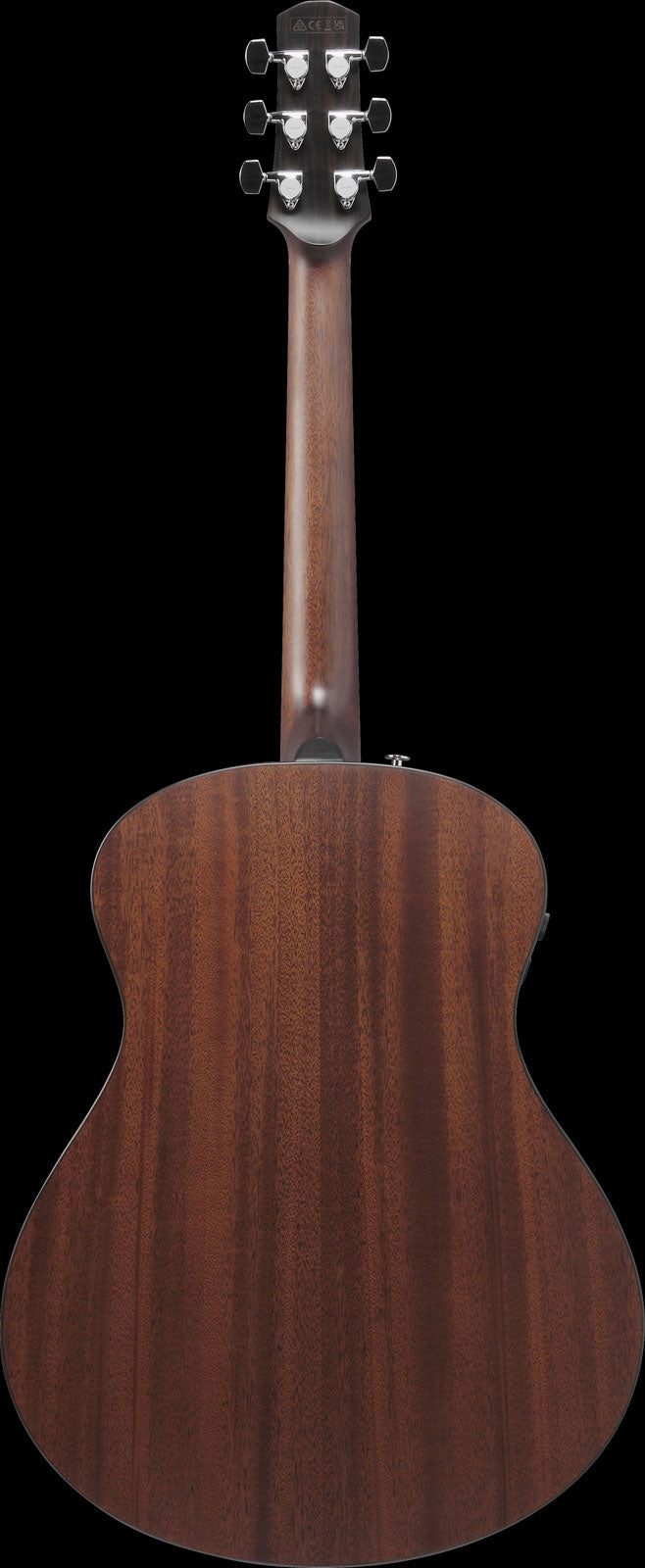

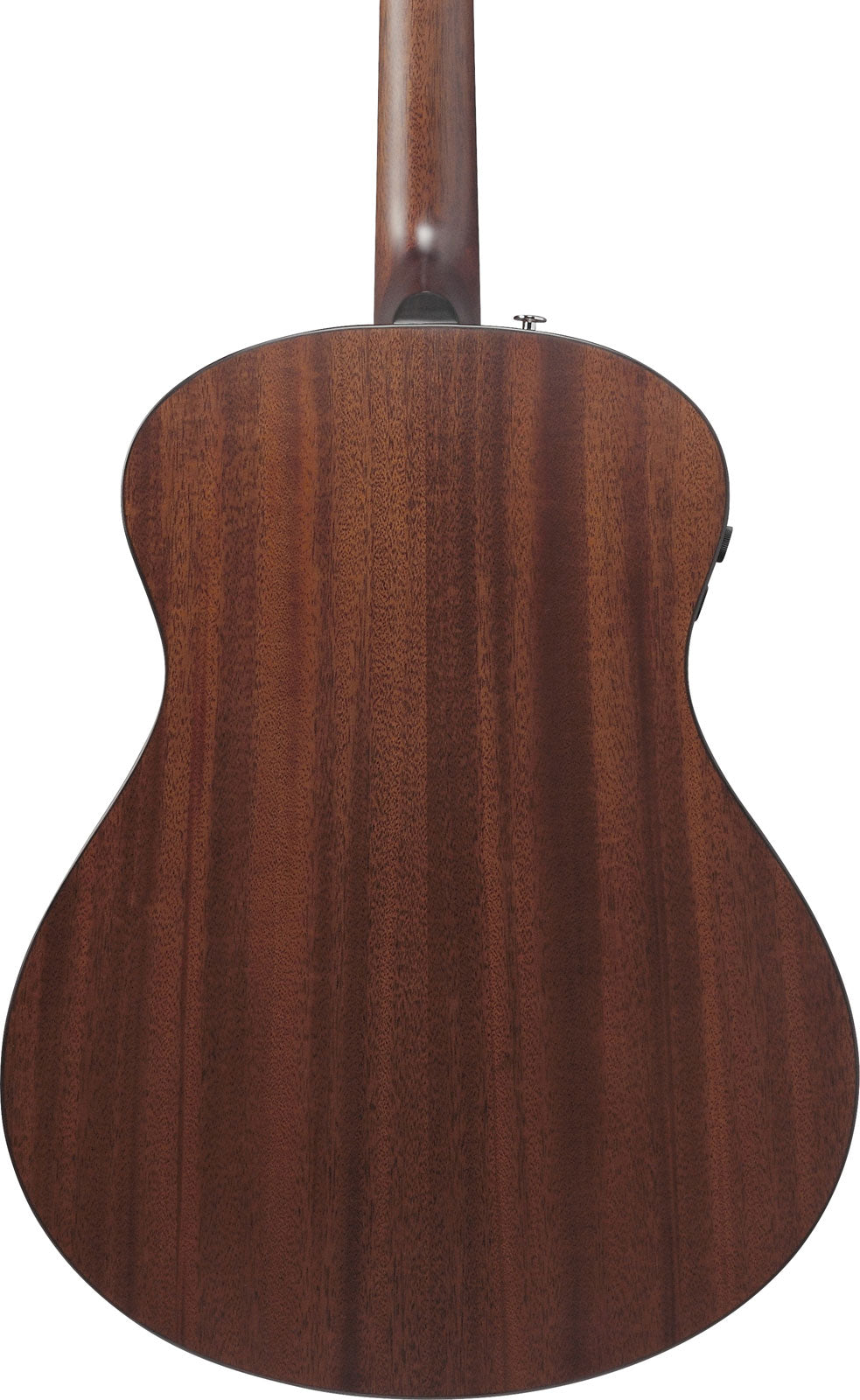

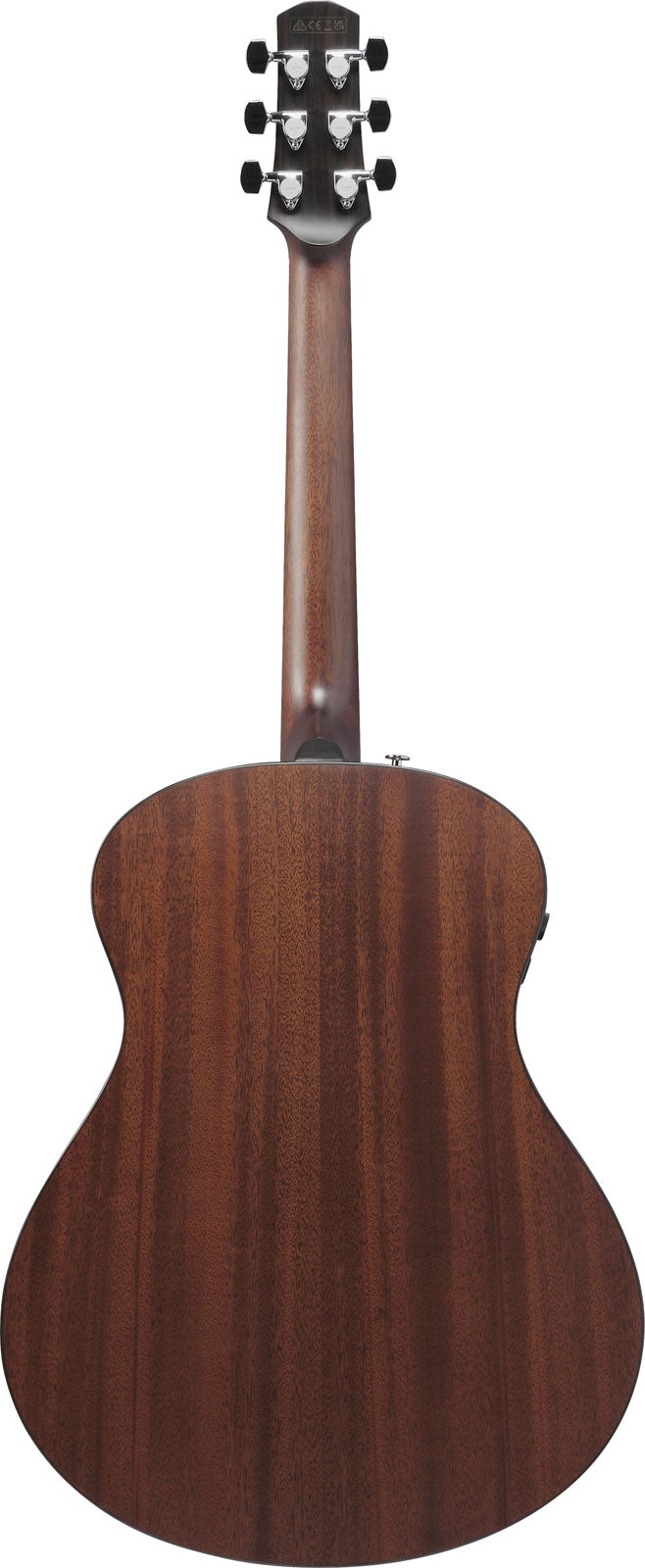

Back and sides	solid African mahogany	Bridge pins	ebony
Bracing	X-M (AAM series)	Nut	bone
Port	A.I.R.	Saddle	compensated bone
Rosette	abalone and black/white	String spacing at bridge	0.43" / 11 mm

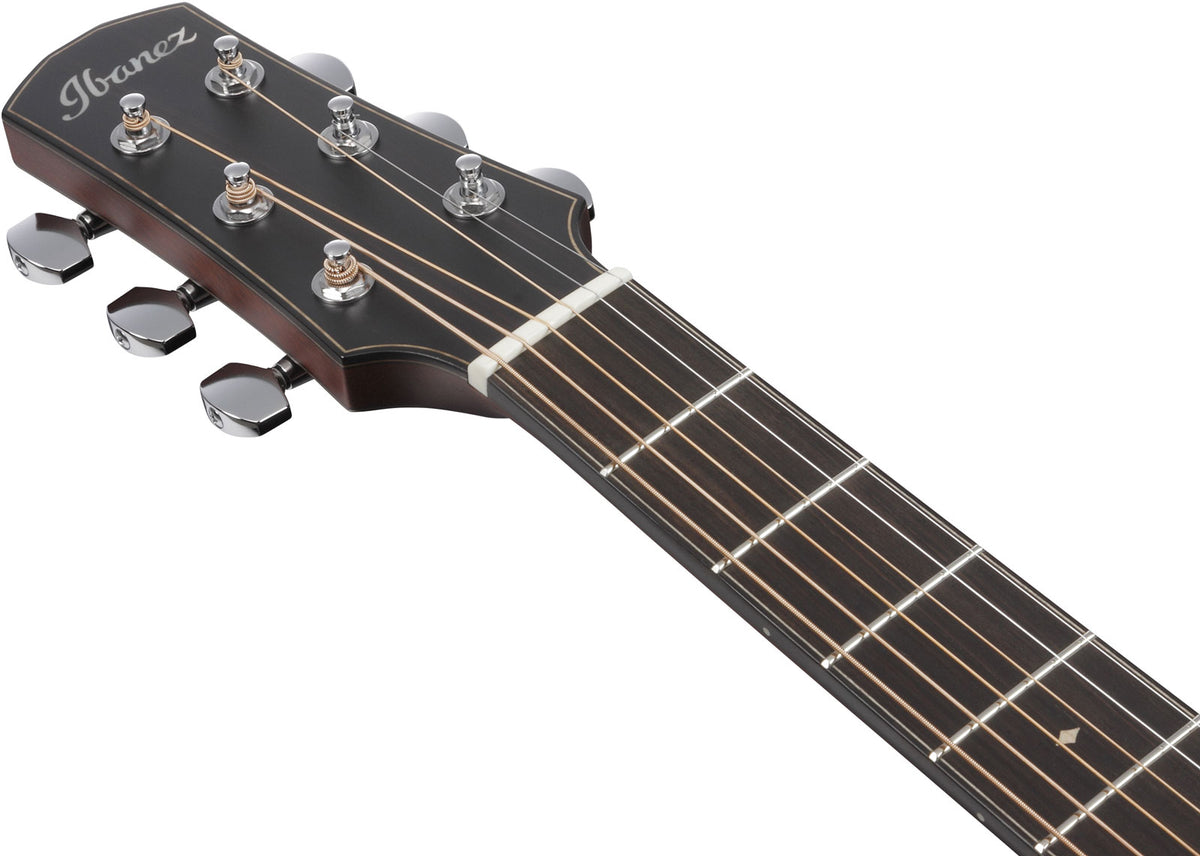

Purflings	rounded-edge Macassar ebony	Tuners	Gotoh Chrome SG301 (18:1 ratio)
Finish	satin polyester	Under-nut pickup	Ibanez T-bar
Body dimensions (approx.)	depth 4.2" / 106 mm, width 15.35" / 390 mm, length 19.5" / 495 mm	Pickup	Contact
Depth at body/neck joint	3.39" / 86 mm	Preamp	Ibanez Custom

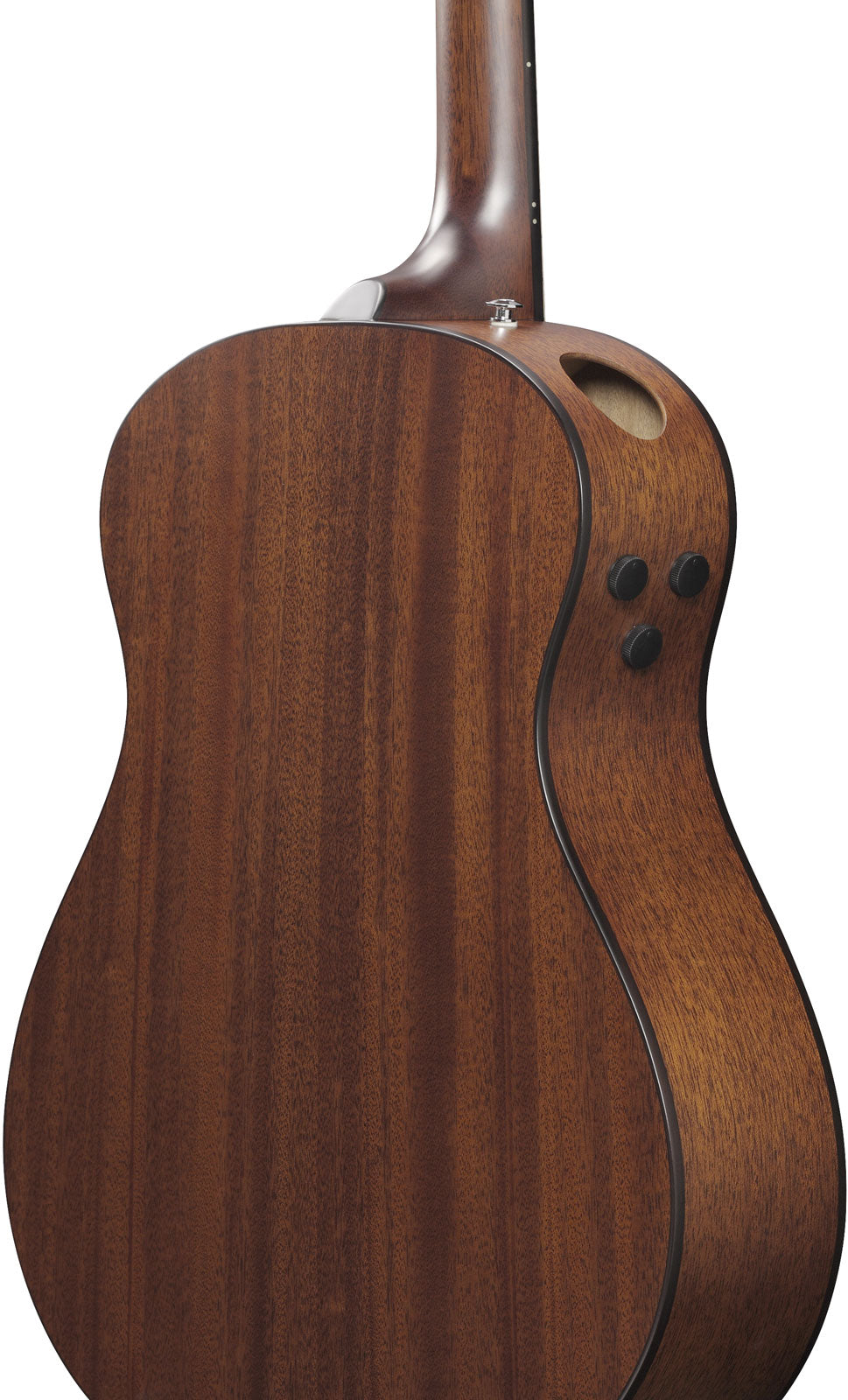

Maximum body thickness	4.17" / 106 mm	Controls	under-nut pickup volume, under-nut pickup tone, Contact pickup volume, on/off switch
Total length	40.35" / 1025 mm	Outputs	dual output (Mono/Stereo) on 6.35 mm jack
Type	"Oval" neck with Spanish heel, joint at 14th fret	Power supply	1 x 9V battery
Material	African mahogany	Position markers	Luminlay
Neck thickness	0.83" / 21 mm (1st fret), 0.87" / 22 mm (7th fret)	Original string gauge	.012/.016/.024/.032/.042/.053
Scale length	25" / 634 mm	Strings installed	D'Addario XTAPB1253
NUT width	1.7" / 43 mm	Standard tuning	1E, 2B, 3G, 4D, 5A, 6E
Fingerboard	Macassar ebony, 20 frets	Included hard case	ROADTOUR
Radius	15.75" / 400 mm	Included accessories	hex key, bridge pins
