An Accessory Dedicated to the STINGER G3 Ecosystem

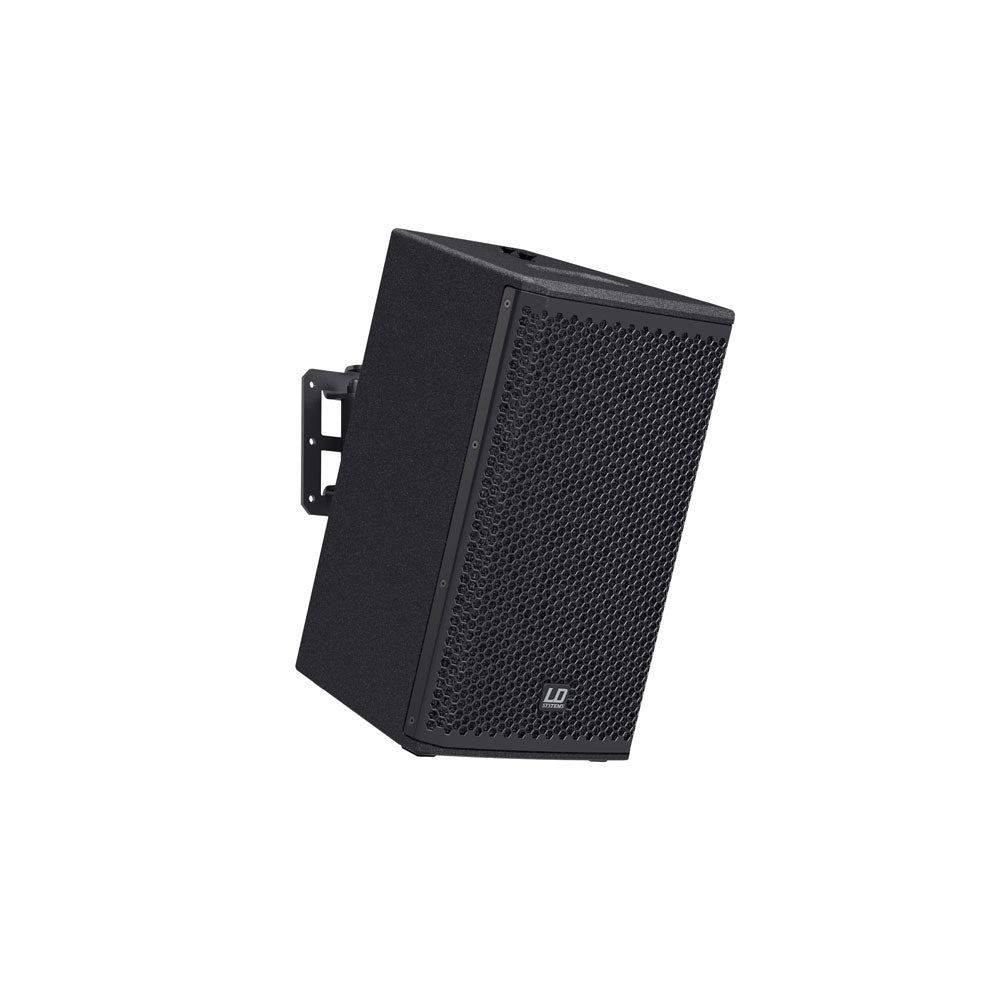

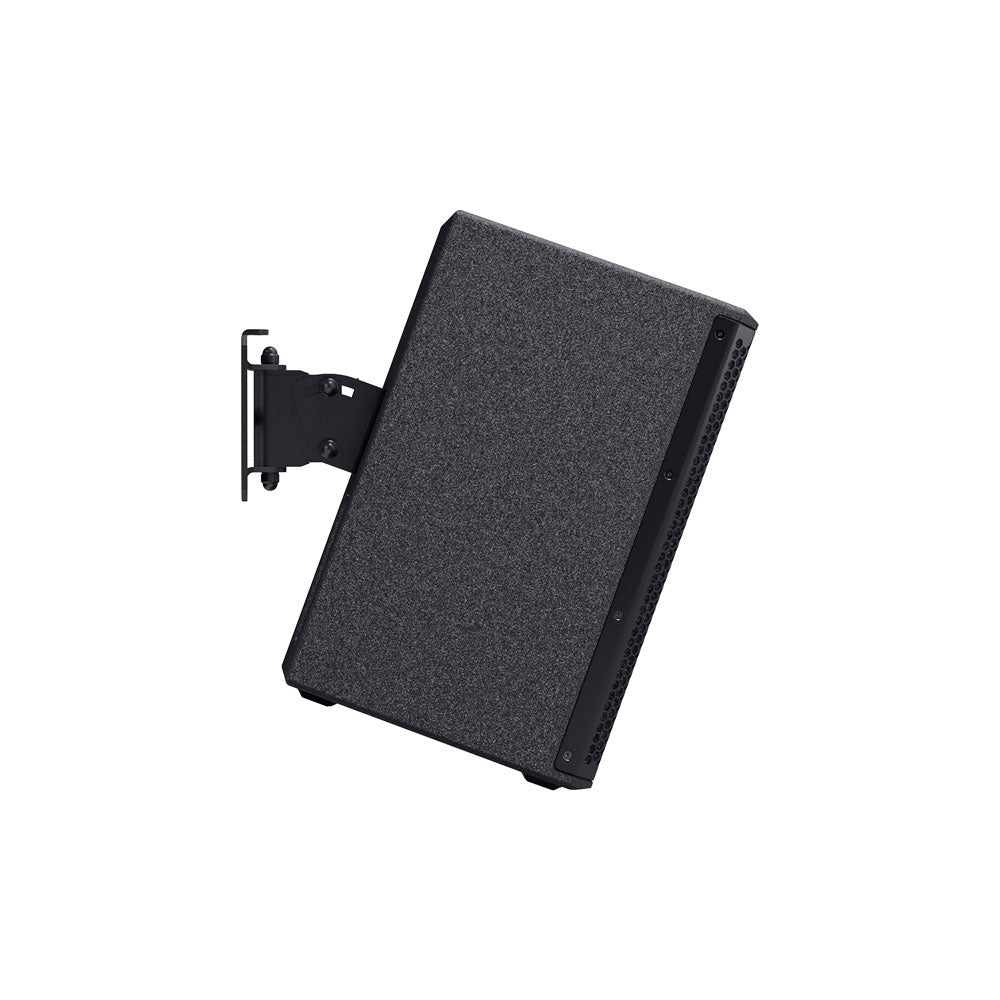

The STINGER G3 range is aimed at versatile sound reinforcement setups and offers mounting accessories adapted to installation constraints. This wall mount is designed to neatly integrate a STINGER G3 8-inch speaker into a fixed system while maintaining the essential orientation flexibility for sound distribution.
For Which Installations and Users?
This mount is ideal if you need to position a speaker at height and adjust coverage (speech, background music, room reinforcement). It is intended for indoor use and requires installation on a solid wall with hardware suitable for the support.
Orientation Adjustments and Installation-Oriented Design
Tilt + Rotation to Optimize Sound Dispersion

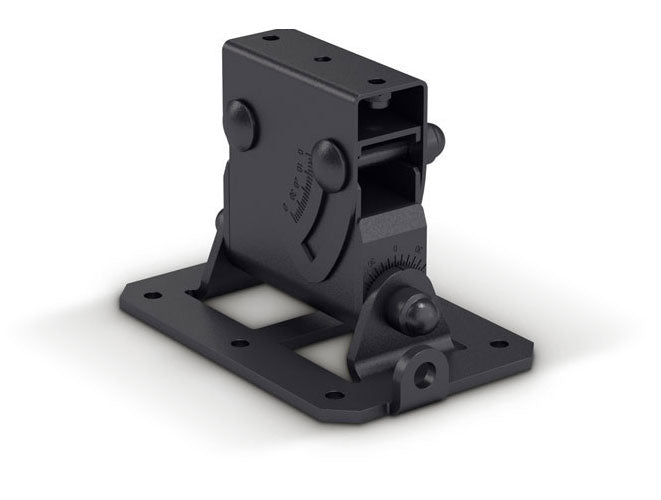

The arm allows vertical (tilt) and horizontal (swivel) adjustment to precisely aim the coverage area, limit reflections, and improve intelligibility. The mounting plate includes a safety point (eyelet), and the mechanism is designed to be adjusted and then locked.
Technical specifications
| Compatible with | STINGER 8 G3 (speaker reference: LDEB82G3) |
| Type | accessory for sound reinforcement speaker (wall mount) |
| Material | steel |
| Finish | epoxy paint |
| Color | black |
| Max load (version LDEB82AG3WMB1) | 11 kg |
| Dimensions (W x H x D) (version LDEB82AG3WMB1) | 130 mm x 157 mm x 122 mm |
| Weight (version LDEB82AG3WMB1) | 1.6 kg |
