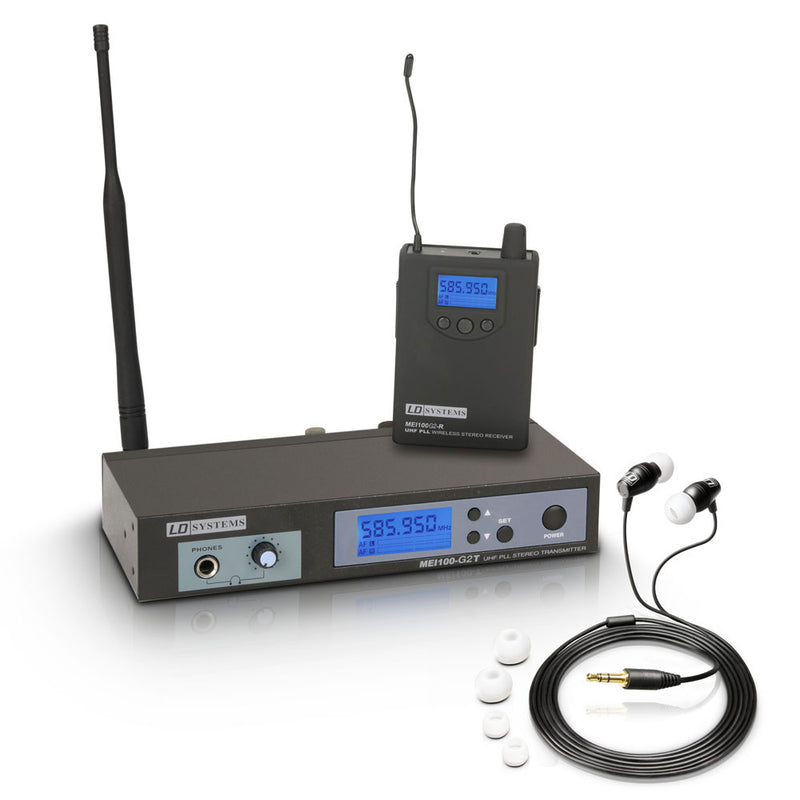

A Reliable Choice from the MEI Series for Dependable Monitoring
The MEI series from LD Systems has established itself as an accessible and effective in-ear monitoring solution. In its MEI 100 G2 B5 version, the system maintains the brand's proven approach while offering extended frequency management and simple operation, designed for musicians, technicians, and service providers seeking reliability and clarity on stage.
Who Is It For and In What Contexts?
Ideal for vocalists, instrumentalists, DJs, technical teams, and places of worship, the MEI 100 G2 B5 is suited for live stages, rehearsals, and touring performances. Its 96 channels facilitate coexistence with other RF systems, while the stereo or mono mode adapts to individual listening preferences.
Key Features for Listening Comfort

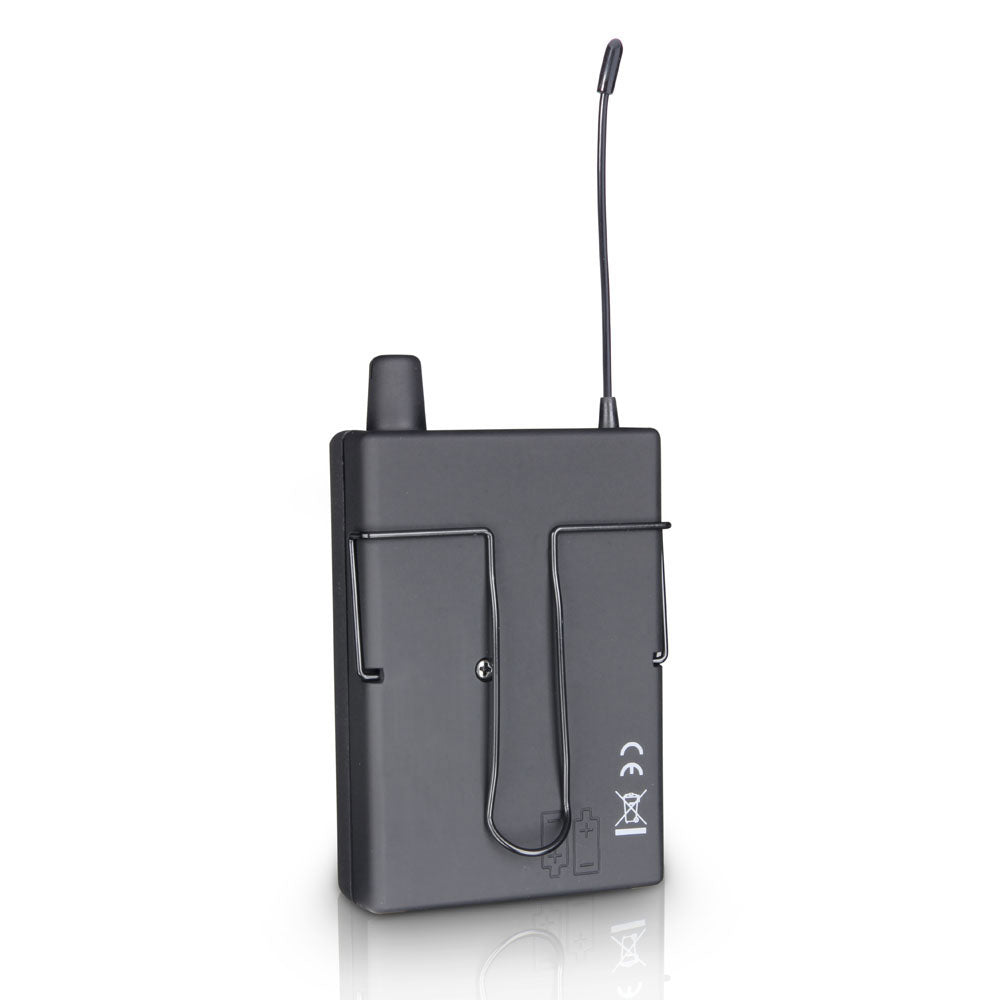

The beltpack receiver combines lightweight construction with a readable LCD screen and RF indicators to instantly visualize reception and essential settings. Volume control and presets "Low," "High," and "Set" speed up startup and listening level adjustments.

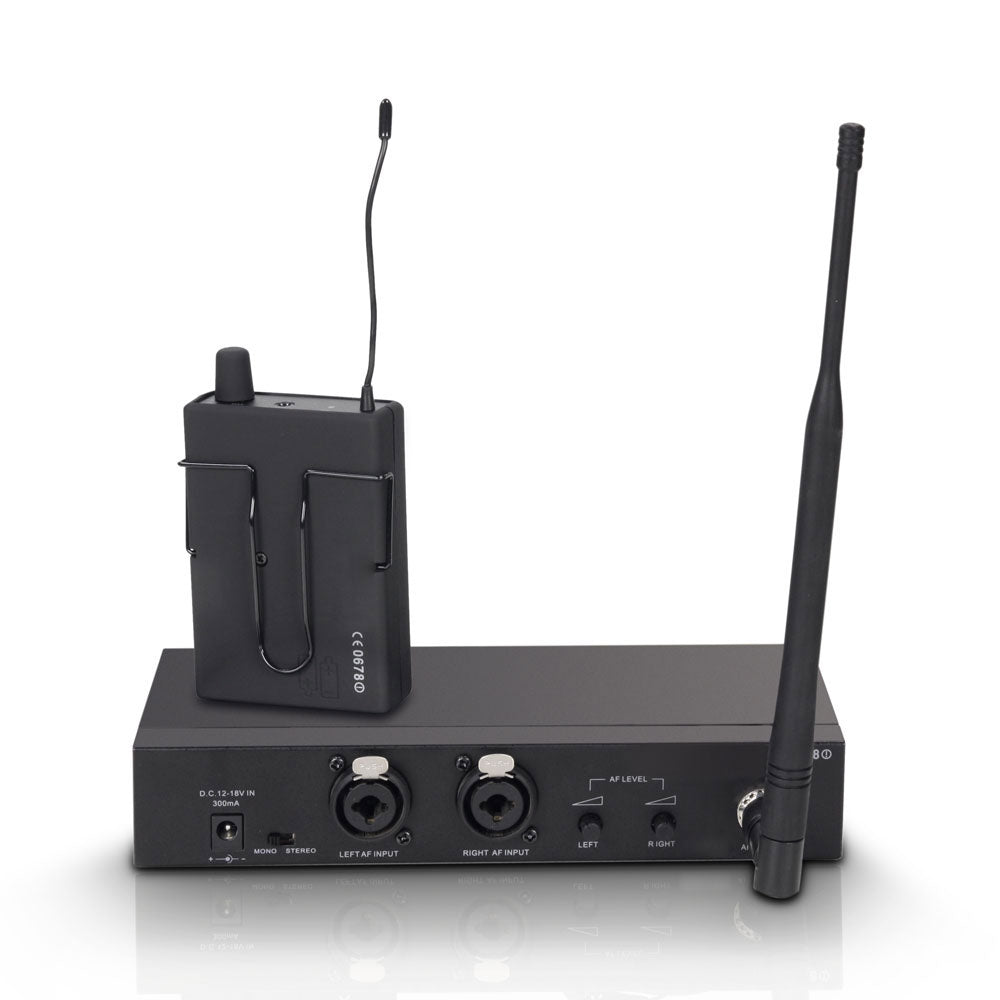

The transmitter, powered by 12-18 V DC, offers two inputs via 6.35 mm Jack and XLR connectors for direct connection to the console or stage rack. The 10 mW RF power ensures a stable link, while the mono/stereo selection allows customization of the mix (personal stereo mix or common mono mix).
Technical specifications
| Frequency response | 80 Hz - 15 kHz | Outputs | headphone |
| Inputs | jack/XLR | ||
| Product type | Accessories for in-ear monitoring | Power supply | 2 x 1.5 V LR06 (AA) batteries |
| Type | Receiver | Dimensions (W x H x D) | 65 x 95 x 25 mm |
| Channels | 96 (8 groups of 12 channels) | Weight | 0.1 kg |
| Transmission type | FM, stereo | Operating mode | Mono / Stereo |
| Total harmonic distortion (THD) | 0.25% | Nominal RF power | 10 mW |
| Audio output | 3.5 mm stereo mini-jack | Input connectors | 6.35 mm Jack, XLR |
| Maximum audio output level | 100 mW | Input impedance | 8.5 kohms |
| Controls | Low, High, Set, Volume | Antenna connector | BNC |
| Indicators | LCD screen, RF (LED) | RF frequency range | 584-607 MHz (B5 band) |

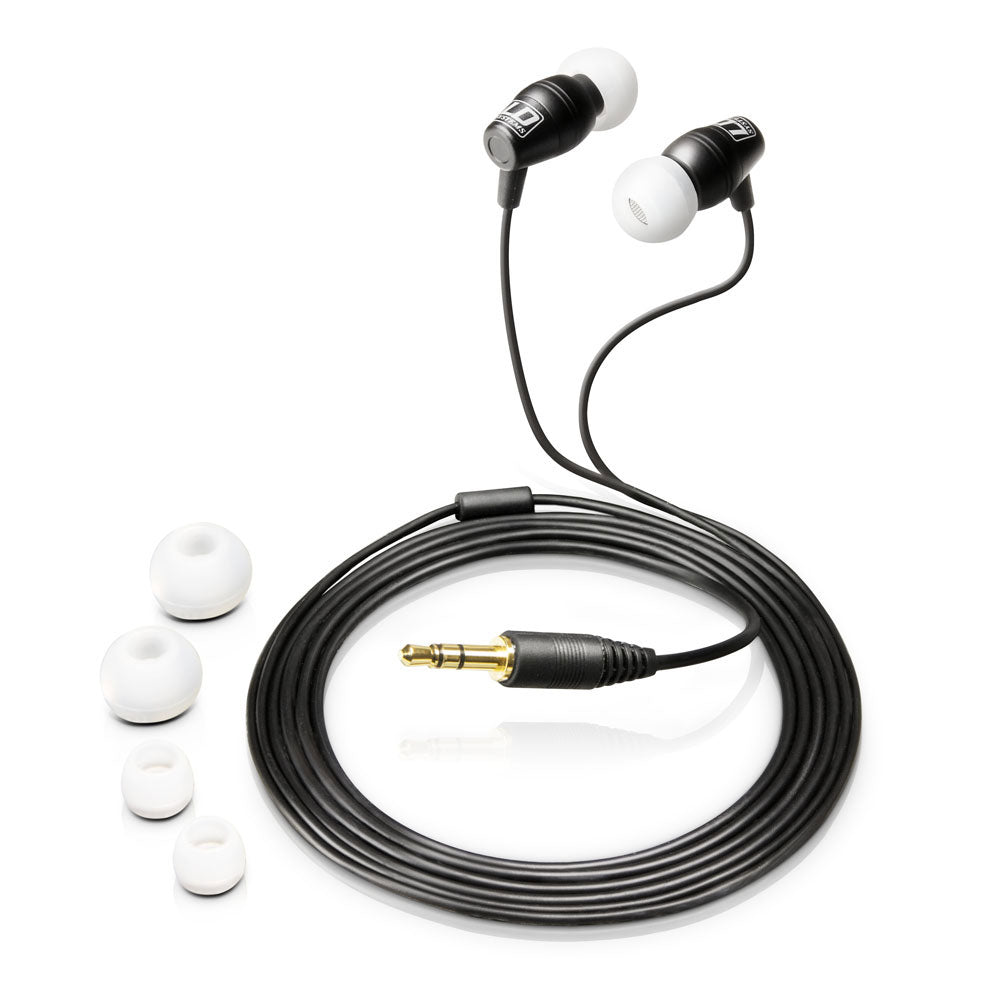

| Battery life | > 10 hours | Includes | Antenna, power supply unit, headphones, battery(ies) |
Questions frequently asked
What frequency range does the LD Systems MEI 100 G2 B5 use?
The B5 UHF band covers from 584 to 607 MHz. Availability and usage conditions for this range must be verified depending on the location of use.
Can the system operate in mono and stereo?
The transmitter and receiver offer mono or stereo operation. The stereo mode allows transmission of two channels, while mono is suitable for a common mix.
How many channels are available to avoid interference?
There are 96 channels divided into 8 groups of 12 channels. This setup facilitates coexistence with other UHF systems on stage.
What connectivity is provided to connect the transmitter to a mixer?
Two inputs are available: a 6.35 mm jack and an XLR. The specified input impedance is 8.5 kΩ, with a BNC antenna connector.

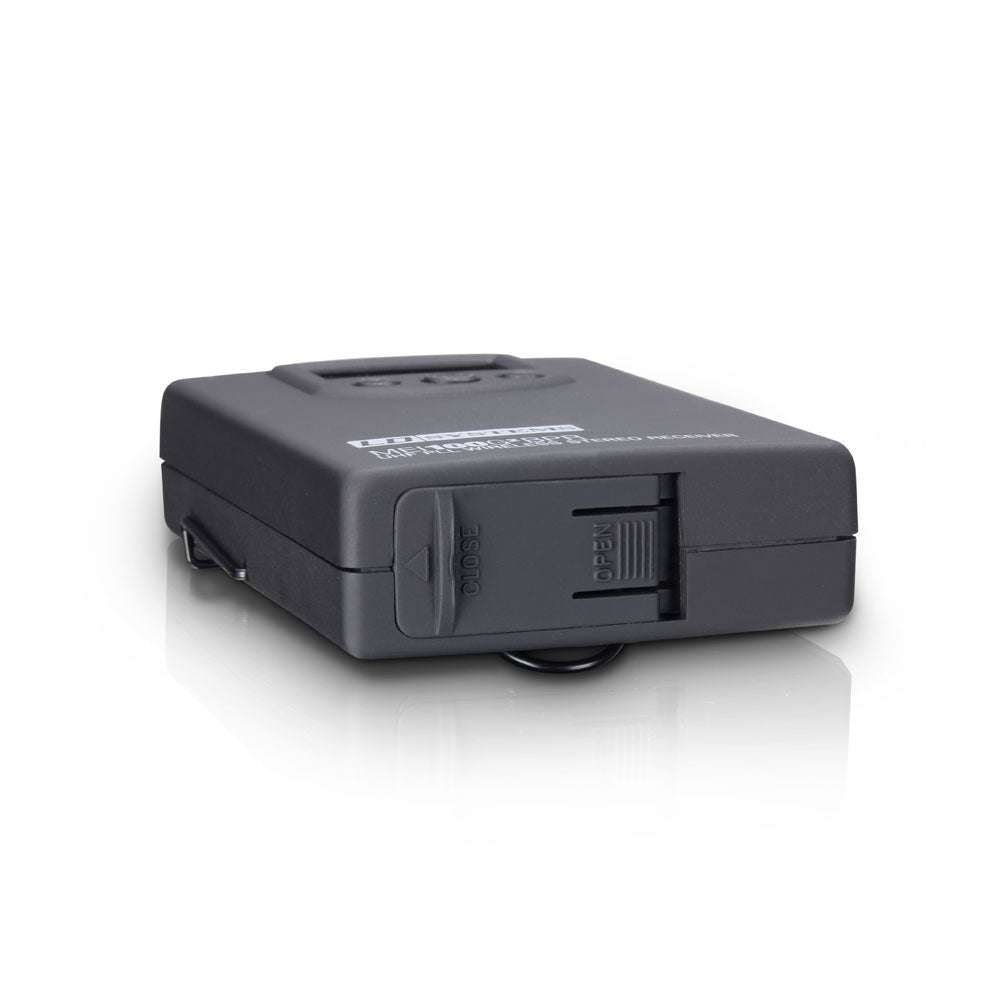

What is the battery life of the belt-pack receiver?
The receiver operates with two 1.5 V AA LR06 batteries. The stated battery life exceeds 10 hours. The headphone output uses a 3.5 mm stereo mini-jack and delivers up to 100 mW.
