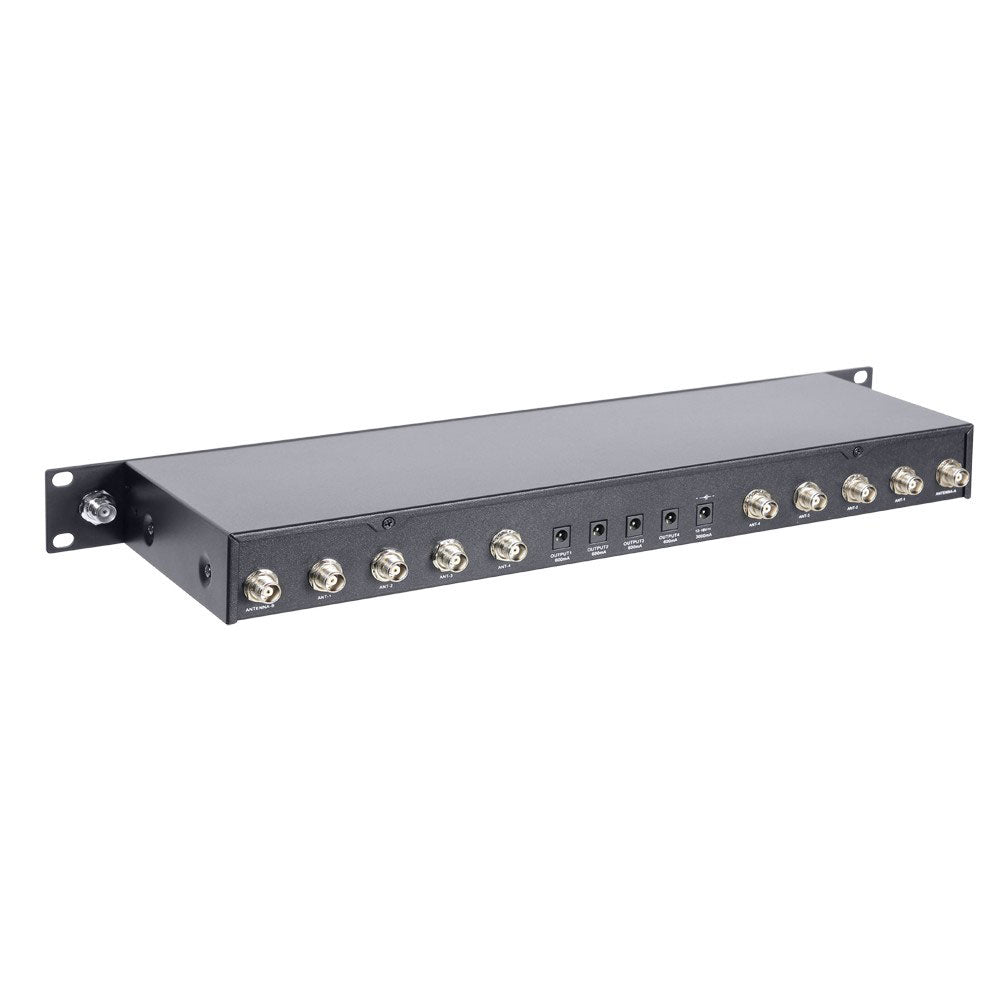

LD Systems WIN 42 AD - ANTENNA SPLITTER 4 OUTPUTS
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
LD Systems
https://www.adamhall.com
info@adamhall.com
------------------------
Safety manager:
Adam Hall GmbH
Email: info@adamhall.com
Address:
A Key Accessory to Structure a Clean and Reliable Wireless Rig
Designed to centralize antenna distribution, this antenna splitter simplifies multi-receiver setups by avoiding antenna stacking and complex cabling. Its 482 mm width format facilitates integration into technical configurations aimed at stage, studio, or event use.
Who Is It For and What Are the Use Cases?
Ideal for sound technicians, service providers, and musicians using multiple wireless systems in the same area: vocals, monitors, recording, conferences. It helps streamline the RF chain, saves setup time, and improves reception consistency across all connected receivers.
Questions frequently asked
How many RF receivers can be connected to this antenna splitter?
The distribution offers 4 x 2 antenna outputs on TNC connectors, meaning four pairs intended for diversity receivers.
Which RF frequencies does the LD Systems Win 42 Ad operate with?
The operating range extends from 500 to 900 MHz. The specified bandwidth is 400 MHz.
Which antenna connectors are used?
Both antenna inputs and outputs use TNC connectors. The impedance is 50 ohms at both input and output.
Can the RF receivers be powered from the splitter?
Four power outputs for RF receivers are provided, with a DC voltage from 12 to 18 V. A dedicated 9 V power supply for an antenna amplifier is also available. The unit requires an external 12 to 18 V DC supply at 3 A.
What are the dimensions for rack mounting?
The enclosure measures 482 mm wide, 44.4 mm high, and 160 mm deep, with a weight of 4.8 kg.
