Historical Context and Positioning in the Range
With the "Origin" series, Marshall revisits the DNA of its first amps from the 1960s, the ones that defined British rock. The Origin 20H condenses this spirit into a compact and modern head designed to deliver vintage feel without unnecessary complexity. It stands as an essential choice for those seeking traditional Marshall character in a 20-watt format that is easy to use daily and on stage.Who This Amp Is For
Ideal for intermediate to advanced guitarists, the Origin 20H suits various contexts: home playing with attenuation, band rehearsals, club gigs, or studio recordings. It excels in blues, classic rock, pop-rock, and vintage hard rock, and provides an excellent foundation for overdrive, fuzz, or delay pedals. Its dynamics highlight the attack, whether using single coils or humbuckers.Technical specifications
| Category | Guitar amp head | Cabinet | Straight |
| Technology | Tubes | Pedalboard included | Yes |
| Input | jack | Number of channels | 1 |
| Output | DI jack, 8 Ω cabinet jack, 16 Ω cabinet jack | EQ | 3 channels |
| External cabinet output | Yes | Color | Black |
| Effects loop | Yes | Power output | 20 W |
| Amp tubes | 2 x EL34 | Weight | 9.4 kg |
| Pre-amp tubes | 3 x ECC83 | Dimensions (mm) | 520 x 220 x 225 |
Questions frequently asked
Marshall Origin 20H: What power and volume settings does it have?

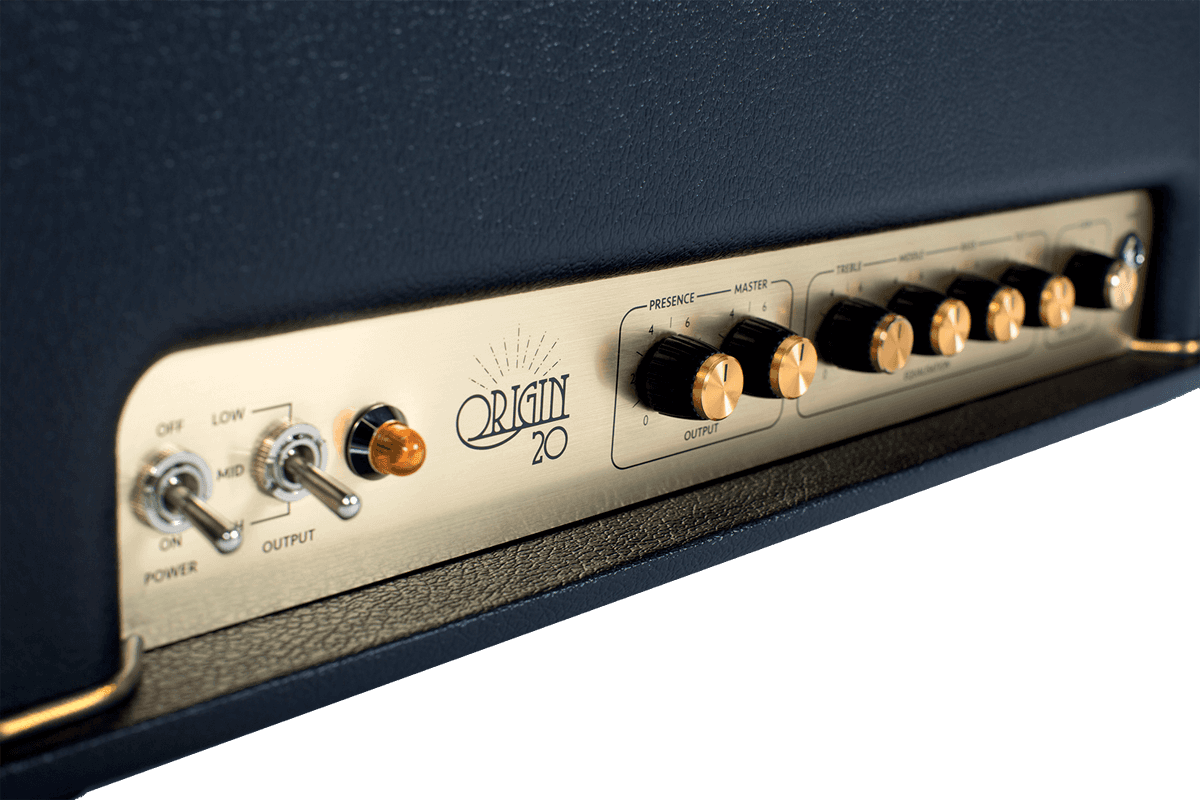

The power is 20 W and the attenuator offers three positions: High, Medium, and Low. The Gain/Master combo allows control of the crunch level according to the desired volume.
What speaker cabinet can be connected to this Marshall head?

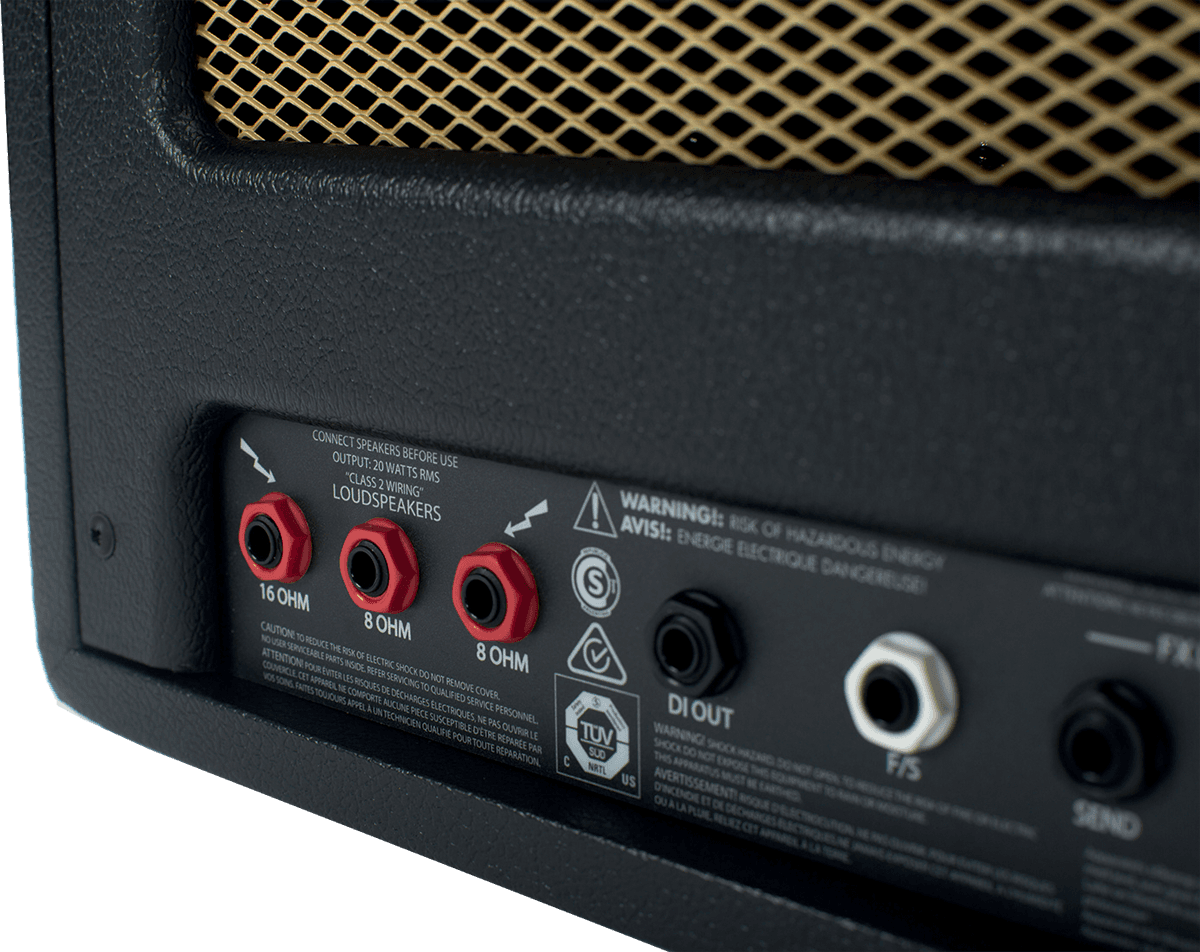

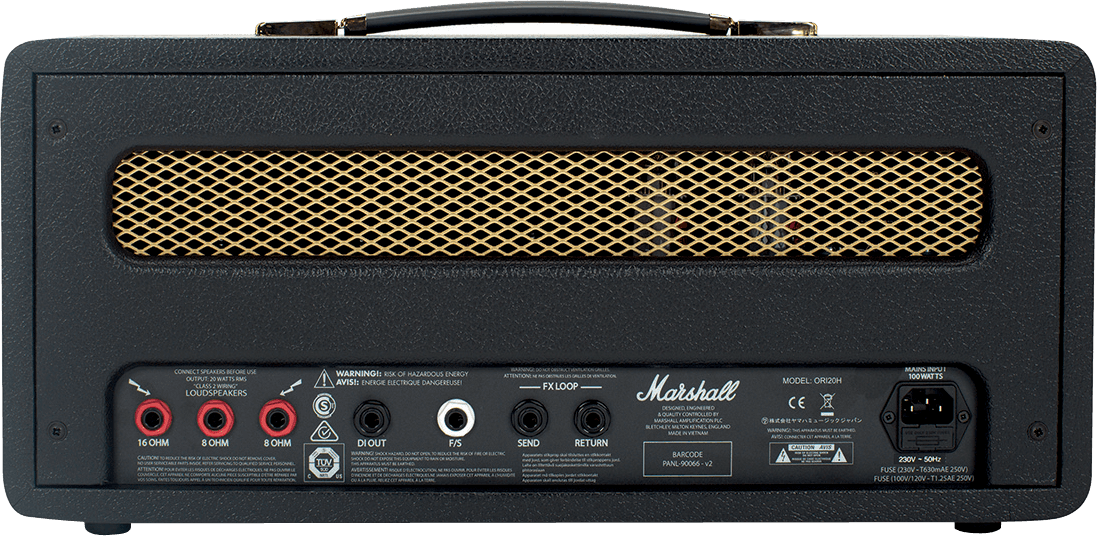

The speaker outputs are designed for 8 Ω and 16 Ω. An external cabinet output is included.
Does the effects loop accept delay and reverb?
A series effects loop is present to insert delays, reverbs, and modulations after the preamp. This setup promotes a clear reproduction of ambience effects.
What sound do the EL34 tubes of the Origin 20H produce?
The amplification is based on 2 x EL34 tubes, complemented by 3 x ECC83 tubes in the preamp. The clean sound is described as full and airy, while the gain increase produces a textured crunch sensitive to picking dynamics. The singing mids and controlled brightness reflect a vintage Marshall aesthetic.
What is the purpose of the Tilt control on the Origin 20H head?
The Tilt control adjusts the blend between the Bright and Normal voicings. It allows tailoring of the amp response according to the guitar and cabinet used.
