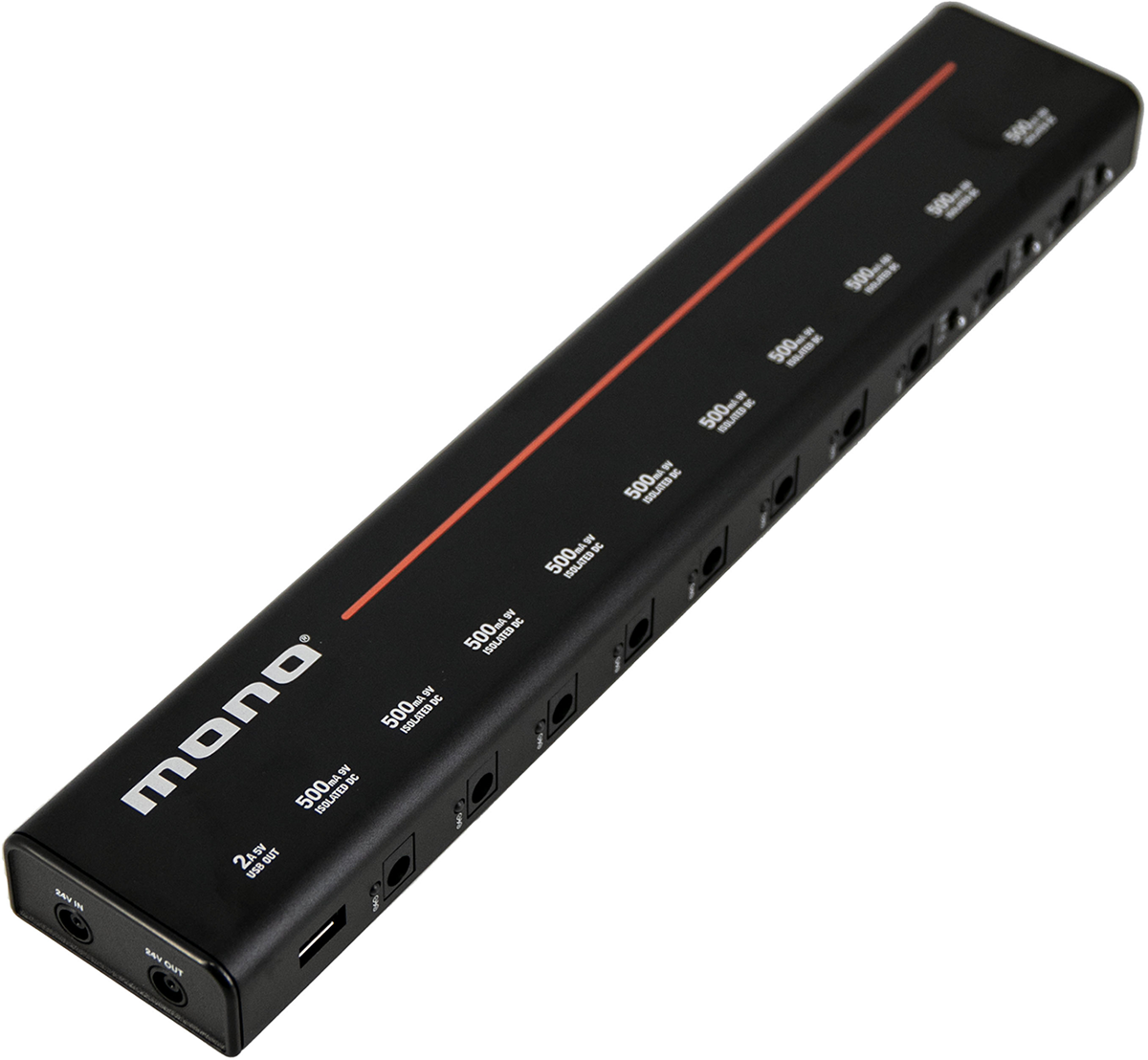

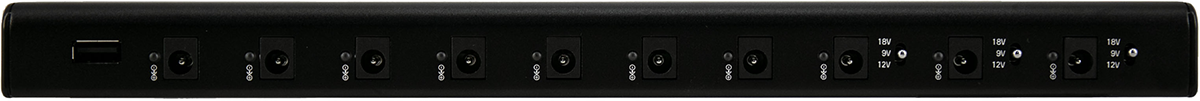

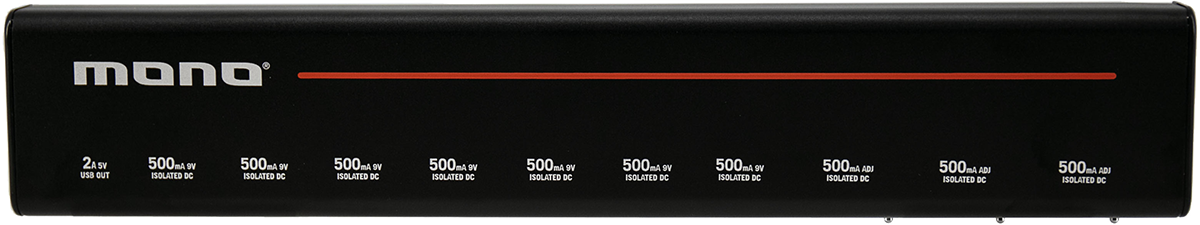

Essential Information About the MONO PFX-PS-L
- 10 isolated DC outputs to power your pedals with clean, stable, and noise-free power
- 7 outputs at 9V 500 mA plus 3 switchable outputs at 9V, 12V, or 18V for demanding digital effects, preamps, and boosts
- Ultra-thin format 313 x 56 x 25 mm, perfect for discreet integration under a pedalboard
- USB-A 5V 2A and Link 24V output to easily expand your setup and keep your accessories powered
A Silent Power Supply for a Clean and Reliable Pedalboard
Designed for guitarists and bassists who move seamlessly between rehearsals, studio, and stage, the MONO PFX-PS-L provides clear and efficient power management for your pedalboard. Its isolated outputs minimize interference and noise, a real advantage when combining overdrives, modulations, delays, and digital effects. The 3 variable voltage outputs (9V, 12V, 18V) allow quick adaptation of power to a power-hungry or high headroom pedal without multiplying adapters. Convenient for daily use, the USB-A 5V output can power a pedalboard lamp or serve as an emergency charger for a mobile device. The enclosure remains discreet thanks to its slim profile and lightweight design, while offering overload protection for worry-free playing. Delivered with a complete set of cables, a 3-output daisy chain cable, and a mounting kit, it installs neatly and facilitates clean wiring-ideal for a reliable and quick-to-set-up rig.
Technical specifications
| Current | 3 A | Color | Black |
| Voltage | 18 V | Cables included | Yes |
| Category | Multiple power supply | Weight | 304 g |
| Number of outputs | 10 | Dimensions (mm) | 313 x 56 x 25 |
| Weight (kg) | 0.304 | 10 outputs at 9V including | 7 x 500mA + 3 x 500mA switchable 9/12/18V |
Questions frequently asked
How many pedals can the MONO PFX-PS-L power?
This power supply has 10 outputs: 7 fixed 9 V / 500 mA outputs and 3 outputs of 500 mA each that can be switched between 9 V, 12 V, or 18 V.
Are the outputs isolated to reduce noise interference?
The 10 isolated outputs are designed to minimize interference and noise within a pedalboard combining multiple types of effects.
Which pedals can receive 12 V or 18 V?
Three variable outputs provide a choice of 9 V, 12 V, or 18 V, each delivering 500 mA. This setup allows powering pedals that require higher voltage than 9 V. The setting can be adjusted without adding an adapter.
Is there a USB output on this pedalboard power supply?
A 5 V USB-A output is integrated to power a pedalboard light or to charge a mobile device.
What cables and accessories are included with the power supply?
The package includes a cable set, a 3-output daisy chain cable, and a mounting kit. The enclosure measures 313 x 56 x 25 mm and weighs 304 g.
