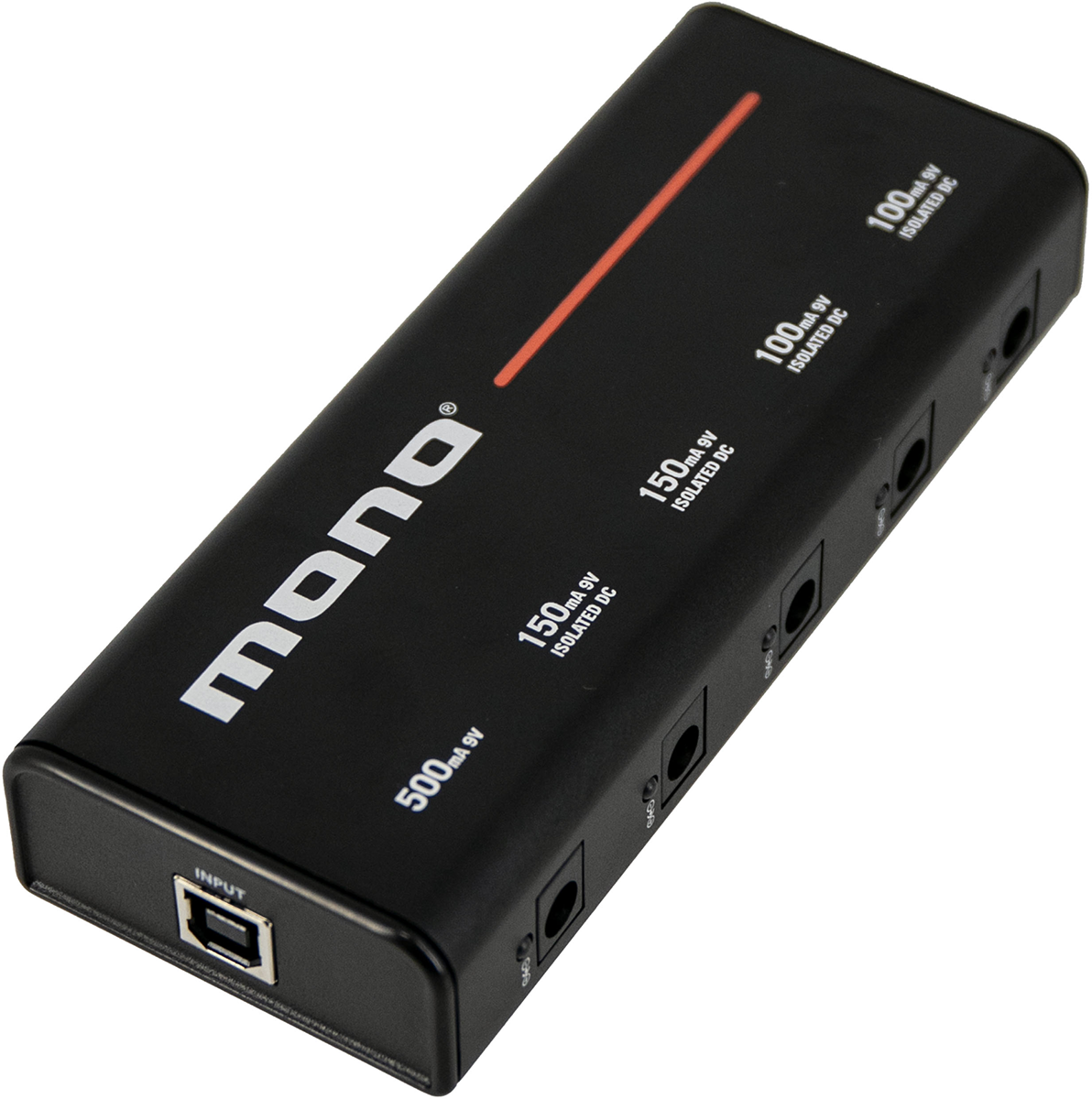

An isolated power supply designed for modern pedalboards
The MONO PFX-PS-S is a multi-output power supply designed for those who want a clean, quiet, and reliable pedalboard without clutter. Its principle is simple and effective: a 5 V USB power input, then an internal conversion delivering a steady 9 V on 5 DC outputs, with current ratings suitable for power-hungry pedals as well as more classic effects. The result: your overdrives, delays, reverbs, and modulations maintain their dynamics, with reduced background noise and better stability both on stage and in rehearsal.
Its slim chassis easily slips under the pedalboard for discreet cabling. For quick integration, MONO provides a complete pack of cables and accessories: everything needed to secure the unit, optimize routing, and keep the pedalboard tidy. Durable and overload-resistant, the PFX-PS-S becomes an obvious choice for guitarists and bassists seeking a compact, practical, and truly quiet power supply.
Technical specifications
| Current | 2.1 A | Color | Black |
| Voltage | 9 V | Cables included | Yes |
| Category | Multiple power supply | Weight | 152 g |
| Number of outputs | 5 | Dimensions (mm) | 140 x 56 x 25 |
| Isolated power supply box | 5 DC outputs | Cables | 5 x 2.1 mm x 5.5 mm power cables |
| Power input via USB-B | 5 V 2.1 A | Cable | 1 x 3-output daisy chain cable |

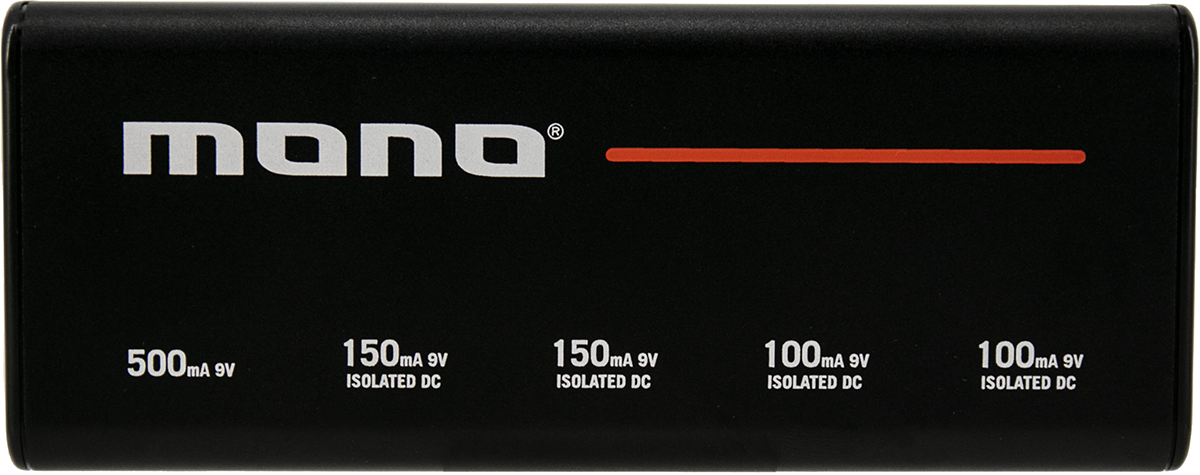

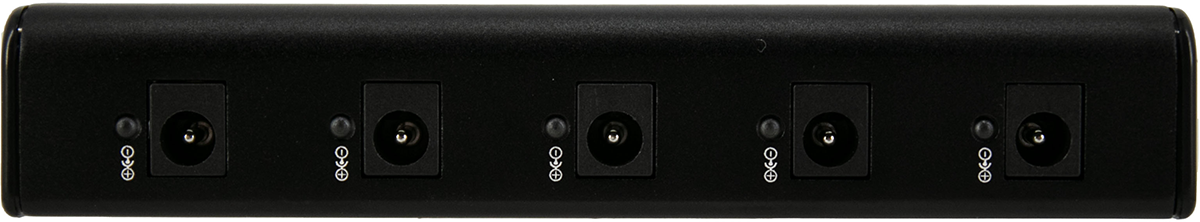

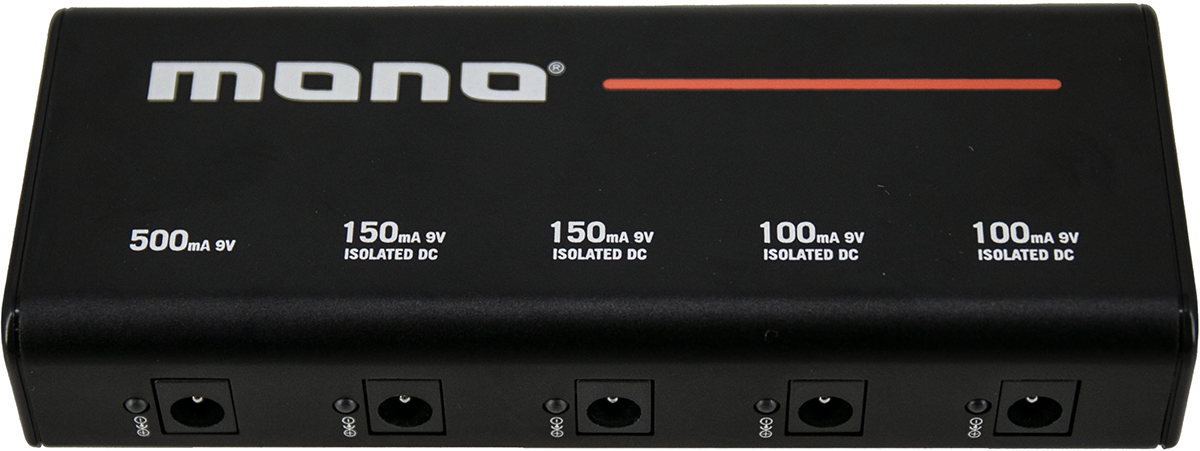

| Outputs | 5 x 9 V outputs (1 x 500 mA, 2 x 150 mA, 2 x 100 mA) | Kit | mounting kit and accessories for the unit and cables |
| Format | compact size, lightweight, very quiet operation | Mounting | hook-and-loop tape |
Questions frequently asked
How many pedals can the MONO PFX-PS-S power?
Five isolated 9 V DC outputs are available. Their distribution is 1 output at 500 mA, 2 outputs at 150 mA, and 2 outputs at 100 mA.
Which output should be chosen for a high-current pedal?
The 9 V 500 mA output is designed for pedals requiring more current. The other four outputs provide either 150 mA or 100 mA respectively.
Does the power supply operate from mains power?
Power is provided via USB at 5 V, then internally converted to 9 V across the five DC outputs.
What are the dimensions of this pedalboard power supply?
The enclosure measures 140 x 56 x 25 mm and weighs 152 g. Its slim profile allows installation underneath a pedalboard. A hook-and-loop strap is included for mounting.
What cables and accessories are included?
A 3-output daisy chain cable is included, along with a mounting kit and accessories dedicated to the enclosure and cables.
