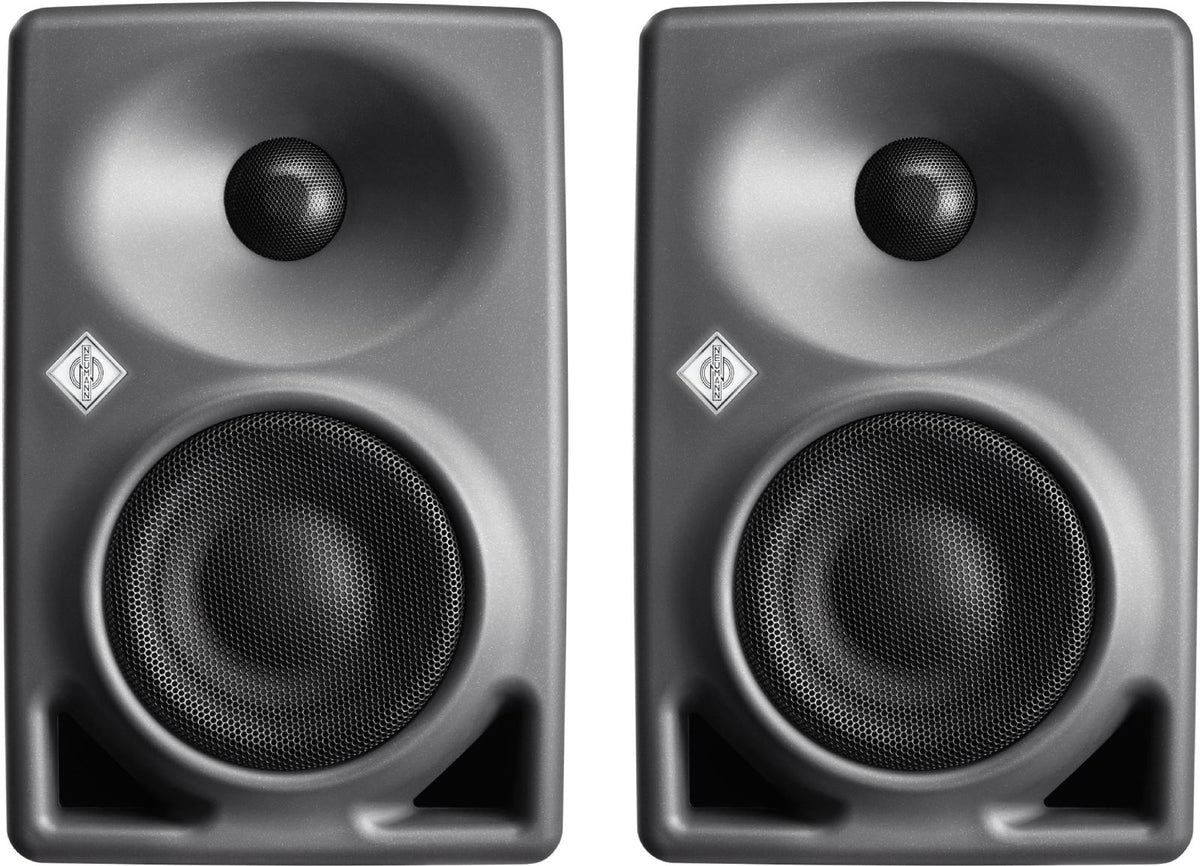

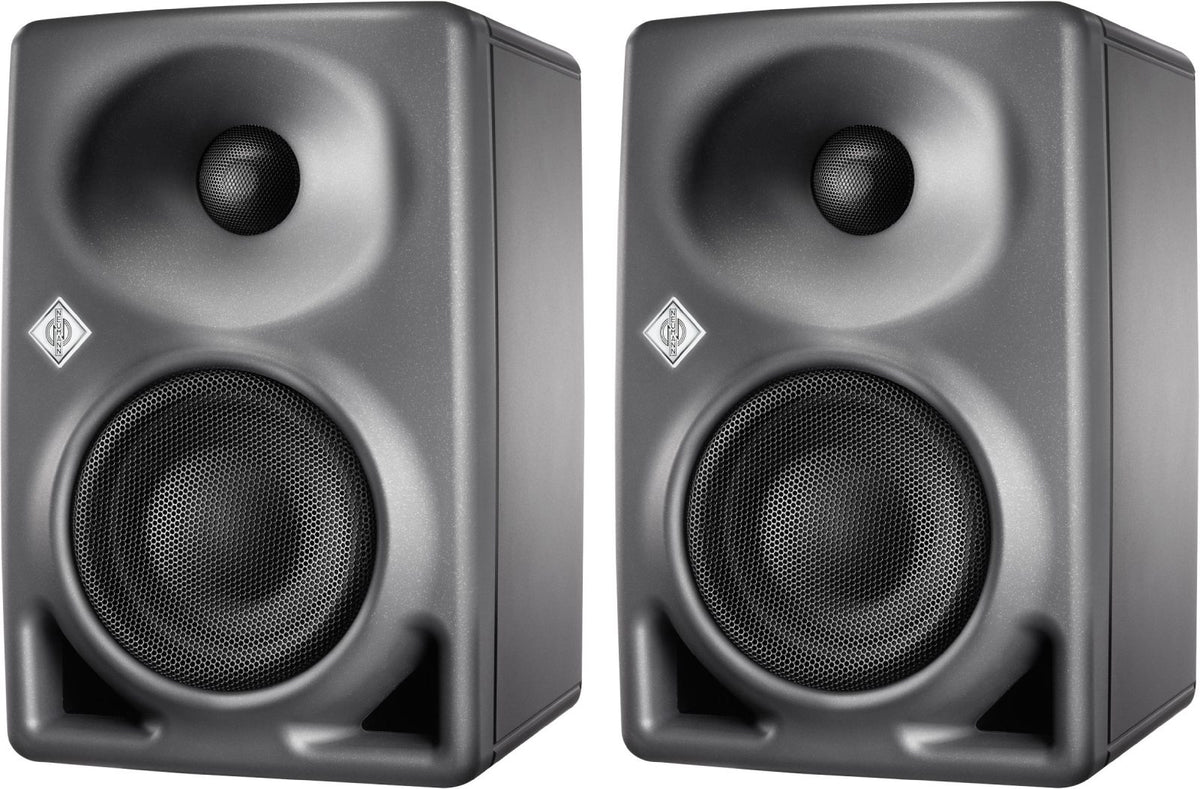

KH 80 DSP: Neumann's compactness serving modern monitoring
The KH 80 DSP embodies Neumann's philosophy: offering extremely clear nearfield listening in a compact format, without compromising on directivity control and temporal coherence. Its onboard DSP and network control facilitate adaptation to various setups (desk, control room, mobile studio), while the acoustic design relies on recent simulation and measurement tools to preserve neutrality, even in imperfect environments.
Who is it for and what are the uses?

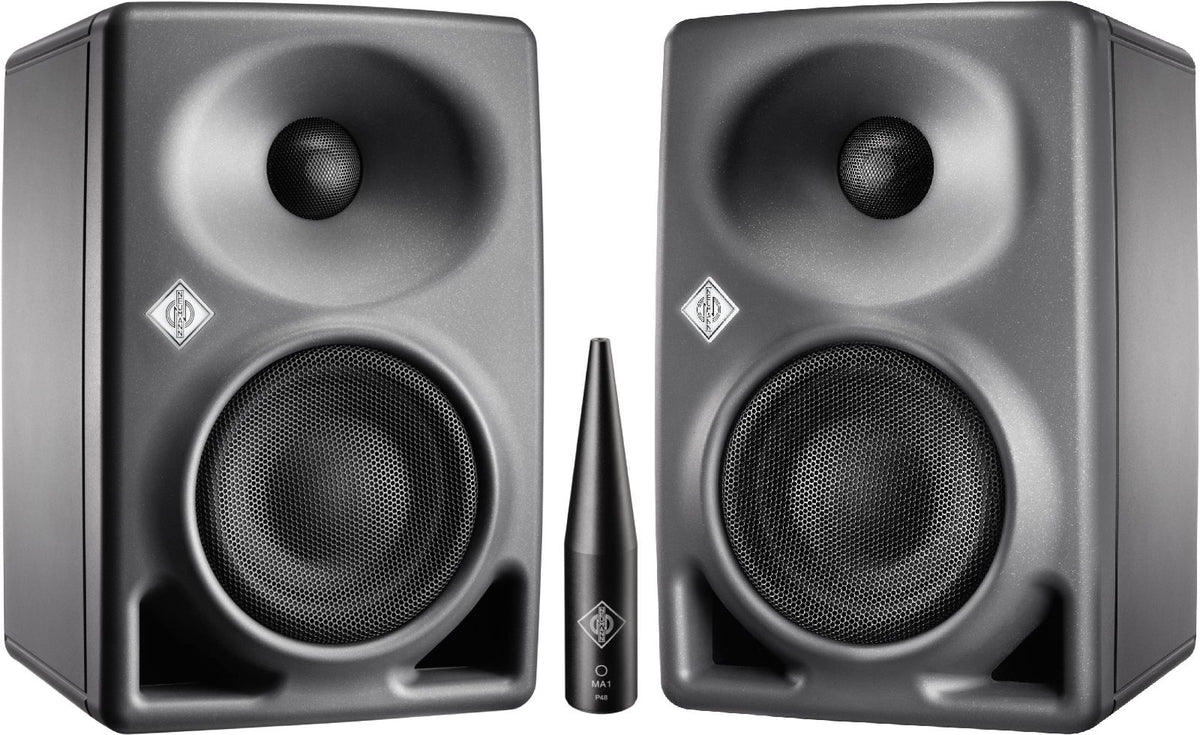

This pack is aimed at demanding home studio users, pre-production studios, broadcast control rooms, and postproduction environments seeking reliable close-range monitoring. The KH 80 DSPs are suitable both as a main nearfield pair, as front speakers in a small multichannel system, or as rear speakers in a compact immersive setup. The addition of the MA 1 microphone enables quick and reproducible tuning, especially useful when the room acoustics are not ideally treated.
DSP, calibration, and control: a faster and more reliable workflow
Better-controlled response in your room

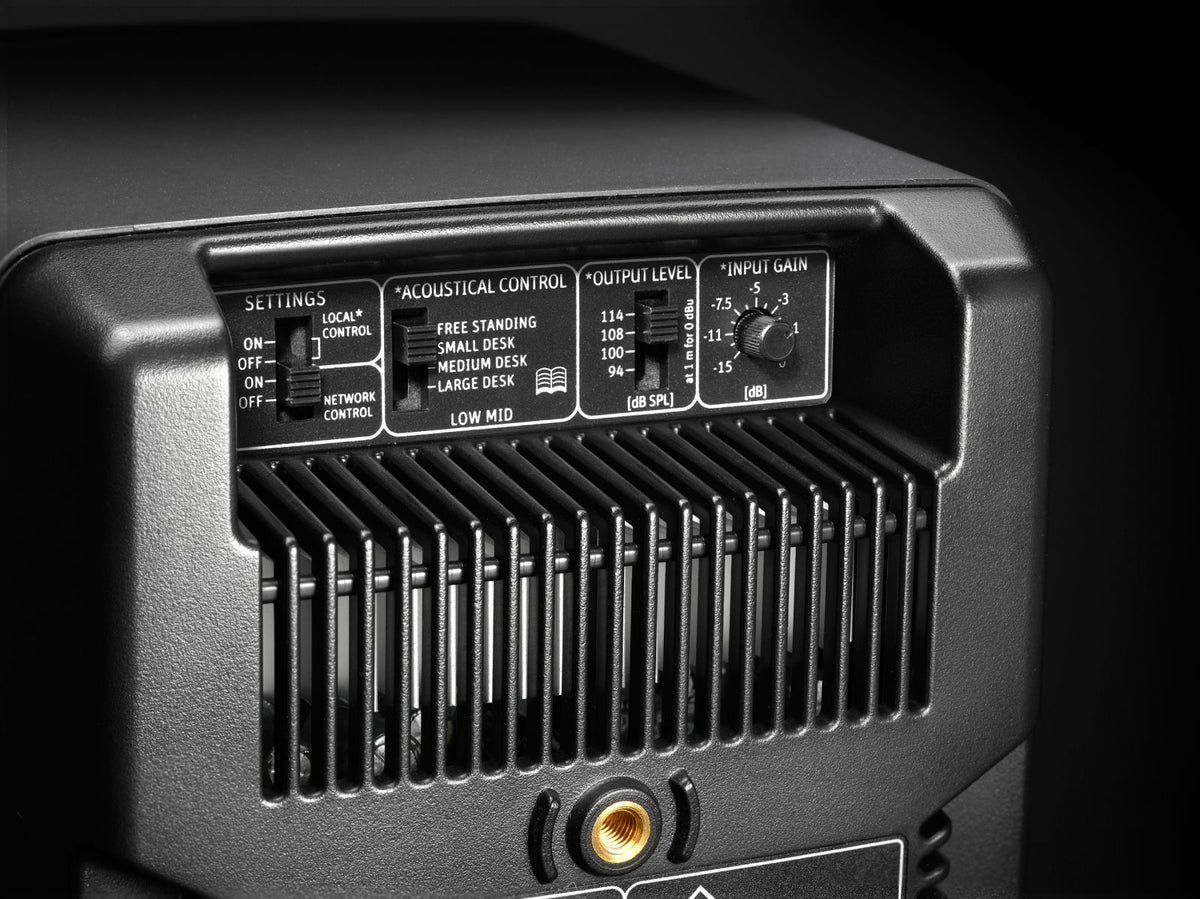

The KH 80 DSP's DSP offers room settings and filters to adjust spectral balance and integration with placement. With the MA 1 measurement microphone, you have a solid foundation to calibrate your monitoring system and reduce the impact of room resonances and imbalances, gaining in translation (more consistent mixes from one system to another).
Transients, protection, and reliability
Bi-amplification, separate peak limiters per channel, and thermal protection help maintain clean reproduction at sustained levels while securing the speaker during long sessions. The DSP management also includes linear phase crossover filtering and a delay function useful for temporal alignment and lipsync constraints in audiovisual applications.
Technical specifications
| Battery | No |
| Number of channels | 2 channels |
| Bluetooth | No |
| Connection | Combo, RJ45, XLR |
| Speaker diameter | 1", 4" |
| Number of speakers | 2 |
| EQ | Yes |
| Inputs | XLR, RJ45 |
| Color | Grey |
| Power output | 140 W |
| Quantity | 2 |
| Woofer-midrange driver | 4 inches |
| Tweeter | 1 inch |
| Digital resolution | 24 bit / 48 kHz |
| Frequency response | 57 Hz to 21 kHz (+/-3 dB) |
| Max SPL | 108.8 dB |
| Amplification power | 140 W (bi-amplification: 90 W + 50 W) |
| Self-noise | less than 20 dB(A) at 10 cm |
| Room acoustic controls | 4 positions for low-mid and 8 IIR PEQ/first-order filters, plus high and low shelf filters |
| Delay function | 70 ms and lipsync parameters |
| Input | balanced XLR, magnetic shielding |
| Dimensions (H x W x D) | 233 x 154 x 194 mm |
| Weight | 3.5 kg |
Questions frequently asked

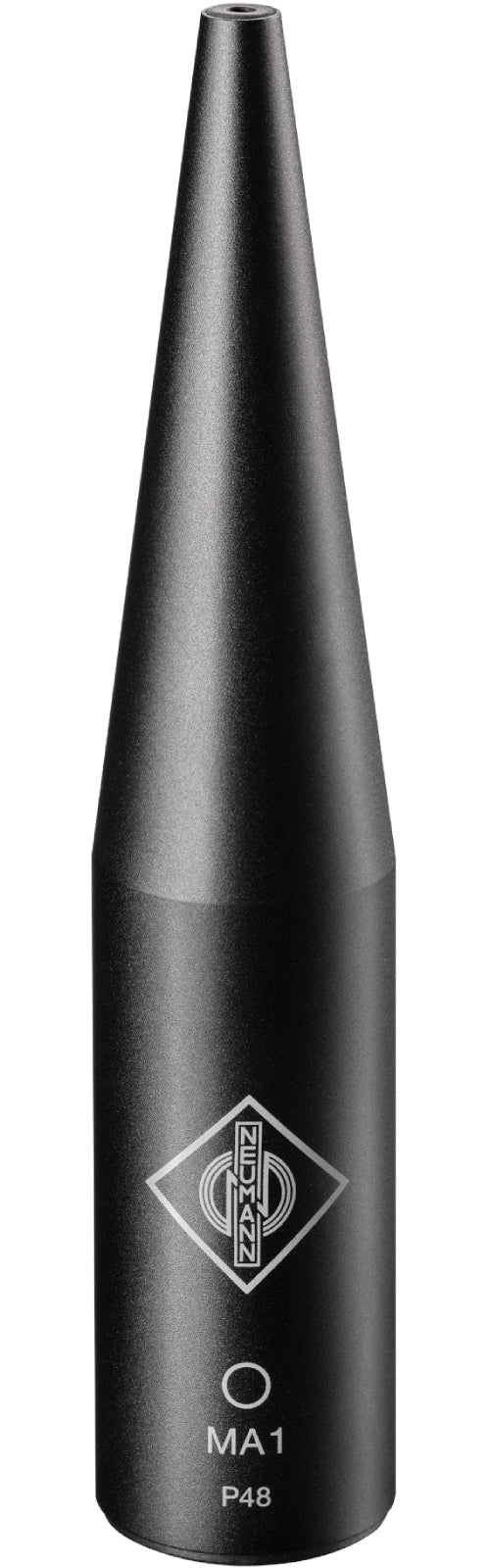

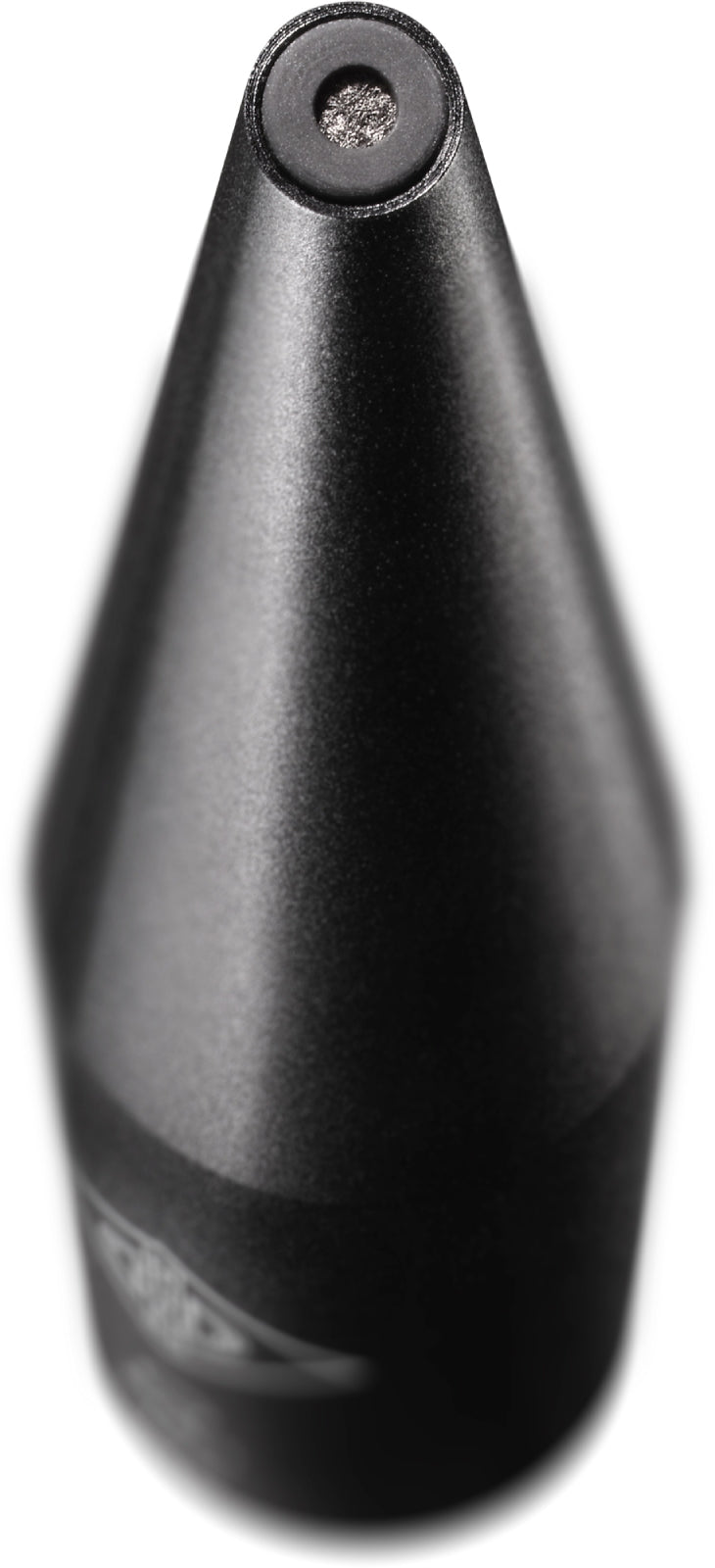

Does the Neumann KH 80 MA 1 pack include the calibration microphone?
The pack includes the MA 1 measurement microphone, intended for calibrating the monitoring system. It allows adjusting the speaker response according to the room.
What is the frequency response of the KH 80 DSP speakers?
The specified frequency response ranges from 57 Hz to 21 kHz, within ±3 dB. A 4-inch mid-bass driver and a 1-inch tweeter provide two-way sound reproduction.
Are the KH 80 DSP suitable for a small home studio?
This model is suitable for nearfield monitoring in home studios, control rooms, or mobile studios. Its dimensions of 233 x 154 x 194 mm make it easy to place on a desk. The maximum SPL reaches 108.8 dB.

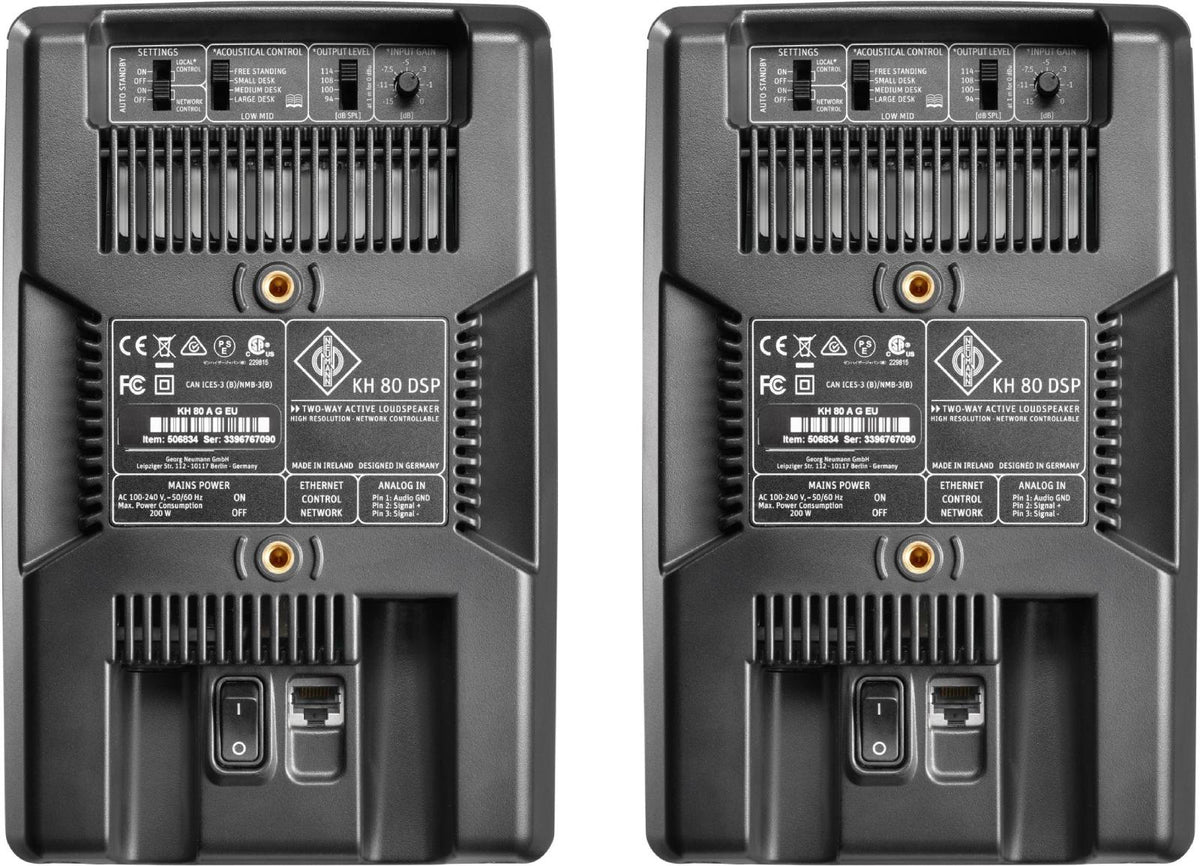

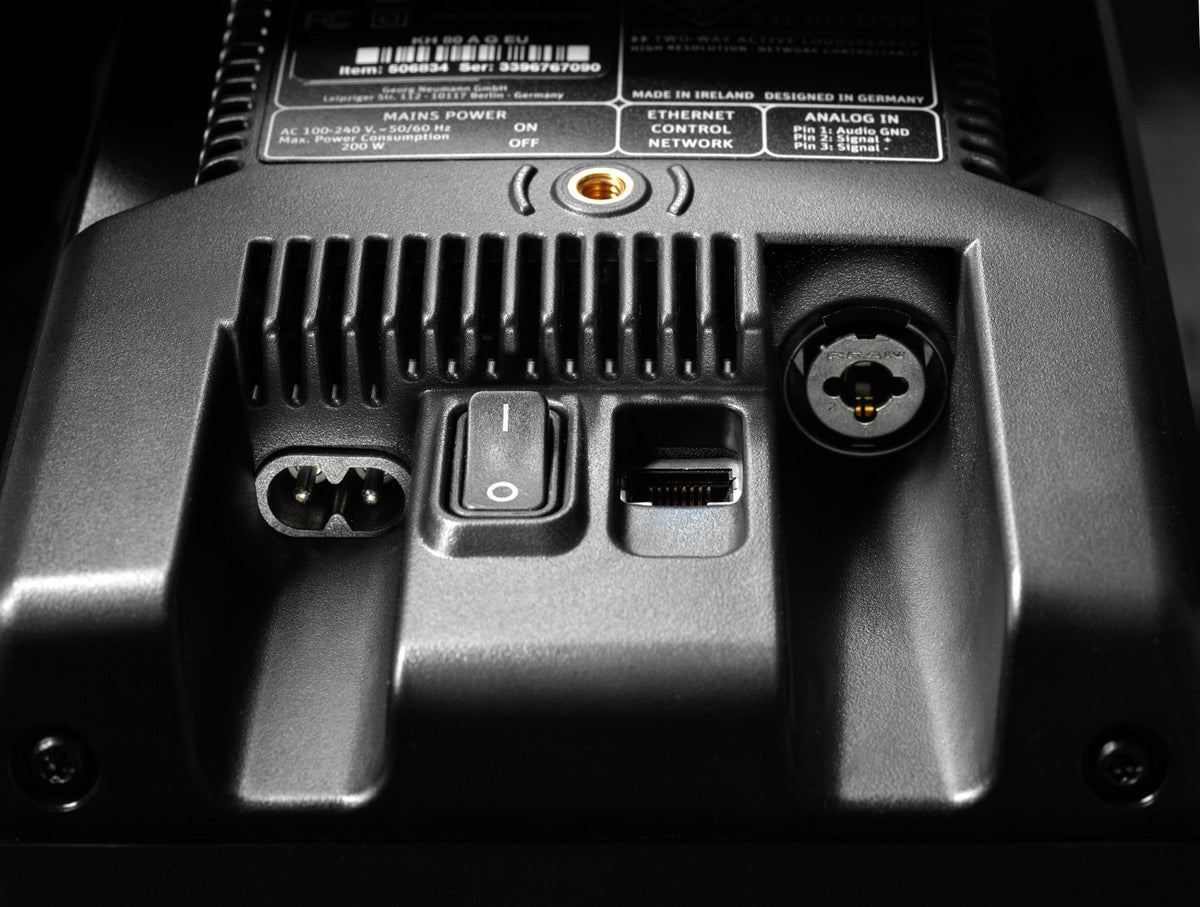

What connectivity is available on these Neumann monitors?
A balanced XLR input is provided for audio connection, while the RJ45 port supports network control and DSP functions.
Can delay and equalization be adjusted on the KH 80 DSP?
The built-in DSP includes room adjustment settings, filters, and a delay function up to 70 ms. Linear phase crossover filters are also available for time alignment and lipsync settings.
