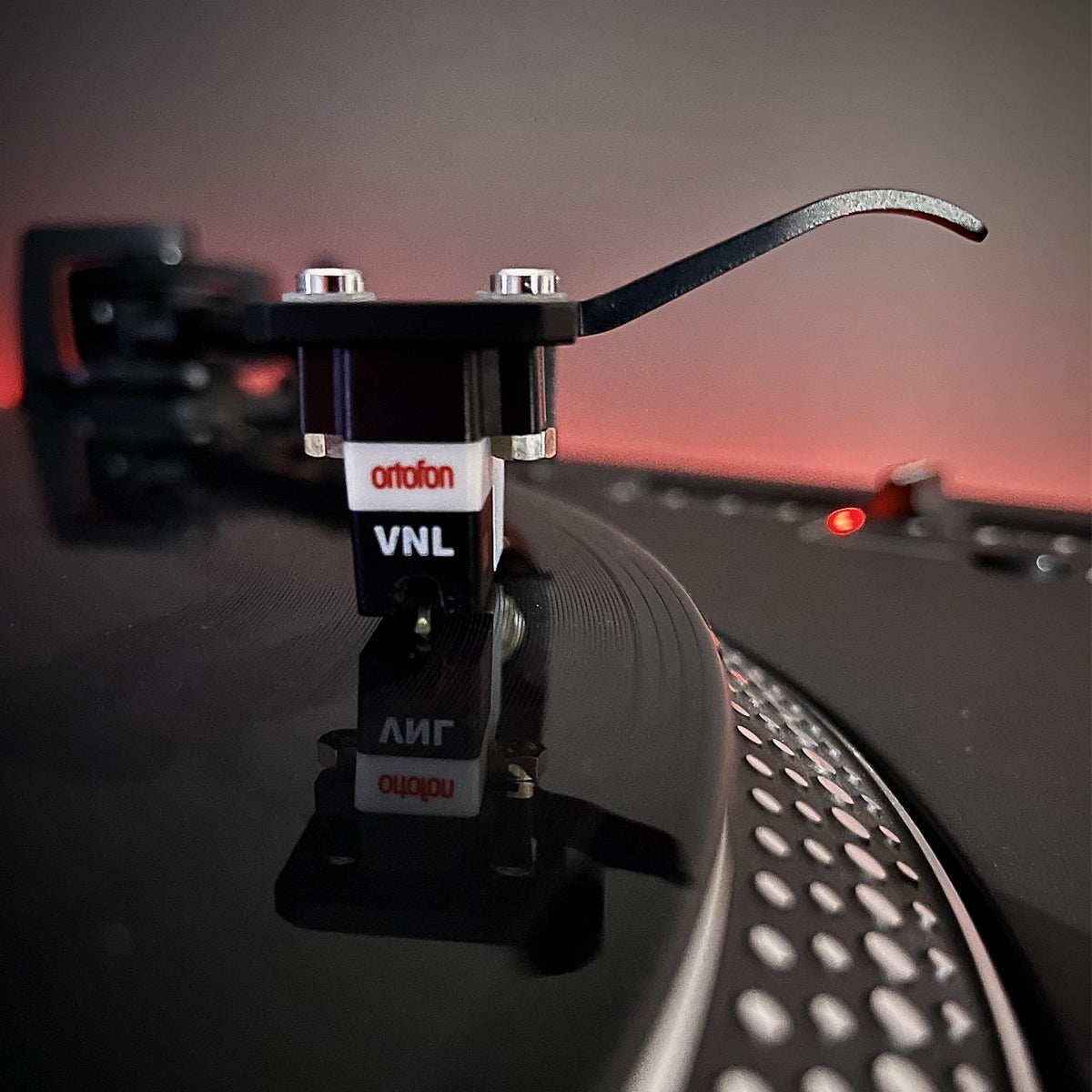

ORTOFON DJ Vnl On Sh-4 Black
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Ortofon
https://www.ortofon.com
support@ortofon.dk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
A phono solution designed for vinyl turntables in a DJ environment
This phono cartridge belongs to the DJ-oriented cartridge category, where priority is given to robustness, output level, and playback stability. Its pre-mounted format simplifies installation and saves time during set preparations or configuration changes.
Who is this phono cartridge for?
Ideal for beginner to advanced DJs looking for a reliable cartridge for mixing, home practice, studio work, or mobile performances. The spherical profile and recommended tracking force promote consistent playback, useful when handling is frequent.
Features and innovations
With an output voltage of 6 mV at 1 kHz, this cartridge delivers a well-present signal. It covers a frequency response from 20 Hz to 20 kHz with a specified tolerance of -2 / +4 dB, and offers channel separation of 20 dB at 1 kHz. The recommended load parameters (47 kOhm) facilitate pairing with most phono preamps and DJ mixer phono inputs.
Technical specifications
| DJing type | Monitoring, Mix | Diamond tip | spherical |
| Category | cell | Color | White |
| Type | cell | Quantity | 1 |
| Destination | DJ | ||
| Output voltage at 1 kHz, 5 cm/sec | 6 mV | Internal impedance, DC resistance | 700 ohms |
| Channel separation at 1 kHz | 20 dB | Recommended load resistance | 47 kOhm |
| Frequency response 20 Hz - 20 kHz | -2 / +4 dB | Internal inductance | 450 mH |
| Tracking ability at 315 Hz at recommended tracking force | 90 µm | Recommended load capacitance | 47 kOhm |
| Compliance, dynamic, lateral | 15 µm/mN | Cartridge color | White |
| Tracking force range | 3-5 g | Cartridge weight | 6.5 g |
| Recommended tracking force | 4 g | Pre-mounted cartridge weight | 16.0 g |
| Stylus type | Spherical | Dimensions (including packaging) | 120 x 900 x 350 mm |
| Stylus tip radius | R 18 µm | Weight (including packaging) | 655 g |
Questions frequently asked
What tracking force should be set for this DJ cartridge?
The recommended tracking force is 4 g, within an adjustment range of 3 to 5 g. This setting contributes to the stated tracking ability of 90 µm at 315 Hz.
Is the ORTOFON DJ Vnl On Sh-4 Black cartridge suitable for mixing?
This cartridge is designed for listening and DJ mixing. Its spherical stylus with an 18 µm radius and the recommended tracking force of 4 g ensure consistent playback during frequent handling.
What output level does this cartridge provide?
With 6 mV at 1 kHz for 5 cm/s, the cartridge delivers an output level suitable for DJ mixer phono inputs and phono preamplifiers.
Which phono preamp should be used with this cartridge?
A load resistance of 47 kOhm is recommended. This value is intended for use with the majority of phono preamps and DJ phono inputs.
Is mounting quick on a DJ turntable?

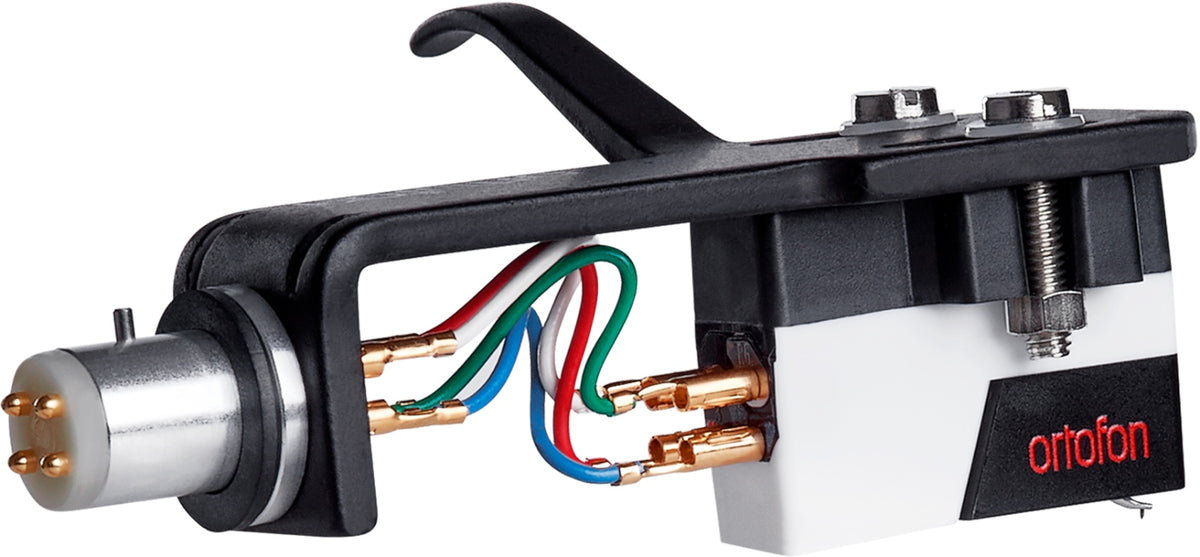

The pre-mounted format on the SH-4 headshell simplifies installation. It helps reduce setup time when changing configurations. The cartridge is supplied individually.
