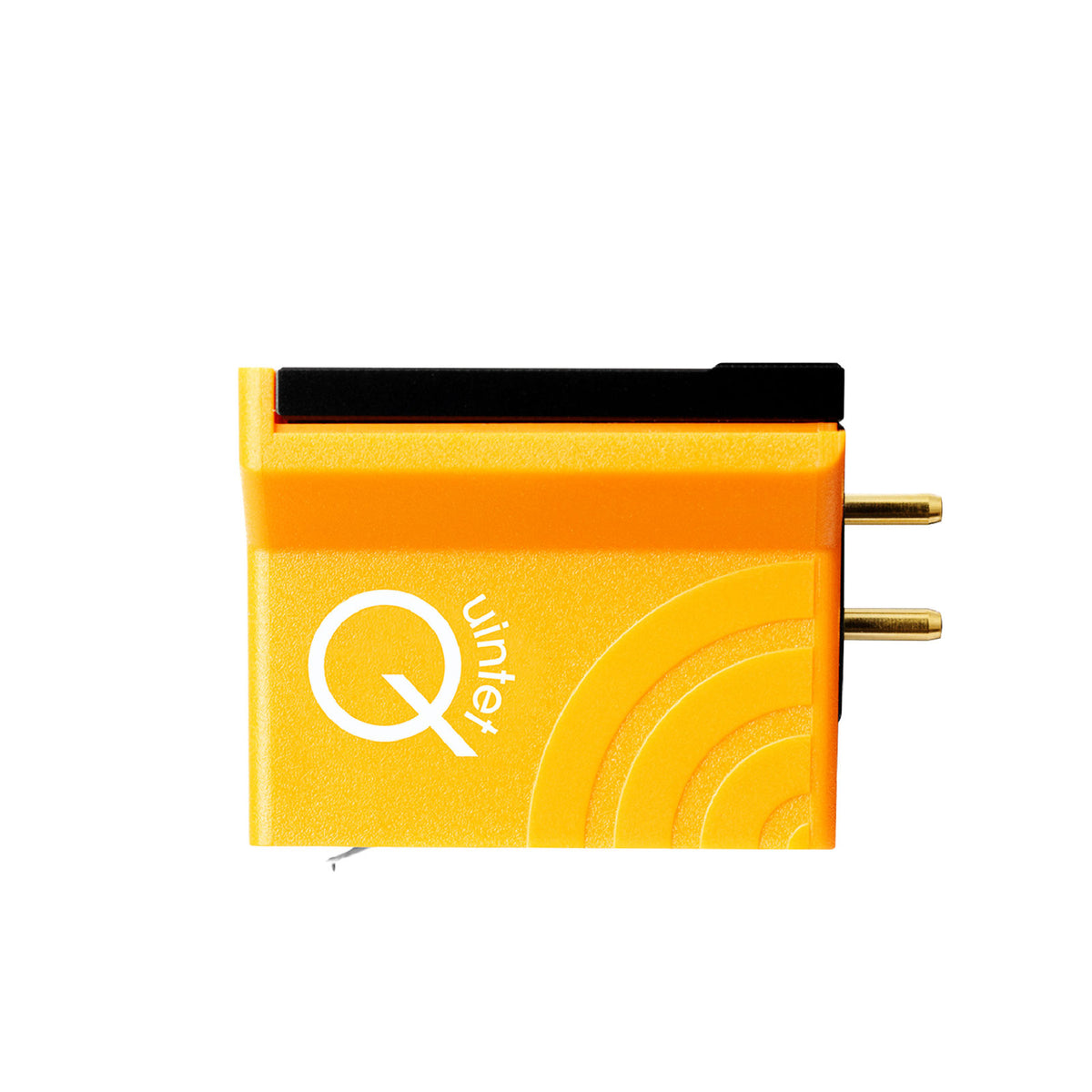

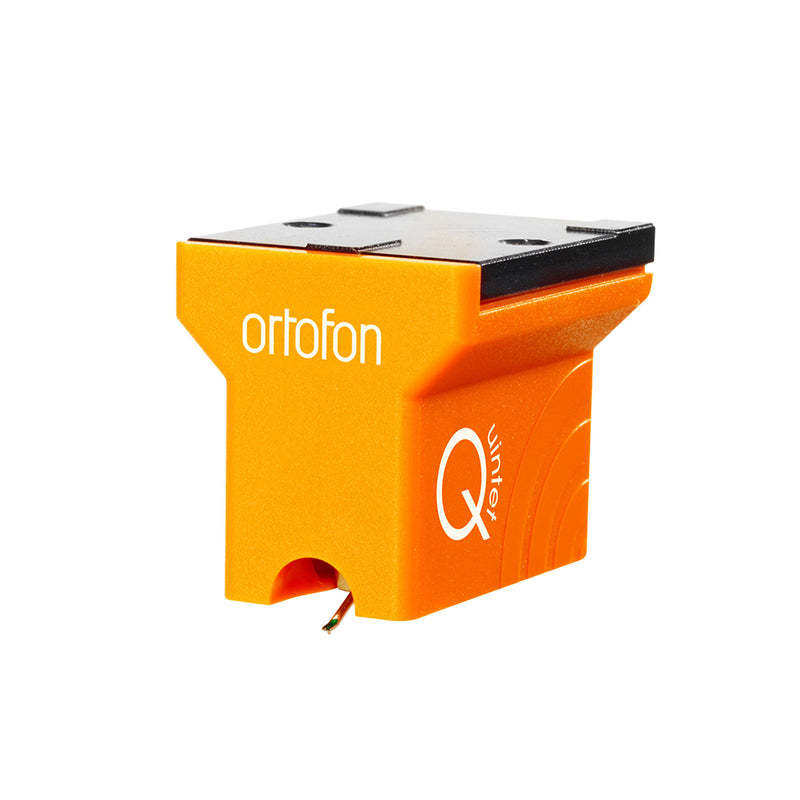

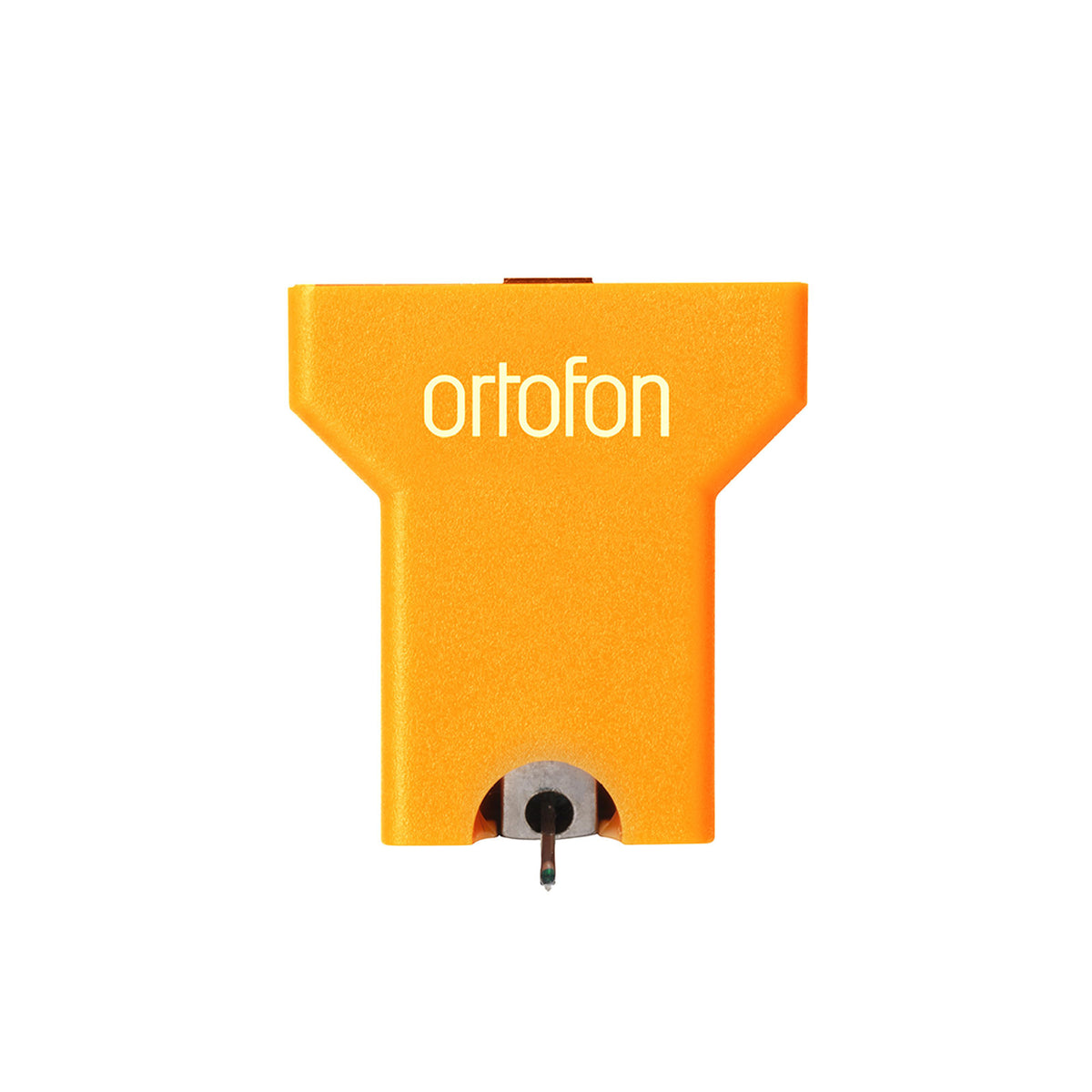

Ortofon Hifi MC QUINTET BRONZE

An MC Cartridge Oriented Toward High Fidelity, to Take Your Vinyl Playback to the Next Level

This MC (moving coil) phono cartridge positions itself as an audiophile choice for those who want to gain in definition, soundstage precision, and timbral finesse. Its Line Contact stylus is designed to optimally exploit the information engraved in the groove, offering a more "settled" and clearer listening experience, even on complex passages. The choice of an aluminum cantilever and an ABS and aluminum body aims for a balance between rigidity, vibration control, and musicality.

For Whom and in What Listening Contexts?

This cartridge is primarily intended for vinyl enthusiasts who prioritize hi-fi listening in a living room setting, on a carefully adjusted turntable (alignment, azimuth, VTA) paired with a transparent system. With its low output voltage (0.3 mV ), it is particularly suited for users equipped with a phono preamp compatible with MC cartridges or a step-up transformer, to fully exploit its dynamic potential and fine reproduction.

It will also suit enthusiasts upgrading their setup: switching from an MM cartridge to an MC, optimizing the phono preamp, or seeking more precise playback on quality pressings. However, for DJ use (scratching, intensive back-cueing) or environments with strong vibrations, a dedicated DJ cartridge would be more appropriate.

Features and Innovations

The core of this cartridge is based on an MC architecture with 4N pure copper coil wire, combined with an internal impedance of 5 ohms and a recommended load impedance above 20 ohms. This configuration favors fine signal transmission but requires a quality MC phono amplifier capable of handling a low output level without noise.

The Line Contact diamond (radius r/R 8/40 µm ) is designed to improve contact with the groove walls: this generally results in better instrument separation, cleaner highs, and more nuanced playback of reverberations and textures. The stated channel separation (greater than 23 dB at 1 kHz, and greater than 15 dB at 15 kHz) contributes to a more stable stereo image. The channel balance below 1.2 dB helps create a coherent soundstage, beneficial for long and precise listening sessions.

Regarding adjustments, the tracking force range of 2.1 to 2.5 g (recommended 2.3 g ) and the 20deg stylus rake angle provide a clear basis for optimizing groove tracking. Once properly installed, the frequency response from 20 to 20,000 Hz with a tolerance of +/-1.5 dB aims for balanced reproduction across the spectrum, with clear bass and detailed highs.

Technical specifications
