A Pro Design at the Heart of the Pioneer DJ Range
The PLX-500 draws from the DNA of the professional PLX-1000 turntable to offer an authentic and reliable vinyl experience. It stands as a versatile model for DJs and discerning music lovers, combining a professional look, robustness, and modern features, including USB digitization and Line output.
Who Is It For and What Are Its Uses?

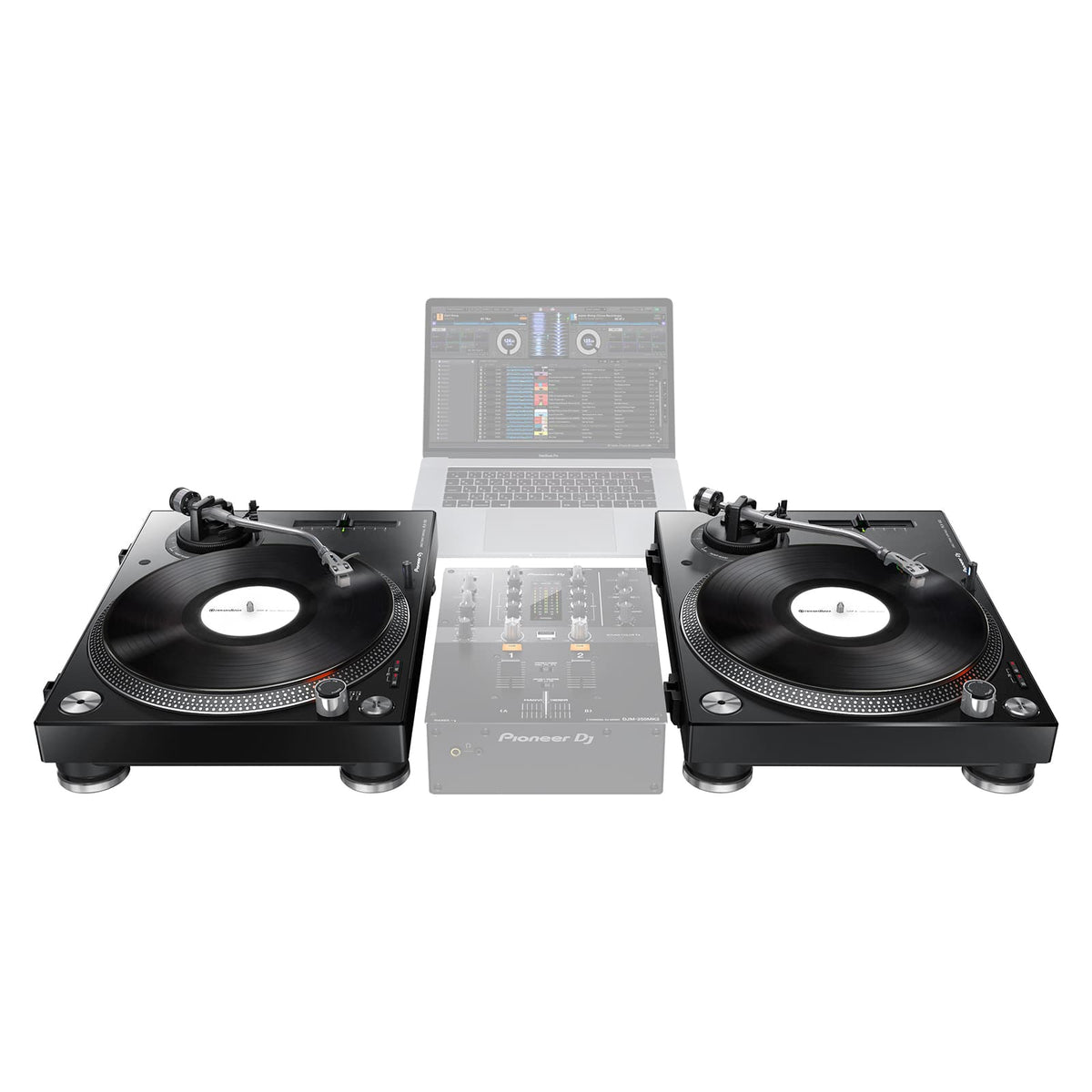

Ideal for beginner to advanced DJs, the PLX-500 excels in clubs, mobile DJ setups, home studios, and at home. Its high-torque direct drive is suitable for scratching and technical sets, while the USB facilitates archiving your collection. Paired with a compatible DJM mixer and the "RBVS1-K" Control Vinyl, it works with the "rekordbox dvs" Plus Pack to play and manipulate your digital files.
Features and Innovations

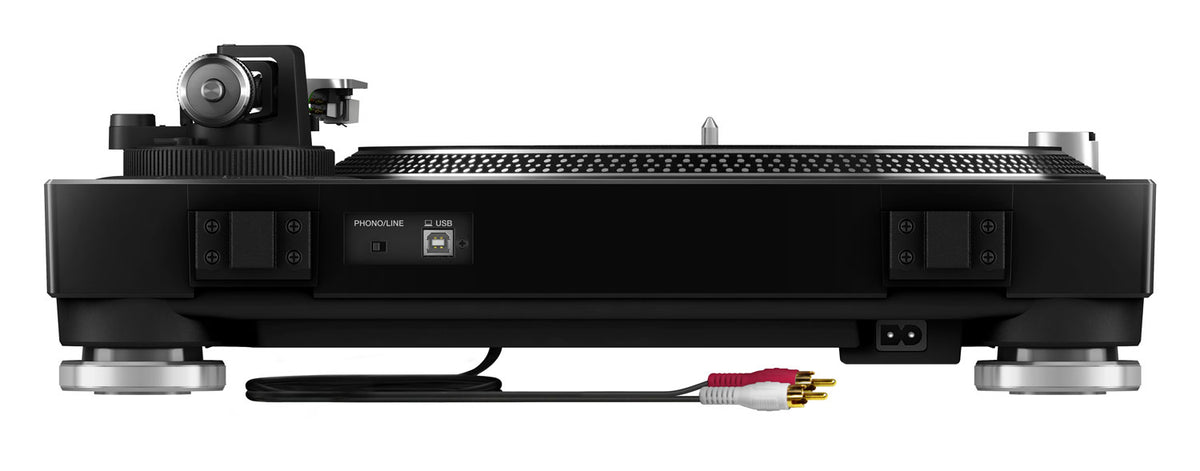

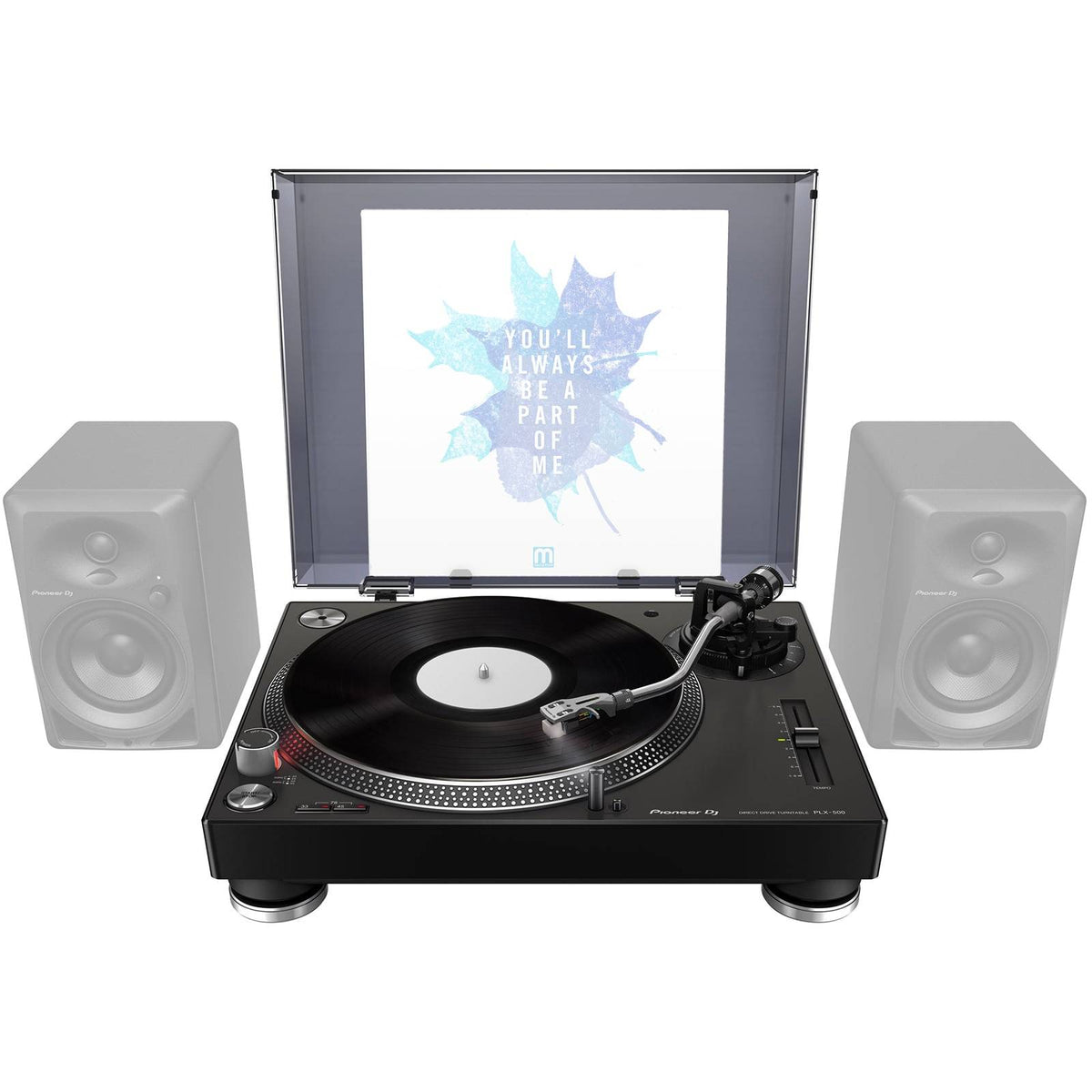

Thanks to the built-in phono preamp, you can choose between Phono or Line RCA outputs for immediate integration into any system. The USB (Type B) connection allows easy recording of your vinyl to WAV files via the free "rekordbox" application, which automatically detects silences to create individual tracks. The direct drive motor ensures quick start-up and stable tracking, while the universal S-shaped tonearm guarantees reliable playback. The dust cover includes a holder to display the sleeve of the record currently playing, connecting eye to ear. Your library imported into "rekordbox" can then be played with a "rekordbox dvs" setup, a DDJ controller, or CDJ players via USB.
Technical specifications
| Digital conversion | Yes |
| Bluetooth | No |
| Drive | direct |
| Dimension | 12" |
| Outputs | USB, Rca |
| Color | Black |
| Power Supply | AC 100 V, 50/60 Hz |
| Power Consumption | 11 W |
| Maximum Dimensions | 450 x 159 x 368 mm |
| Weight | 10.7 kg |
| USB | Type B |
| Drive System | Direct drive servo motor type |
| Motor | Brushless DC, 3-phase |
| Brake System | Electronic |
| Speeds | 33 1/3, 45, 78 RPM |
| Speed Adjustment Range | +/-8% |
| Platter | Die-cast aluminum, diameter 332 mm |
| Wow and Flutter | 0.15% WRMS or less |
| S/N Ratio | 50 dB (DIN-B) |
| Starting Torque | 1.6 kgf cm or more |
| Start-up Time | Maximum 1 second (at 33 1/3 RPM) |
| Type | Universal S-shaped tonearm, gimbal suspension, static balance |
| Effective Length | 230.5 mm |
| Overhang | 16 mm |
| Maximum Tracking Error | 3 degrees |
| Height Adjustment | 6 mm |
| Tracking Force Range | 0 to 4.0 g (0.1 g increments) |
| Suitable Cartridge Weight | 9.5 g or less (single cartridge) |
| Length | 52 mm |
| Handle Length | 21 mm |
Questions frequently asked
Is the Pioneer DJ PLX-500-K suitable for scratching?
Its direct drive servo motor provides a starting torque of 1.6 kgf·cm or more, with a start time of less than one second at 33 1/3 rpm. The pitch control range is ±8%.
How can vinyl records be digitized with this turntable?
The USB type B connection allows recording vinyl into WAV files via the free rekordbox application. Automatic silence detection can create individual tracks during digitization.
Can it be connected to a line input?
The built-in phono preamp allows selecting either RCA Phono or Line output. This enables integration with systems having a line input without needing an external phono preamp.
What playback speeds are available?
Three speeds are available: 33 1/3, 45, and 78 rpm.
Is it compatible with rekordbox dvs?
Using rekordbox dvs requires a compatible DJM mixer and the RBVS1-K control vinyl. A library digitized in rekordbox can then be played in a DVS setup. The S-shaped tonearm accepts a standard 9.5 g or lighter cartridge.
