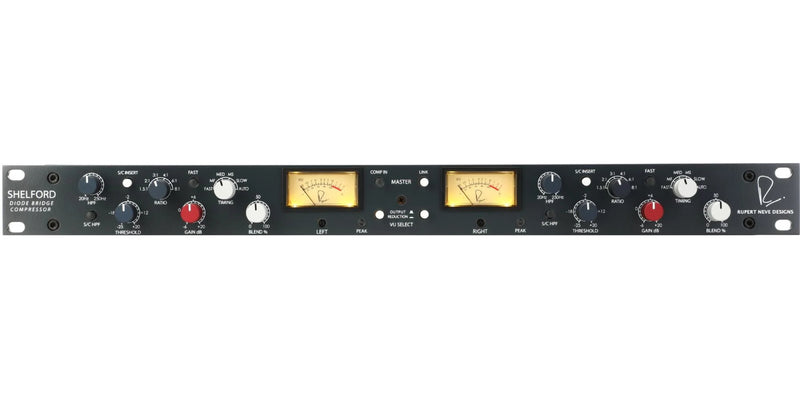

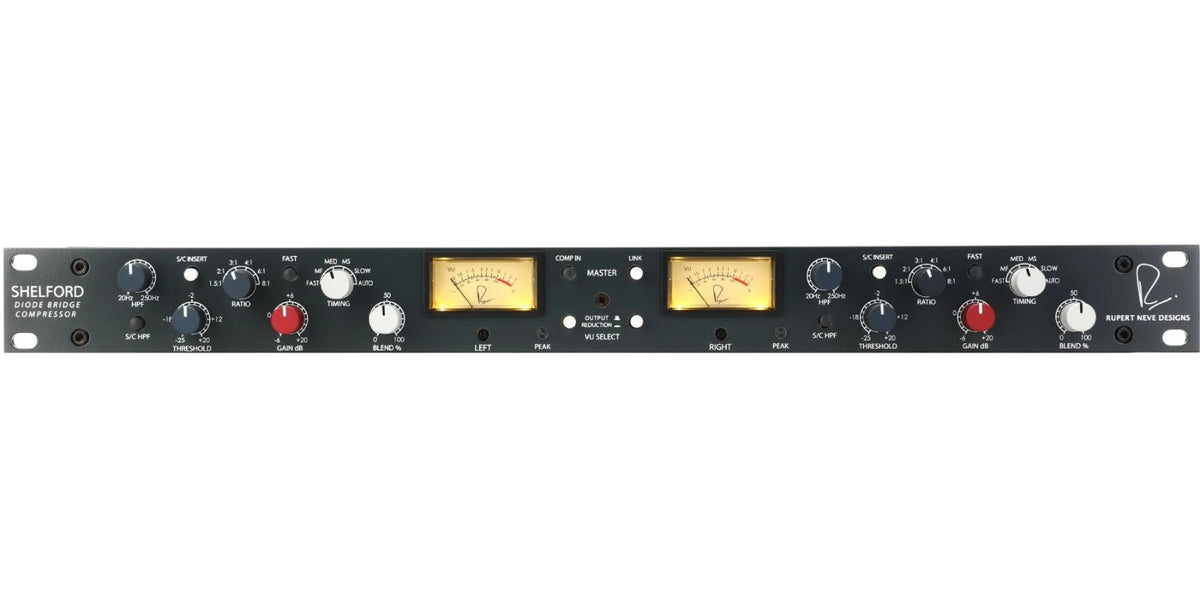

Rupert Neve Designs 5254 Shelford Diode Bridge Compressor
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Rupert Neve Designs
info@rupertneve.com
------------------------
Safety manager:
Woodbrass.com
Email: support@woodbrass.com
Address:
A Neve Heritage Reimagined for Modern Studios
Born from the tradition of the first diode bridge compressors designed in the 1970s, the Shelford Diode Bridge Compressor captures the percussive and organic character that shaped countless records. Rupert Neve offers here a faithful reinterpretation, enriched with crucial improvements for modern production: detailed controls, significantly reduced noise, higher voltage power supply, and internal parallel processing.
Who and What For?
Ideal for engineers and producers seeking compression that is both musical and powerful, it excels on drum buses, guitar, bass, and vocals, as well as on the mix bus to "glue" a mix together. In dual mono mode, it adapts to tracking stereo sources or two independent tracks; in stereo link mode, it provides coherence without pumping. The detented controls facilitate recall of settings in both mixing and mastering.
Modern Features Serving Character
At the heart of the unit, custom transformers and a Class A line amplifier ensure wide dynamics and refined texture. The diode bridge delivers this dense and energetic signature, while remaining controllable thanks to precise adjustments and integrated parallel processing, perfect for preserving attack and transients while increasing density.
Exemplary Headroom and Silence
Capable of handling up to +26.7 dBu at input and output, the unit integrates effortlessly into high-level chains. The 10 Hz to 120 kHz (+/-0.25 dB) frequency response and 0.0008% THD+N guarantee exemplary fidelity, while the extremely low noise floor preserves clarity in delicate passages.
Uncompromising Studio Integration
XLR I/O, 6.3 mm jack sidechain send/return, and ground lift switch offer quick integration into any rack. The 19" 1U format optimizes space, and the 31-position detented controls ensure perfect repeatability, essential for professional work and session recall.
Technical specifications
| Weight | 4 kg | Frequency response (10 Hz to 120 kHz) | +/-0.25 dB |
| Input impedance | 10 kOhm | THD+N at 1 kHz at maximum level (22 Hz - 22 kHz bandwidth) | 0.0008% |
| Output impedance | 40 Ohm | Compressor noise specs | noise at 0 dB gain (22 Hz - 22 kHz BW): -84.5 dBu |
| Maximum input level (+4 dBu selected) | +26.7 dBu | Noise at +20 dB gain (22 Hz - 22 kHz bandwidth) | -64.5 dBu |
| Maximum output level | +26.7 dBu | Input/output connectors | XLR |
| Noise (22 Hz - 22 kHz bandwidth) | -104 dBu | Sidechain send/return connector | 6.3 mm jack |
Questions frequently asked
Can the Rupert Neve Designs 5254 be used on the master bus?
The diode bridge compression enhances mix cohesion on the master bus. The stereo link mode ensures consistent behavior between both channels and reduces pumping.
Which settings facilitate session recall?
The step-detented controls with 31 positions allow precise recall of settings during mixing or mastering.
How does the built-in parallel compression work?
The internal parallel processing preserves the signal's attack and transients while increasing its density. This function is particularly suited for drum buses, guitars, and vocals. The Custom transformers and Class A line amplifier contribute to the character of the processing.
What connectivity is available on this 1U compressor?
Audio inputs and outputs are XLR format. A 6.3 mm jack sidechain insert allows external processing in the detection circuit, while a ground lift switch facilitates rack integration.
What maximum audio level does the Shelford Diode Bridge Compressor accept?
The input stage, with +4 dBu selected, accepts up to +26.7 dBu, which is also available at the output. The frequency response is specified from 10 Hz to 120 kHz, at +/-0.25 dB.
