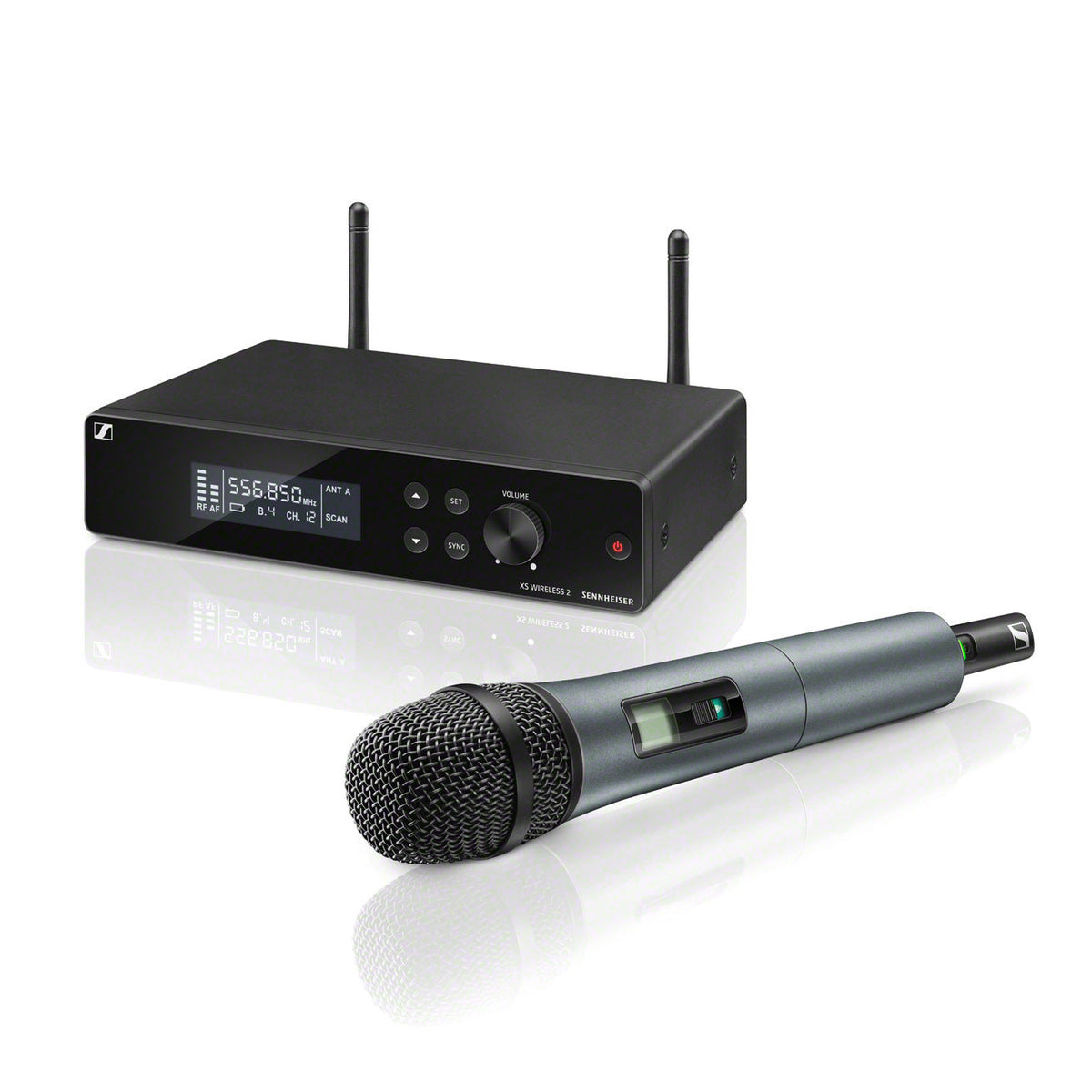

Sennheiser XSW 2-835-a (548 - 572 MHZ)

A Reliable Member of the XS Wireless Family, Built for the Stage

Positioned as an ambitious "plug & play" solution, the XSW 2-835 carries the Sennheiser stage DNA and makes it accessible. Compared to entry-level systems, it adds a rack-mountable metal chassis receiver, a clear LCD display, and a wide UHF band for smooth operation in radio-dense environments.

For Whom and For What Uses?

Designed for singers, hosts, presenters, and venues hosting various artists, the XSW 2-835 offers immediate handling and reassuring reliability. Its cardioid capsule puts the voice front and center while limiting unwanted feedback, an asset on both small and large stages.

What You Will Appreciate Daily

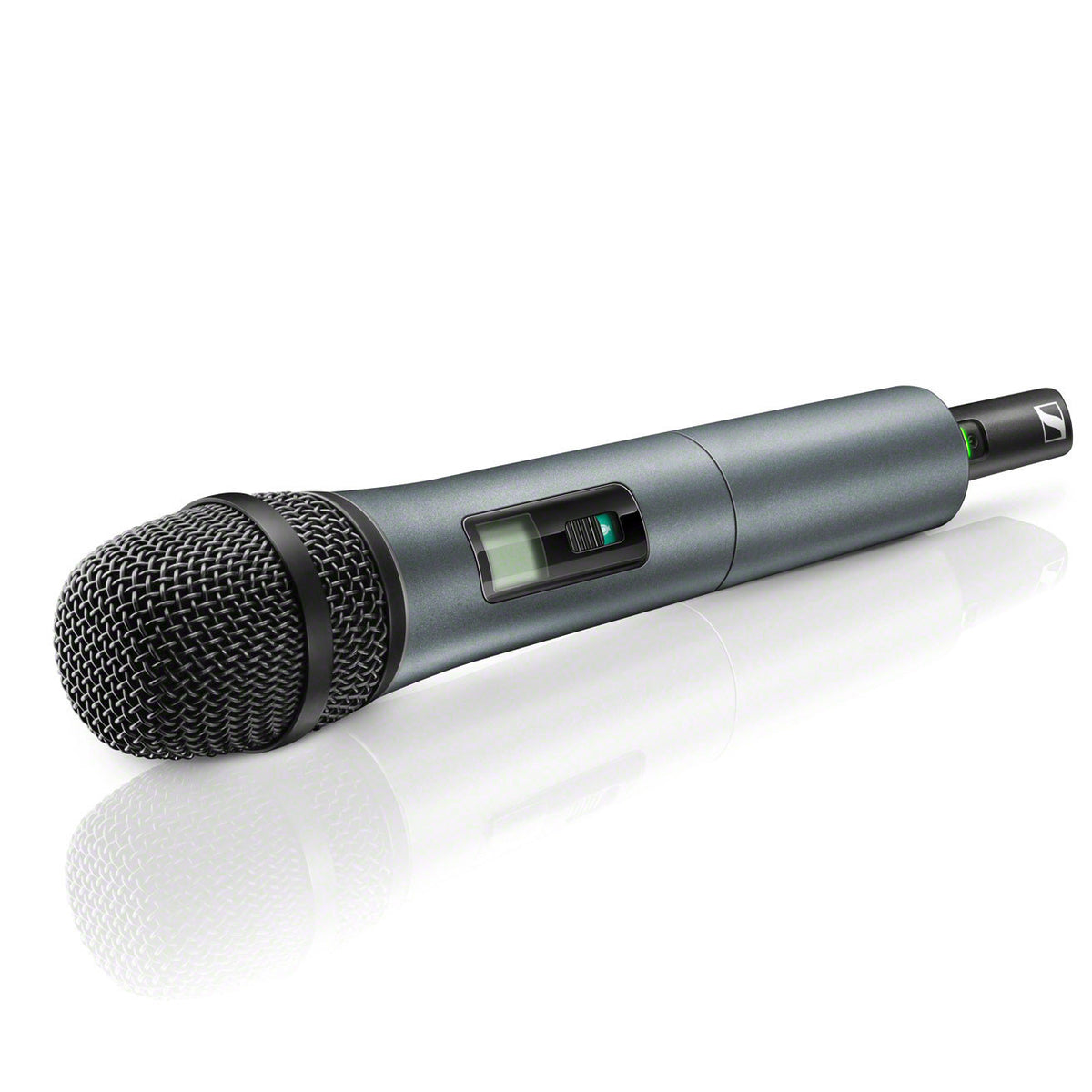

The e835 Signature: solid dynamics, natural projection, and cardioid directivity that help contain feedback and off-axis noise. The sound remains consistent even when the performer moves.

Radio Reliability: true diversity, external antennas, and wide UHF coverage secure the connection against live performance constraints. Settings remain flexible, with automatic frequency scanning and channel synchronization to save time during soundcheck.

Ready for the Road: the metal housing withstands touring, and the rack mounting kit is included for clean integration into your flight case.

Technical specifications

Category	Complete system	Capsule	dynamic
Directivity	cardioid	Nominal mode power consumption (Wh)	4 W

Type	true diversity receiver with metal housing	Frequency Management	automatic search and channel synchronization

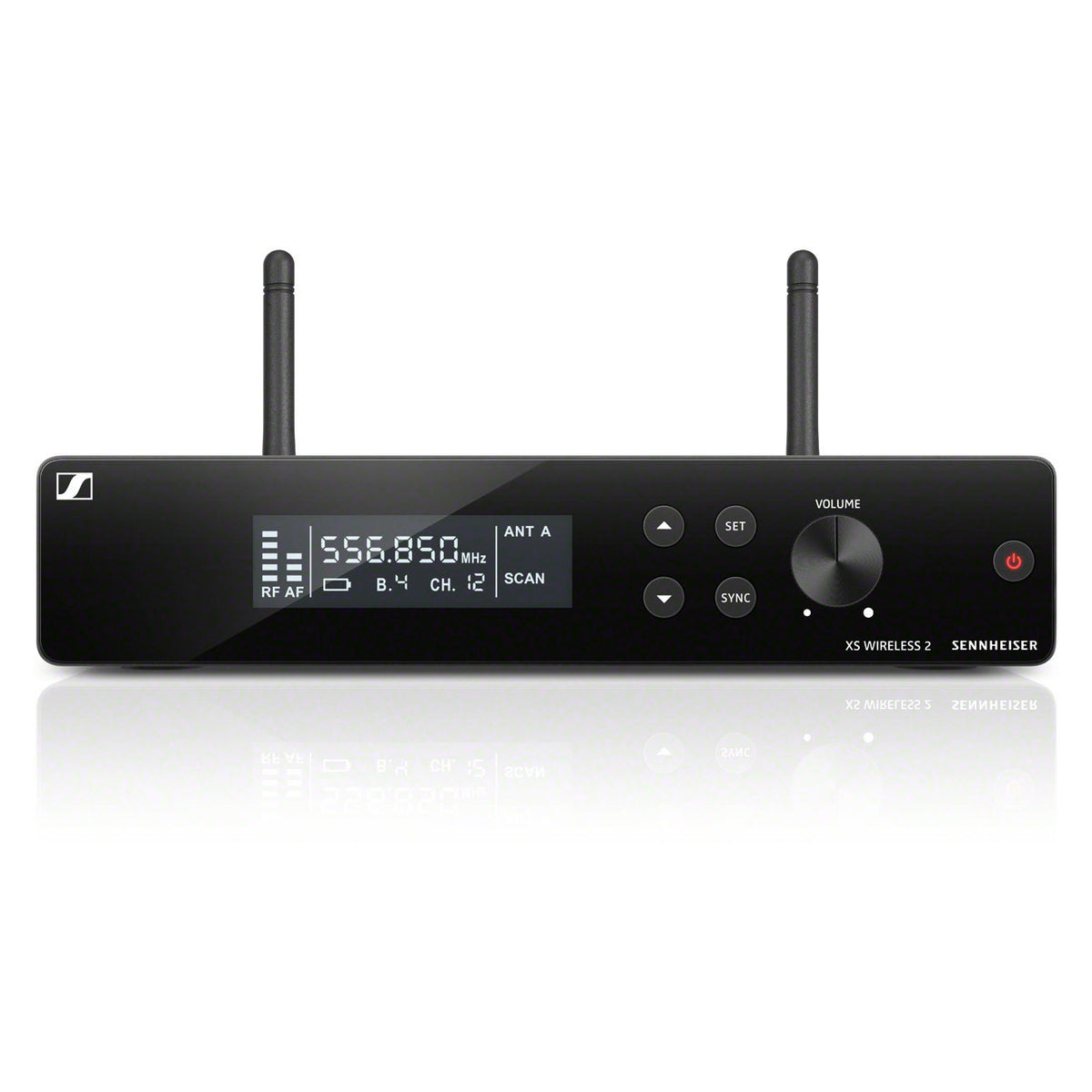

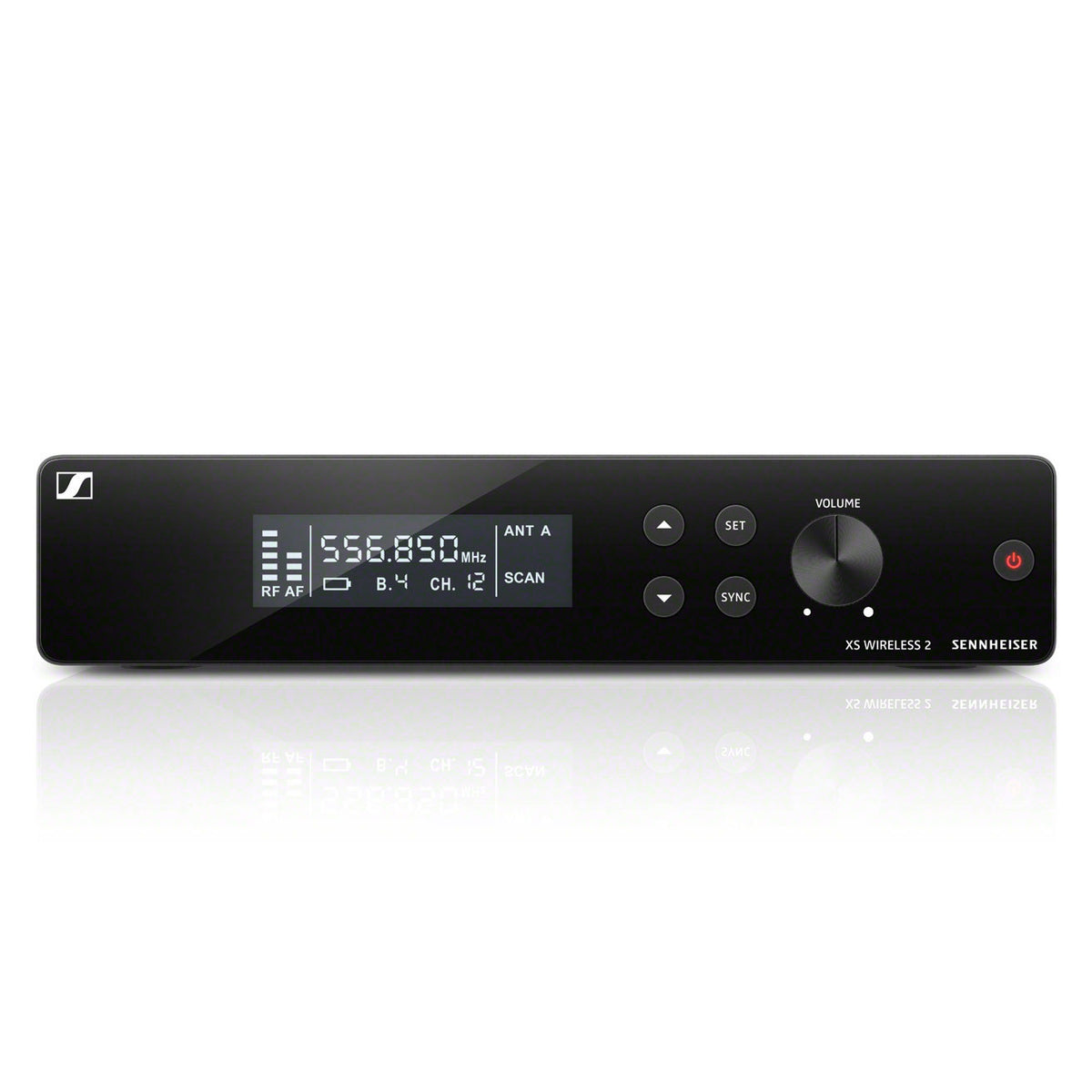

Display	LCD screen for manual adjustment and monitoring	Band	fully adjustable UHF frequencies over a wide range
Antennas	external	Frequency Response	50 to 16,000 Hz (-3 dB)
Dimensions	approximately 200 x 42 x 127 mm	Audio Frequency Response	80 to 14,000 Hz
Weight	approximately 680 g	Frequency Plan A	548 to 572 MHz
Power Supply	12 V DC nominal / 300 mA	Total Harmonic Distortion	max. 0.9%
