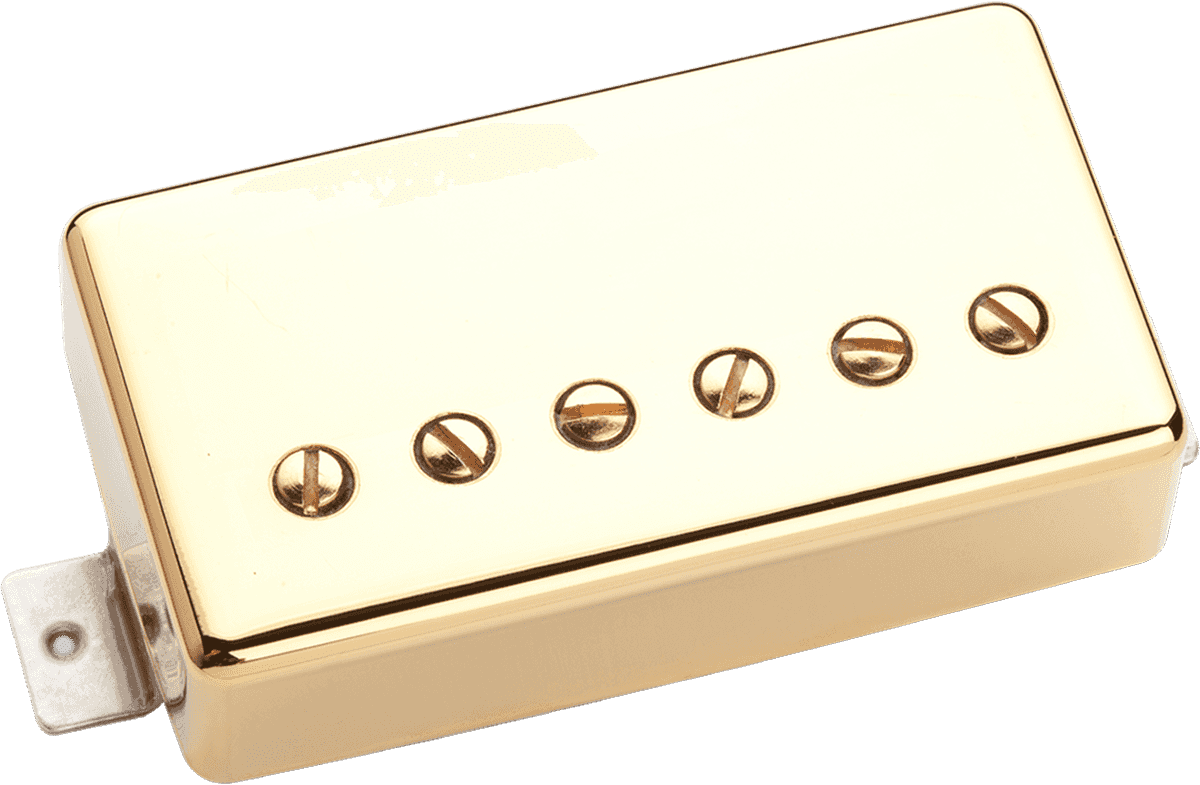

Seymour Duncan High Voltage Bridge Gold

Name: High Voltage Bridge Gold
Brand: Seymour Duncan
SKU: 367001
Price: 149.00 EUR
Availability: InStock

149,00 €VAT incl.

0,14 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 367001

EAN : 0800315046683

This item is covered for 3 years

Information

The Essentials to Know About the Seymour Duncan High Voltage Bridge Pickup Gold
• Passive Alnico II Humbucker : the "old school" vibe with extra attack for more aggressive riffs.
• Power / Clarity Balance : big rock and hard rock tone while maintaining clear cleans.
• Bridge Position : cutting lead, generous sustain, and harmonics that are easy to bring out.
• 4 Conductors : ideal for modern wiring (split coils, switching options) and an expanded palette of sounds.

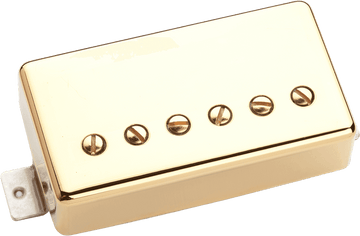

High Voltage Bridge Gold

149,00 €VAT incl.

0,14 € Ecotax included

Reference price

A Vintage Nod, Designed for Today's Rock

With the High Voltage, Seymour Duncan draws inspiration from "old school" humbuckers thanks to the Alnico II magnet, prized for its musicality and warmth. However, here the winding is crafted to offer a slightly more aggressive tone and a more explosive overall output, capable of handling big power chords as well as heavily loaded legato runs.

For Which Guitarists and Styles?

This electric guitar pickup in the bridge position is aimed at guitarists who want to switch from a thunderous hard sound to a "crystal clear" clean without losing definition. In a band setting, it helps the guitar stay present in the mix, with expressive mids and an attack that instantly responds to pick dynamics.

Sound Character and Wiring: Precision, Sustain, and Versatility

Thanks to its dual coil winding, the High Voltage Bridge delivers a dense, full sound with a piercing lead and plenty of sustain for solos. Its 4-conductor construction allows exploration of split coil wiring for finer, sharper textures while retaining the humbucker foundation for powerful rhythm playing. The High Voltage set is designed to be balanced, with a very subtly demagnetized bridge pickup to promote a natural balance between positions, especially when combined with a neck pickup.

Technical specifications

Electronics	Passive	Winding	double
Category	electric microphone	Number of conductors	4
Instrument	guitar	Position	bridge
Applications	rock, blues, Hard Rock	Resistance	9.73 KILOHM
Magnet	alnico II	Color	Beige

Neck Resistance

7.68 kOhms

Bridge Resistance

9.73 kOhms

Questions frequently asked

Is the Seymour Duncan High Voltage Gold Bridge suitable for hard rock?

Its Alnico II magnet and 9.73 kOhms resistance are designed for rock, blues, and hard rock genres. The dual coil winding delivers a thick tone with an attack suited for power chords and leads.

Can this bridge humbucker be coil-split?

The 4-conductor wiring allows for a coil-split configuration. This setup provides access to finer, sharper textures alongside the humbucker mode.

What is the resistance of the High Voltage bridge pickup?

The specified resistance for the bridge position is 9.73 kOhms.

What balance does it have with a neck pickup in a High Voltage set?

The bridge pickup is very subtly demagnetized to favor a natural balance between positions. The indicated neck resistance is 7.68 kOhms. This calibration is designed for pairing with a neck pickup from the set.
