Sparedrum L9SDTT - SNARE DRUM / TOM LUG - SINGLE DRILLING POINT (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
Without specific manufacturer information about a series or generation, this shell is positioned as a replacement hardware part in a standard format, designed to quickly put a drum back into service while maintaining a classic "chrome" aesthetic.
Target Audience for This Drum/Hardware
This hardware is intended for beginner to advanced drummers, technicians, workshops, or custom enthusiasts looking for a reliable shell for snare or tom in rehearsal, studio, or live settings. Particularly useful for kits subjected to frequent assembly and disassembly.
Features and New Elements
The shell accepts a #12-24 standard threaded tension rod (approximately 7/32 inch diameter) and is fixed using an M4 mounting screw. The supplied insulating gasket helps stabilize the contact on the drum shell and reduces mechanical noise. Mounting screw not included: you keep your existing screws or choose the length suitable for your shell.
Sound Characteristics
A shell does not directly alter the essence of the wood but influences the tuning stability and the cleanliness of the playing. The included insulation helps limit unwanted vibrations and micro-clicks from hardware, resulting in a mechanically quieter kit that is more pleasant to record.

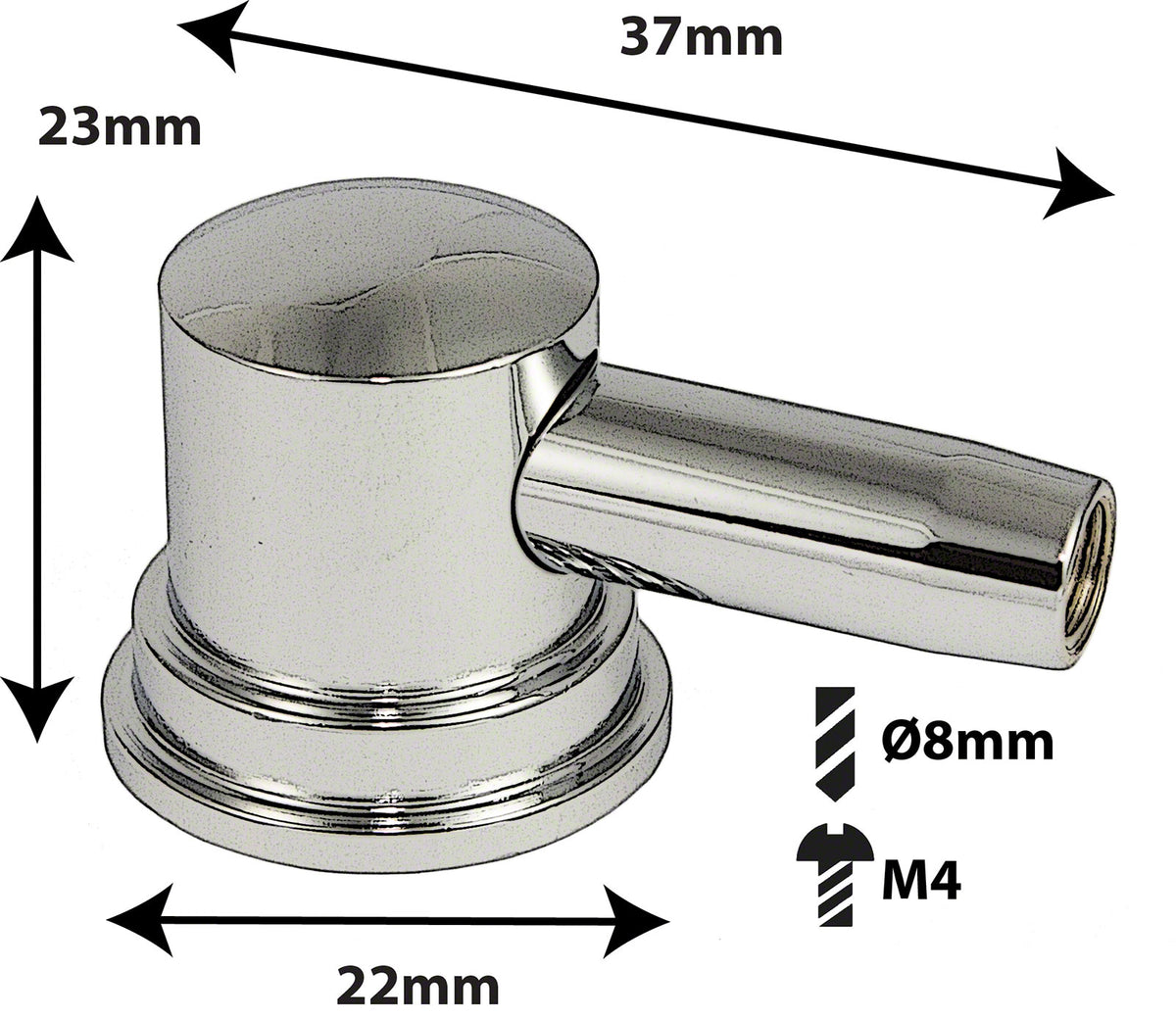

Technical specifications
| Type | snare / tom shell |
| Drill hole diameter | 8 mm |
| Mounting screw type | M4 |
| Mounting screw | not included |
| Tension rod threading | standard #12-24 (approximately 7/32 inch diameter) |
| Material | brass |
| Finish | chrome |
| Insulating rubber | included |
Questions frequently asked
Is this lug compatible with standard tension rods?
The threading accepts tension rods with a #12-24 standard, for a diameter of approximately 7/32 inch.
What drilling size is needed to mount this tom lug?
Mounting requires an 8 mm diameter hole on the shell. The lug is secured with an M4 screw. The mounting screw is not included, allowing for length adjustment according to the shell thickness.
Is the Sparedrum L9SDTT delivered with the mounting hardware?
Only the isolating rubber is included. The M4 mounting screw must be retained from the existing setup or selected separately.
What is the material and finish of this lug?
The construction is brass with a chrome finish, suitable for a classic drum aesthetic.
Does the isolating gasket reduce hardware noise?
The supplied rubber isolator stabilizes the lug's contact on the shell. It helps to limit unwanted vibrations and mechanical micro-squeaks.
