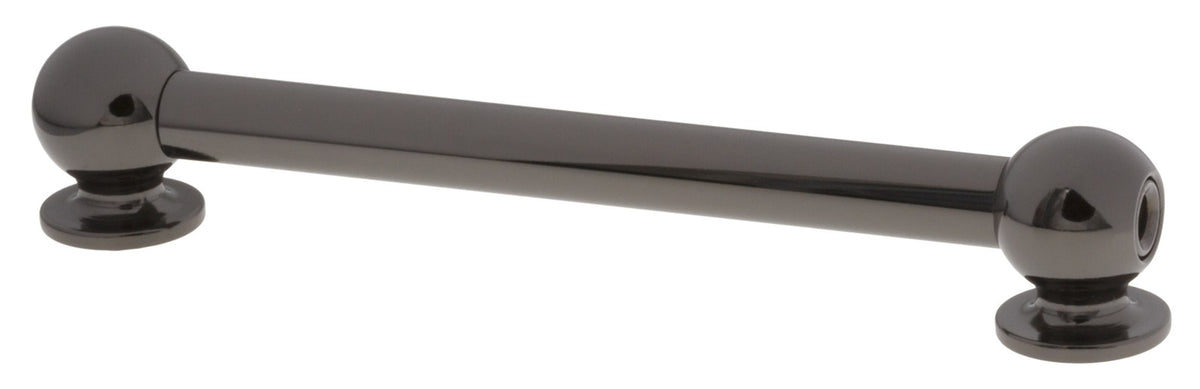

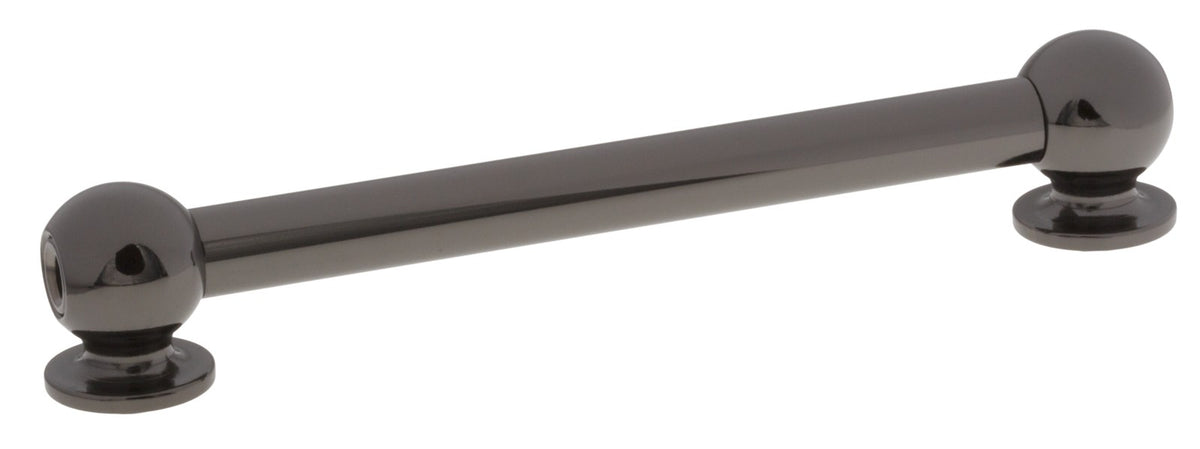

Sparedrum TL13D114-BK TUBE LUG BLACK 114MM DOUBLE ENDED X1
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The "tube" lug is a classic in drum hardware, appreciated for its compact shape, good rigidity, and clean aesthetics. This model serves as a reliable solution for repair, restoration, or customization of a snare drum or tom, while maintaining common mounting standards.
Intended Users
This lug is designed for drummers and technicians of all levels, from beginners refurbishing a practice drum shell to experts building a custom project. It suits most styles (rock, pop, funk, metal, jazz) as long as the shell's drilling and hardware are compatible.
Features and Innovations
With its two tension rod attachment points and #12-24 threading, it ensures even tension and broad compatibility with many standard tension rods. Mounting is done via M4 screws (mounting screws not included), and the supplied rubber isolator facilitates a clean and durable installation.
Sound Characteristics
Although a lug is not a "sound" element in the strict sense, its isolation affects the shell's behavior: the rubber helps reduce mechanical noise and can preserve a more natural resonance by limiting vibrations transmitted between the lug and the shell.

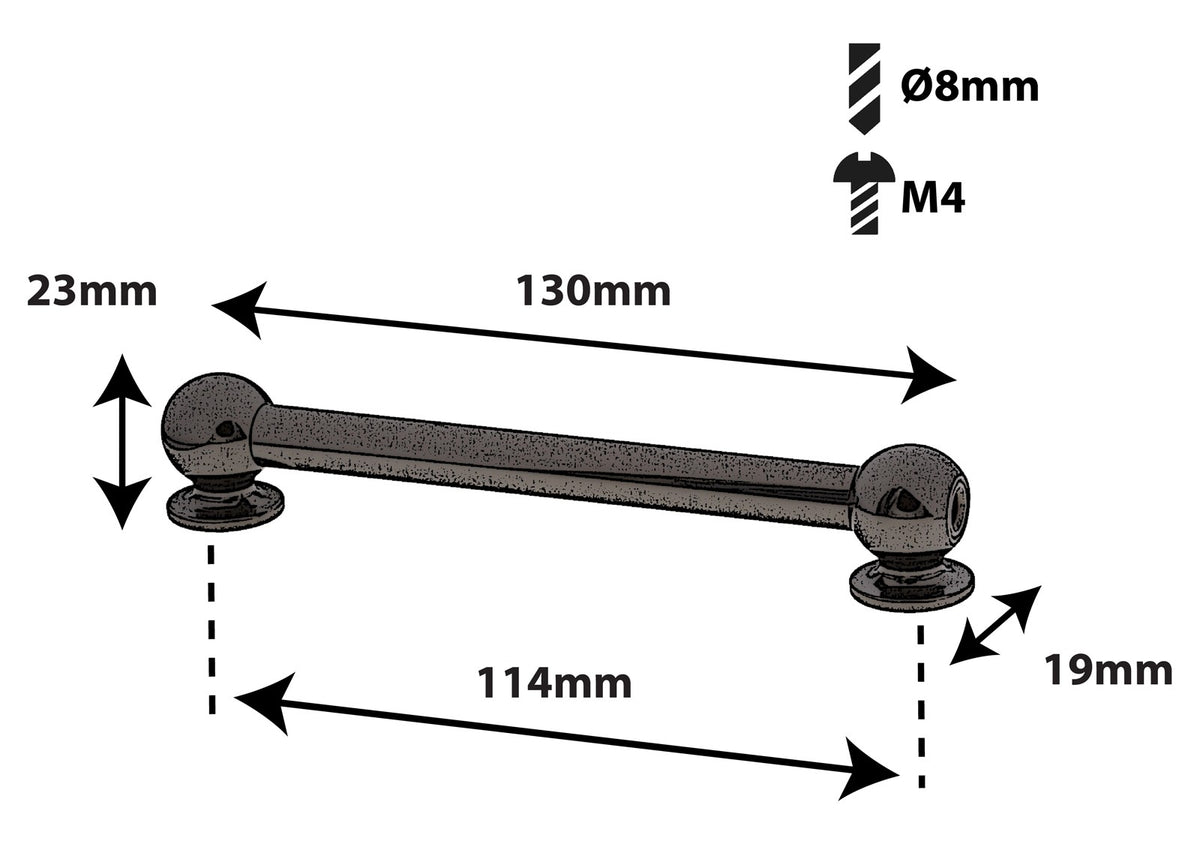

Technical specifications
| Center-to-center spacing | 114 mm |
| Drill hole diameter | 8 mm |
| Mounting screw type | M4 |
| Tension rod threading | standard #12-24 (7/32 inch diameter) |
| Configuration | two tension rod attachment points |
| Finish | black (Black Nickel Plating) |
Questions frequently asked
What is the mounting center distance for this Sparedrum tube shell?
The mounting center distance is 114 mm, measured from center to center between the two mounting holes.
Is this shell compatible with standard tension rods?
The tension rod threading is standard #12-24, with a specified diameter of 7/32 inch. Two attachment points are provided for the tension rods.
What drill diameter is required for installation?
The drilling needed in the shell is 8 mm. The mounting uses M4 screws. Mounting screws are not included.
What is the finish of this drum shell?
The finish is black, with Black Nickel Plating, for a discreet visual integration on a snare or tom.
Is an isolator provided with the shell?
An insulating rubber is provided to limit vibrations transmitted between the shell and the hoop.
