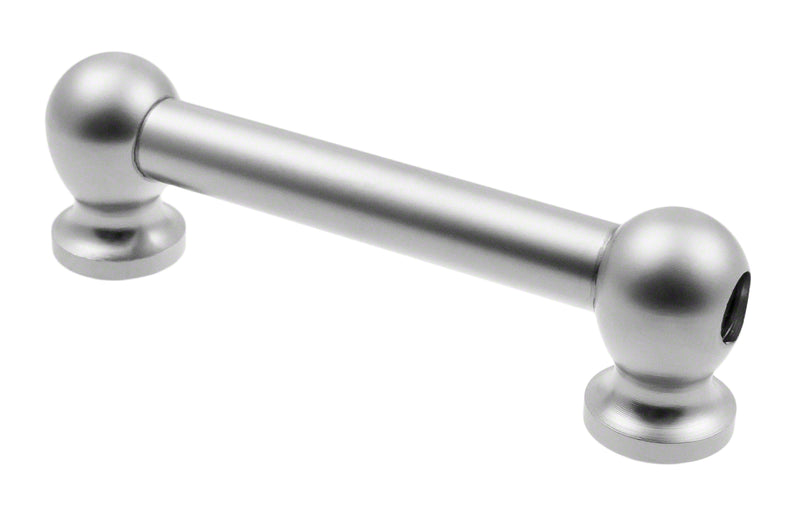

Sparedrum TL1D56-ST - TUBE LUG SATIN - 56MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The tube lug is one of the classic standards in drum hardware: a format appreciated for its simplicity, reliability, and ease of integration on many shells. This model is positioned as a versatile solution for maintenance, restoration, or customization of a snare drum or tom.
Who This Drum/Instrument Is For
This lug is intended for drummers from beginners to experts, backline technicians, and drum craftsmen seeking a robust part for identical replacement or adaptation. Suitable for all styles, from studio to live, whenever you want stable and discreet hardware.
Features and Innovations
The two-point attachment format ensures reliable guidance of the tension rods and even tensioning of the drumhead. The 6 mm drilling and M4 standard mounting screws facilitate installation, with insulating rubber included. Mounting screws are not provided.
The Sound
A lug does not add a "sound" per se, but it influences tuning stability and clean resonance. Brass provides a solid feel, while the insulating rubber helps preserve the shell's openness by reducing unwanted vibrations and some mechanical noises.

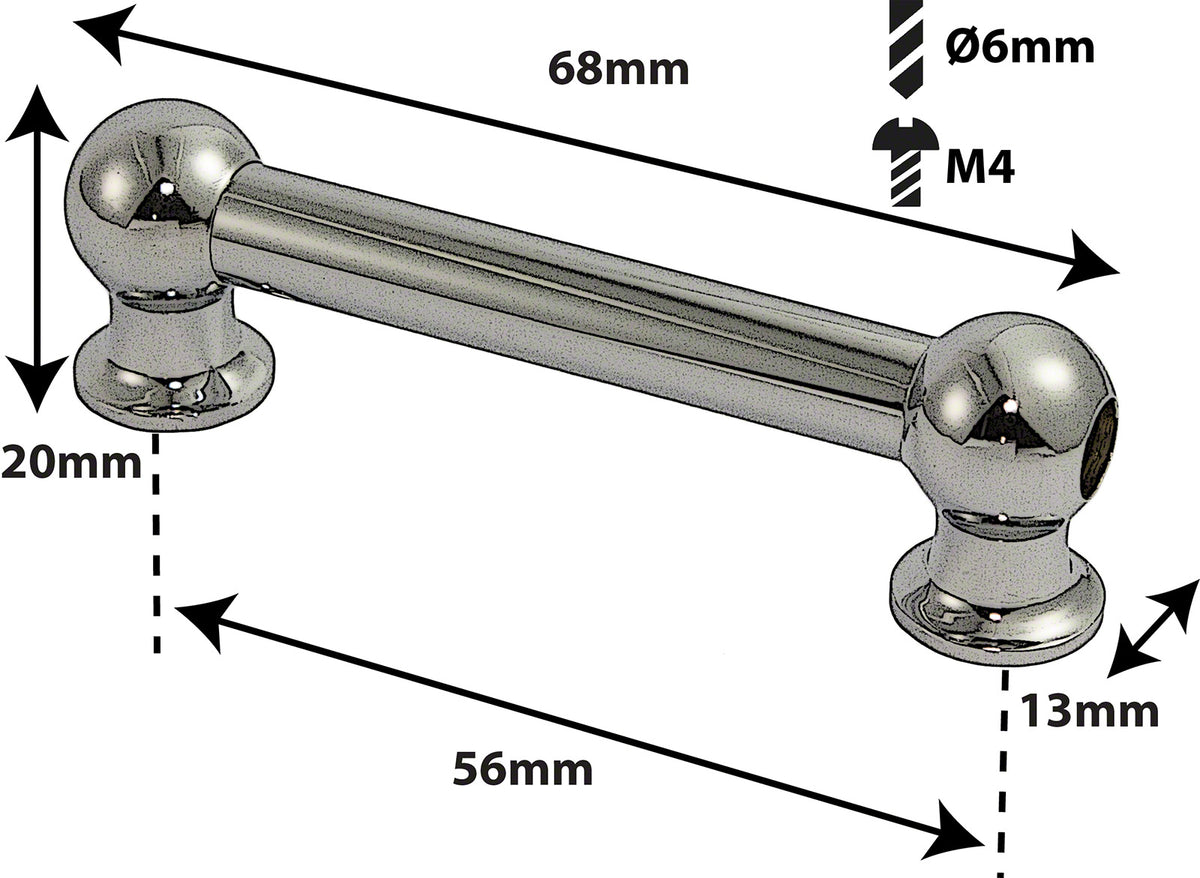

Technical specifications
| Application | snare drum and tom |
| Type | tube lug, two attachment points for tension rods |
| Center-to-center spacing | 56 mm |
| Drill hole diameter | 6 mm |
| Mounting screw type | M4 |
| Tension rod threading | standard 12-24 (7/32" diameter) |
| Material | brass |
| Finish | satin |
| Insulating rubber | included |
| Mounting screws | not included |
Questions frequently asked
What is the center-to-center distance required to install this tube lug?
The mounting center-to-center distance is 56 mm. The required drill holes have a diameter of 6 mm and the fasteners use M4 screws.
Is the Sparedrum TL1D56-ST compatible with standard tension rods?
The threading for the tension rods conforms to the 12-24 standard, with a diameter of 7/32. This double-tension lug is designed for a snare drum or tom.
Are the mounting screws included?
M4 mounting screws are not included. However, an isolating rubber is provided with the lug.
What is the material and finish of this 56 mm lug?
It is made of brass with a satin finish. The isolating rubber helps reduce certain vibrations and mechanical noises between the lug and the drum shell.
Does a double-tension tube lug affect tuning?
Its two attachment points ensure smooth guidance of the tension rods when tightening the drumhead. This design contributes to tuning stability. The isolating rubber helps preserve the shell's resonance opening.
