From the DNA of the OP-Z to the Next-Generation Pocket Studio

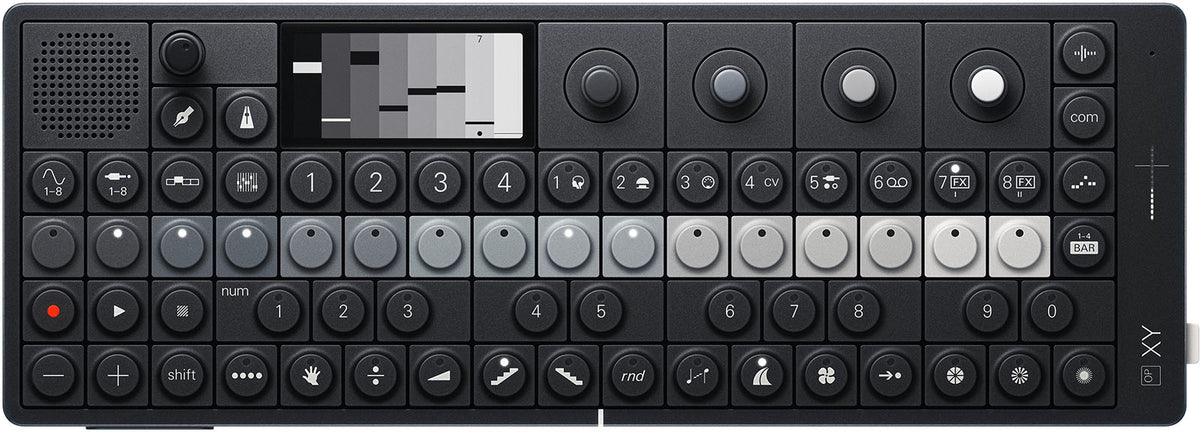

Based on the acclaimed workflow of the OP-Z and crafted in a black chassis with OP-1 dimensions, the OP-XY takes the "all-in-one" philosophy even further. Its high-resolution grayscale screen, accented with red highlights for recording and parameter locking, and its illuminated keys provide clear and effective visual feedback both on stage and in the studio. With 8 instrument tracks and 8 auxiliary tracks, it positions itself as the premium portable groovebox/sequencer in the OP family.Who Is It For and What For?
Mobile producers, live performers, sound designers, and modular system users will find a compact nerve center here. The OP-XY excels in electro, techno, ambient, synthwave, pop, and soundtrack music. Its 16-hour battery, built-in speaker, and microphone make it an ideal companion for composing anywhere, while the multi-output port (CV/MIDI/audio/sync) and 8 auxiliary tracks effortlessly control external synths and modular racks.Features and Innovations
The OP-XY combines 8 synthesis engines with a 24-voice multitimbral architecture, 4 filter types, and a stereo signal path for textures ranging from punchy basses to evolving pads. The 16-track/64-step sequencer is enhanced by step components (pulse, hold, multiply, ramp up/down, random, etc.), live automation, and "brain," an intelligent transposer to generate ever-evolving progressions. On the processing side, 6 internal effects complement 2 sequencable SEND effect slots, plus a refined master bus (EQ, saturation, compressor, limiter) and 24 performance FX. The USB-C audio/MIDI works as both host and device, complemented by Bluetooth LE MIDI, a MIDI-in, audio input/output, and a selectable multi-output jack with four outputs. All is driven by a clear workflow, pressure-sensitive pitchbend, a performance gyroscope, and massive memory (10,000+ projects with history).Technical specifications
| Number of effects | 6 | Key format | button |
| Arpeggiator | Yes | Transposition | Yes |
| Controller | Pitchbend, 4 potentiometers | Memory | 8 GIGABYTE |
| Sampler | Yes | Sound generator | 487, Modelization, Multi-engine, FM |
| Max polyphony | 24 | Backup type | Internal |
| Velocity sensitive | Yes | Inputs | Midi, Stereo mini jack, USB audio, USB Midi |
| Memories | Yes | Outputs | 234, Midi, Headset / Line, USB-C, USB Midi, CV out |
| Synthesis type | Wavetables, Hybrid, Modelization, Digital oscillator, FM, VA | Color | Black |
| Category | Hybrid Synth | Sequencer | Yes |
| Number of keys | 68 | Weight | 900 g |
| Split & layer | split | Dimensions (mm) | 288 x 102 x 29 |
| Dimensions | 288 x 102 x 29 mm | ||
Questions frequently asked
What is the battery life?
The built-in battery provides up to 16 hours of autonomy, with integrated speaker and microphone for creating without external power.
Can it control a modular system and MIDI synths?
The four selectable outputs from the multi-output port can transmit CV, MIDI, audio, or sync. A MIDI input, Bluetooth LE MIDI, and USB-C audio/MIDI complete the connectivity. The 8 auxiliary tracks allow for integrating external gear into the sequencing.
How many tracks and steps does the sequencer offer?
The sequencer manages 16 tracks over 64 steps, including 8 instrument tracks and 8 auxiliary tracks. Step components like pulse, hold, multiply, ramp, and random enhance rhythmic and melodic programming.
What sound engines are available on the OP-XY?
Eight synthesis engines combine wavetable, FM, modeling, digital oscillators, and virtual analog synthesis, with a maximum polyphony of 24 voices.
What internal memory is included?
With 8 Go of internal memory, this instrument can store over 10,000 projects and their history.
