Yamaha DZR 15-D 2000W RMS

A DZR Series Speaker Designed for Performance and Dante Systems

The Yamaha DZR15-D follows a "high efficiency, high definition" approach: to offer a compact active speaker capable of reaching a high sound pressure level while maintaining precise and stable reproduction at high volume. Dante compatibility (with dual ports for daisy chaining) naturally places it at the heart of modern setups, whether in live sound reinforcement, DJ performance, rental, or fixed installation requiring clean network cabling and centralized management.

Who Is It For and What Are Its Uses?

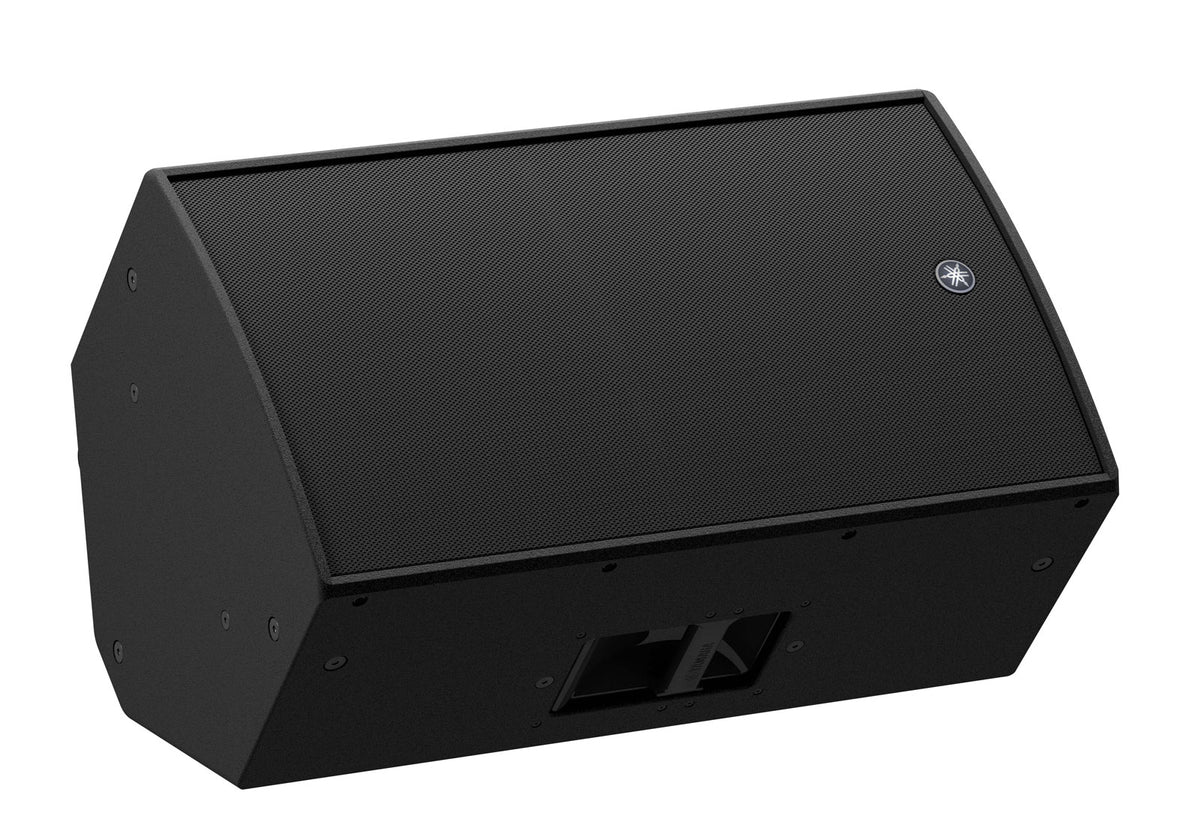

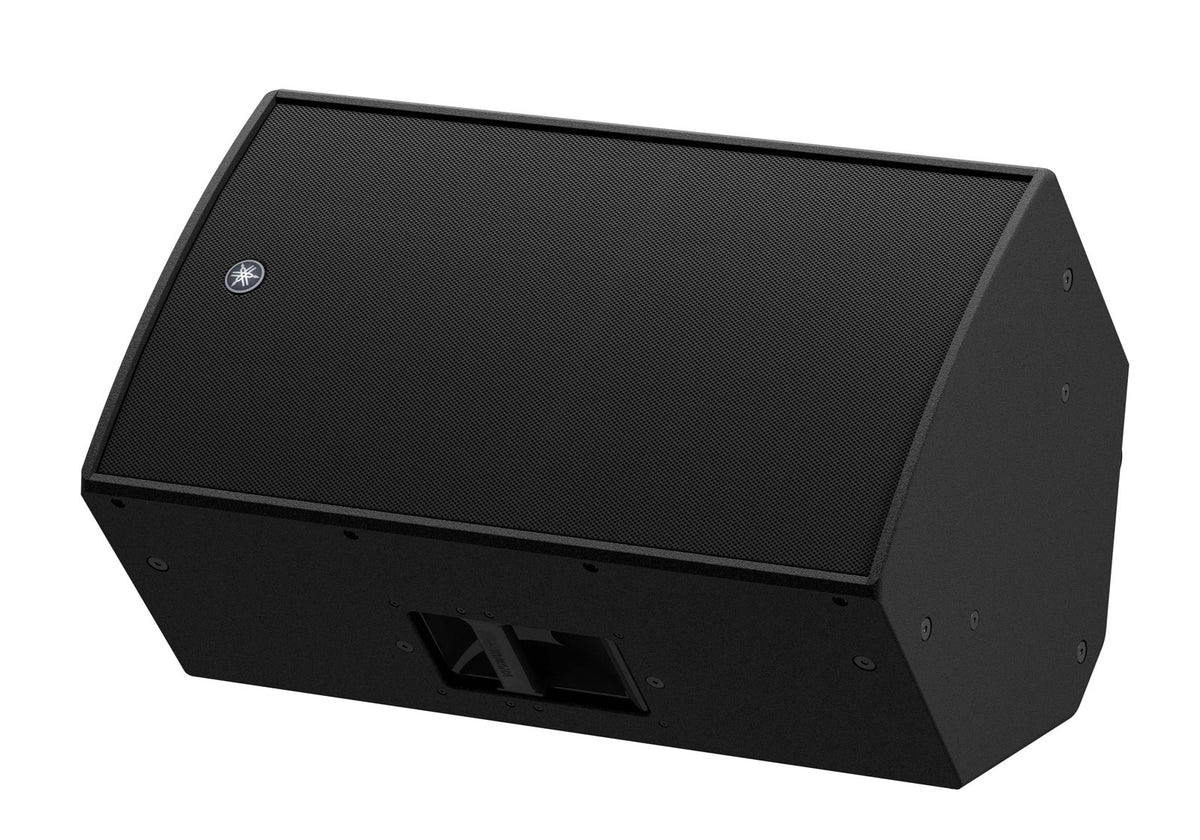

With its 15-inch woofer and 2-inch compression driver, the DZR15-D targets users seeking a front-of-house speaker capable of delivering reach and impact while remaining easily portable. It is particularly suitable for bands, service providers, and venues wanting a versatile speaker: main PA, side fill, or stage monitor thanks to its 50 deg wedge angle (symmetrical). Its extended low-frequency response (down to 34 Hz at -10 dB) helps achieve solid bass, especially for setups without a subwoofer depending on style and expected level.

DSP Processing, Temporal Precision, and Daily Control

The DZR15-D features a 96 kHz DSP designed to preserve detailed listening, even at high volume. The FIR filtering and Advanced FIR-X processing (combining FIR filter and correction equalization) aim to improve coherence and reduce unwanted phase effects for cleaner reproduction in vocals and transients.

Quick Adjustments Adapted to Real Conditions

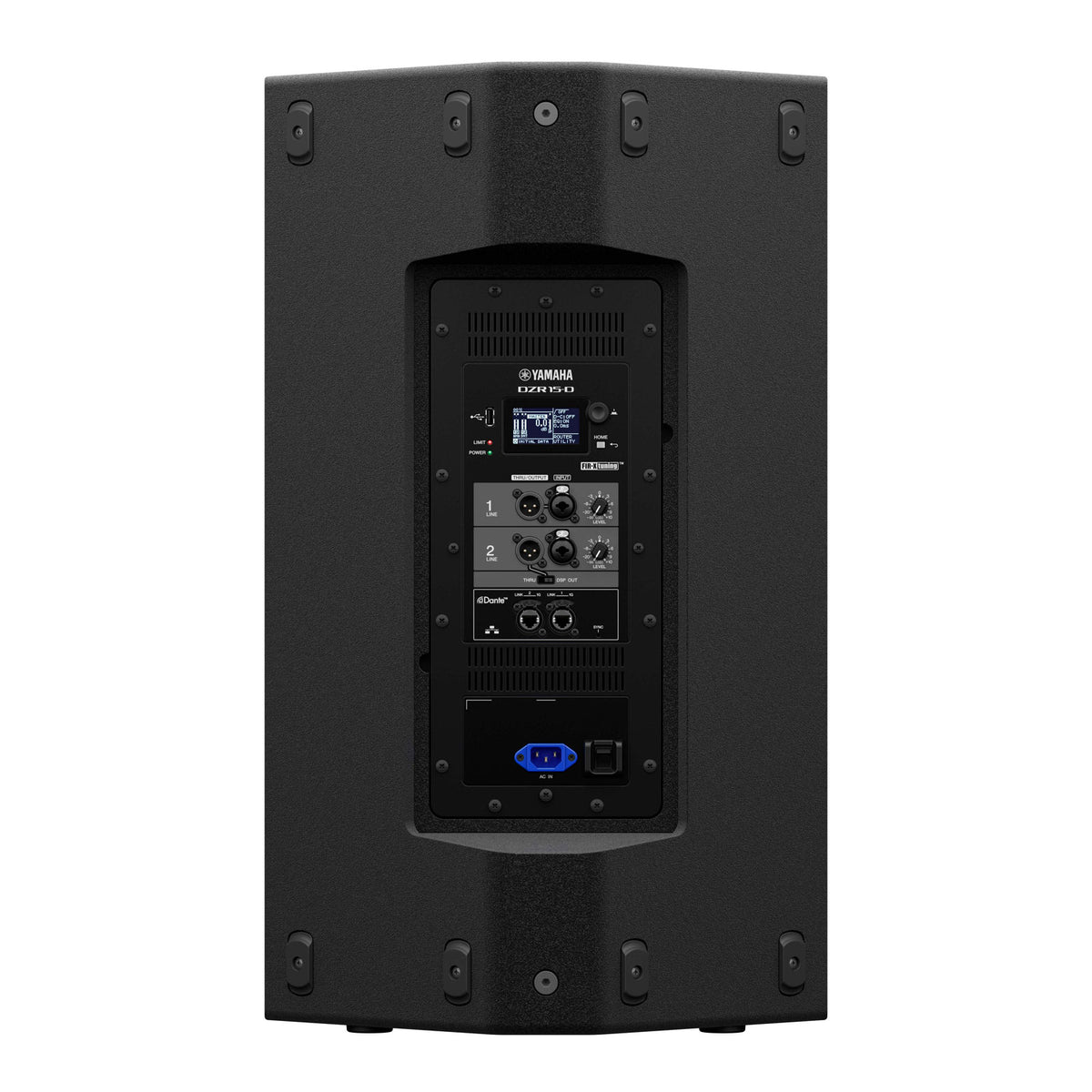

The interface with LCD screen provides access to essential functions: loading presets, parametric EQ, delay, and routing. This is an asset during performances when the system must adapt quickly (reverberant room, constrained placement, complementing an existing system) without complicating setup.

Dante Integration: Flexibility in Mixing and Sample Rate Compatibility

Thanks to its 2 Dante inputs / 2 outputs and the presence of an SRC, the speaker can integrate into networks where devices do not all operate at the same frequency, including in 48 kHz environments. The etherCON connectors and daisy chaining facilitate deployment on tour and in installations.

Protection and Optimization of Sound Reinforcement

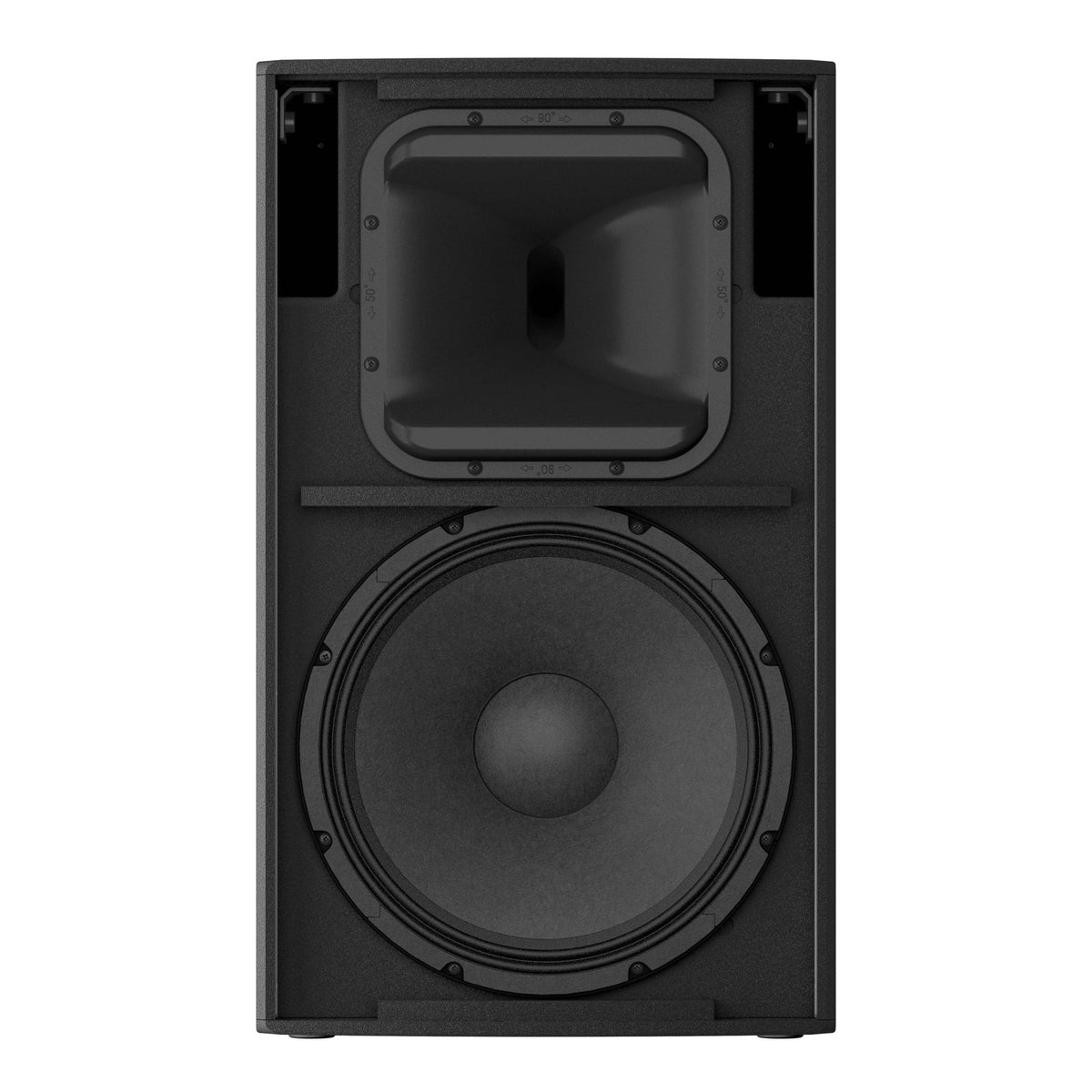

The D-Contour mode and protection circuits help maintain reliable operation. The rotatable directivity horn (coverage specified as 90 deg x 50 deg) allows orientation adjustment depending on placement (horizontal speaker, rigging, tight front of house), while maintaining coherent dispersion.

Technical specifications

Bluetooth

No

Type	2-way, bi-amplified active speaker, bass-reflex	Amplifier class	Class D
Monitor angle (floor monitor)	50 deg symmetrical	Power (Dynamic)	2000W (LF: 1000W, MF/HF: 1000W)

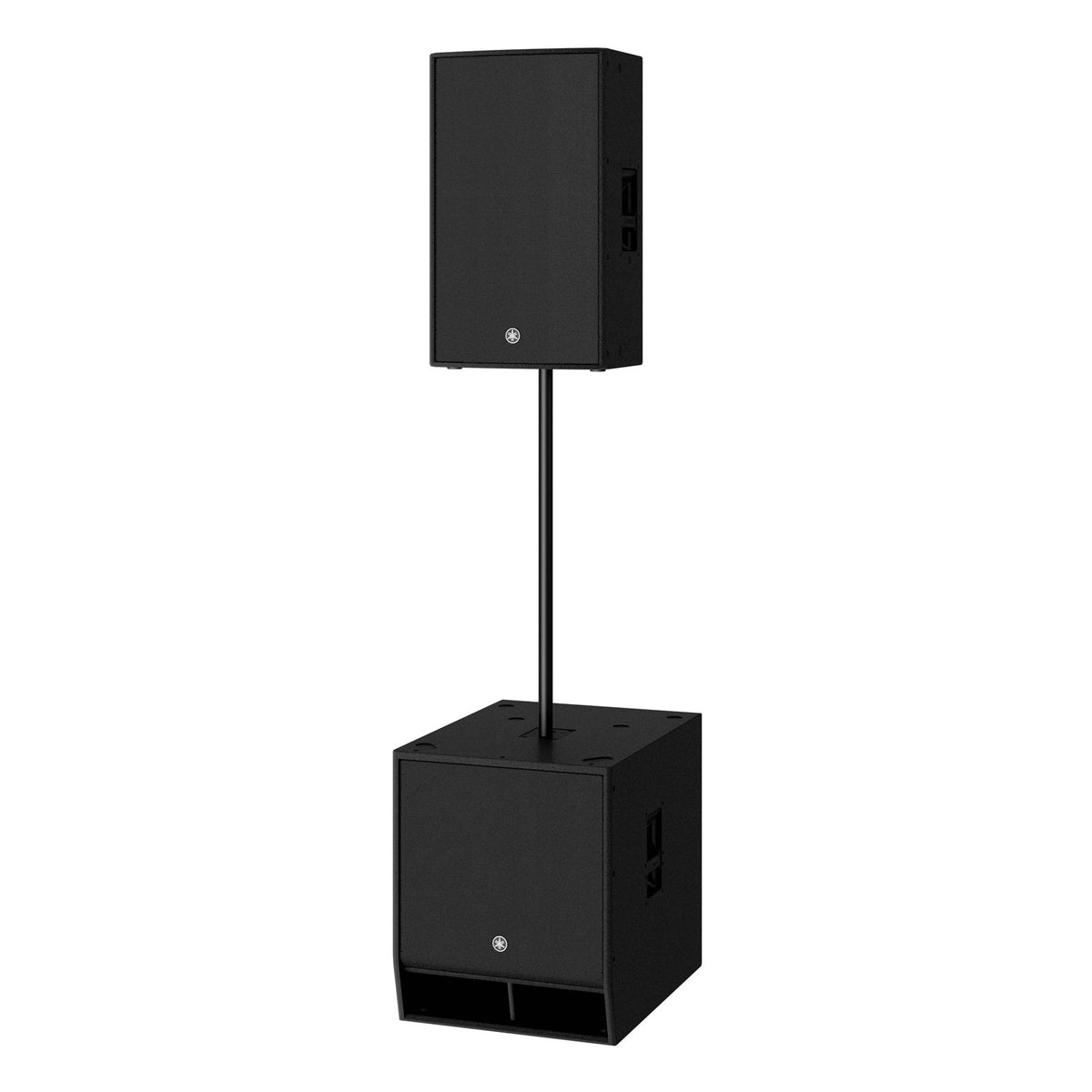

Pole mount	diameter 35 mm x2 (0 deg or -7 deg)	Power (Continuous)	1300W (LF: 920W, MF/HF: 380W)
Frequency range (-10 dB)	34 Hz - 20 kHz	SRC	Yes
Maximum output level (1 m; on axis)	139 dB SPL	Analog inputs	Combo x2, line level (max +24 dBu), input impedance 20 kOhms
Coverage	H 90 deg x V 50 deg (rotatable)	Analog outputs	XLR3-32 x2, CH1: THRU (fixed), CH2: THRU or DSP OUT
Low Frequency (LF)	15-inch, 3-inch voice coil, neodymium magnet	Digital inputs/outputs	Dante etherCON CAT5e x2 (daisy chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and remote control, 1000BASE-T
Mid Frequency (MF)	-	Others	USB 2.0 Host 5V 500mA for data storage/loading via USB memory
High Frequency (HF)	2-inch voice coil, 1-inch throat compression driver, titanium diaphragm, neodymium magnet	Power supply	IEC AC inlet x1 (V-Lock)
Crossover frequency	1.7 kHz (FIR-X)	Cooling	variable speed fan
Internal processing	96 kHz and FIR filter	Power consumption	45W (Idle), 150W (1/8 power)
A/D and D/A converters	96 kHz AD/DA
