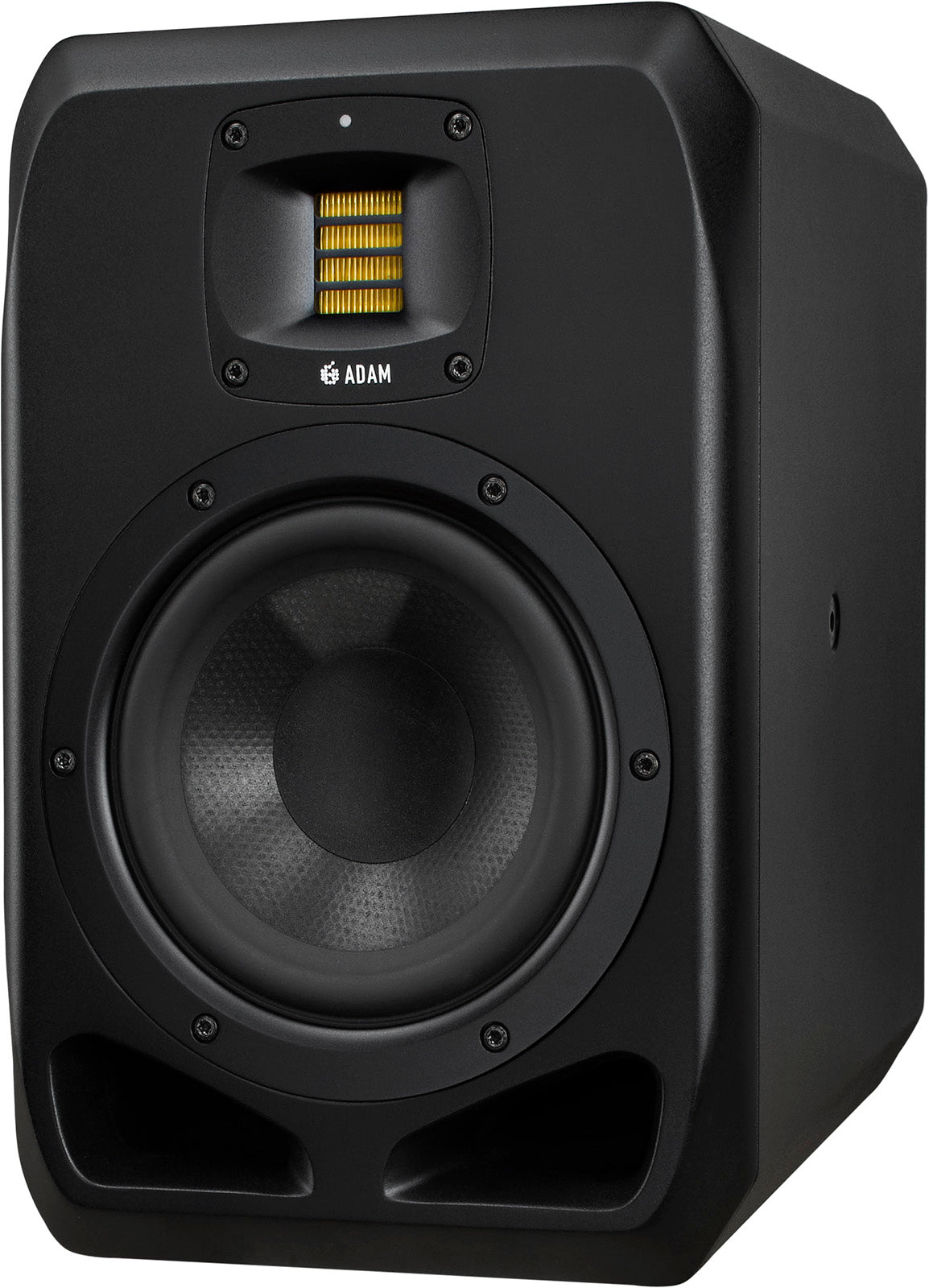

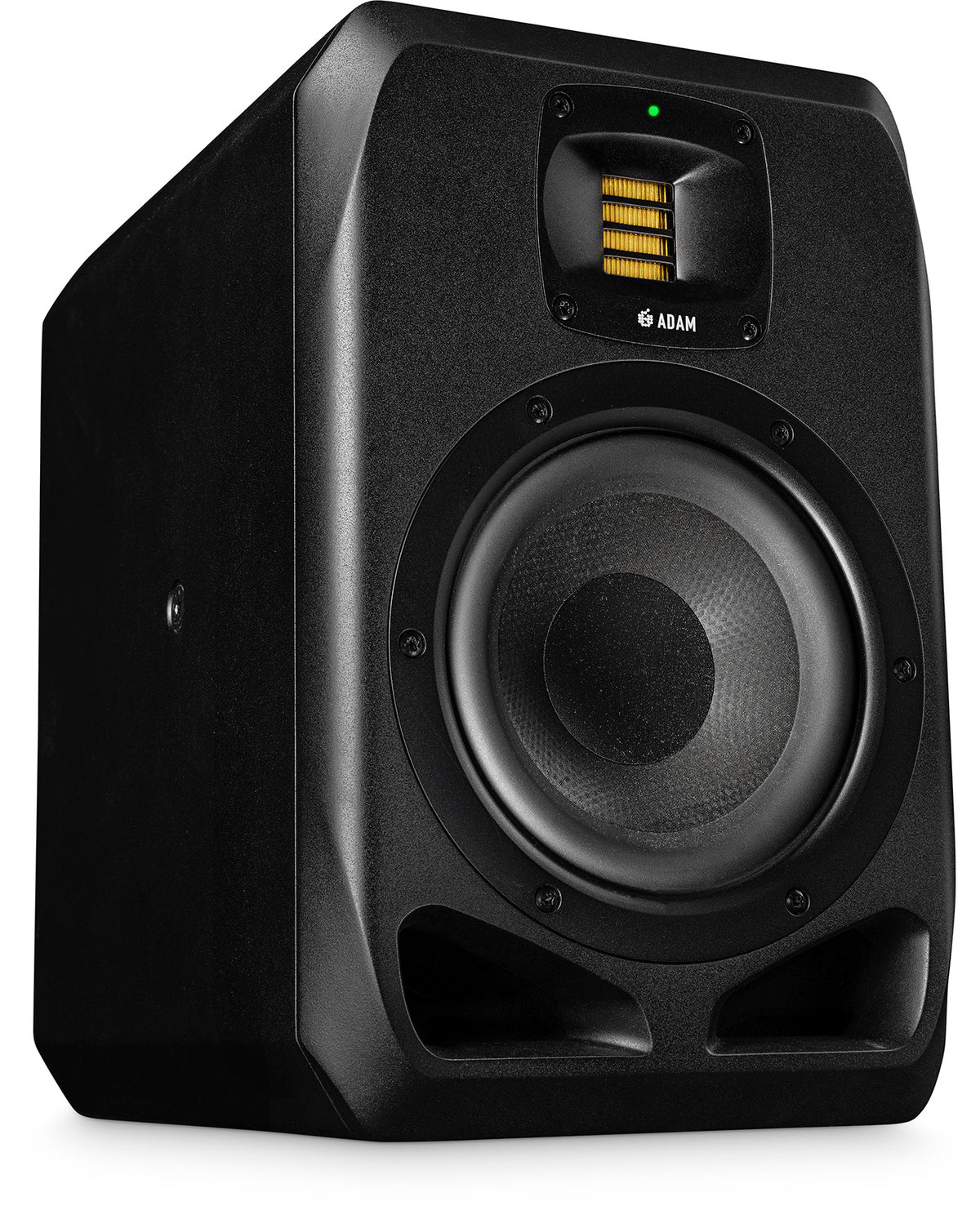

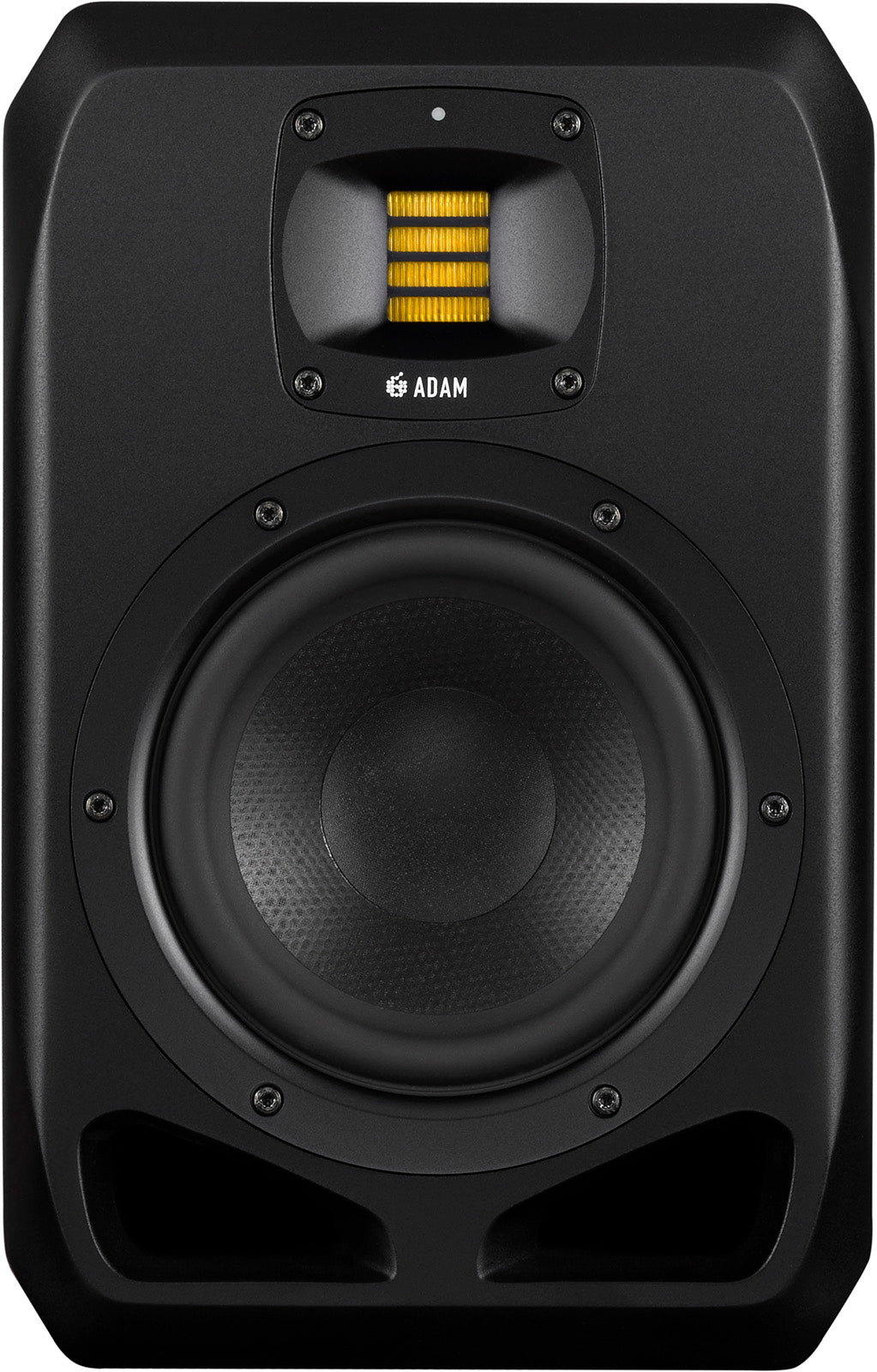

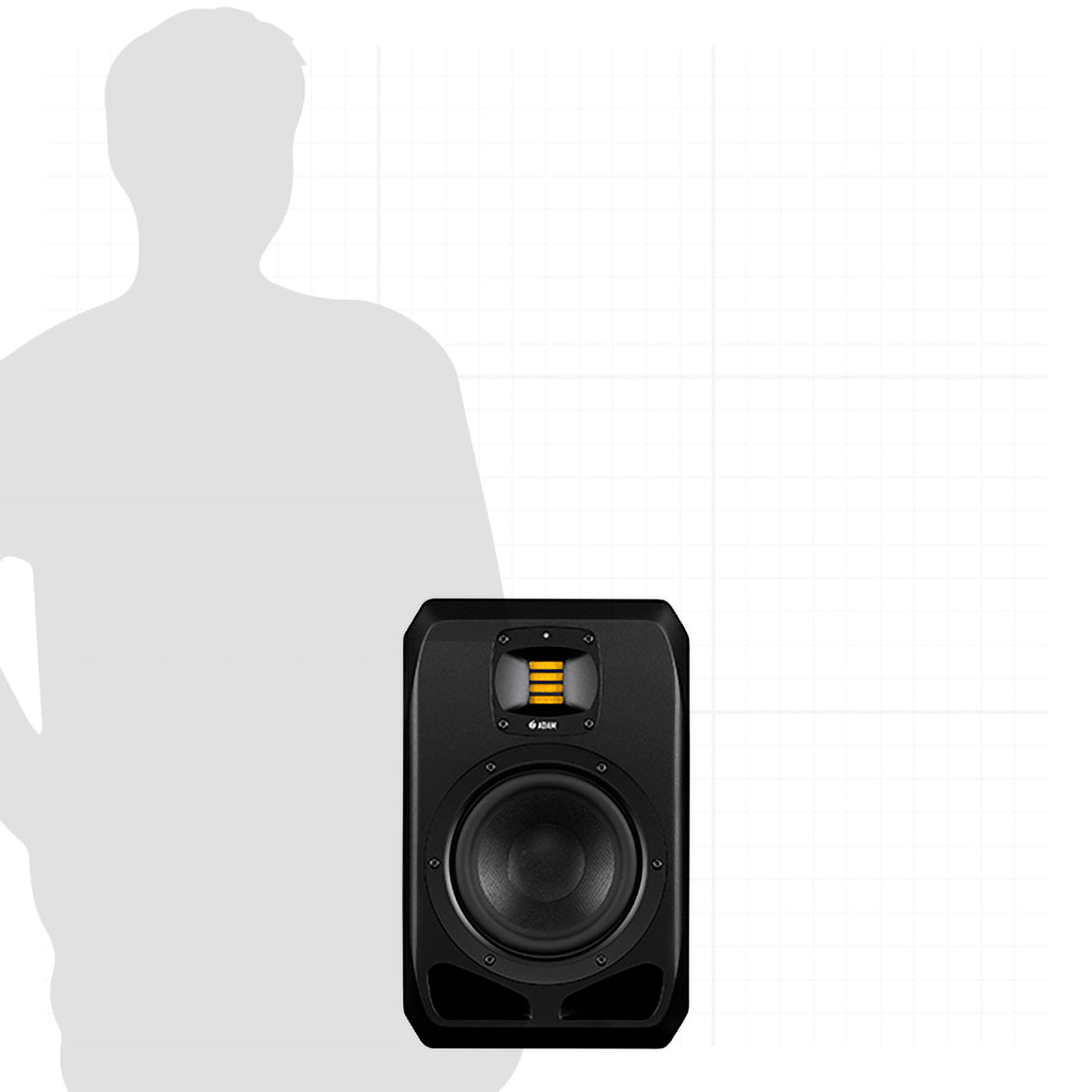

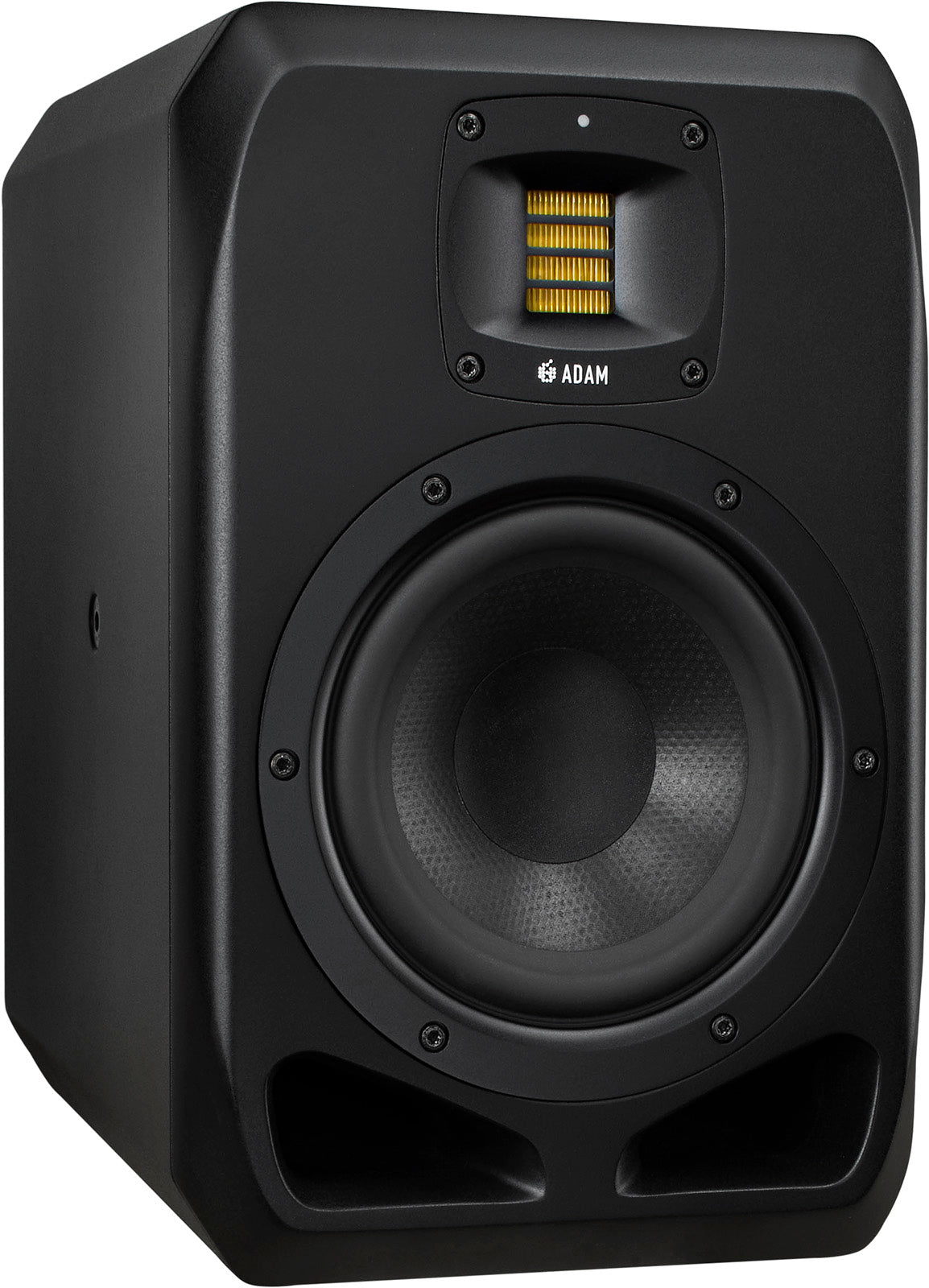

Adam Audio S2V

Essential Information About the Adam Audio S2V Monitoring Speaker

• Powerful Bi-amplification: 300 W Class D for the woofer + 50 W Class A/B for the S-ART tweeter, high dynamics and controlled distortion.


• Extended Precision: frequency response from 35 Hz to 50 kHz, up to 120 dB SPL per pair, and stable stereo imaging via HPS waveguide.


• Integrated DSP: optimized crossovers, room equalizer, tweeter limiter, AES3 digital inputs, and USB-updatable firmware.


• New Generation 7-inch Woofer: deep, fast, and controlled bass up to 3 kHz, ideal for nearfield monitoring.

At the Heart of the S Series: ADAM Audio's Reference Nearfield

The S2V is part of ADAM Audio's prestigious "S Series," designed for demanding studios. It carries the brand's DNA with the handcrafted S-ART tweeter made in Berlin and the HPS directivity waveguide, while introducing a completely redesigned 7-inch woofer. Positioned as the nearfield model in the range, it combines compactness with level reserves worthy of professional setups.

Intended Uses and Studios

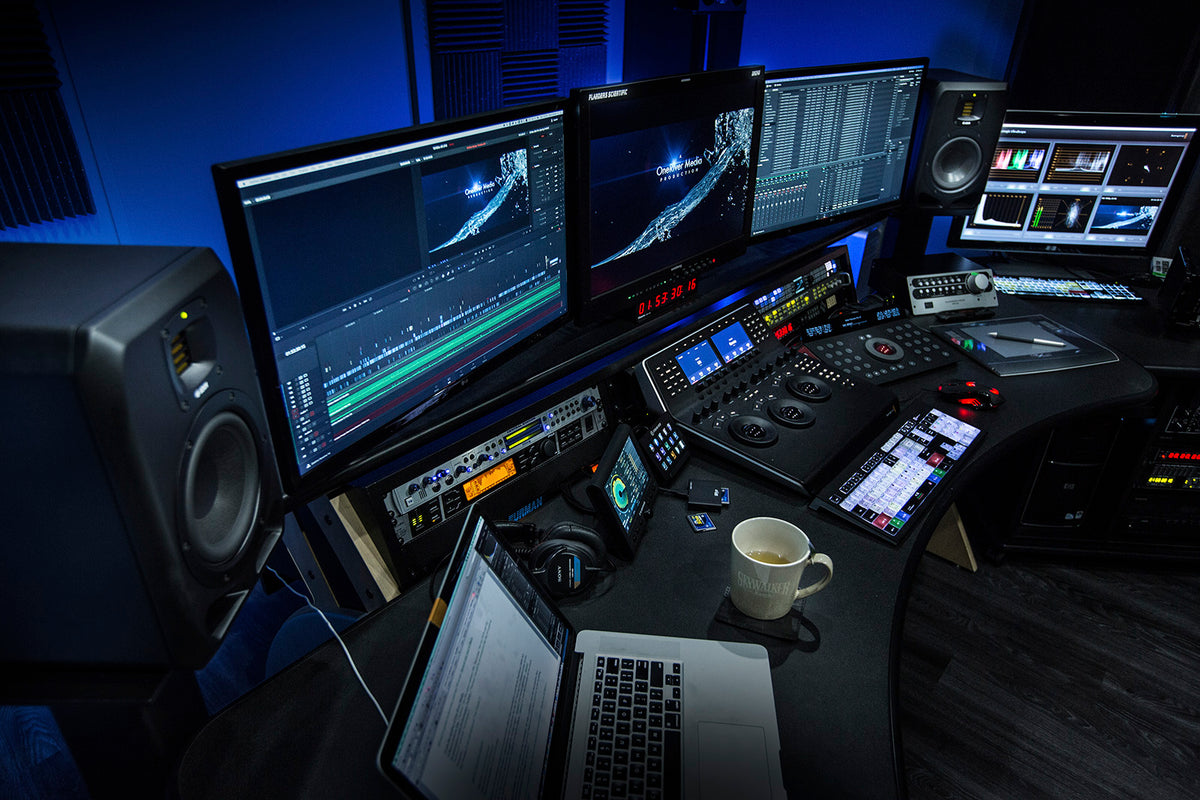

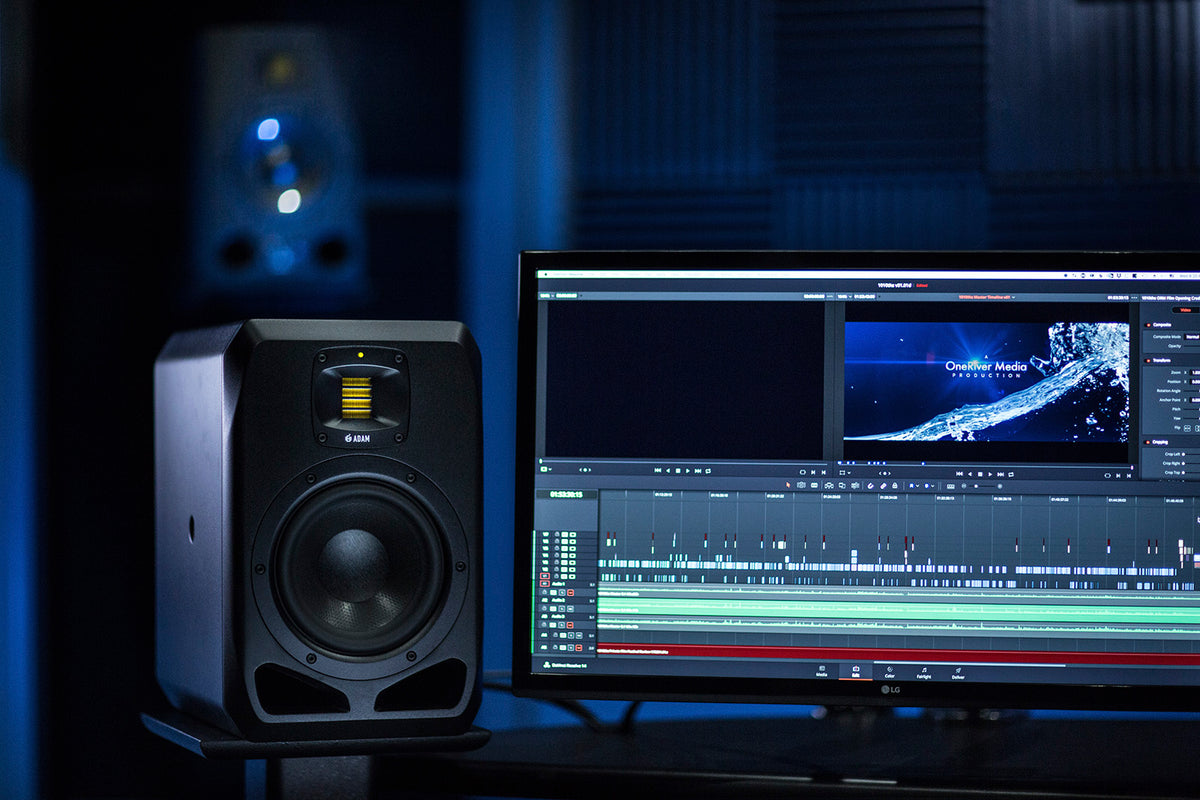

The S2V targets sound engineers, producers, and creators working in small to medium-sized control rooms. Its spectral precision and coherent imaging facilitate mixing, editing, and pre-mastering tasks. Versatile, it maintains clarity and translation across electronic, urban, pop/rock music, and broadcast formats.

Key Technologies for Uncompromising Monitoring

Drivers and Amplification

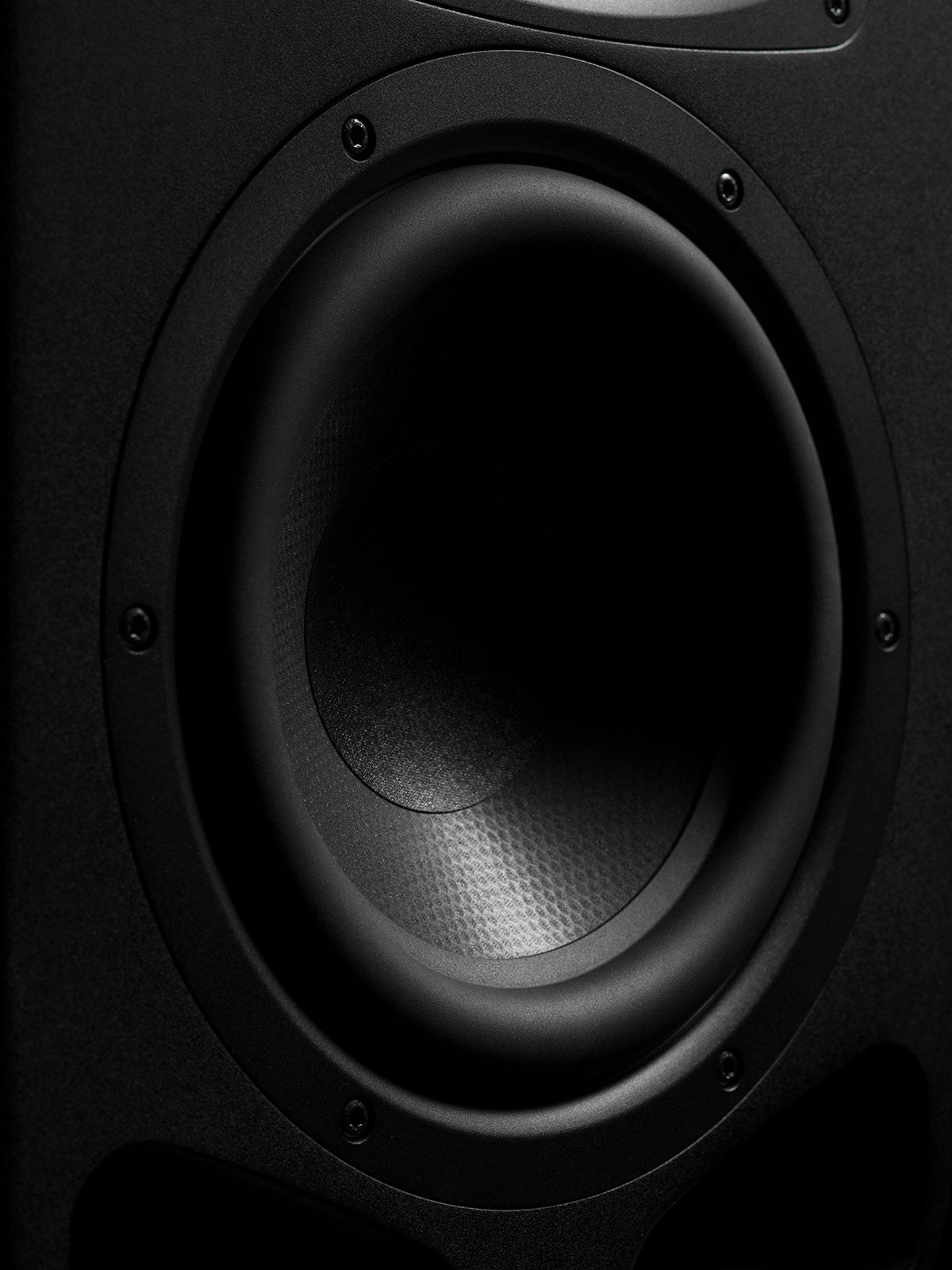

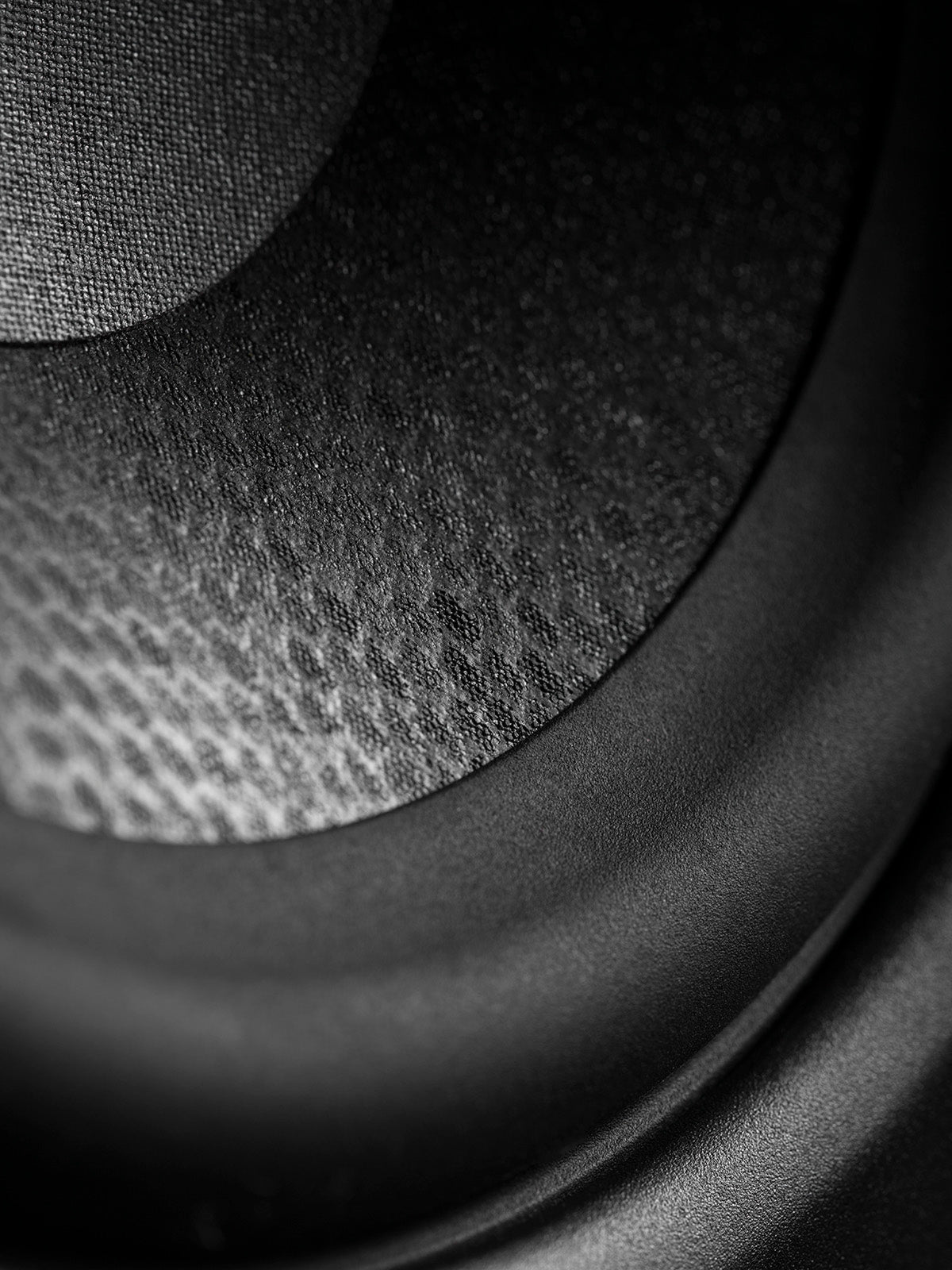

The new generation 7-inch woofer delivers deep, tight bass with a wide dynamic range. The S-ART tweeter, combined with the HPS waveguide, expands the listening area while preserving transient accuracy. Dedicated bi-amplification (300 W Class D for the woofer, 50 W Class A/B for the tweeter) ensures optimal control across the entire range.

DSP, Calibration, and Integration

The internal DSP linearizes crossovers, offers a room adaptation equalizer, and integrates a tweeter protection limiter. It also manages signals from the AES3 inputs. Via the USB port, the S2V accepts software updates and can be controlled through dedicated software to save your settings and guarantee perfect consistency between pairs.

Technical specifications

Battery	No	EQ	Yes
Category	monitoring	Mixer	No
Type	active speaker	Cutaway	Yes
Peak power	230 W	SPL Max / peak	120 dB
Peak power, type	RMS	Frequency response	35Hz - 50kHz
Number of channels	2 channels	SPL max	120 dB

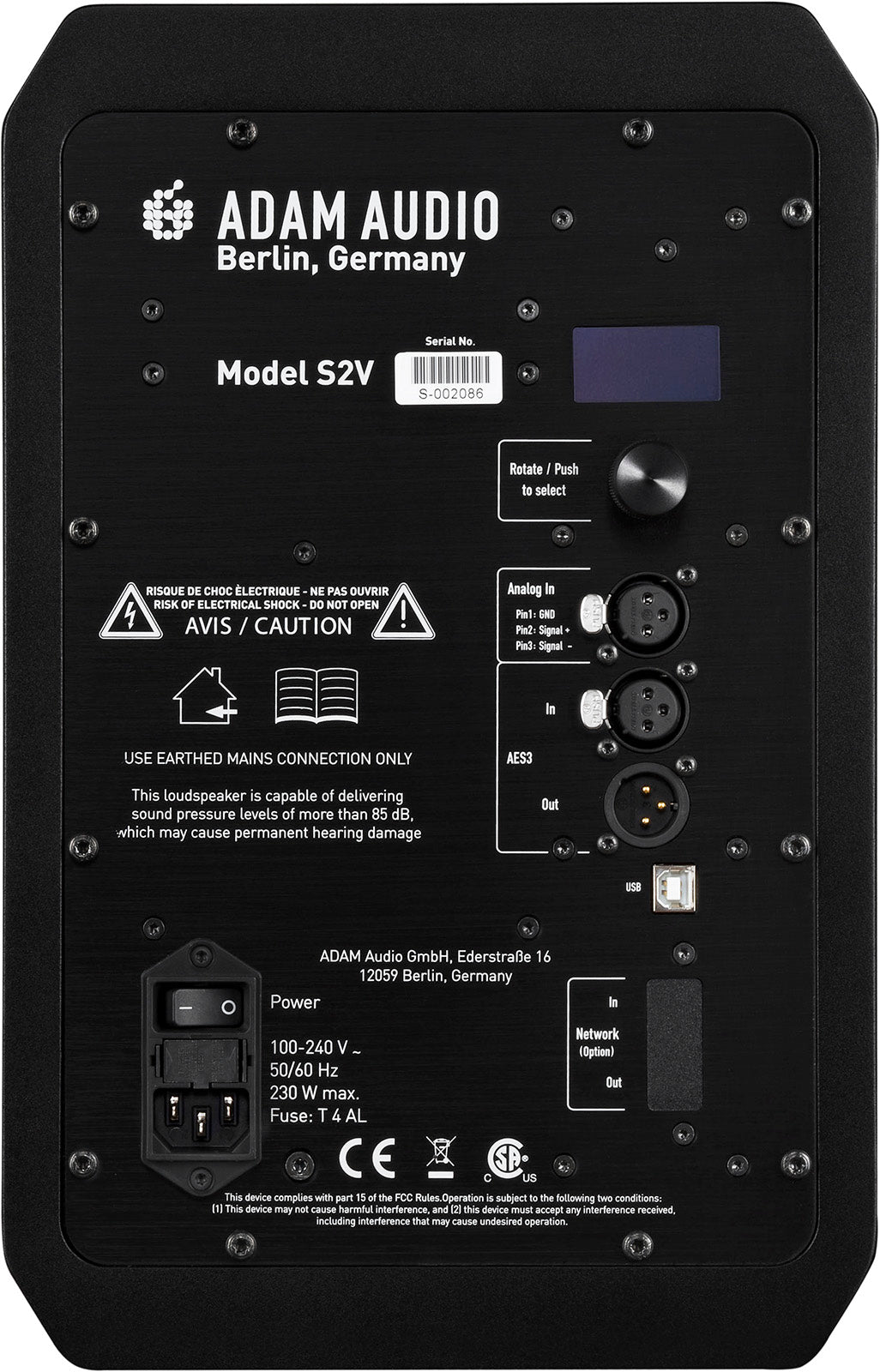

Amplification	Active amplified	Inputs	AES3, XLR, USB
Auto-standby	No	Color	Black
Bluetooth	No	Power output	350 W
Connection	USB, AES3, XLR	Power / type	RMS
Speaker diameter	7"	Quantity	1
Number of speakers	1	Weight	11 kg
DSP	Yes	Dimensions (mm)	346 x 222 x 338

Woofer	7-inch, new generation S Series	Analog input	XLR
Tweeter	S-ART (handcrafted) with HPS waveguide	Input impedance	48 kOhms
Max SPL	120 dB (per pair)	Maximum input level	+24 dBu
Woofer coverage band	35 Hz - 3 kHz	Dimensions (H x D x W)	346 x 338 x 222 mm
Internal DSP	optimized crossovers and room adaptation EQ	Warranty	5 years after product registration
Digital inputs	AES3	Packaging	price per speaker (sold individually)
