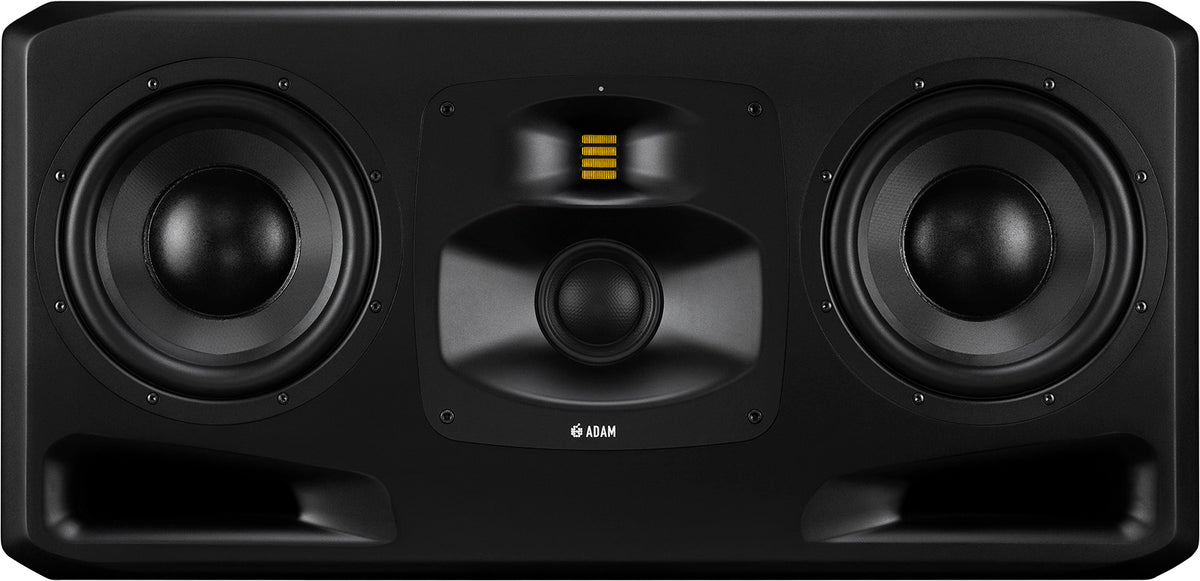

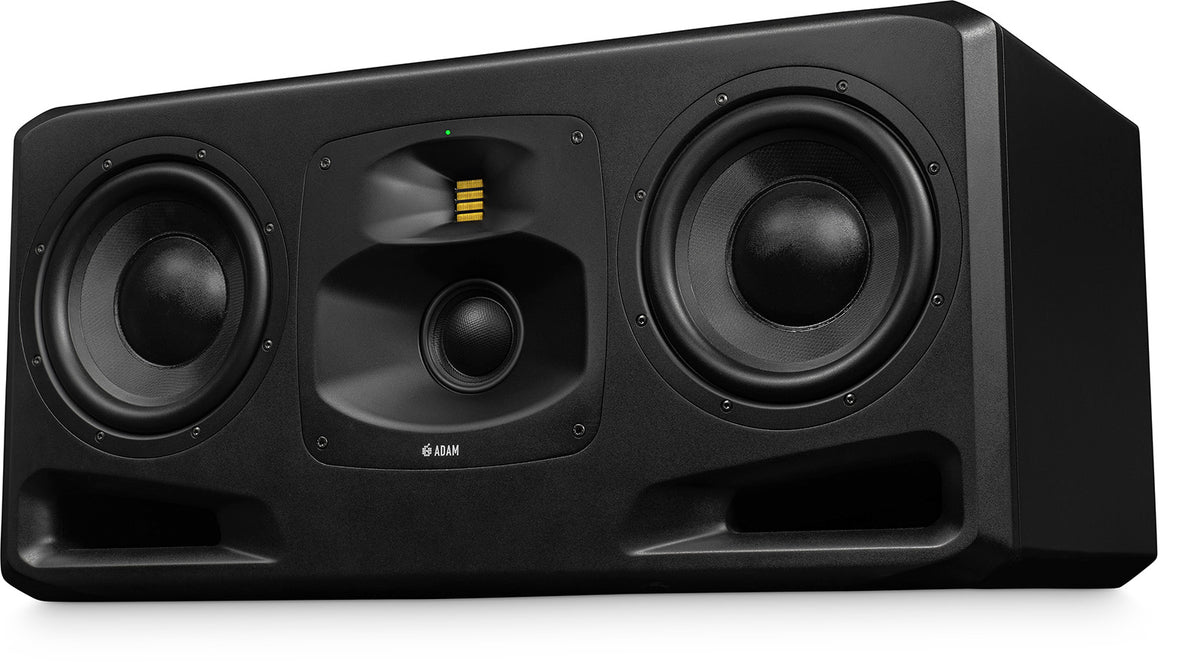

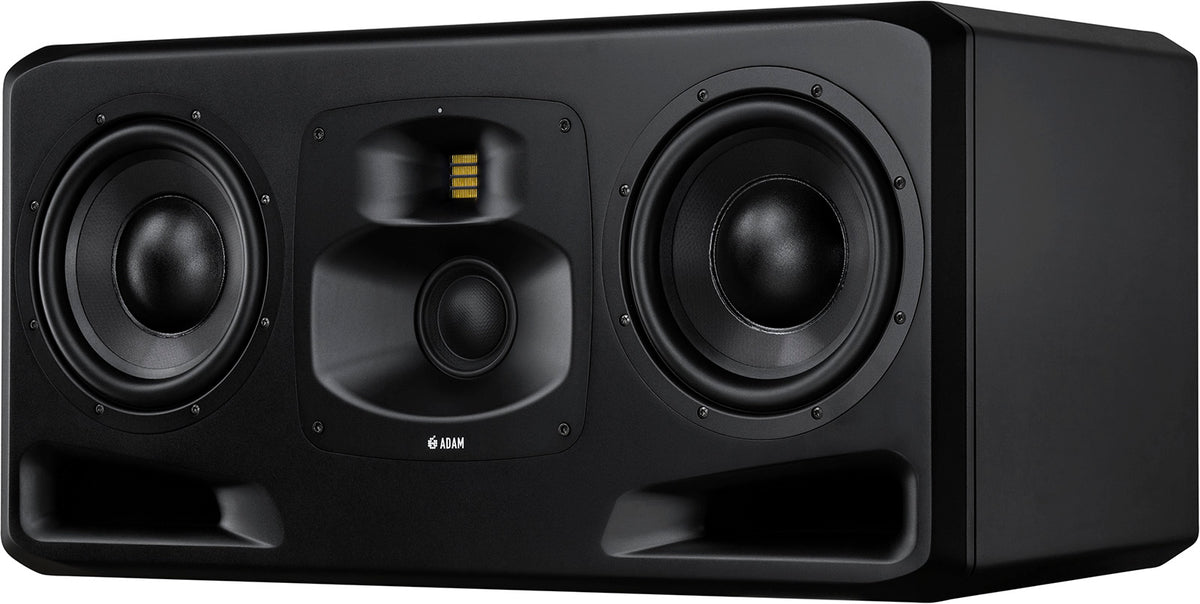

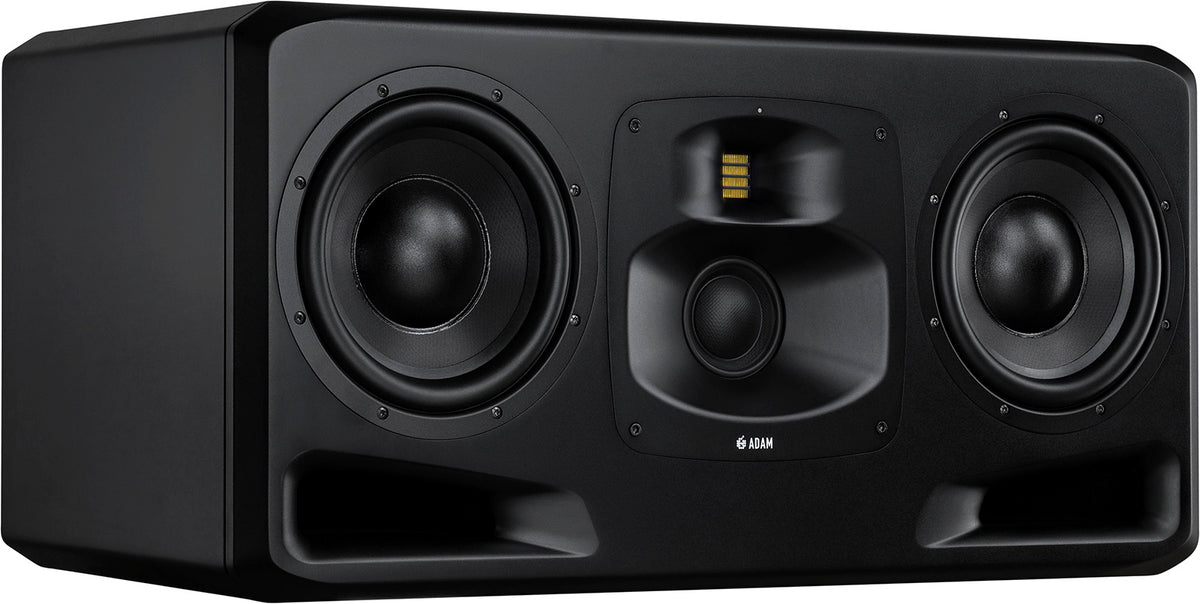

Adam Audio S5H

Essential Information About the ADAM Audio S5H Monitoring Speaker

• Dual woofer ELE 2 x 10 inches with SMA motor for deep and perfectly controlled bass down to 24 Hz.


• Hybrid midrange DCH 4 inches and S-ART ribbon tweeter with HPS/MPS waveguide for extreme precision and a wide "sweet spot."


• Built-in DSP with equalizer, room optimization, limiter, and USB control; digital AES3 inputs/outputs.


• Main horizontal 3-way monitor of the S Series delivering 1800 W RMS and up to +/- 131 dB SPL for the pair.

The Flagship Horizontal Model of the S Series

Designed for large control rooms, the S5H establishes itself as the horizontal reference in ADAM Audio's "S Series" range. The result of dedicated development, it combines the new proprietary ELE, DCH transducers and the S-ART ribbon tweeter (handmade in Germany) for a reproduction that is powerful, linear, and non-fatiguing, true to the brand's DNA.

Designed for Large Studios, Post-Production, and Mastering

Thanks to its directivity controlled by the MPS/HPS waveguides and its dynamic headroom, the S5H maintains a stable image over a wide listening area. It allows multiple engineers, directors, and musicians to work simultaneously in the optimal axis, a decisive advantage in film mixing, broadcast, or mastering studios.

Proprietary Technologies and Advanced Digital Processing

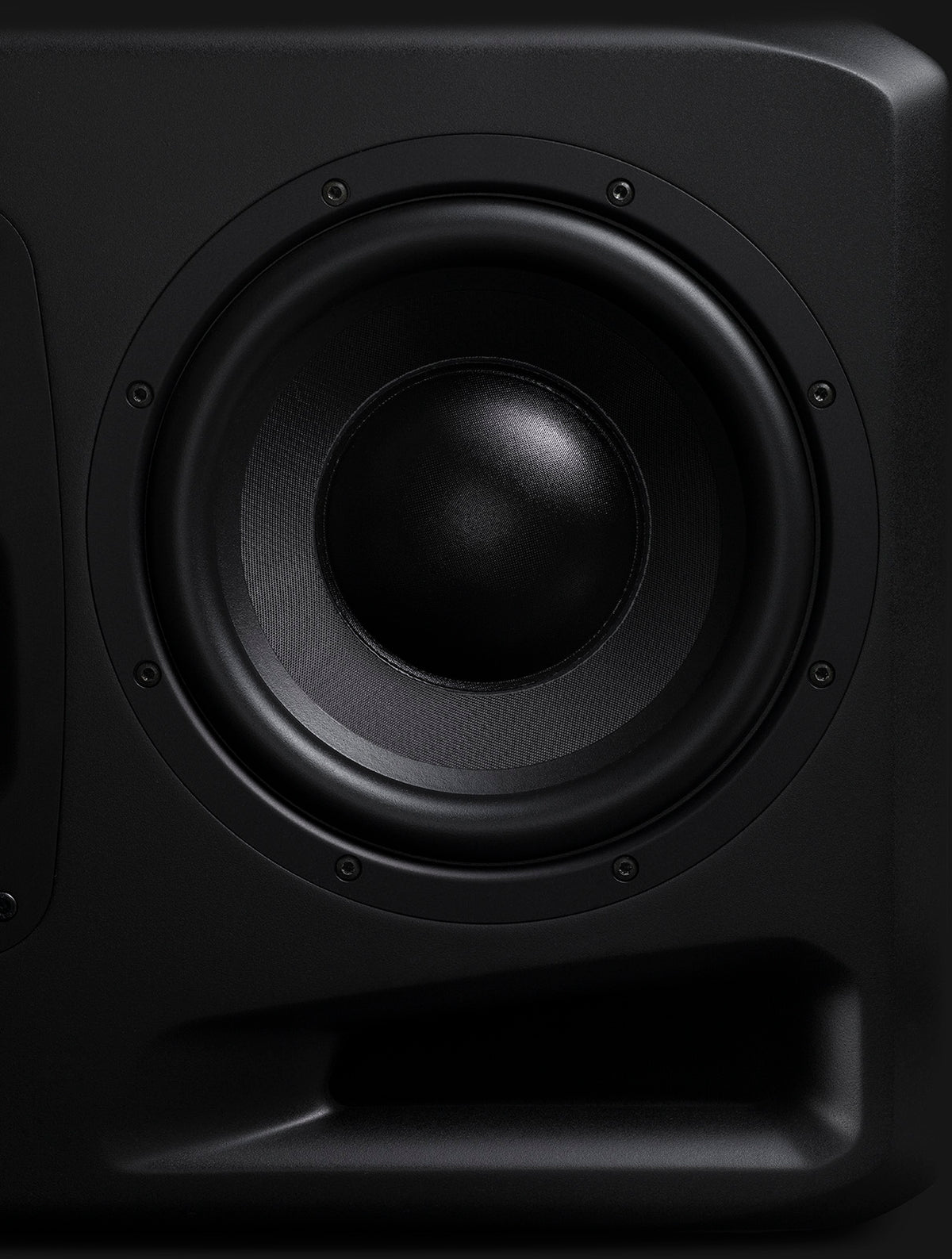

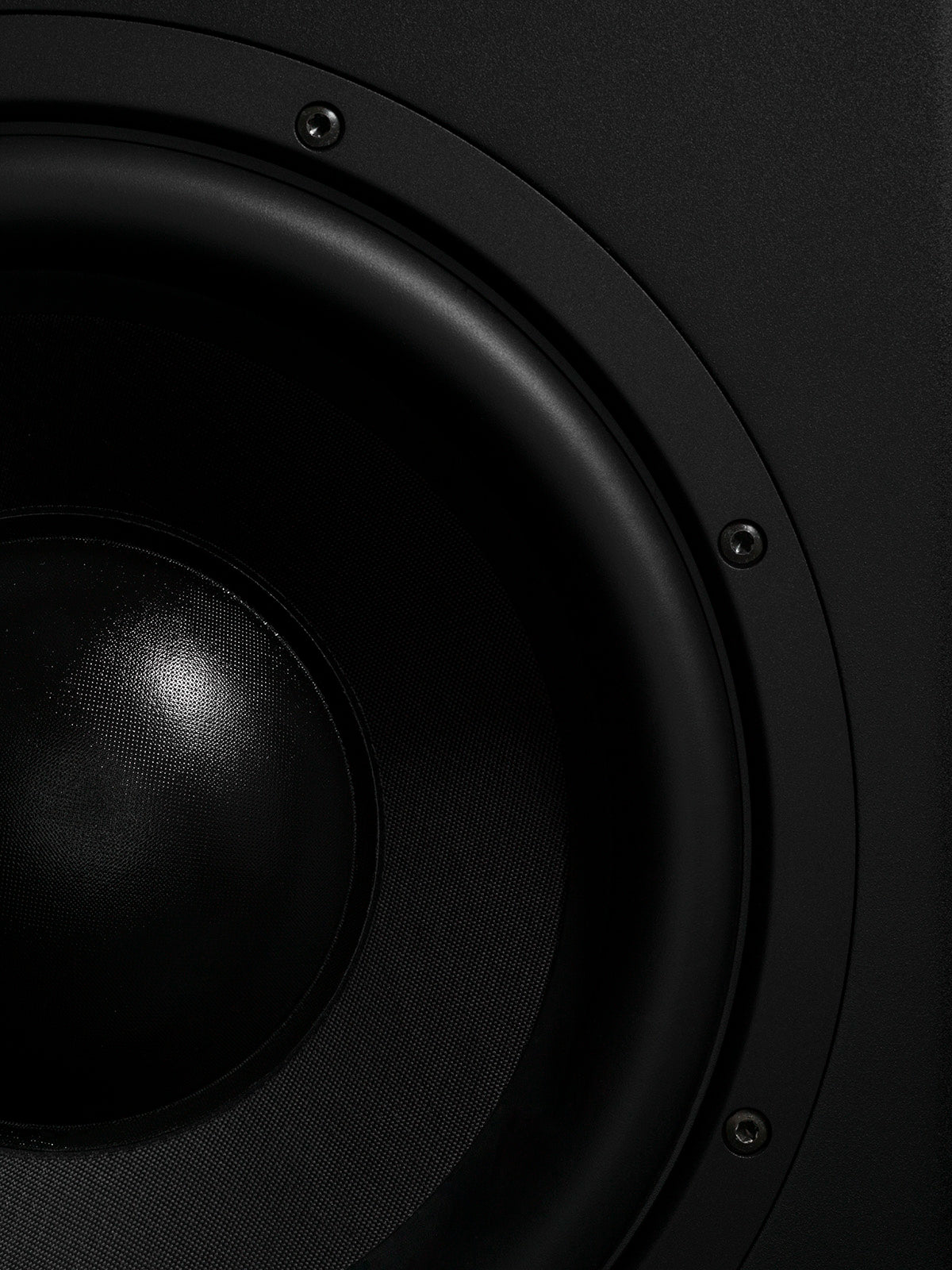

The two extended excursion ELE woofers, powered by the symmetrical magnetic architecture SMA, ensure a powerful and clean low end. The 4-inch hybrid DCH midrange combines the benefits of dome and cone drivers to offer articulation, speed, and low distortion in the ear's most sensitive range.

The S-ART ribbon tweeter extends the frequency response up to 50 kHz and, combined with the HPS/MPS waveguides, maintains exemplary off-axis responses. The in-house DSP optimizes crossovers for reference linearity, provides an equalizer and room adaptation settings, protects the tweeter via a limiter, and manages AES3 digital streams, with updates and control via USB through dedicated software.

Technical specifications

Battery	No	Mixer	No
Category	monitoring	Cutaway	Yes
Type	active speaker	SPL Max / peak	131 dB
Peak power	1100 W	Frequency response	22 Hz - 17,5 kHz
Peak power, type	RMS	SPL max	131 dB

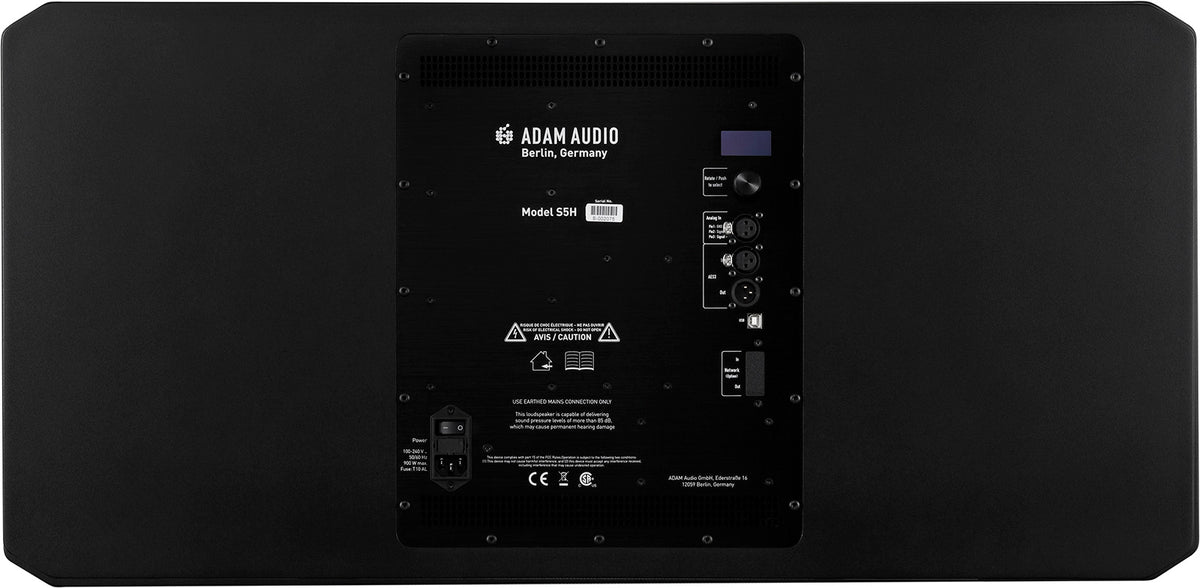

Number of channels	3 ways biamp	Inputs	AES3, XLR, USB
Amplification	Active amplified	Outputs	AES/EBU
Auto-standby	No	Color	Black
Bluetooth	No	Power output	1100 W
Connection	USB, AES3, XLR	Power / type	RMS
Speaker diameter	4", 10"	Quantity	1
Number of speakers	3	Weight	72.6 kg

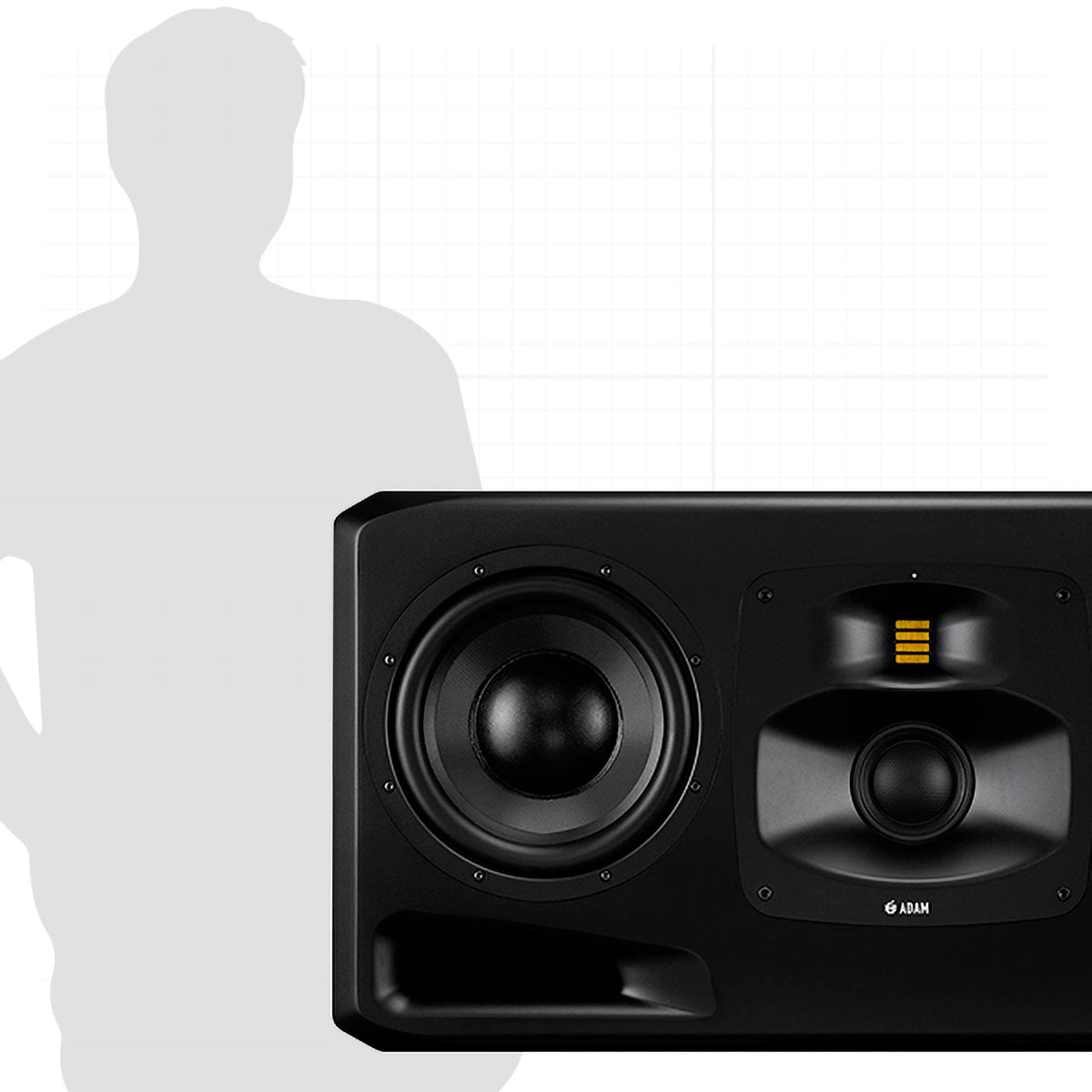

DSP	Yes	Dimensions (mm)	430 x 885 x 500
EQ	Yes

Midrange driver	4 inches, carbon composite with MPS waveguide	Custom DSP	optimized crossovers, equalizer, acoustic room optimization
Woofer	2 x 10 inches HexaCone	Analog input	XLR
Crossover frequencies	250 Hz, 3 kHz	Included	Power cable and user manual
Sound pressure level (pair) at 1 m	+/- 131 dB SPL	Dimensions	885 x 500 x 430 mm
