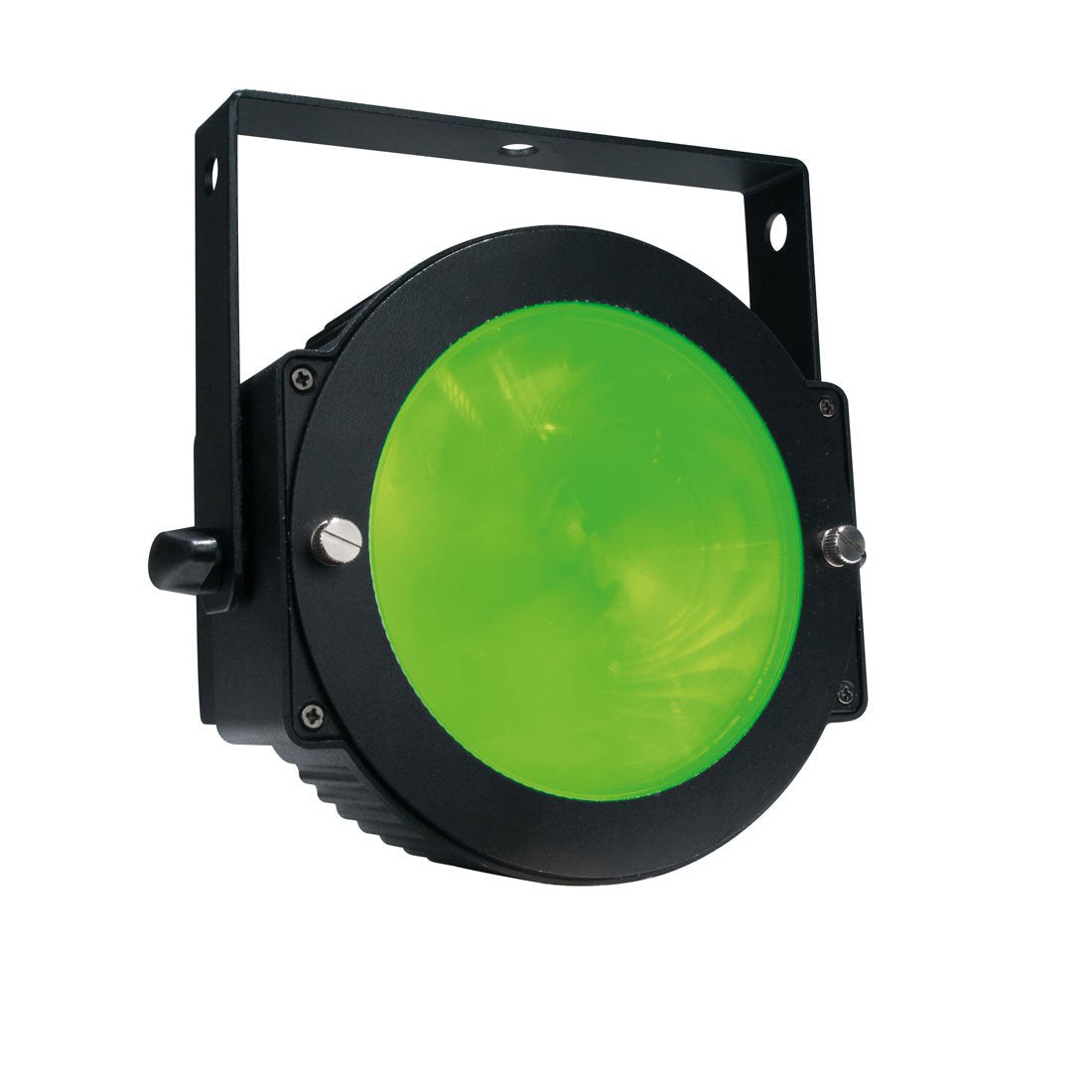

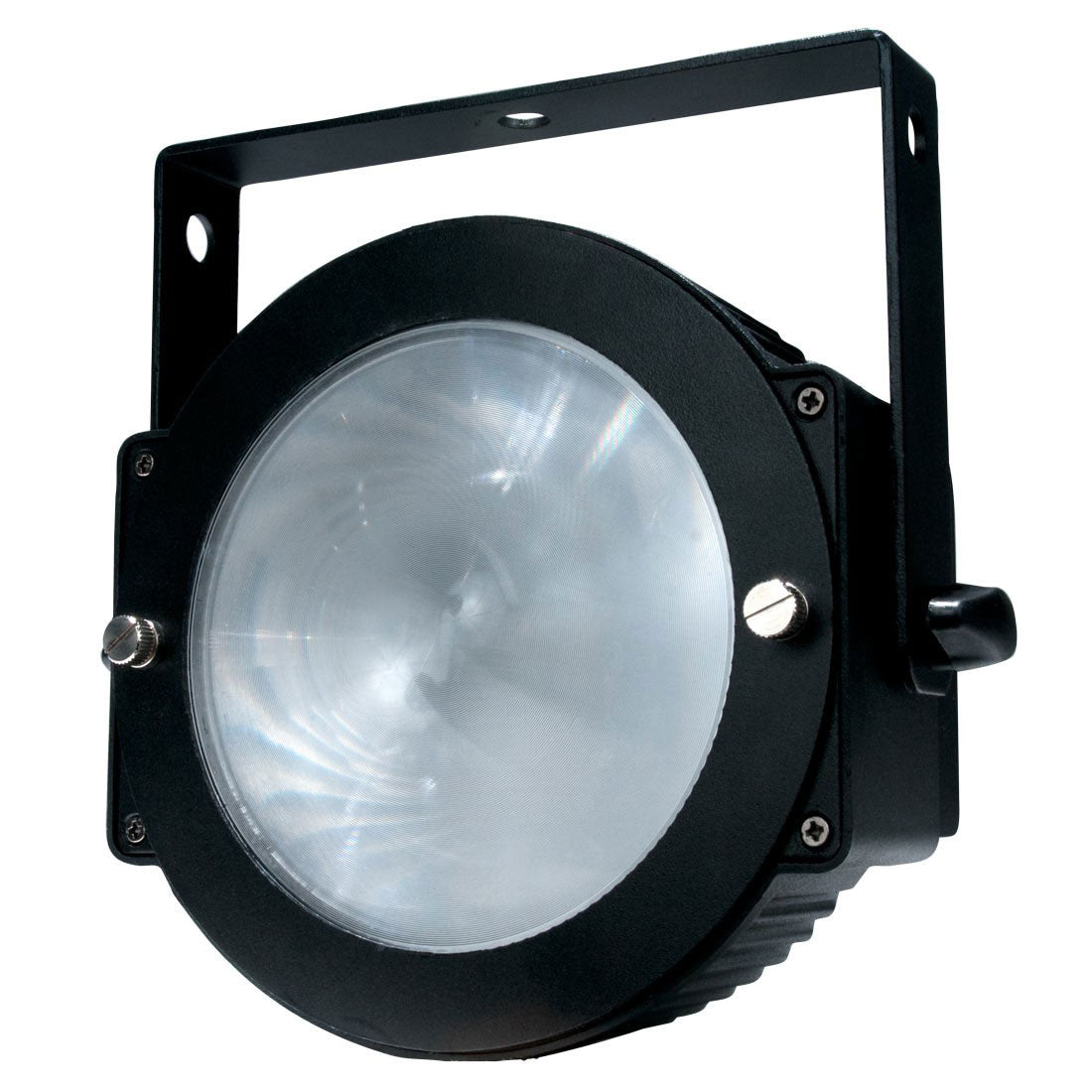

ADJ Dotz Par
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the "ADJ Dotz Par" Projector
Essential Information About the "ADJ Dotz Par" Projector
- 30 W TRI RGB COB LED for powerful, smooth, and even wash lighting without color shadows.
- Two optics included to adapt to the stage: wide coverage at 60 degrees or a tighter beam at 25 degrees.
- Flexible control: 4 DMX modes (3, 4, 5, or 9 channels), 35 color macros, 5 dimmer curves, and strobe effect.
- Low-profile design with side IEC and DMX connectors for floor placement or suspension, "flicker-free" operation for video.
Manufacturer Information
ADJ
https://www.adj.com
info@adj.com
------------------------
Safety manager:
ADJ Supply Europe B.V.
Email: info@adj.eu
Address:
A Versatile Wash for Stage, Events, and Installations
Compact yet highly effective, the "ADJ Dotz Par" effortlessly covers a small stage, club dancefloor, DJ booth, or event space. Thanks to its two lenses, it switches from a broad wash for stage backgrounds to a more focused beam to highlight décor, totems, or structures. Its flicker-free operation also makes it suitable for video capture, streaming, and discreet architectural lighting.
Who Is the "ADJ Dotz Par" For?
Ideal for the mobile DJ looking for a lightweight and quick-to-install setup, it will also appeal to the lighting technician and event service provider seeking a reliable, chainable, and economical wash base. Bars, restaurants, clubs, and places of worship will appreciate its longevity and built-in programs. For the informed private user, it is an easy-to-use fixture, scalable with DMX control and the optional remote control.
Technical specifications
| 1 30 W TRI RGB 3-in-1 COB LED (estimated lifespan | 50,000 hours) | Power linking | up to 13 units at 110 V and 28 units at 230 V |
| COB technology | powerful beam, smooth color mixing and rich color palette | Multi-voltage power supply | 100 V AC / 60 Hz to 240 V / 50 Hz |
| Beam angle | 60 degrees (or 25 degrees with the second lens included) | Power consumption | 36 W max. (LEDs at full power) |
| 5 operating modes | automatic, music, color macros, dimmer and DMX | Dimensions with yoke | 209 x 222 x 114 mm |
| 4 DMX modes | 3, 4, 5 or 9 channels | Dimensions without yoke | 165 x 165 x 114 mm |
| 5 dimming curves | Standard, Stage, TV, Architectural, Theatre | Weight | 2 kg |
| Effects | strobe and pulse | ||
You will also like
Algam Lighting
Slimpar 1210 Quad
Algam Lighting
Slimpar 710 Hex
Algam Lighting
Slimpar 710 Quad
Chauvet DJ
Slimpar T12BT ILS
ADJ
MEGA HEX PAR
J.collyns
StagePar 14x15W Quad
Power Lighting
Par Combo 330
Chauvet DJ
FXpar 6
Customer reviews
Based on 2 reviews
- 5 stars, 1 review
- 4 stars, 0 reviews
- 3 stars, 1 review
- 2 stars, 0 reviews
- 1 star, 0 reviews
The review form didn't open. Please try again.
-
The top really happy again congratulations Woodbrass for your professionalism
Automatically translated
-
I THOUGHT I UNDERSTOOD THAT THERE WAS A SECOND LENS OFFERED THAT I NEVER RECEIVED...
Automatically translated
No reviews match this filter.
Reviews can't be loaded right now. Please try again.
Automatically translated
Questions frequently asked
ADJ Dotz Par: what beam angles are available?
Two lenses are provided: 60° for a wide wash and 25° for a more focused lighting.
Can the fixture be controlled via DMX?

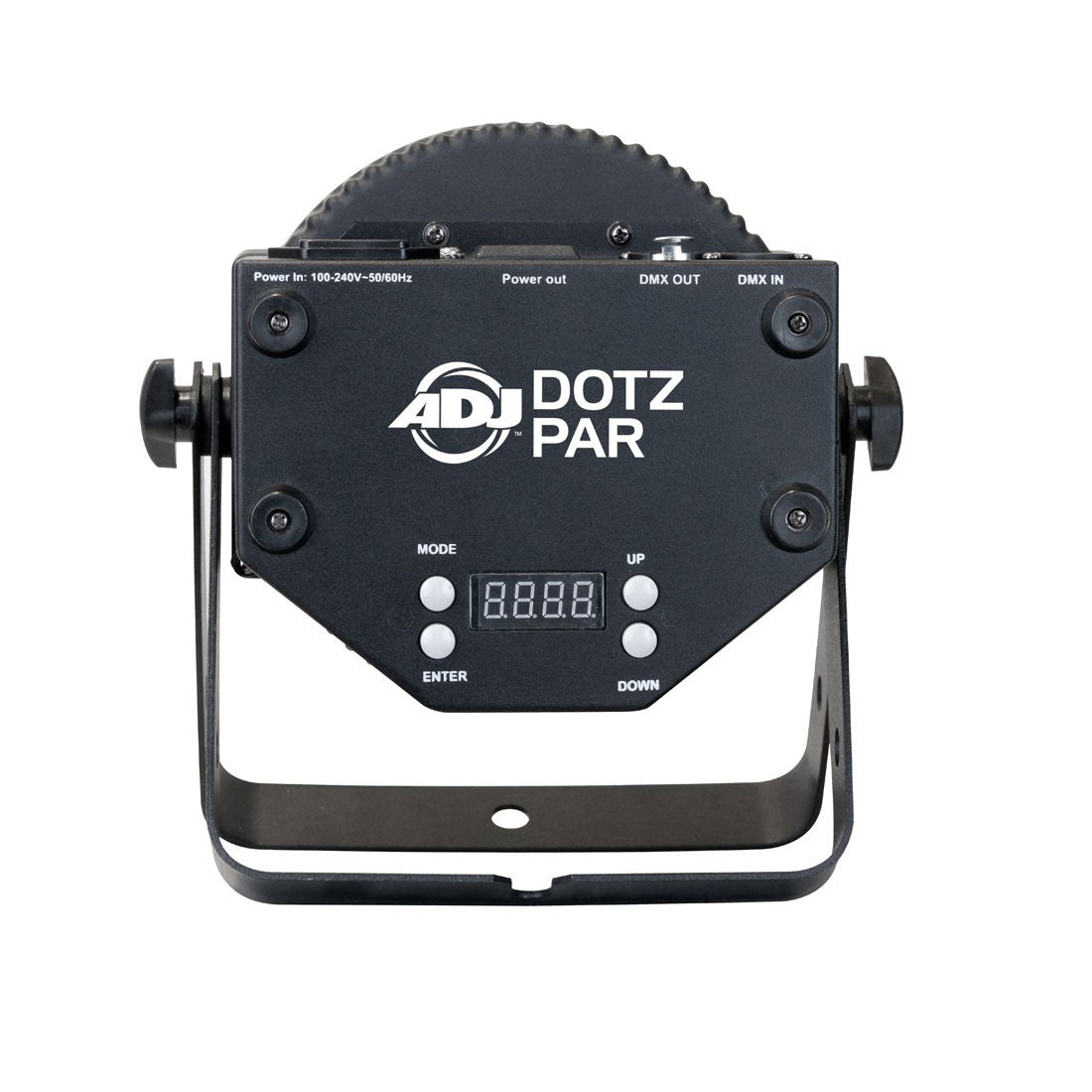

DMX control is available through 3-pin XLR input and output connectors. Four configurations are offered: 3, 4, 5, or 9 channels. The LCD display and its 4 buttons allow parameter adjustments.
Is it suitable for video and streaming?
The 30 W TRI RGB COB LED operates flicker-free, which reduces scan lines during video capture and streaming.
How many fixtures can be daisy-chained on mains power?
Mains daisy-chaining via IEC connectors supports up to 28 units at 230 V, with a maximum consumption of 36 W per fixture.
What standalone modes are offered?
Five operational modes are built-in: automatic, sound-active, color macros, dimmer, and DMX. The 35 color macros, strobe and pulse effects, as well as 5 dimming curves are accessible without complex programming.
