ADJ REVO 4 IR
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

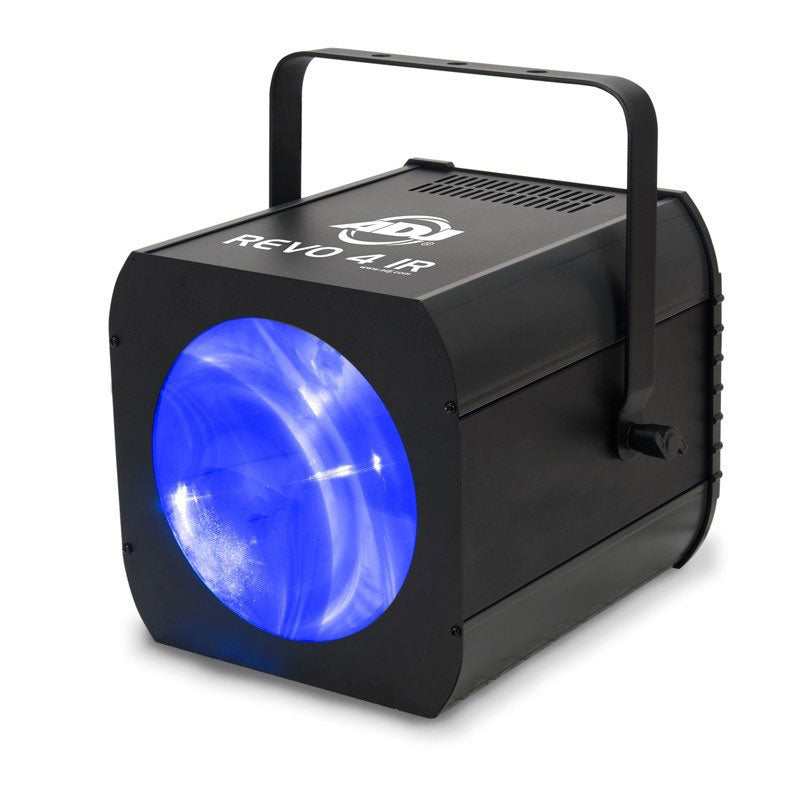

Essential Information About the AMERICAN DJ "Revo 4 IR" Projector
Essential Information About the AMERICAN DJ "Revo 4 IR" Projector
- Ultra-wide RGBW Moonflower Effect: 256 sharp and precise beams creating spectacular patterns on dance floors, walls, and ceilings.
- Advanced Control Options: 4 DMX channels for quick setup or 256 channels to control each LED individually.
- Simplified Controls: Built-in infrared receiver, compatible with UC-IR and Airstream IR remotes (sold separately), plus a 4-button display.
- Designed for Durability and Efficiency: 5 mm LEDs with an estimated 50,000-hour lifespan, low power consumption at 34 W, and convenient DMX/power linking.
Manufacturer Information
ADJ
https://www.adj.com
info@adj.com
------------------------
Safety manager:
ADJ Supply Europe B.V.
Email: info@adj.eu
Address:
A Striking Show for Clubs, Stages, or Events
The "Revo 4 IR" instantly transforms the atmosphere of your events: clubs, bars, live stages, weddings, birthdays, corporate parties, or DJ gigs. Its 256 light points create dynamic pattern carpets, effective with or without fog, easily covering a large area. Whether in fixed installation or mobile performance, it delivers a distinctive visual signature without excessive complexity.
Who This Projector Is For
Ideal for mobile DJs and entertainers seeking a "wow" effect without heavy programming, it is also suitable for lighting technicians and venue operators looking for a reliable and quick-to-deploy solution. Event professionals will appreciate its impact-to-power ratio, while discerning private users will find a ready-to-use effect for home studios, party rooms, or private bars.
Technical specifications
| Spotlight type | Effect | ||
You will also like
Algam Lighting
MOTORISED BEAM MINI-BARS 9X 12W
Chauvet DJ
Rotosphere HP
Chauvet DJ
Swarm Wash FX ILS
Algam Lighting
Phebus 2
Power Lighting
LIGHTBOX 90S
Chauvet DJ
Swarm 5 FX ILS
Power Lighting
Solarius
Power Lighting
Meteor Viii Mk2
Questions frequently asked
ADJ Revo 4 LR: what DMX modes are available?
The DMX-512 protocol offers a simplified 4-channel mode and a 256-channel mode allowing LED-by-LED control. This latter configuration enables the creation of light shapes and texts.
Can this lighting effect be used without a DMX controller?
Internal programs, music mode, and master/slave operation allow use without a DMX console. The infrared receiver facilitates triggering key functions.
What lighting coverage does the Revo 4 LR provide?
With a 35° beam angle, the 256 5 mm LEDs create Moonflower patterns designed to cover a wide area. The matrix includes 64 red, 64 green, 64 blue, and 64 white LEDs.
What is the power consumption of this ADJ fixture?
The maximum power consumption is 34 W, with a multi-voltage AC 100-240 V 50/60 Hz power supply.
What are the dimensions and weight of the fixture?

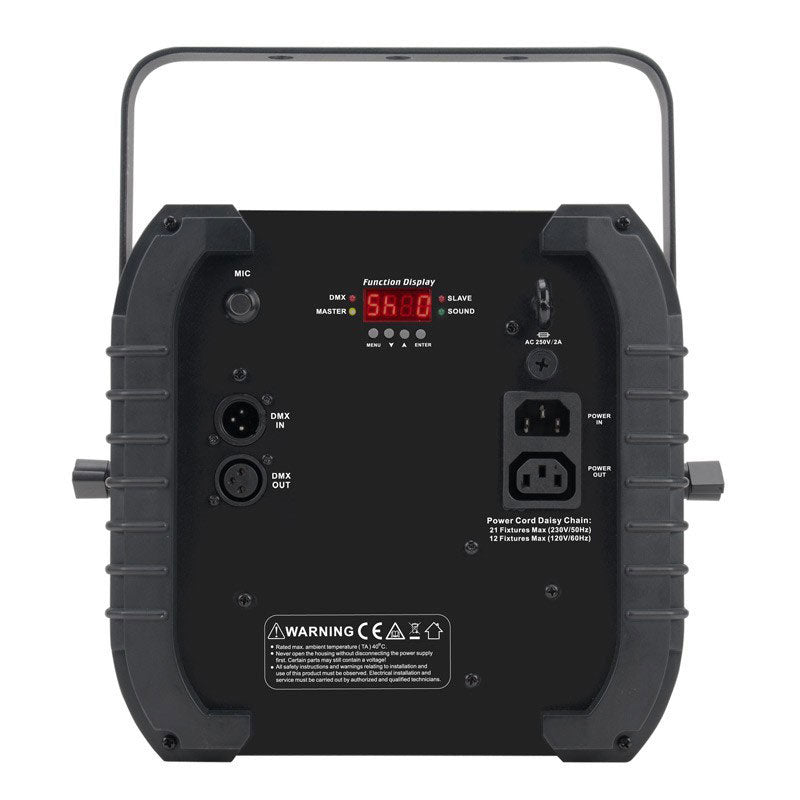

The housing measures 312 x 306 x 334 mm and weighs 4.9 kg. A mounting yoke is provided for installation. Daisy chaining is done via XLR for DMX and IEC for power.
