Essential Information About the ADJ UB 9H LED Bar
Essential Information About the ADJ UB 9H LED Bar

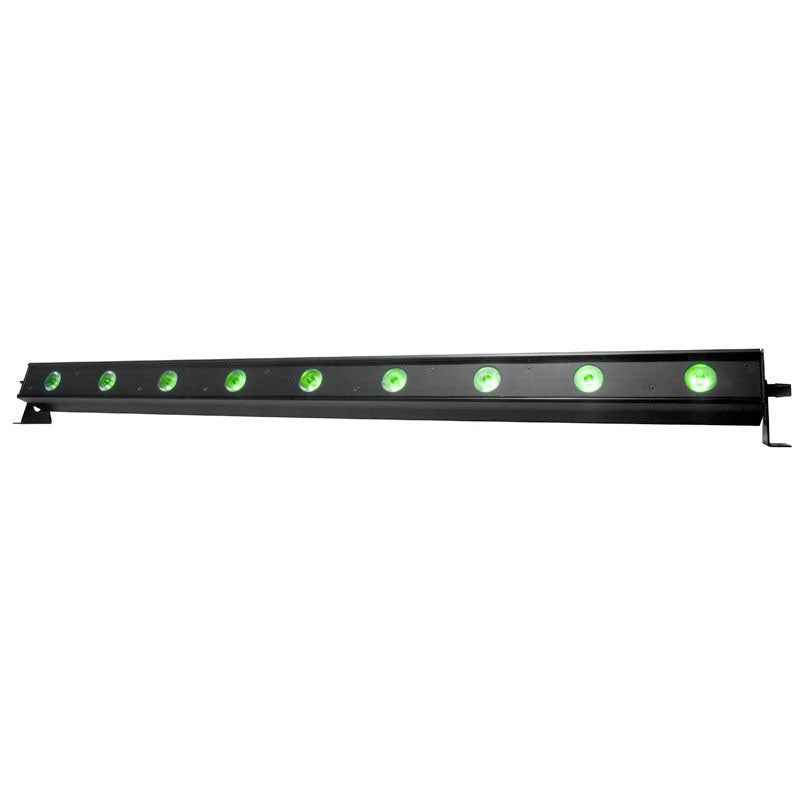

- 1-meter LED bar with 9 HEX 6 W RGBAW+UV sources for powerful washes and ultra-clean pastel shades.
- 6-color mixing with a 40-degree beam angle, ideal for walls, stages, and dance floors.
- 3-section pixel control, 35 macros, 0 to 100 dimming, and variable-speed strobe, flicker-free at 2200 Hz.

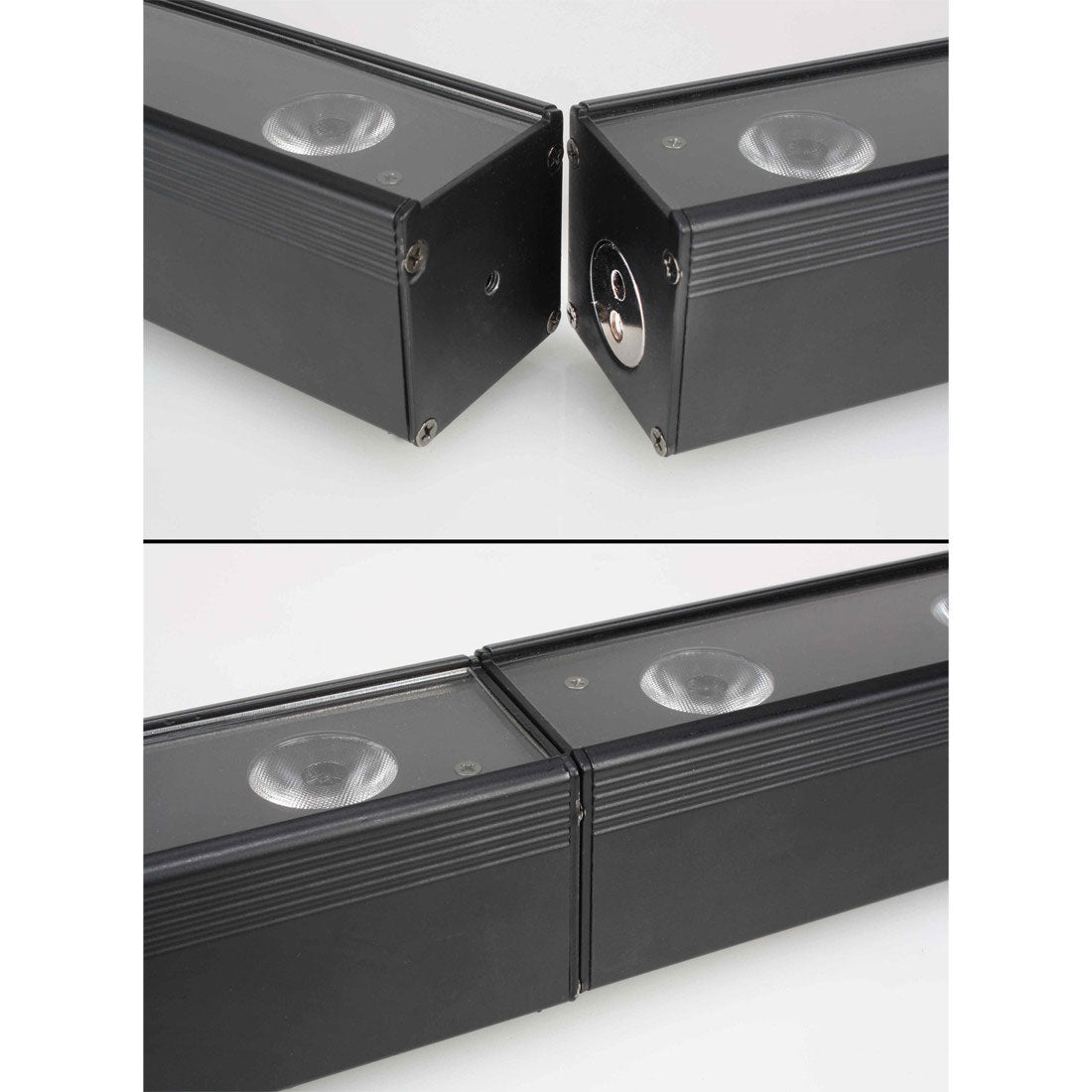

- "Quick Align" magnetic system for continuous edge-to-edge alignment, plus power linking of up to 15 bars.
Manufacturer Information
ADJ
https://www.adj.com
info@adj.com
------------------------
Safety manager:
ADJ Supply Europe B.V.
Email: info@adj.eu
Address:
Even washes for stage, wall, and dance floor
The ADJ UB 9H excels in ambient lighting and wall washing over 1 meter, delivering continuous color rendering without "breaks" between modules. Its RGBAW+UV palette allows for both saturated colors and nuanced whites as well as UV atmospheres. It naturally fits on stage, in clubs, for weddings and events, in theaters for backgrounds and backlighting, or as a fixed installation in bars or restaurants.
For professionals... and those seeking pro results
Mobile DJs, lighting technicians, technical providers, and venue operators will appreciate its reliability, quick setup, and the ability to daisy-chain power and DMX. Discerning individuals will find a ready-to-use LED bar, easy to operate standalone, comfortable in a living room or on a video set thanks to its flicker-free operation.
Technical specifications
| Beam angle | 40 degrees. | Power consumption | 61 W. |
| Electronic dimming | 0 to 100. | Long-life LEDs | approximately 50,000 hours. |
| 6 DMX channel modes | 2, 3, 4, 6, 7, or 11 channels. | Dimensions (L x W x H) | 1060 x 63 x 90 mm. |
| 5 operating modes | Auto (program), sound-active, RGBAW+UV dimmer, static color, DMX-512. | Weight | 2.6 kg. |
| Multi-voltage operation | AC 100 to 240 V, 50/60 Hz. | ||
You will also like
Algam Lighting
MB 810 - 8 RGBW MOTORIZED LED BAR
Chauvet DJ
Colorband T3BT ILS
Chauvet DJ
Colorband H9 ILS
Algam Lighting
EVENTPAR 612 HEX IP - B Stock
Algam Lighting
BARWASH36 PIX
Chauvet DJ
Colorband Q3BT ILS
Power Lighting
BARRE FOCUS 90WW
Chauvet DJ
Colorband Pix ILS
Questions frequently asked
Is the ADJ UB 9H suitable for wall washing?
Its 40° beam angle allows for a uniform wall wash over 1 meter, without visible breaks between the modules. The Quick Align magnetic system facilitates the alignment of multiple bars to form a continuous light line.
What colors can this LED bar produce?
The nine 6 W HEX LEDs combine red, green, blue, amber, white, and UV. This RGBAW+UV configuration allows for saturated colors, nuanced whites, and ultraviolet atmospheres.
How many DMX channels does the UB 9H use?
Six DMX-512 configurations are available: 2, 3, 4, 6, 7, or 11 channels. Pixel control divided into three sections enables the creation of sweeps and chases.
Can it operate without a DMX console?
Five operating modes are offered, including Auto, sound active, static color, and RGBAW+UV dimmer. An optional UC-IR remote control also allows simple operation without a console.
Is the UB 9H suitable for video?
The 2,200 Hz operating frequency ensures flicker-free performance on camera. Electronic dimming from 0 to 100% and strobe enable adjustment of light transitions.
