Create a Spectacular Dance Floor for Clubs, Weddings, and Events
The "AFX Crazy-Dancefloor" instantly transforms any stage, reception hall, or club into a true luminous floor screen. Matrix-controllable, it allows smooth animations, graphic patterns, and colorful transitions that energize the dance floor from cocktail hour to the peak of the night. Its tempered glass finish and aluminum frame ensure a refined aesthetic and perfect integration in premium settings such as hotels, ambient bars, lounges, and stage platforms.
For Mobile DJs, Rental Companies, and Demanding Installers
Designed for technical providers, lighting operators, AV integrators, and DJ hosts, this LED floor combines robustness, modularity, and advanced control. Its setup is fast thanks to perimeter magnets, while the included SD controller and PC software simplify programming. Venue operators, wedding planners, and event locations will find a reliable and high-value solution designed to chain performances and maximize the "wow" effect for audiences.
Technical specifications
| Type | support | Color | Multicolor |
| Material | Aluminium | Nominal mode power consumption (Wh) | 20 W |
Questions frequently asked
What surface area does the AFX Light CRAZY-dancefloor cover?

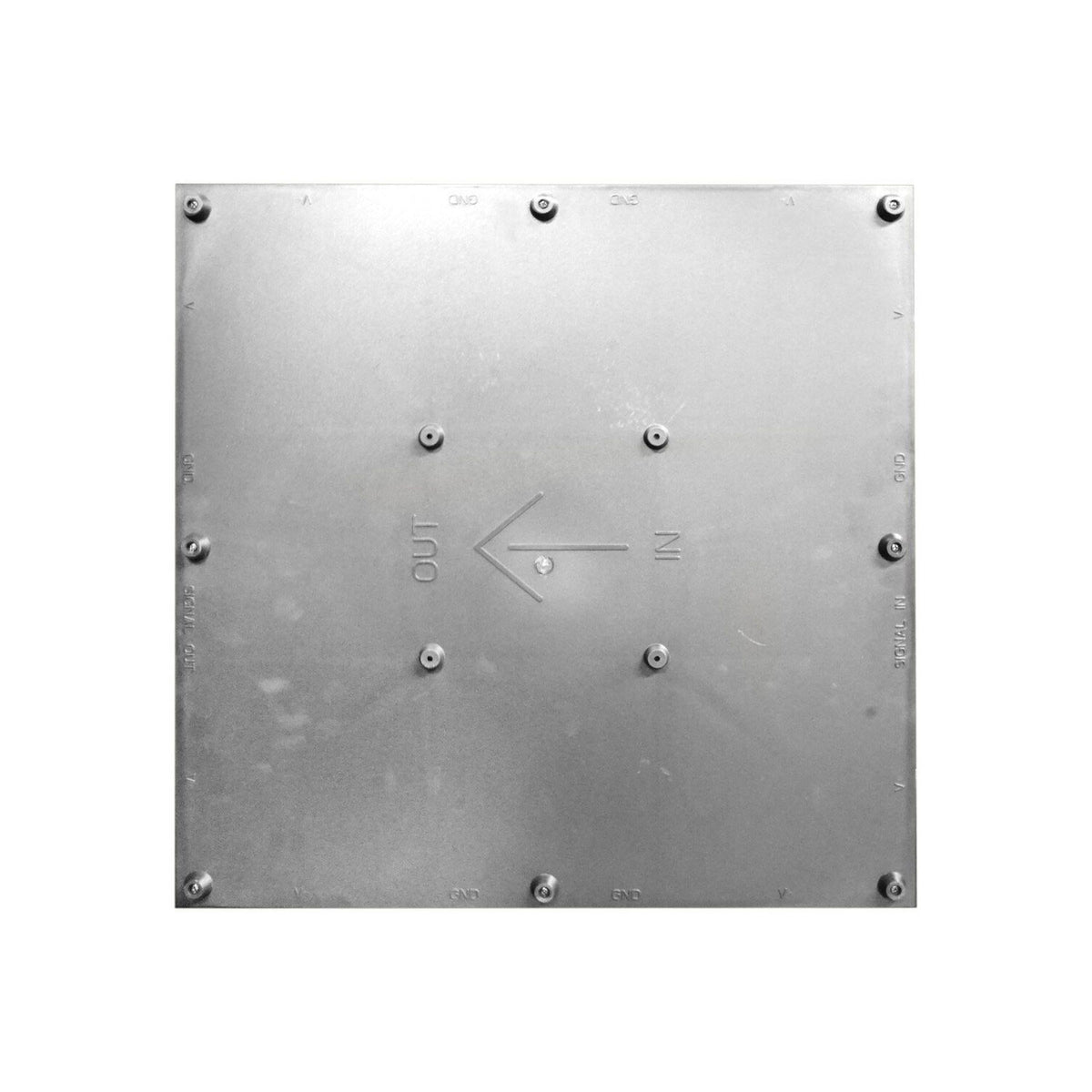

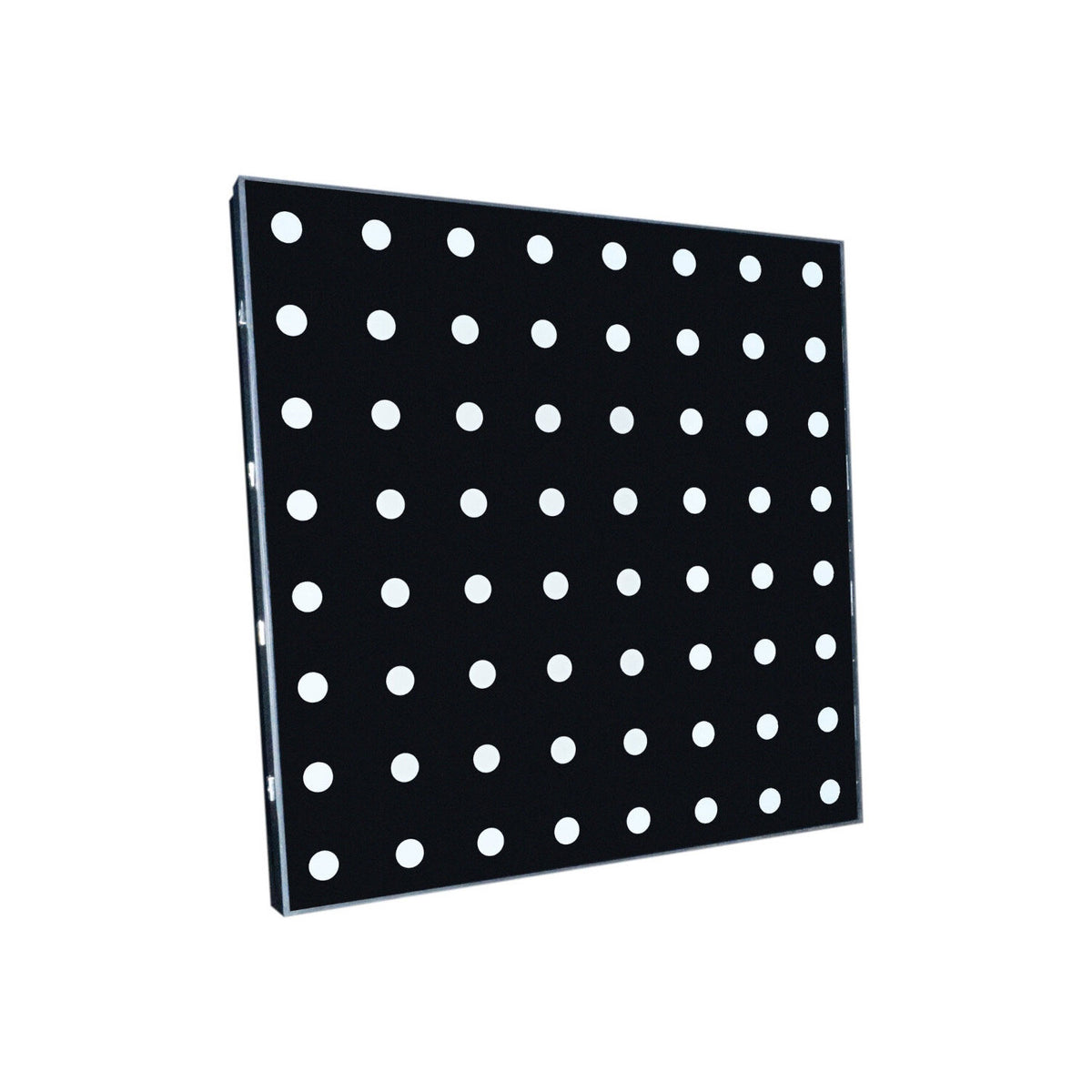

The provided configuration of 25 panels covers 3 x 3 m, i.e. 9 m². Each panel measures 60 x 60 cm and includes 64 5050 SMD RGB 3-in-1 LEDs.
Is the LED dancefloor controllable via DMX?
DMX control is available on 12 channels to operate the animations of the matrix surface.
Can the LED dancefloor be expanded?
The included SD controller has 8 outputs and can manage up to 128 panels. It is therefore possible to extend the surface beyond the provided 5 x 5 panel configuration. The included PC software allows creation and customization of light sequences.
What load can the illuminated floor support?
The declared load capacity is up to 500 kg/m². The surface of each panel is protected by a tempered glass plate, with an aluminum frame.
How is the AFX dancefloor assembled and transported?

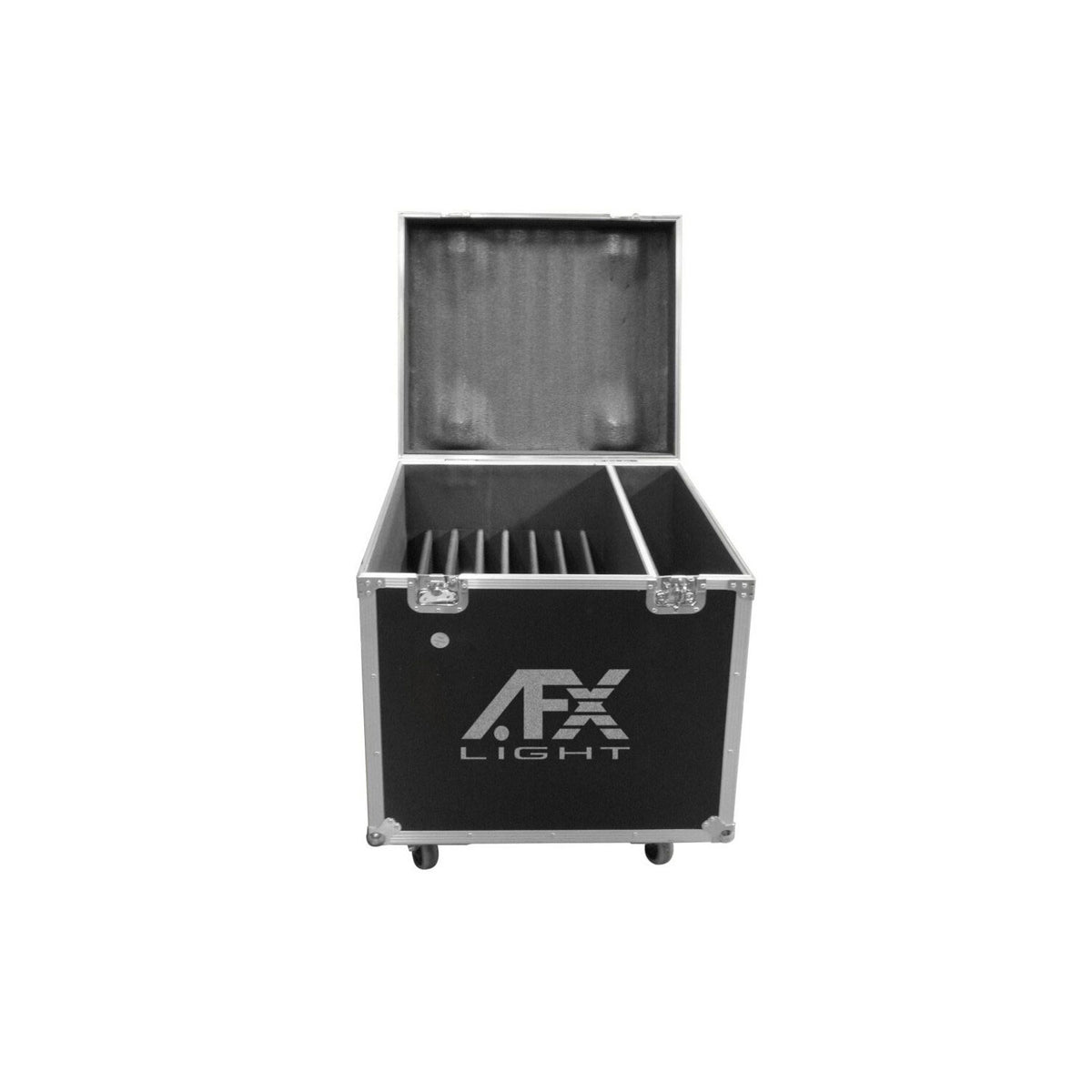

Perimeter magnets allow quick assembly of the panels. Two flight cases are included to secure transport. Each panel weighs 13.2 kg, for a total weight of 140 kg.
