AKG PT420

Name: PT420
Brand: AKG
SKU: 337595
Price: 188.00 EUR
Availability: InStock

188,00 €VAT incl.

0,14 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 337595

EAN : 0159653460195

This item is covered for 3 years

Information

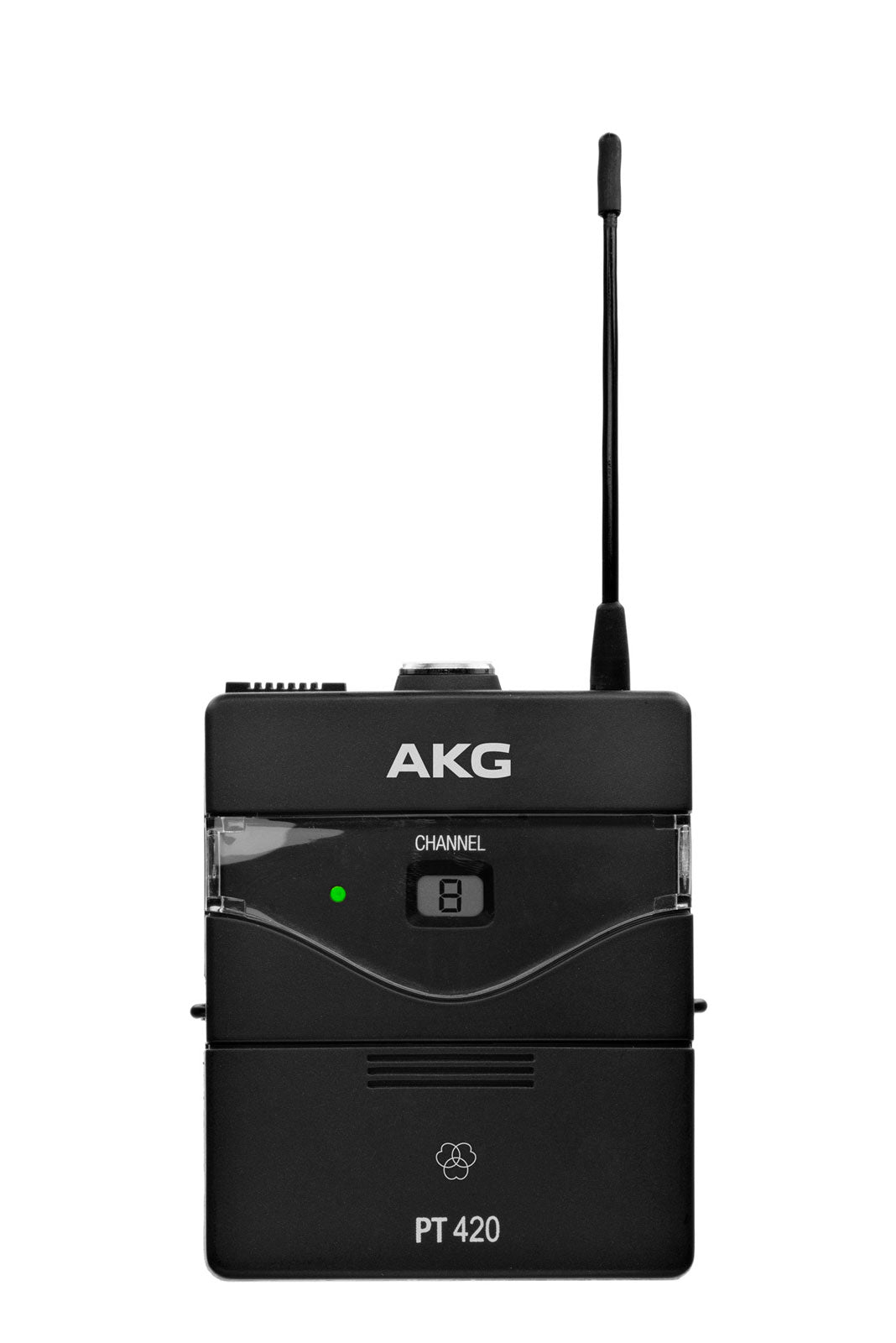

Essential Information About the PT420 Transmitter Bodypack
• Ultra-compact format and featherweight: 60 g (without battery) for discreet and comfortable placement.
• Designed for WMS420 multichannel configurations: ideal for creating a complete RF system with multiple transmitters.
• Enhanced reliability thanks to antenna Diversity mode and handling designed for stage use.
• Refined audio quality: bandwidth from 40 to 20,000 Hz and a signal-to-noise ratio rated at 105 dB(A).

PT420

188,00 €VAT incl.

0,14 € Ecotax included

Reference price

A Compact Transmitter at the Heart of an Accessible WMS420 RF System

The PT420 is a transmitter bodypack designed to integrate into multichannel RF systems of the WMS420 series. Its approach focuses on the essentials: stable transmission, high-level audio reproduction, and simple handling, all in a particularly lightweight format. This positioning makes it a relevant solution when deploying multiple RF links (voice, presentation, instruments) without complicating the setup or blowing the overall budget.

Who Is It For and What Are Its Uses?

Thanks to its small size and light weight, the PT420 naturally suits "belt pack" uses: speakers, presenters, actors, stage technicians, or musicians using a headset microphone, lavalier microphone, or compatible instrument cable. It is also well suited for event performances and installations requiring multiple simultaneous transmitters, where both good sound coherence and smooth operation are expected. Its announced battery life of 8 hours on a AA battery allows for a full day of rehearsals or a long performance with minimal interruptions.

Technical specifications

Category

transmitter

Frequency band

Region C – 520 à 694 MHz

Questions frequently asked

Is the PT420A compatible with a headset microphone or an instrument cable?

The balanced audio input on mini XLR allows connection of a headset microphone, lavalier microphone, or compatible instrument cable. The maximum input level is 2.5 V RMS.

What is the battery life of the AKG PT420A transmitter?

A 1.5 V LR6 alkaline AA battery provides a specified operating time of 8 hours.

On which frequencies does this belt-pack transmitter operate?

The operating range extends from 530.025 to 559.000 MHz, within Region C band given as 520 to 694 MHz. Transmission uses FM modulation with an RF power of 10 mW.

Is the PT420A suitable for stage use with movement?

The Diversity antenna mode helps ensure reliable reception when the transmitter is worn and in motion. Weighing 60 g without battery and measuring 60 x 74 x 30 mm, the housing remains discreet on a belt.
