Algam Lighting BARWASH36 CWWW
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

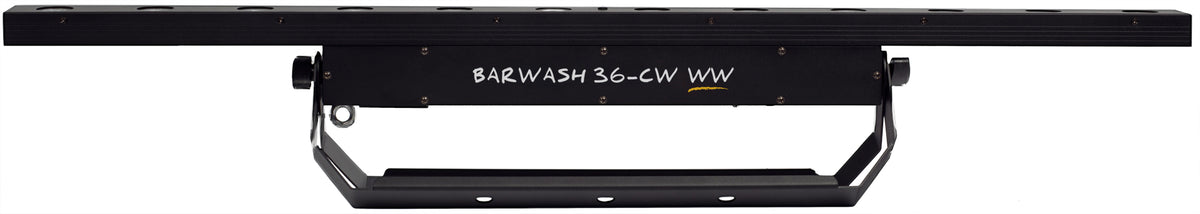

The essentials to know about the “BARWASH36 CWWW” LED bar
The essentials to know about the “BARWASH36 CWWW” LED bar

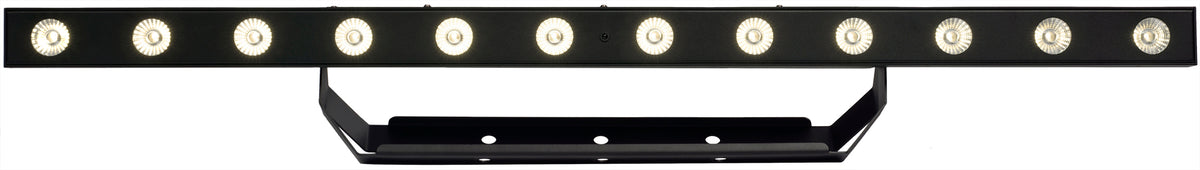

- 1 m LED bar with variable CW/WW white: 12 x 3 W for an even wash with a 40° beam angle.
- Precise color temperature adjustment via 3 segments through DMX (2, 4 or 10 channels).
- Flexible installation thanks to the dual yoke, 3-pin DMX daisy-chaining and IEC power connection.
- Steel chassis, passive cooling and a weight of 2.8 kg: reliable for touring or permanent installations.
Manufacturer Information
Algam Lighting
https://www.algam.net
contact@algam.net
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Variable white and uniformity for stage and installation
Designed for service providers and public venues, the BARWASH36 CWWW delivers uniform lighting, from neutral, functional white to warm, inviting white. On stage, for side lighting, backlighting or fill lighting, it structures the space without causing glare. In corporate settings, retail spaces, museums or galleries, its controllable segments finely adjust the atmosphere, enhancing booths, artworks and architecture.Who is this LED bar for?
Ideal for lighting technicians, mobile DJs, installers and venue operators looking for a versatile, reliable and easy-to-integrate variable white fixture. Its compact 1 m format makes transport easy, while the dual yoke allows quick floor placement or mounting on a truss.Technical specifications
| Type of use | Evening, Event, Stage | Index of protection (IP) | IP20 |
| Category | LED Bar | AC power recopy | Yes |
| Color | Black | Supplied accessories | Safety Sling, IEC power cable, IR remote control |
| Cooling | Passive | Weight | 2.8 kg |
| Light sources | 12 x 3W CW WW LEDs | Power input/output | IEC |
| Beam angle | 40° | Power supply voltage | 100-240V 50/60 Hz |
| Modes | Auto, static color, sound activation, DMX | Power consumption | 36W |
| Number of DMX channels | 2, 4, 10 | Chassis | steel |
| DMX input/output | 3-pin XLR | Protection rating | IP20 (indoor use) |
| Display | digital display with 4 control buttons | Weight and dimensions | 2.8 kg, 1000 x 51 x 157 mm |
You will also like
Algam Lighting
LED WASH BAR 24X4W RGBW 4-IN-1
Algam Lighting
BARWASH36-II
Algam Lighting
Barwash 36-UV
Cameo
TRIBAR 200 IR WH - TRICOLOR LED BAR (RGB) 12 X 3 W WHITE BOX WITH INFRARED REMOTE CONTROL
Chauvet DJ
Colorband T3BT ILS
Chauvet DJ
Colorband Pix ILS
Cameo
TRIBAR 200 IR - TRICOLOR LED BAR (RGB) 12 X 3 W BLACK BOX WITH INFRARED REMOTE CONTROL
Algam Lighting
MB 810 - 8 RGBW MOTORIZED LED BAR
Questions frequently asked
Does the BARWASH36 CWWW allow adjustment of the white temperature?
The 12 3 W CW/WW LEDs enable shifting from neutral white to warm white. In 10-channel DMX mode, the 3 independent segments allow zone-by-zone adjustment.
Which DMX modes are available on this LED bar?
DMX control offers 2, 4, or 10 channels via 3-pin XLR connectors. Auto mode, static color, and sound activation remain available without a DMX controller.
Can it be used in a venue without ventilation noise?
Thanks to passive cooling, this bar operates fan-free. Its power consumption is 36 W.
What light coverage does the Algam Lighting bar provide?
The 40° beam angle is designed to produce an even wash. The 12 LED sources cover a bar length of 1000 mm.
Which accessories are included and is power linking possible?
A safety cable, an IEC power cord, and an IR remote control are included. Mains power passthrough via IEC allows power linking. DMX inputs and outputs also allow connecting multiple units.
