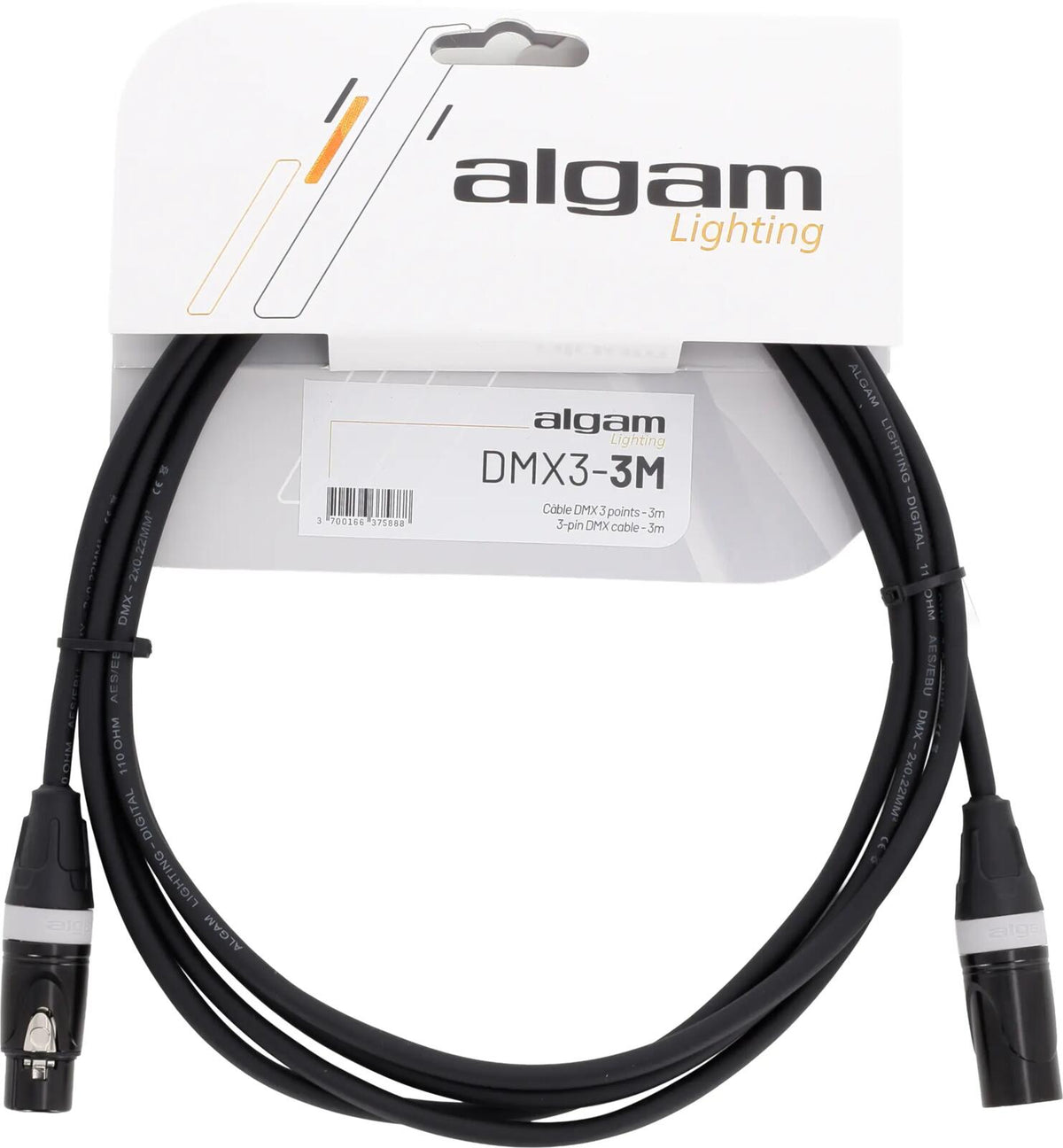

Algam Lighting DMX cable 3-pin - 3M
Estimated Shipping Widget will be displayed here!
The essentials to know about the Algam Lighting 3 m 3-pin DMX cable
The essentials to know about the Algam Lighting 3 m 3-pin DMX cable
- A dedicated connection for DMX lighting: connect your console to compatible equipment or create a daisy chain between multiple devices to build your lighting setup.
- Transmission suited to digital signals: its 110-ohm impedance and two 0.22 mm² conductors meet the requirements of DMX and AES/EBU connections.
- A practical 3-metre format: a useful length for connecting nearby devices, whether on a lighting structure or on the floor, without adding unnecessary lengths.

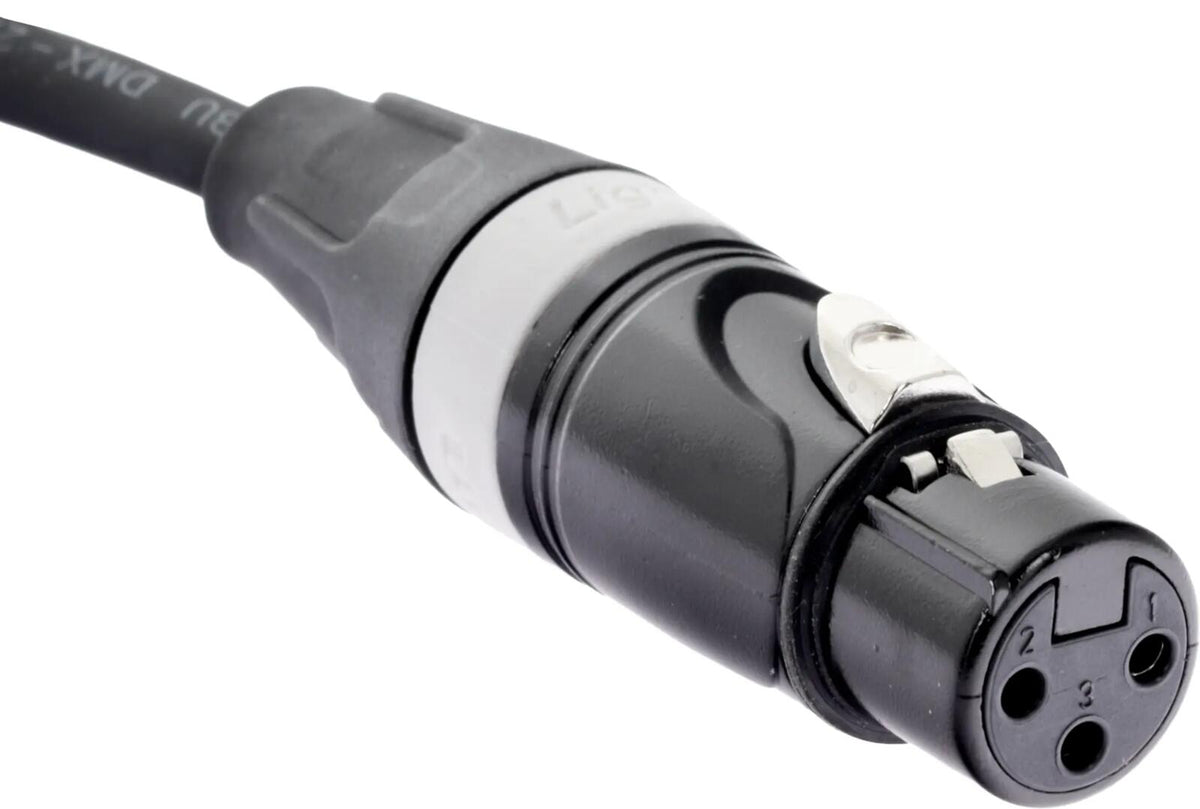

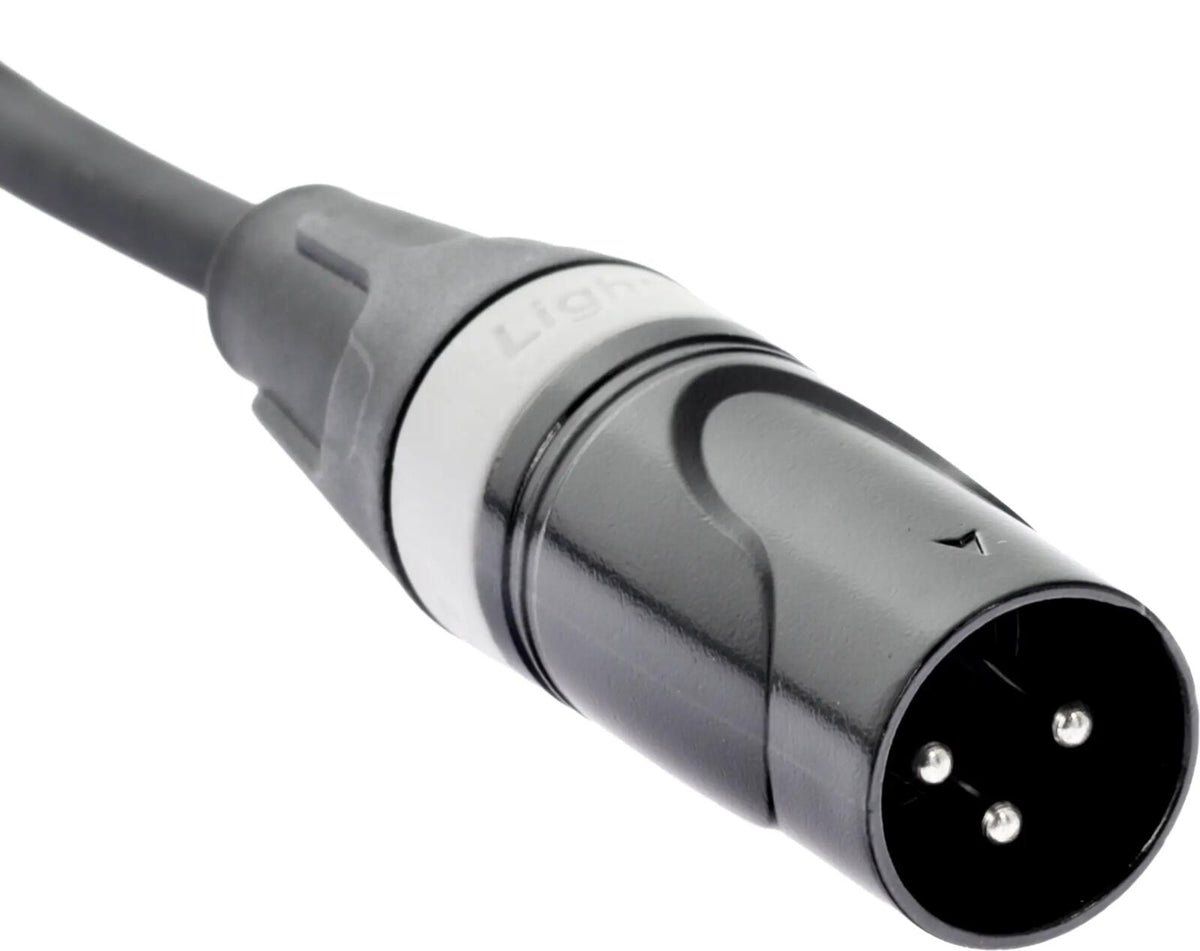

- A robust design: its black PVC sheath and straight 3-pin XLR connectors are suitable for party, event and stage installations.
Manufacturer Information
Algam Lighting
https://www.algam.net
contact@algam.net
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
What you need to know about the Algam Lighting 3 m 3-pin DMX cable
- A dedicated connection for DMX lighting : connect your console to compatible equipment or daisy-chain several devices to build your lighting setup.
- Transmission suited to digital signals : its 110-ohm impedance and two 0.22 mm2 conductors meet the requirements of DMX and AES/EBU connections.
- A practical 3-meter format : a useful length for connecting nearby devices, whether on a lighting truss or on the floor, without adding unnecessary cable length.
- Robust construction : its Black PVC jacket and straight 3-pin XLR connectors are suitable for parties, events and stage installations.
Technical specifications
| Connectors | 3-pin XLR | Sheath material | PVC |
| Type of use | Evening, Event, Stage | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | DMX cable | Color | Black |
| Format | straight | Length (m) | 3 m |
| Connector 1 | 3-pin XLR | Conductors | 2 × 0.22 mm² |
| Connector 2 | 3-pin XLR | Connector format | straight |
| Length | 3 m | Jacket material | PVC |
| Signal compatibility | DMX and AES/EBU digital | Uses | parties, events, stage |
| Characteristic impedance | 110 ohms | ||
