Essential Information About the MW19X15ZX Moving Head
Essential Information About the MW19X15ZX Moving Head
- 19 x 15 W RGBW LEDs for intense colors and flawless gradients on all your stages.
- Motorized zoom from 6 to 50 degrees to switch instantly from a tight beam to a wide wash.
- Silent Pan 540deg / Tilt 270deg for smooth and precise movements, suitable for both studio and live settings.
- Flexible control via DMX 16/24 channels, auto, sound-activated, random, master/slave, with integrated LCD screen.
Manufacturer Information
Algam Lighting
https://www.algam.net
contact@algam.net
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Powerful Wash for Stage, Club, and Events
Designed by Algam Lighting, the MW19X15ZX delivers a uniform output and vibrant colors, perfect for dressing a set, dancefloor, or fixed installation. Its extended zoom covers both highlighting an artist and bathing a floor in light, while its precise motorization ensures dynamic scenes, from concerts to weddings, theater, and DJ performances.
Who Is This Moving Head Designed For?
The MW19X15ZX is aimed at mobile DJs and lighting technicians seeking a reliable, quick-to-deploy, and versatile fixture. It is also suitable for rental companies, event professionals, and venue operators looking for a robust LED wash for intensive use, as well as discerning individuals wanting professional-quality results at home or in a home studio.
Technical specifications
| Spotlight type | Wash | Device colour | black |
| Type of use | Evening, Event, Stage | Cooling | Active |
| Total source power | 285 W | AC power recopy | No |
| Colour composition | RGBW | Weight | 8.5 kg |
| Zoom | Motorized | Length (cm) | 39.5 cm |
| Color | Black | ||
| Light sources | 19 x 15 W RGBW LEDs | Display | LCD screen with 5 control buttons |

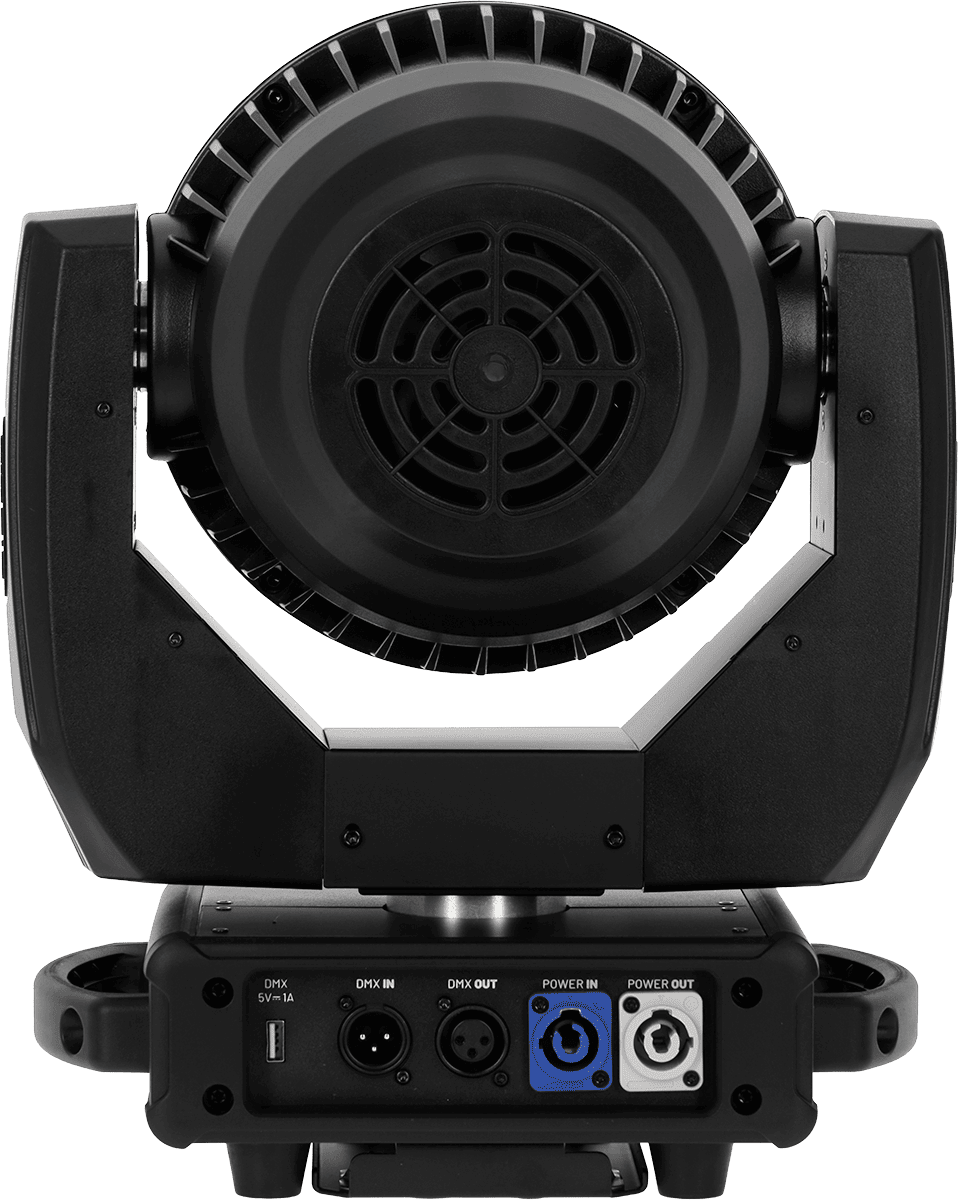

| Average lifespan | 50,000 hours | DMX input/output | 3-pin and 5-pin XLR |
| Dimmer | 0 to 100%, linear curve | Power connector | PowerCON True1 |
| Beam angle | 6 to 50 degrees (motorized zoom) | Power supply voltage | 100 to 240 V, 50/60 Hz |
| Effects | 3 controllable LED groups, rainbow, color macros | Power consumption | 300 W |
| Pan | up to 540 degrees | Chassis | plastic |
| Tilt | up to 270 degrees | Installation and mounting | mounting plate and 2 OMEGA interfaces |
| Motorization | silent | Protection rating | IP20 (indoor use) |
| Modes | Auto, Musical, Random, DMX, master/slave | Dimensions | 325 x 188 x 395 mm |
| Number of DMX channels | 16 or 24 | Included accessories | power cable, OMEGA mounting interface and safety cable |
You will also like
Algam Lighting
MS150 - 150W spot moving head with RGB LED ring
Showtec
Shark Spot One
Cameo
HYDRABEAM 400 RGBW - SET OF 4 LED 10 W CREE RGBW ULTRA-SPEED LOCKED PROJECTORS
J.collyns
Moving Head Spot 100W Primus
Chauvet DJ
Intimidator Scan 360
Chauvet DJ
Sentinel Spot Q60 ILS
Cameo
NANOSPOT 300 - 30W LED SLOTTED MINI-PROJECTOR (LYRE)
Afx Light
MY60-spot
Questions frequently asked
What zoom angle does the Algam Lighting MW19X15ZX offer?
The motorized zoom covers a beam angle from 6 to 50 degrees, allowing a switch from a narrow beam to wide coverage.
Is this wash moving head compatible with 3-pin and 5-pin DMX?
The DMX inputs and outputs are available on 3-pin and 5-pin XLR connectors. DMX control operates over 16 or 24 channels depending on the selected mode.
How many LEDs does this wash moving head have?
The light source consists of 19 RGBW LEDs of 15 W each, for a total rated power of 285 W. The average LED lifespan is 50,000 hours. Three groups of LEDs can be controlled separately, with color macros and rainbow effect.
Can it operate without a DMX controller?
Auto, Music, Random, and Master/Slave modes are provided for use without a DMX console.
What power connection and mounting options are provided?
The power supply accepts 100 to 240 V at 50/60 Hz and uses a PowerCON True1 connector. The power consumption is 300 W, without power linking. Installation is done via a plate and two OMEGA clamps.
