Avantis in the Allen&Heath Range: Studio Performance Serving Live Sound

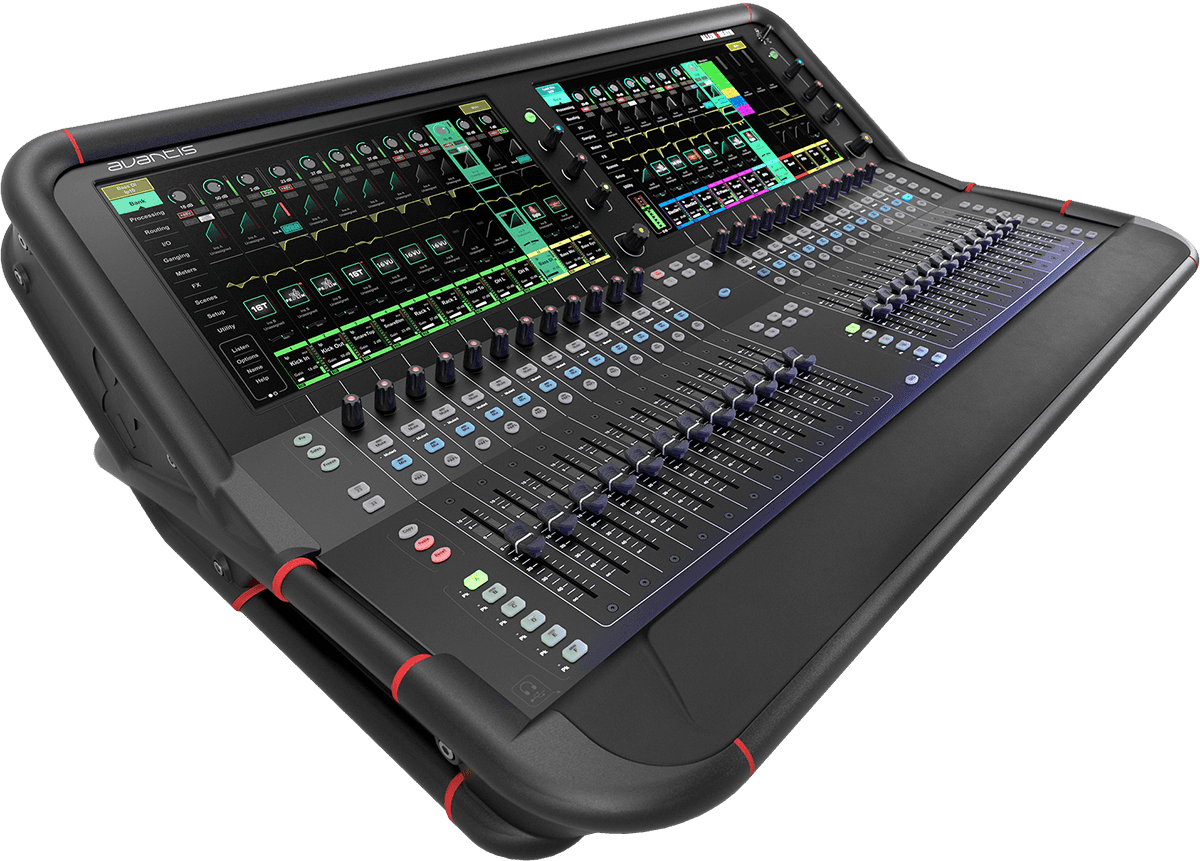

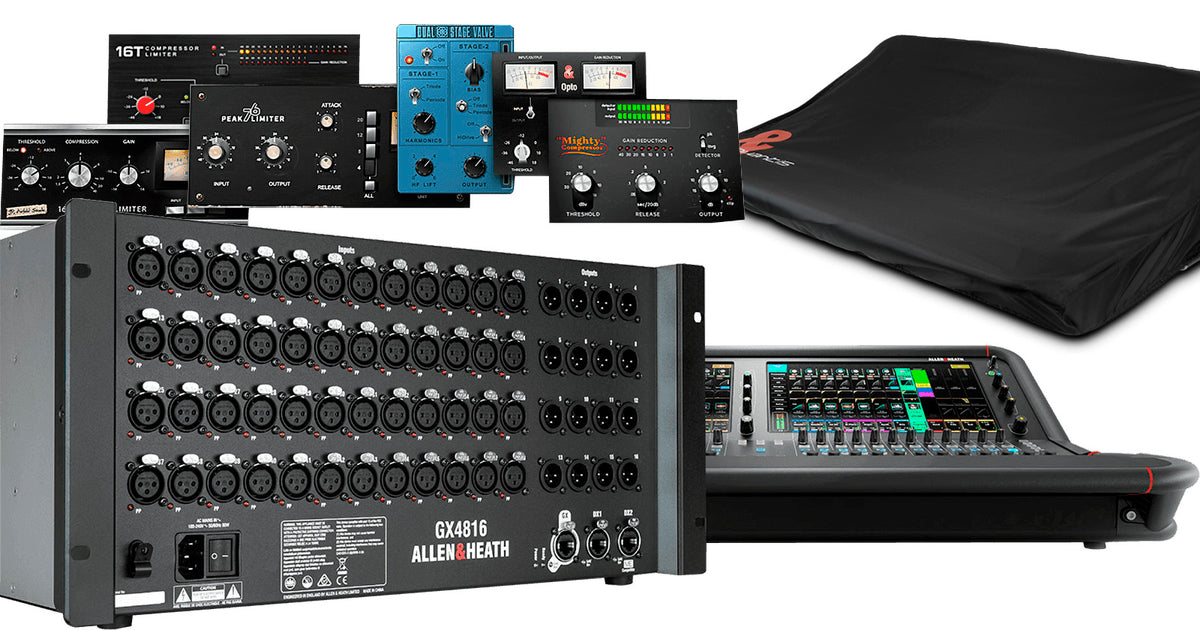

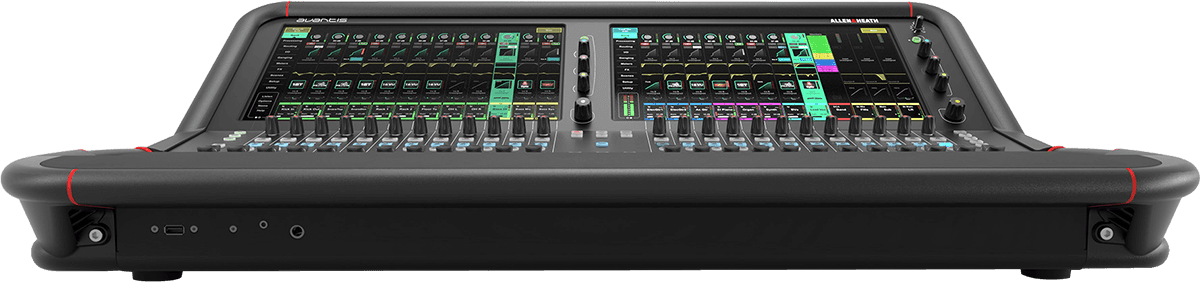

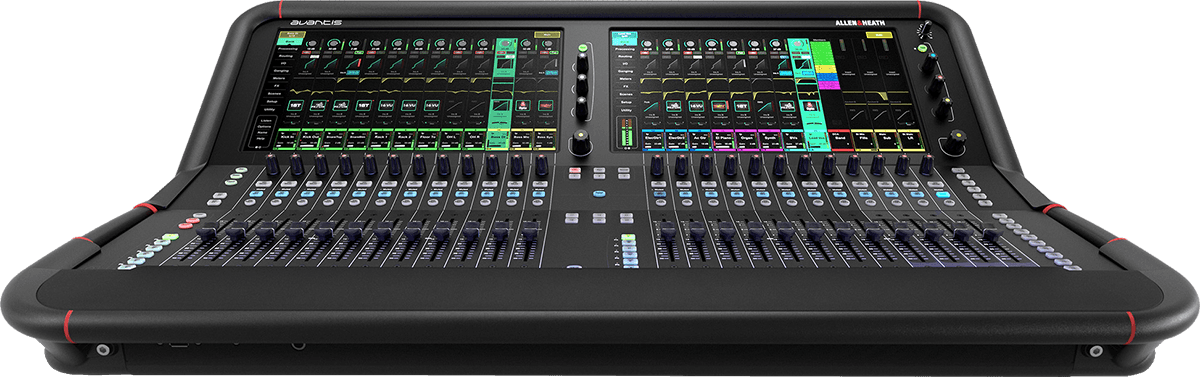

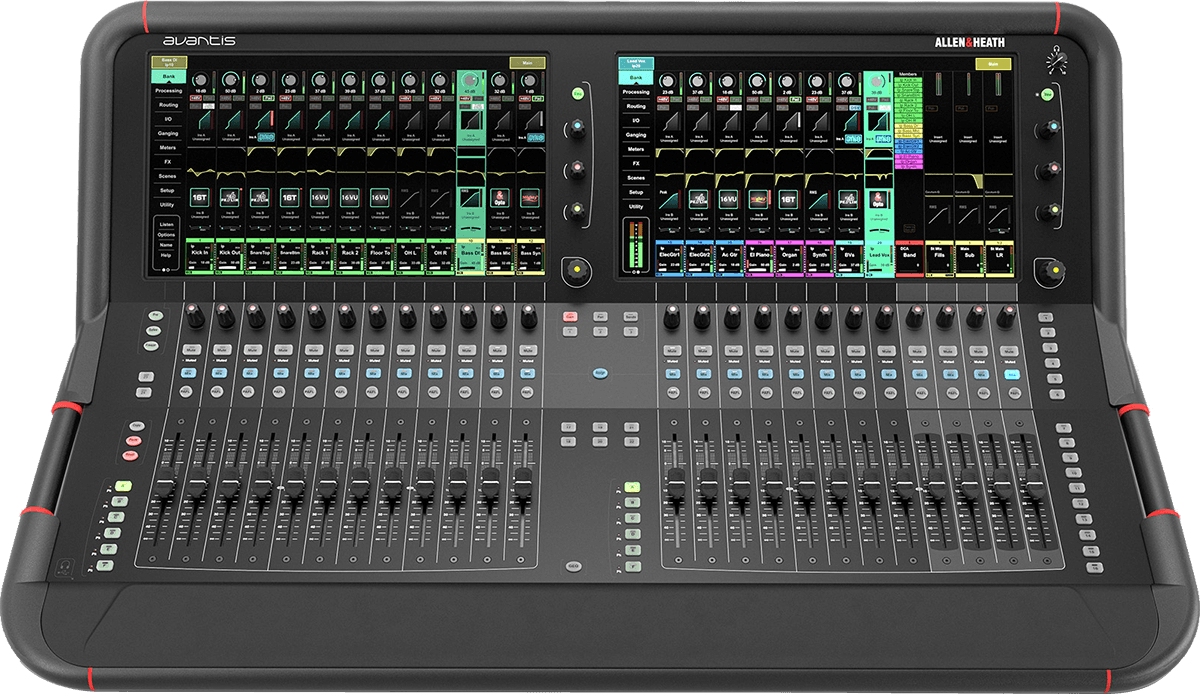

Designed to meet the demands of modern sound reinforcement, the Avantis console embodies Allen&Heath's philosophy focused on production efficiency: quick access to controls, maximum readability, and processing power to seamlessly manage soundchecks, stage changes, and scene recalls. This pack takes the concept further by combining a premium control surface and a high-capacity stage box in one set.
The addition of the dPack enhances the all-in-one approach: more resources and processing to refine vocals, shape drums, secure corporate broadcasts, or add depth to a musical mix, all while maintaining a consistent ergonomic experience. The MixRack GX4816 completes the ecosystem by multiplying XLR I/O, essential when managing multiple mic lines, monitors, side fills, or connections to recording and broadcast systems.
Who Is This Avantis + GX4816 Pack For?
This pack is clearly aimed at sound engineers, contractors, and stage technicians who want a portable digital console that is robust and scalable enough to cover a wide variety of events: concerts, festivals, theater, houses of worship, corporate events, or mobile installations. The 128-channel architecture allows confident handling of dense configurations with multiple sources, subgroups, and separate monitors.

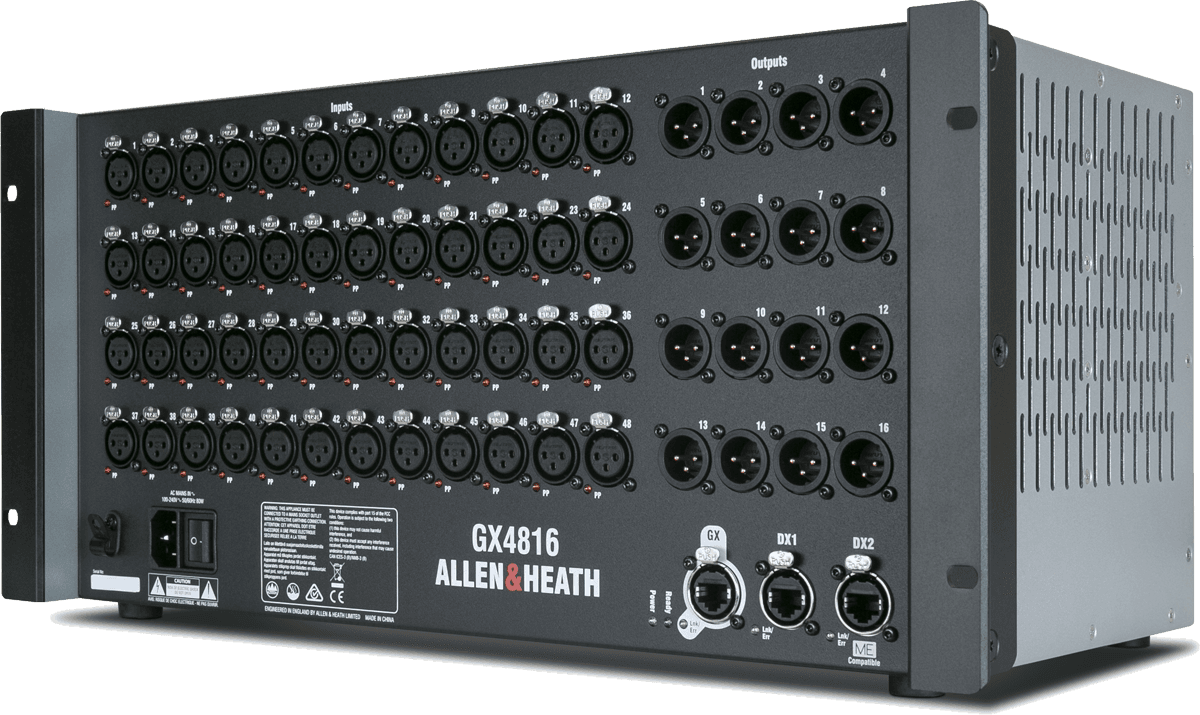

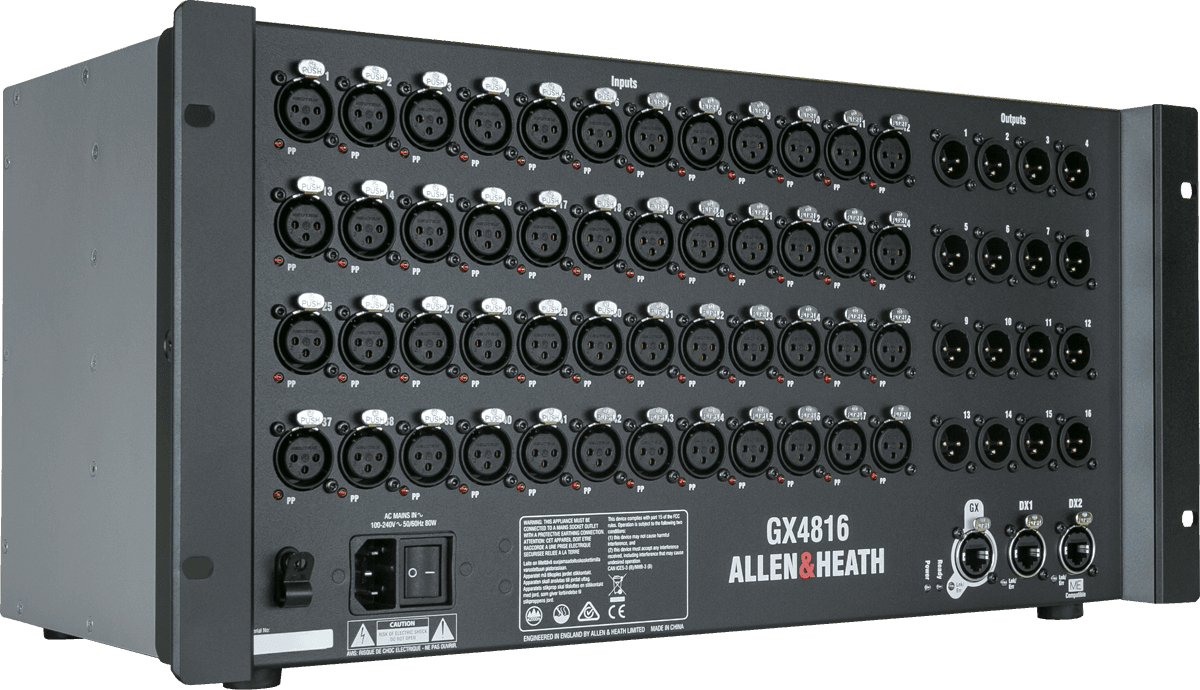

Thanks to the GX4816 stage box (48 XLR inputs and 16 XLR outputs), long cable runs are reduced, stage setup is neatly organized, and patching time is saved. The result is a solution that is both "tour" and "production" ready, suited for teams that need fast setup, reliable operation, and comfortable use.
Technical specifications
| Type | Digital control surface | Slice name display | Yes |
| USB stereo recording / playback | Yes | Sound engineer app on tablet | iOS |
| Number of assignable keys | 24.0000 | Assignable faders | All assignable layers |
| Number of mixable channels | 64 | Motorised faders | Yes |
| Number of touch screen(s) | 2.0000 | Sampling frequency | 96 kHz |
| Number of fader layers | 6.0000 | Plugins | Provided |
| Number of DCAs | 16.0000 | Screen size | 15.6 " |
| Number of faders | 24 | Talkback | Yes |
| Number of mute groups | 8.0000 | Audio/Video outputs | XLR |
| Number of scene memories | 500.0000 | Mic/line inputs | 48 XLR, 12 XLR |
| Number of mixes | 42 configurable buses GROUP / AUX / FX / MATRIX mono or stereo | Line outputs | 12 XLR, 16 XLR |
| Number of effects processors | 12 | Headphone output | Jack 6.35 |
| Number of assignable rotary controls | 6.0000 | Weight | 26 kg |
| Number of expansion slots | 2.0000 | Dimensions (mm) | 917 x 627 x 269 |
Questions frequently asked

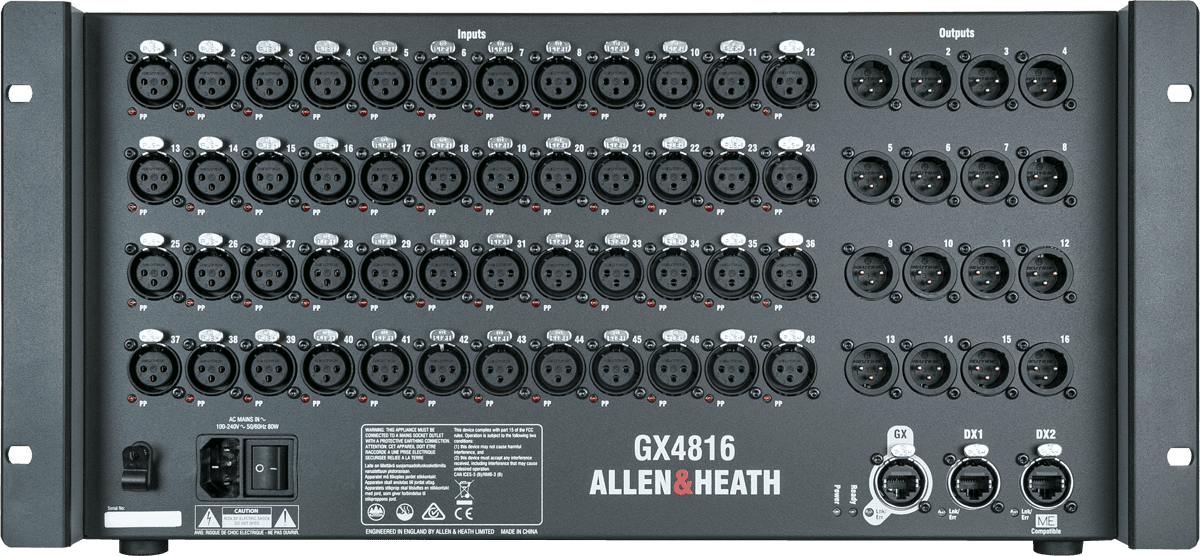

How many inputs and outputs are available with the MixRack GX4816?
The MixRack GX4816 features 48 XLR inputs and 16 XLR outputs, suitable for microphones, DIs, monitors, and broadcast feeds.
Does the included Avantis console handle monitor mixes and groups?
The console provides 42 buses configurable as groups, auxiliaries, effects, or matrices, in mono or stereo. It also offers 16 DCAs and 8 mute groups.

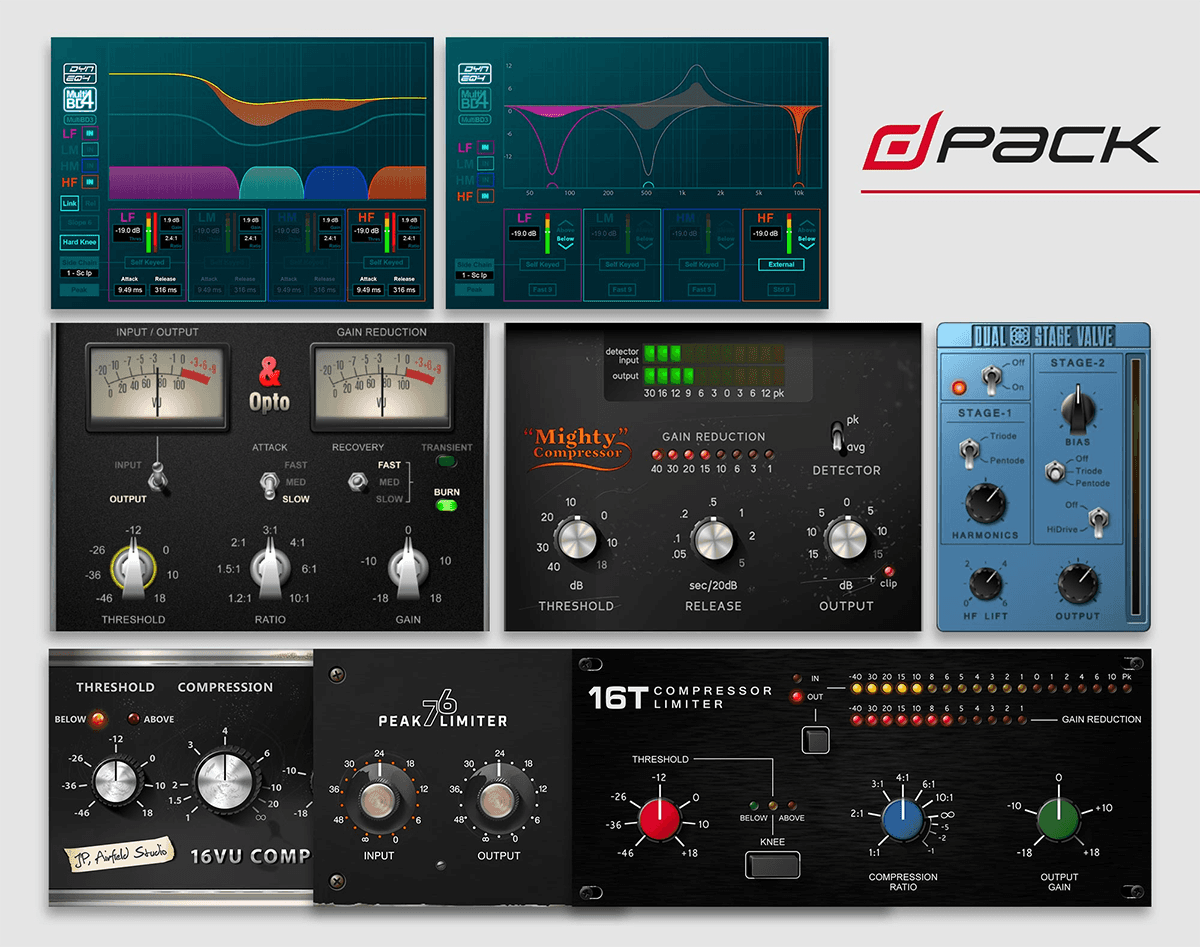

What processing capabilities does the Allen & Heath dPack provide?
The dPack extends processing and effects resources for EQ, dynamics, transients, and mix enhancement. Twelve effect processors are listed in the pack's specifications.
Can this console be integrated into a Dante or Waves network?
Two expansion slots enable adapting the console with AVB, Dante, or Waves network interfaces as needed. The XCVI FPGA processing runs at 96 kHz.
Does the Allen & Heath Avantis + dPack + GX4816 package include transport protection?
A carry case is provided to protect the control surface during transport and storage. The console weighs 26 kg and measures 917 × 627 × 269 mm.
