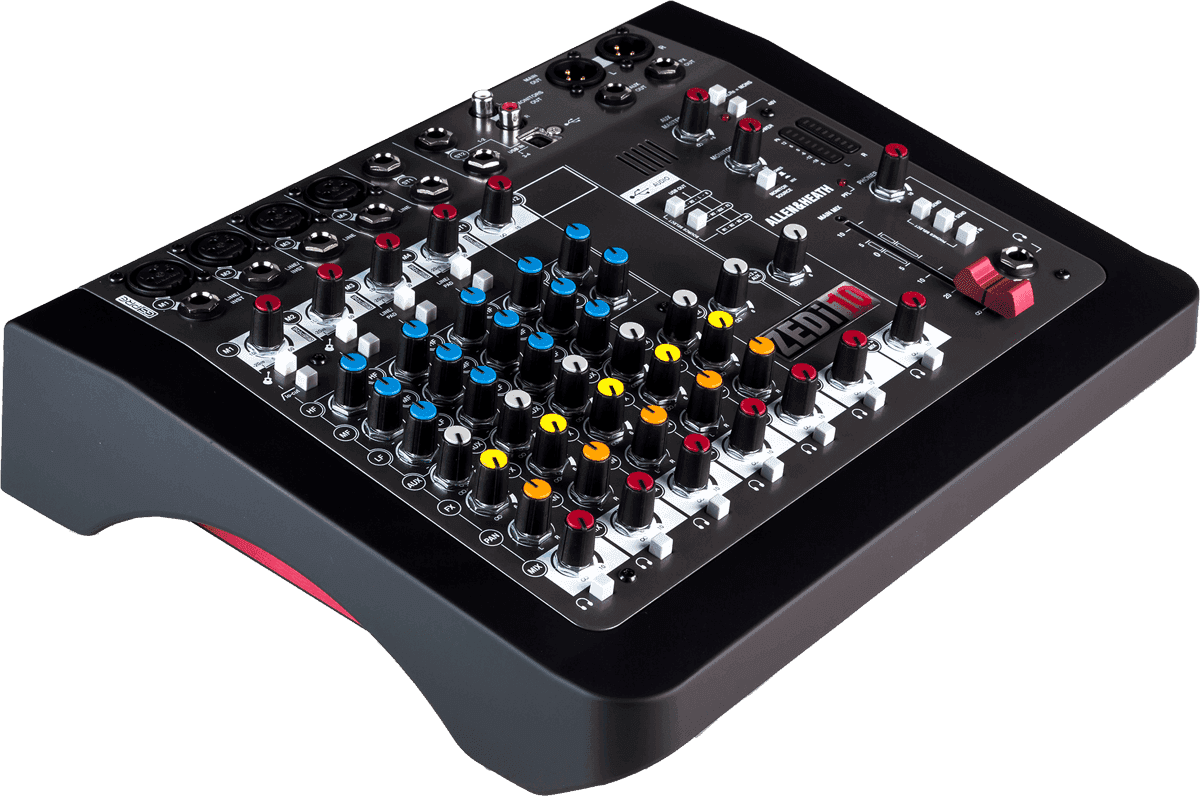

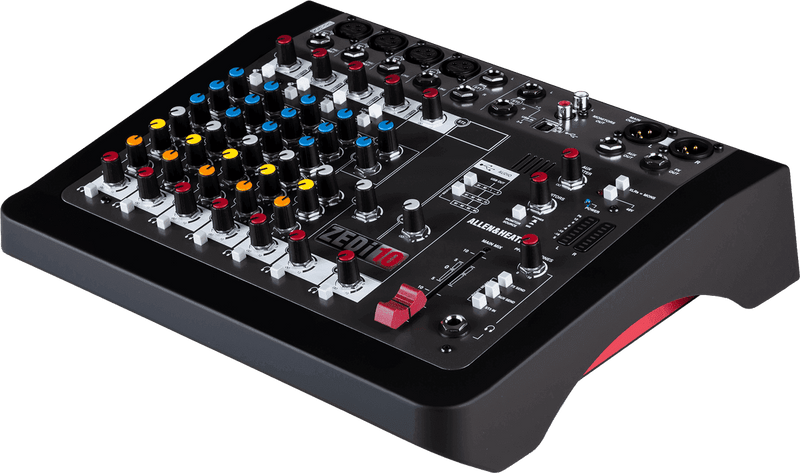

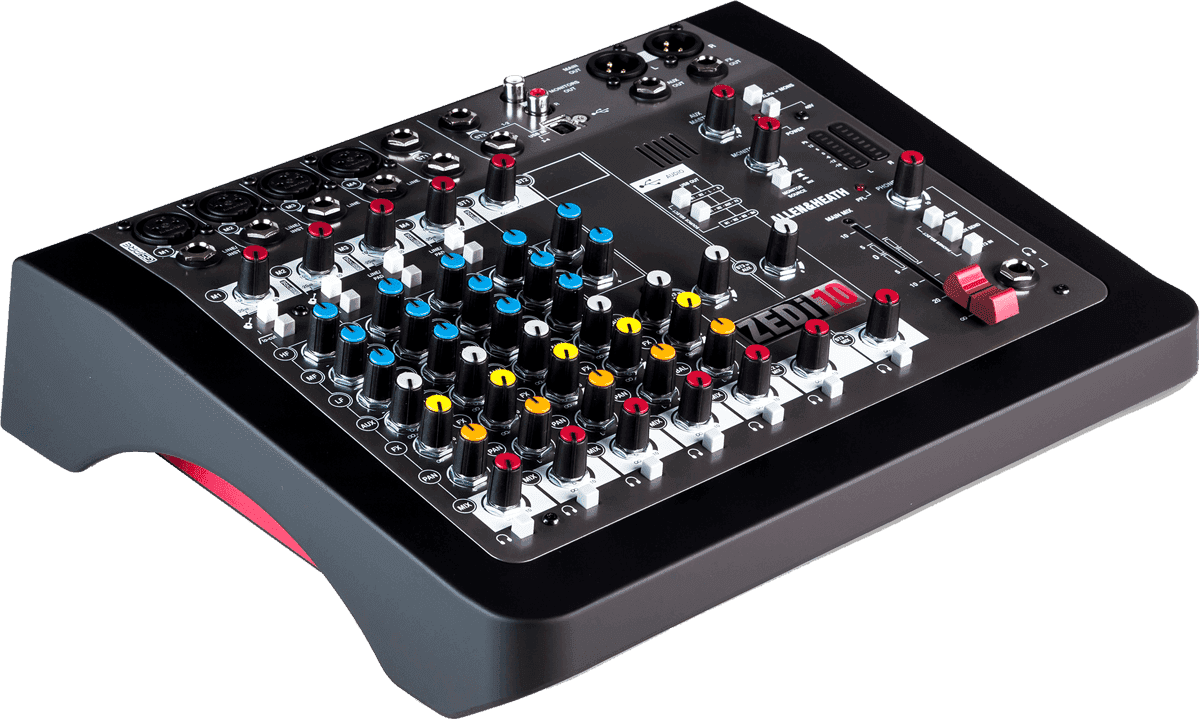

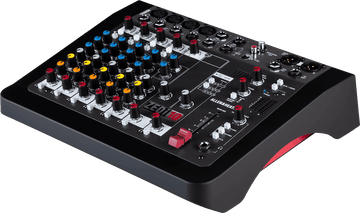

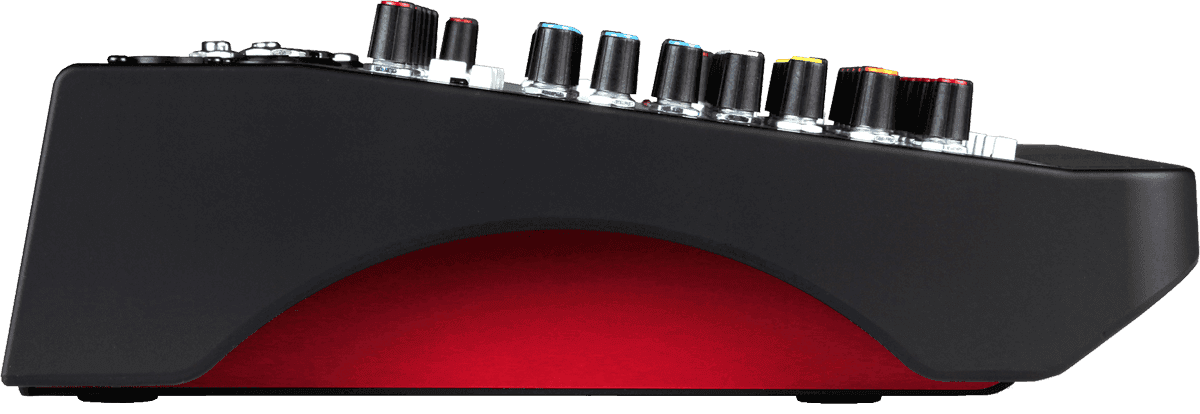

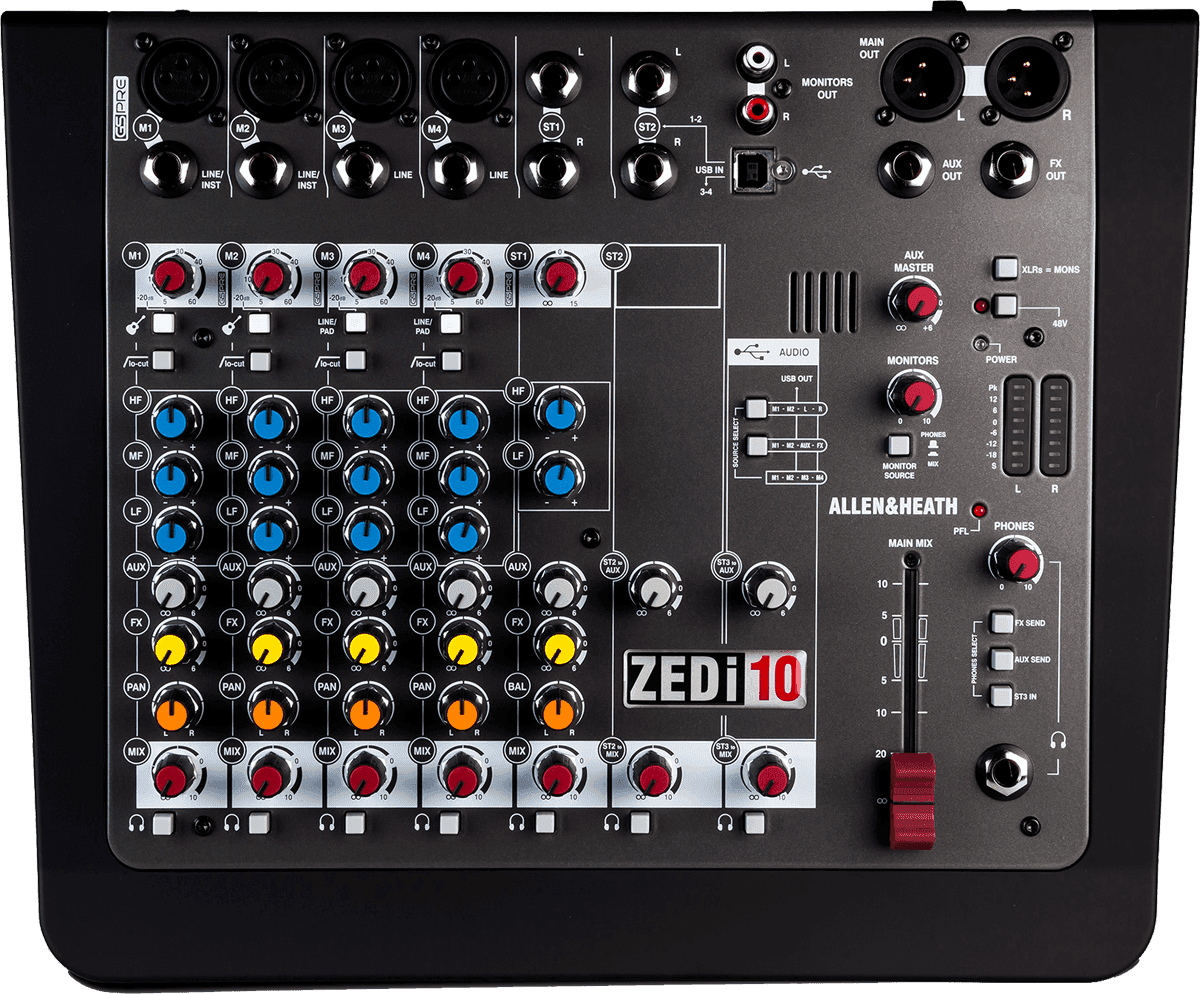

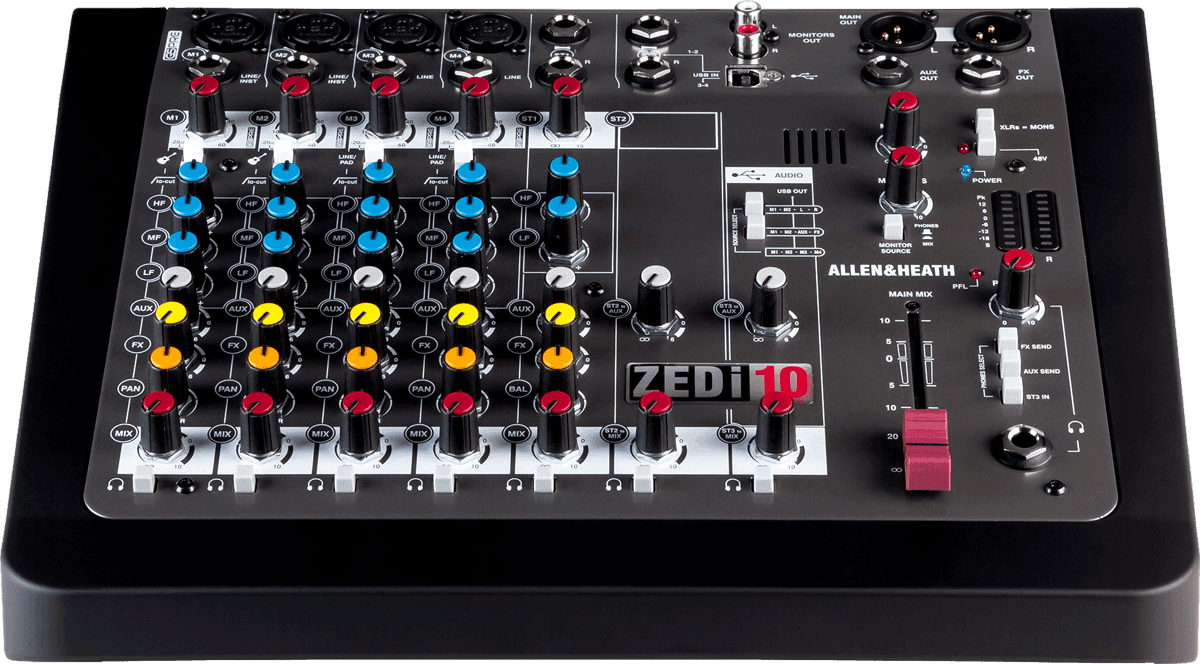

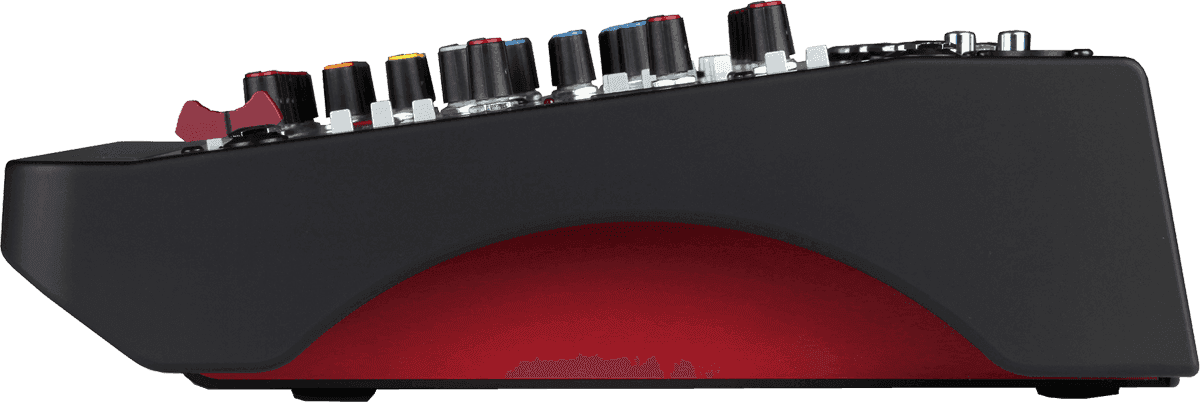

Allen & Heath ZEDI-10
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:

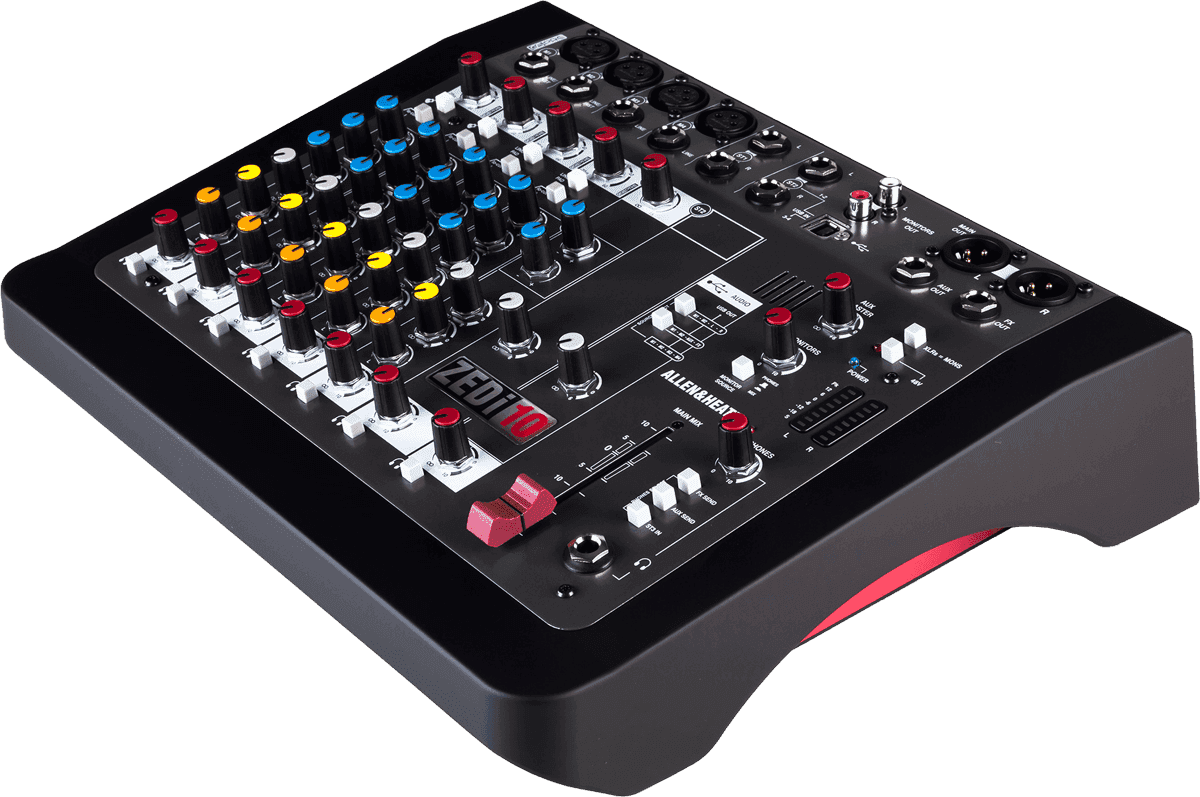

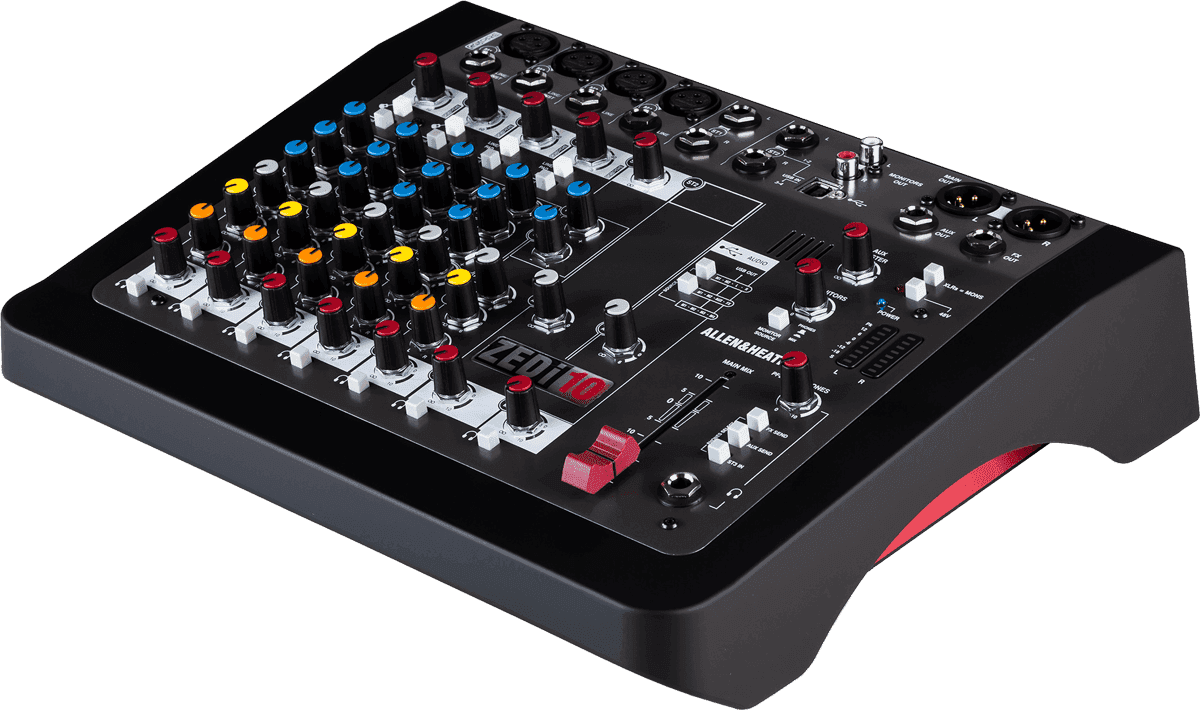

Essential Information About the Allen & Heath Analog Mixing Console "ZEDi-10"
- Hybrid design: analog mixing console with built-in 24-bit/96 kHz USB audio interface for multitrack recording.
- 4 very low-noise GSPre preamps, 3-band MusiQ EQ, and high-pass filter to shape your sound.
- 2 high-impedance guitar inputs to connect your instruments directly, without a DI box.
- Compact and robust format, plug-and-play workflow with included Cubase LE and iPad compatibility (cable/adapter not included).
From ZED Heritage to the "ZEDi" Series: Hybrid at the Core of the Range
True to the DNA of Allen & Heath consoles, the "ZEDi-10" combines the solidity and musicality of analog with the flexibility of digital. Its GSPre preamps, inspired by the professional studio console GS-R24, deliver a warm and deep signal with remarkably low noise and a comfortable headroom for demanding takes.
Who Is It For and What Are Its Uses?
Ideal for singer-songwriters, small bands, home studio users, and intimate venues, the "ZEDi-10" adapts equally well to demos, live recordings, and web content creation. Its portable format simplifies setups, while its USB interface facilitates multitrack recordings without additional equipment.
Technical specifications
| Number of faders | 1 | Number of mic preamps | 4 |
| Number of channels | 10 | Number of auxiliary sends | 1 |
| Phantom power supply | Yes | Mic inputs | 4 x XLR |
| Bluetooth | No | Line inputs | 2 x stereo, 4 x jack |
| EQ | 3 channels | Inputs (other) | USB |
| Motorised faders | No | Main outputs | 2 x XLR |
| Filters | Low cut | Outputs (other) | USB, headphone 6,35 mm stereo jack, FX jack, monitor Rca |
| Provided software | Cubase LE | Color | Grey |
| PFL/AFL mode | Yes | Display | LED |
| Rackable | No | Weight | 2.2 kg |
| Category | analog mixer | Dimensions (mm) | 332,9 x 274,6 x 96,5 |
| Fader travel | 60 mm | ||
Questions frequently asked
Allen & Heath ZEDi-10 24-bit 96 kHz USB recording
The built-in USB interface operates at 24-bit/96 kHz for direct recording into a DAW. Cubase LE is included for recording, editing, and mixing track by track. Compatibility with Cubase LE on iPad is indicated via a USB B to Lightning cable or a dedicated adapter not included.
Can four microphones with phantom power be connected?
All four XLR mic inputs feature GSPre preamps and include phantom power. Each mono channel incorporates a 3-band MusiQ EQ and a high-pass filter.
Are there high-impedance guitar inputs on the ZEDi-10?
Two high-impedance guitar inputs allow direct connection of instruments without a DI box.
Does the console have an auxiliary send and an effects output?
An auxiliary send is provided for a monitor mix or ear monitors, while an FX output on a jack allows connection of an external effects processor. The main outputs are available on two XLR connectors.
What are the dimensions and weight of this mixing desk?
With dimensions of 332.9 x 274.6 x 96.5 mm and a weight of 2.2 kg, this model has a portable format. A 60 mm master fader and an 8-LED bargraph ensure level control.
