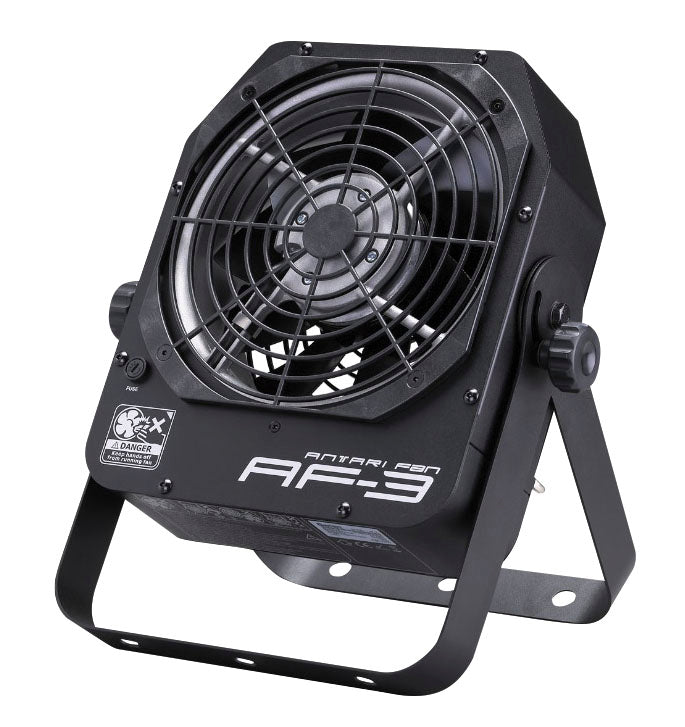

Antari Fog Machine AF-3
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the Antari AF-3 Stage Fan
Essential Information About the Antari AF-3 Stage Fan
- Versatile and Compact: mini stage fan in a metal housing, lightweight and easy to transport, ideal for both live performances and fixed installations.
- 4 Control Options: built-in DMX, manual front panel potentiometer, wireless remote control W-1, and wired controller Z-3 (optional) to adapt to all setups.
- Precise Airflow with Linear Speed: airflow up to 1020 mÂł/h (600 CFM) and continuous variation to precisely dose the desired amount of air.
- Flexible Mounting: adjustable bracket with 90deg tilt to direct the airflow, floor or suspended mounting, with PowerCON in/out and XLR in/out connectors.
Manufacturer Information
Antari Fog Machine
https://www.antari.com
------------------------
Safety manager:
Highlite International BV
Email: ventes@highlite.com
Address:

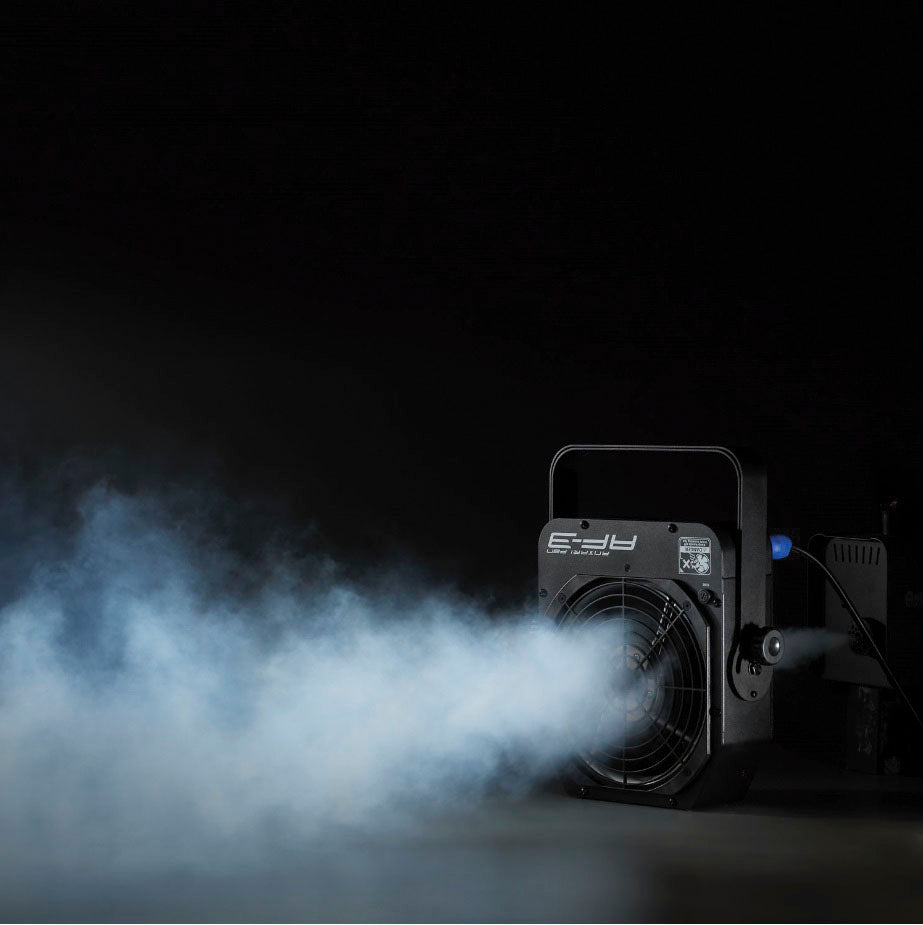

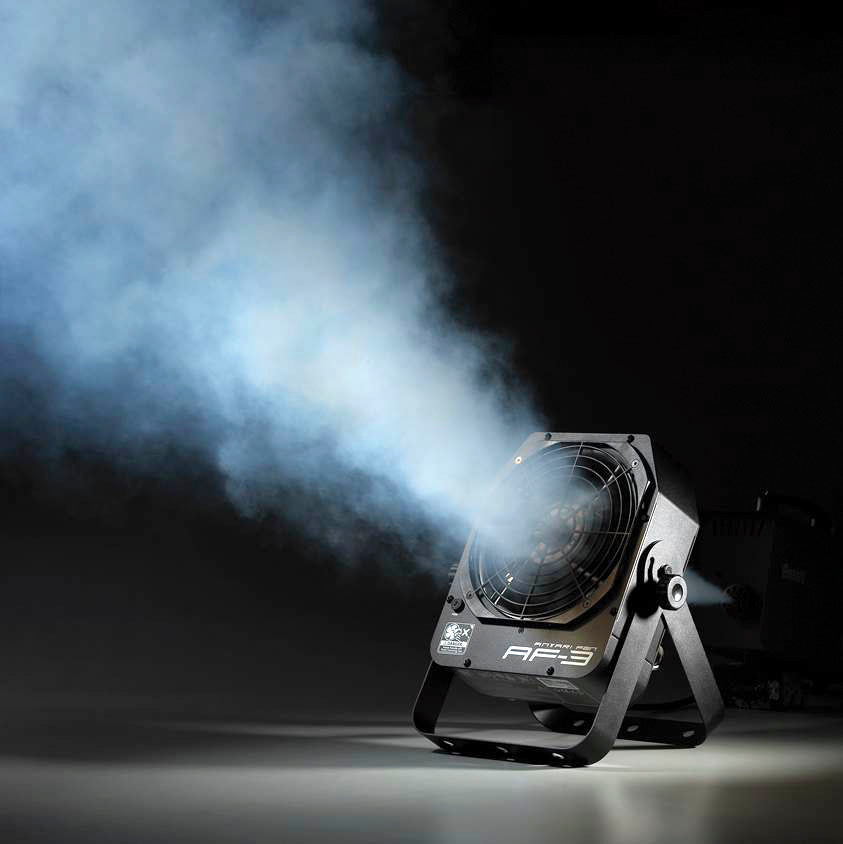

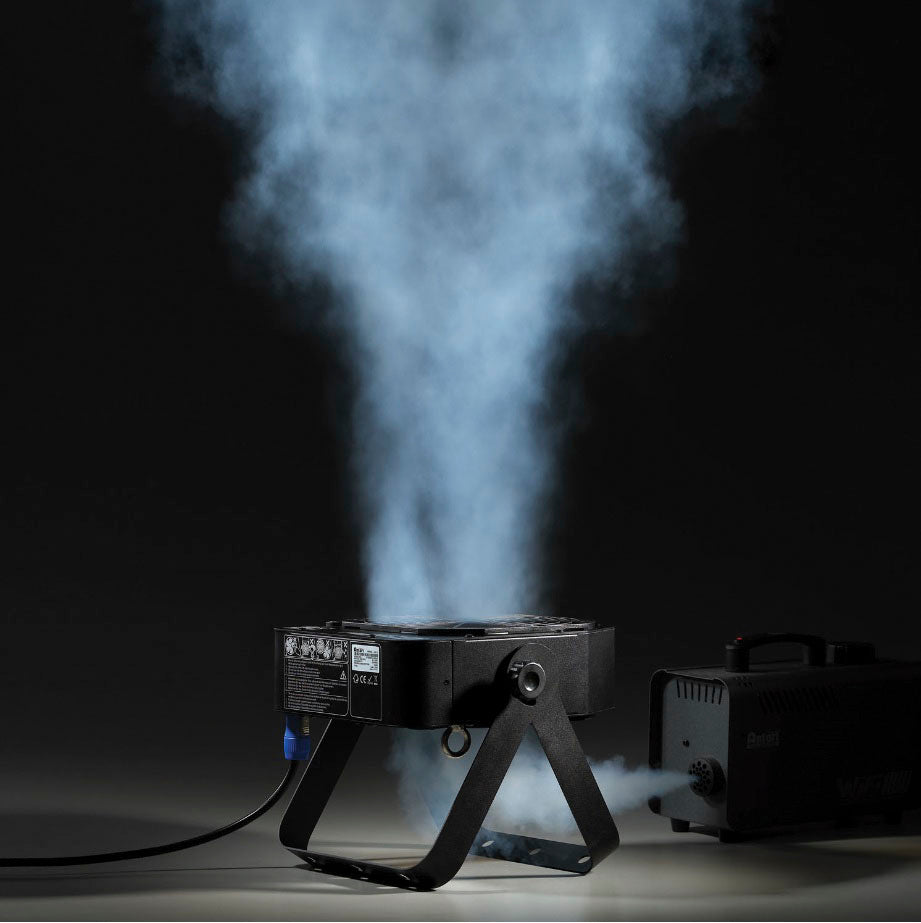

Distribute Mist and Effects with Precision, On Stage and at Events
The Antari AF-3 instantly enhances beam visibility and the distribution of mist or smoke, without unnecessary noise or complex settings. Its compact size and adjustable bracket allow discreet positioning at the front of the stage, on a truss, backstage, or at the base of a fog machine. In clubs, theaters, weddings, or DJ parties, it provides controlled airflow that highlights your wash lights, beams, and strobe effects.
Who Is the Antari AF-3 For?
It is designed for mobile DJs seeking controlled airflow that is quick to deploy, lighting operators and stage technicians who want a reliable fan to channel mist and light confetti, venue operators (bars, clubs, restaurants) needing a compact solution, as well as discerning individuals aiming to refine their shows at home or in a home studio.
Technical specifications
| Input voltage | AC 100-120 V, 50/60 Hz or AC 220-240 V, 50/60 Hz | Optional controllers | wireless remote control " W-1 "; wired controller " Z-3 " |
| Power consumption | 100 W max. at full power | Power | PowerCON input and output |
| Maximum airflow | 900 mÂł/h, 530 CFM (50 Hz); 1020 mÂł/h, 600 CFM (60 Hz) | Signal | XLR input and XLR output |
| Fan speed | 750-2550 rpm (50 Hz); 750-2800 rpm (60 Hz) | Housing | rugged metal, compact design for easy transport and storage |
| Airflow orientation | bracket allowing output directions over 90deg | Protection rating | IP20 |
| Built-in control | integrated DMX chip and rotary potentiometer | Dimensions | 333 mm (W) x 370 mm (H) |
| DMX modes | 1 channel (0-100% level); 2 channels (On/Off) | Weight | 6.3 kg |
You will also like
Algam Lighting
FMG Cyclone
Algam Lighting
BF1000
Algam Lighting
H1500-PRO
Chauvet DJ
Hurricane Haze 4D
Cameo
STEAM WIZARD 2000 - SMOKE MACHINE WITH COLOR EFFECT
Chauvet DJ
Hurricane Bubble Haze
J.collyns
Confetti Shooter
J.collyns
CO2 Rush
Questions frequently asked
What airflow does the Antari Fog Machine AF-3 provide?
The airflow reaches 900 mÂł/h (530 CFM) at 50 Hz and 1020 mÂł/h (600 CFM) at 60 Hz. The variable speed ranges from 750 to 2550 RPM at 50 Hz, or up to 2800 RPM at 60 Hz.
Can the AF-3 be controlled via DMX?
The built-in DMX chip offers a 1-channel mode to adjust the level from 0 to 100%, as well as a 2-channel mode including on/off control. A rotary potentiometer on the front panel also allows direct adjustment.
Can the fan airflow be directed?
The mounting bracket allows the air outlet to be angled 90° to direct the fog or smoke according to the setup.

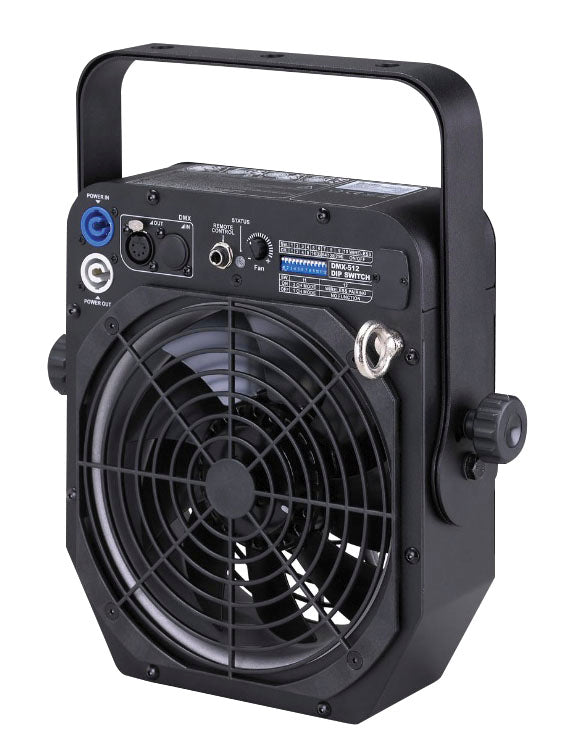

What connections are available on this Antari fan?
Power uses PowerCON input and output connectors, facilitating electrical daisy-chaining. The DMX signal passes through XLR input and output connectors. Optional W-1 wireless and Z-3 wired controllers are also listed as compatible.
What is the weight and power consumption of the AF-3?
Weighing 6.3 kg, this model features a compact metal housing measuring 333 mm in length and 370 mm in height. Its maximum power consumption is 100 W at full power and its protection rating is IP20.
