The essentials to know about the Edge 360 measurement microphone
The essentials to know about the Edge 360 measurement microphone
- Omnidirectional microphone dedicated to acoustic analysis with Antelope Room Correction
- Individual calibration profile associated with the serial number for reliable measurements
- 16 mm electret capsule covering the entire audible frequency range, from 20 Hz to 20 kHz
- Balanced XLR connection, 48 V phantom power, and slim metal body limiting diffraction
Manufacturer Information
Antelope
https://en.antelopeaudio.com
------------------------
Safety manager:
Elektrosfera ltd.
Email:
Address:

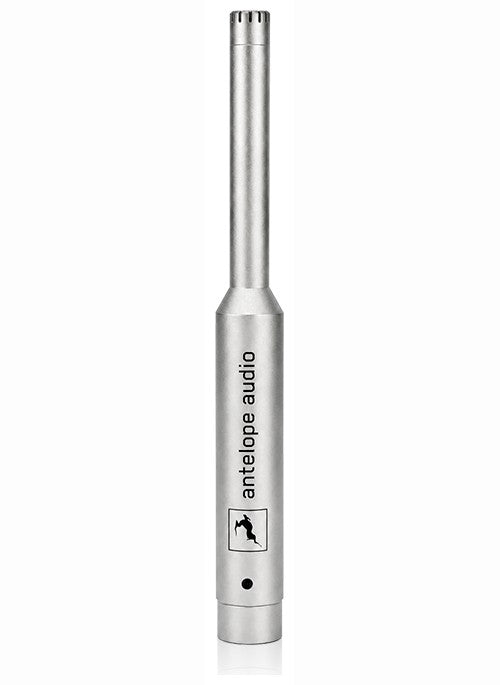

A Measurement Tool Designed for the Antelope Audio Ecosystem
The Edge 360 is a precision measurement microphone specifically designed for use with Antelope Room Correction. It measures the response of your room and monitoring system to generate an acoustic correction profile. This profile is then processed in real time by the FPGA chip in the compatible interface, for more balanced and clearer monitoring.
For Calibrating a Studio, Control Room, or Production Space
This microphone is designed for musicians, producers, sound engineers, and creators who want to optimize their listening environment. Connect it to a microphone input, activate 48 V phantom power, load its calibration profile, then follow the measurement steps. The Edge 360 is compatible with the Orion Studio Synergy Core when updated with Antelope Room Correction.
Dedicated Calibration for Consistent Measurements
Each Edge 360 is individually measured after manufacturing. Its specific calibration profile compensates for slight variations between microphones—an essential factor for obtaining accurate measurement data during acoustic sweeps.
Omnidirectional Capsule and High SPL Handling
Its 16 mm omnidirectional electret capsule captures the entire sound field without favoring any particular direction. With a maximum SPL of 124 dB and a signal-to-noise ratio of 70 dB, it is equally well suited to quiet rooms and measurement signals played at high levels.
Technical specifications
| Frequency response | 20 Hz - 20 kHz | Connection | XLR |
| Category | measurement microphone | Use | Microphone |
| Directivity | omnidirectional | Color | Grey |
| Capsule | Small diaphragm | ||
| Transducer type | electret condenser | Power supply | 48 V phantom power |
| Polar pattern | omnidirectional | Output | gold-plated 3-pin balanced XLR |
| Sensitivity | -40 dBV/Pa, equivalent to 10 mV/Pa at 1 kHz | Construction | metal body |
| Maximum SPL level | 124 dB | Dimensions | 21 mm in diameter x 192 mm in length |
| Signal-to-noise ratio | 70 dB | Weight | 140 g |
| Calibration | individual measurement with a serial number-specific profile | Packaging dimensions | 13 x 8 x 28 cm |
| Output impedance | less than 300 ohms | Packaging weight | 0.7 kg |
