Antelope Zen Quadro

Name: Zen Quadro
Brand: Antelope
SKU: 392991
Price: 599.00 EUR
Availability: InStock
Rating: 2.5 (2 reviews)

599,00 €VAT incl.

0,90 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 392991

EAN : 0850041548081

This item is covered for 3 years

Information

Essential Information About the Antelope Zen Quadro Audio Interface
• High-end 24-bit/192 kHz conversion with up to 130 dB dynamic range and AFC 64-bit clock for ultra-precise stereo imaging.
• 4 discrete 6-transistor preamps, extremely low noise, and 75 dB gain to drive even dynamic and ribbon microphones.
• Dual bi-host USB-C: simultaneous recording/playback on two systems (computer + mobile) with ideal loopback for streaming.
• Synergy Core real-time platform (FPGA + DSP) with up to 48 mono effects, 37 included effects. Special offer: 25 free plug-ins with any purchase from 10/01/2025 to 12/31/2025.

Zen Quadro

599,00 €VAT incl.

0,90 € Ecotax included

Reference price

Antelope Expertise in a Bus-Powered Format

Zen Quadro follows the "Zen" interface line by bringing the conversion quality of the flagship Galaxy series to a bus-powered desktop format. It incorporates Antelope's expertise in digital clocking and jitter management to deliver a wide soundstage, clear transients, and reliable mix tracking without external power.

Who Is It For? Mobile Producers, Project Studios, and Content Creators

Designed for lightweight multitrack recording, advanced podcasting, and professional streaming, Zen Quadro combines powerful preamps, precise monitoring, and versatile connectivity. The dual USB-C allows connection to two hosts (Mac/PC and mobile device) for co-streaming, playback of assets from a smartphone, or separating guest/music feeds, while integrated loopback simplifies broadcasting.

Features and Innovations That Make a Difference

Reference Conversion and Clock

High-performance converters paired with the AFC 64-bit clock provide an unusual level of detail for a bus-powered interface: more confident recording and mixing decisions, stable stereo image, and increased depth.

Dual Bi-Host USB-C

Like having two interfaces in one: freely route signals between two USB connections, blend them in internal mixers, and charge your mobile device via the secondary port while the primary port powers the interface.

Discrete Preamps Inspired by Large Consoles

Four discrete 6-transistor stages offer headroom and musicality, with 48 V phantom power and generous 75 dB gain to capture demanding sources without external boosters.

Synergy Core Real-Time and Standalone Mode

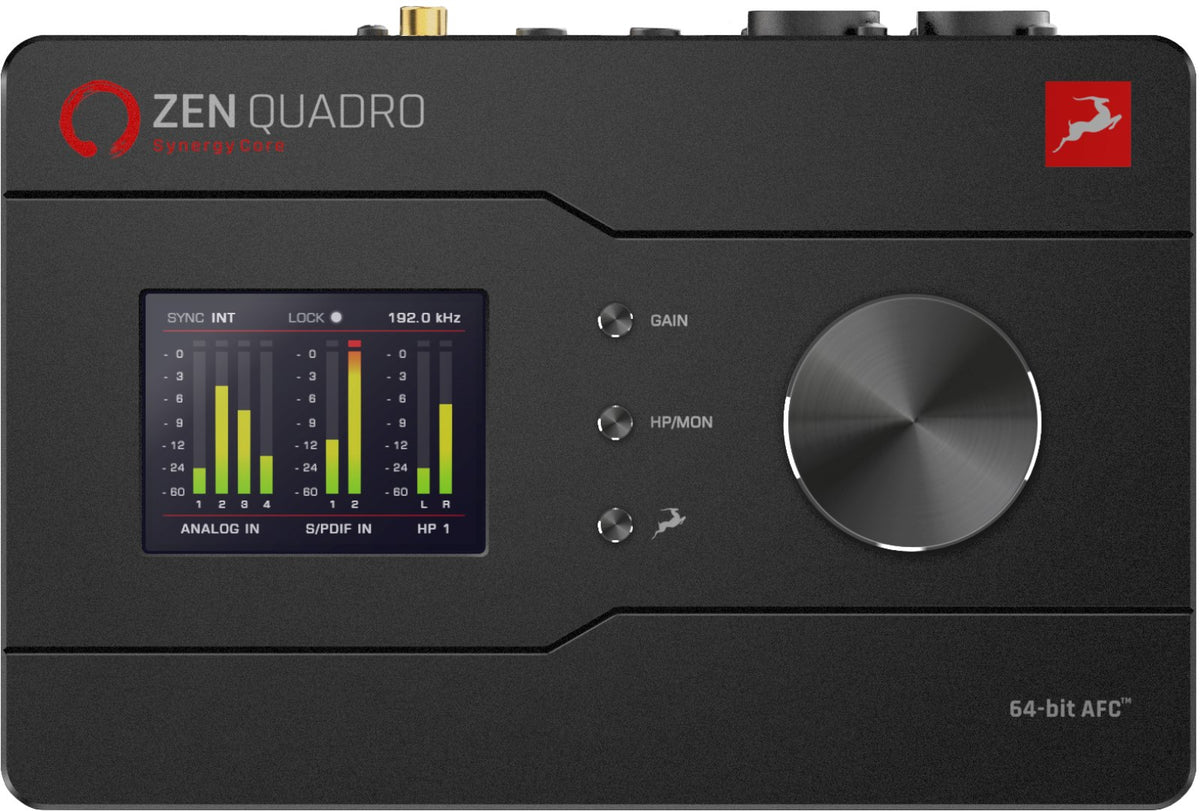

The FPGA + DSP duo processes up to 48 mono effects with extremely low latency. In standalone mode, recall effect chains and control routing directly from the built-in screen: convenient for stage or mobile sessions.

Technical specifications

Compatibility	PC, Mac
Sampling frequency	192 kHz

Max resolution	24-bits
Headphone outputs	Yes

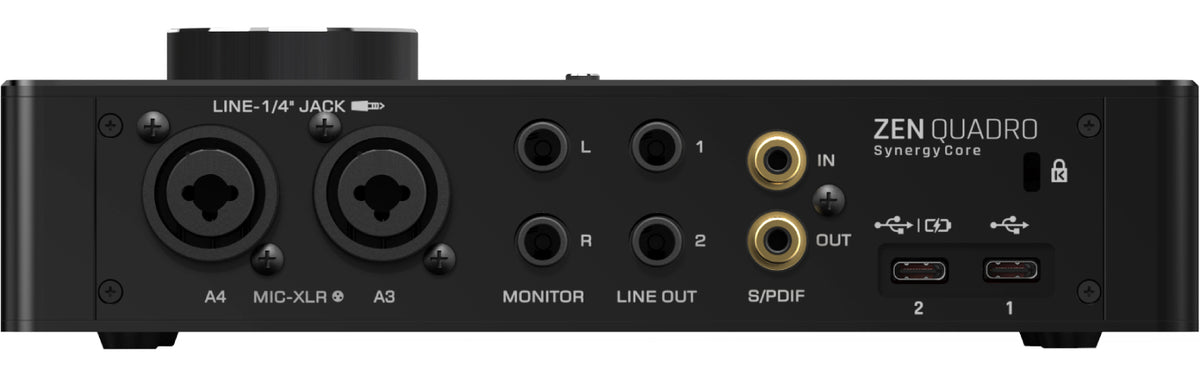

4 analog inputs

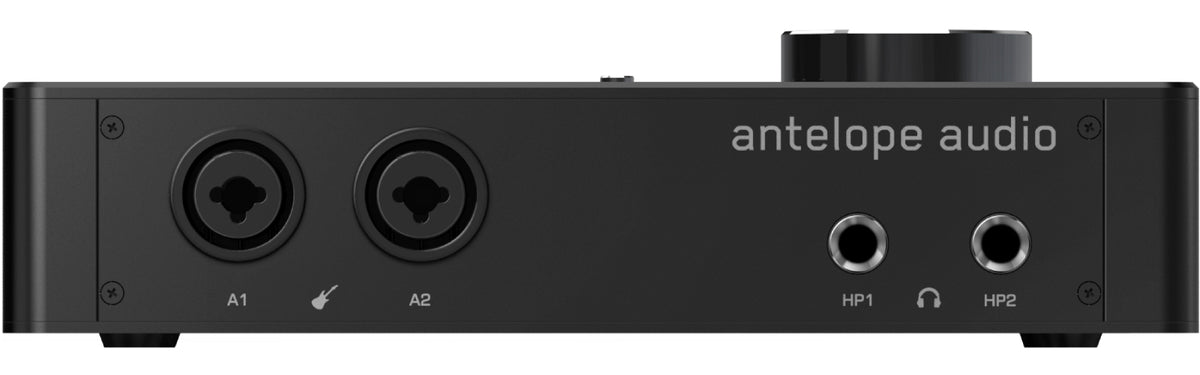

2 XLR/6.35 mm combo jacks (Mic, Hi-Z, Line) + 2 XLR/6.35 mm combo jacks (Mic, Line)

Dual USB-C	simultaneous playback and recording on two systems (computer + mobile device)
S/PDIF stereo	2-channel input and 2-channel output on RCA

Included software bundle	37 Synergy Core effects
Standalone mode	preset recall, routing and mixer control from the screen

Included	USB-C cable and USB-C to A adapter
Dimensions	287 x 187 x 92 mm
Weight	0.9 kg

Questions frequently asked

How many sources can be recorded simultaneously with the Antelope Zen Quadro?

The interface features 4 analog inputs on XLR/6.35 mm combo jacks. The first two accept mic, Hi-Z, or line signals, while the other two accept mic or line signals.

Is it possible to connect a computer and a smartphone at the same time?

The dual USB-C allows simultaneous playback and recording on two systems, for example a computer and a mobile device. The secondary port can also charge the mobile device while the primary port powers the interface.

What mic gain and phantom power are available?

Four discrete preamps offer up to 75 dB of gain and 48 V phantom power.

Which effects are included with the interface?

The software suite includes 37 Synergy Core effects. The FPGA + DSP processing allows up to 48 mono effects to be used in real time with extremely low latency. Effect chains can be recalled in standalone mode from the built-in screen.
