Arturia Audiofuse X8 OUT

An Extension Designed for the AudioFuse Ecosystem and Evolving Studios

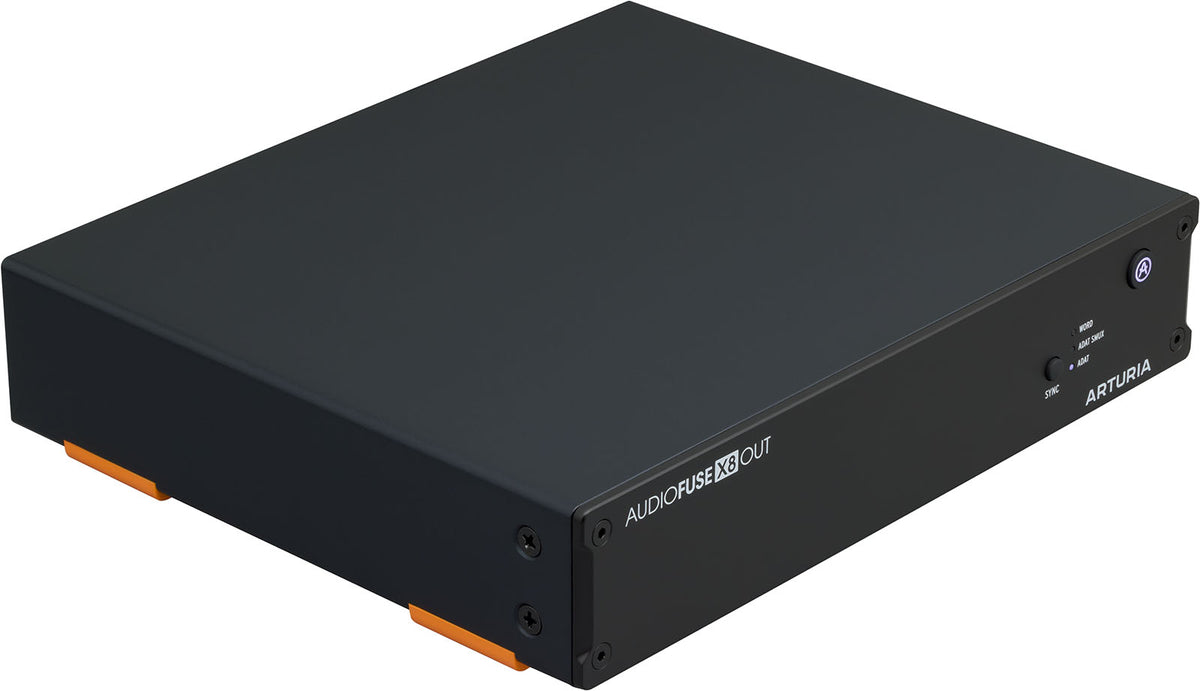

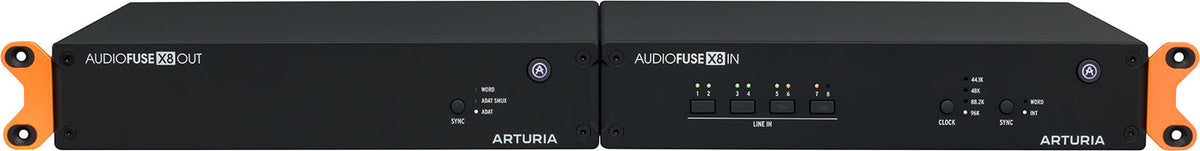

The AudioFuse X8 OUT fits into the "modular studio" approach: instead of replacing an audio interface that already suits you, you simply add outputs where you need them. Connected via ADAT optical, it increases your setup's routing capacity while maintaining a clean, compact, and performance-oriented installation. Its 1U half-rack chassis and removable ears allow you to switch from a desktop setup to a standard rack, with the possibility to mount two units side by side to support the growth of your equipment collection.

Who Benefits from the AudioFuse X8 OUT and in What Applications?

This module targets producers and sound engineers who lack enough analog outputs to work efficiently: sending signals to external compressors and reverbs, console returns, analog summing, or creating multiple headphone/monitor mixes. It is also highly relevant for electronic musicians who want to keep several machines ready to play while enjoying flexible routing from the DAW. Whether live or in the studio, the goal is simple: more outputs without the complexity or bulk of a full audio interface.

Conversion, Sync, and Connectivity: An ADAT Expander Designed for Modern Routing

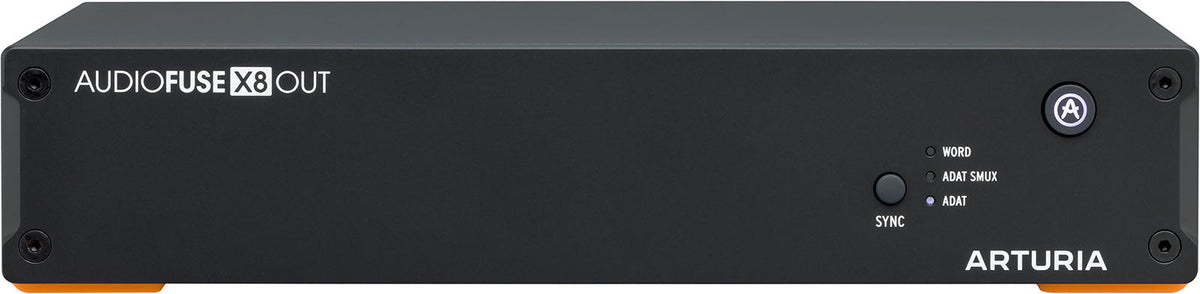

The AudioFuse X8 OUT delivers 8 channels of digital-to-analog conversion based on a 24-bit Cirrus Logic converter, with a sampling rate up to 96 kHz. The ADAT connectivity supports SMUX to maintain a consistent workflow when working in high resolution. For reliable integration into larger systems, a Word Clock input facilitates synchronization, while the front panel controls provide quick access to essential functions, including sync.

Finally, the DC-coupled TRS outputs open the door to creative uses: controlling compatible synths, automating external parameters, and precise control from your sequencer, all while maintaining audio quality suited to the demands of modern productions.

Technical specifications

Type of local outputs	Balanced line	Power supply	DC 15 V
Sampling frequency	96 kHz	Weight	1.37 kg
Color	Black

Expansion	8 DC-coupled analog line outputs via ADAT	Format	desktop
Digital-to-analog converter	24-bit Cirrus Logic, sampling rates up to 96 kHz	Rack installation	possible, up to two devices side by side
Optical outputs	2 ADAT, SMUX support	Housing	half-rack 1U
Control elements	on the front, with access to the Sync function	Dimensions (W x D x H)	221 x 216 x 48 mm
Analog outputs	8 on 6.3 mm jacks	Included software	Analog Lab Intro, Pre 1973, Pre V76, Filter Mini, Chorus JUN-6, Comp FET-76, Delay TAPE-201, Rev PLATE-140, Phaser BI-TRON, Pre TridA, Comp DIODE-609
Word Clock input	1 on BNC	Power supply unit	included
Power connection	for power supply unit
