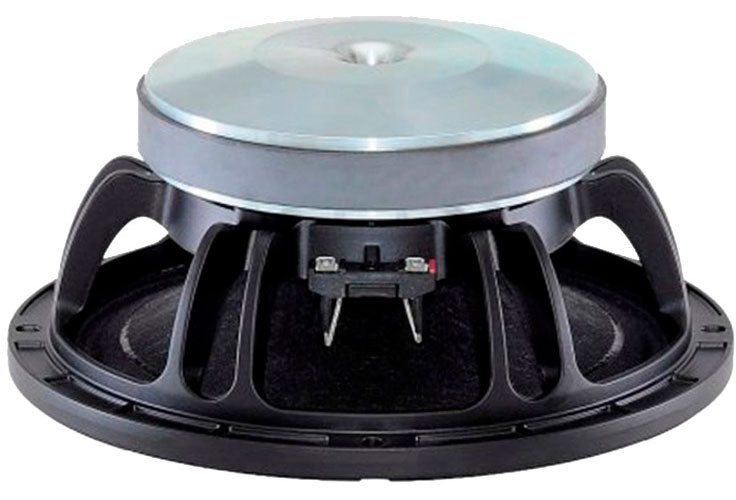

B&C Speakers 10 FW 64 8 Ohm

A 10-Inch Transducer Tailored for Compact Sound Reinforcement

The B&C 10FW64 fits within the logic of sound reinforcement speakers designed to combine efficiency, reliability, and controlled size. Its bass/midrange positioning in a 10-inch format makes it a relevant choice when looking for a speaker capable of delivering body and impact in a compact enclosure, while remaining sufficiently comfortable to reach into the midrange. The result: a solid foundation for portable systems, stage monitors, or multi-way speakers requiring a durable 10-inch driver.

Intended Uses and Projects

This model is particularly suited for configurations where a firm low-midrange and good clarity in the essential vocal, guitar, keyboard, and percussion range are desired. With a stated frequency response of 65 Hz to 3 kHz, the 10FW64 can be used in a two-way speaker (with compression driver and horn) or in a three-way system as a dedicated low-midrange driver.

It is also suitable for compact stage and installation speaker projects, whenever the goal is to achieve a responsive system capable of staying clean at high levels. The recommended enclosure volume of 26 liters (tuned to 63 Hz ) facilitates the design of a small cabinet while maintaining a coherent foundation for low-midrange reinforcement.

Design, Components, and Key Features

2.5-Inch (64 mm) Voice Coil and AES Power

The 10FW64 is built around a 2.5-inch (64 mm) voice coil with aluminum wire, sized to support sustained use. Its 500 W AES power rating targets systems that work hard, with marked dynamics and fast transients (snare drum, bass attacks, rhythm guitar, etc.).

Ferrite Magnet: Stability and Sound Reinforcement Character

The ferrite magnet remains a reliable choice for sound reinforcement speakers: stable behavior, proven design, and easy integration into a wide variety of enclosures. This choice aligns with a logic of robustness and reliability, especially appreciated in mobile use.

Double Roll Suspension and Excursion Handling

The double roll suspension contributes to the mechanical control of the speaker, with a declared excursion of Xmax 5.0 mm. This type of suspension helps maintain consistent operation when the speaker is driven in the low spectrum and contributes to the sense of foundation and punch in a compact enclosure.

Exponentially Shaped Cone with Waterproof Treatment (Front/Back)

The exponential cone benefits from a waterproof treatment on both front and back, useful for environments where humidity, condensation, or temperature variations could damage materials. For sound reinforcement and installation applications, this treatment adds longevity and consistent performance.

Recommended Tuning and Volume: A Clear Design Basis

With a recommended enclosure volume of 26 liters and a tuning frequency of 63 Hz, the 10FW64 is naturally aimed at compact and efficient cabinets. This aspect is particularly interesting for optimizing footprint without sacrificing useful response in the low-midrange. The stated parameters (Fs 63 Hz, Qts 0.23 ) provide a coherent framework for a clean, dynamic bass-reflex setup.

Technical specifications
