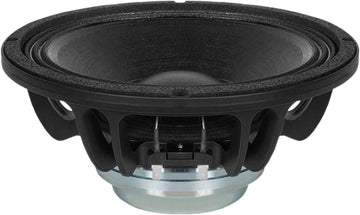

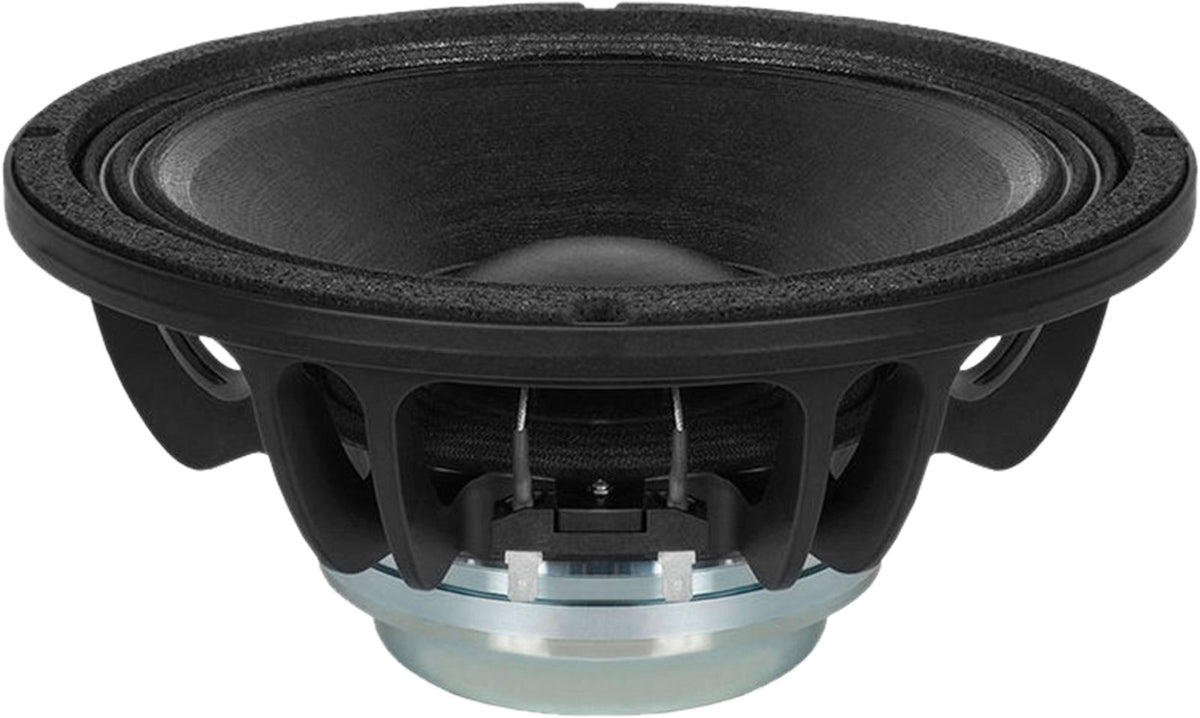

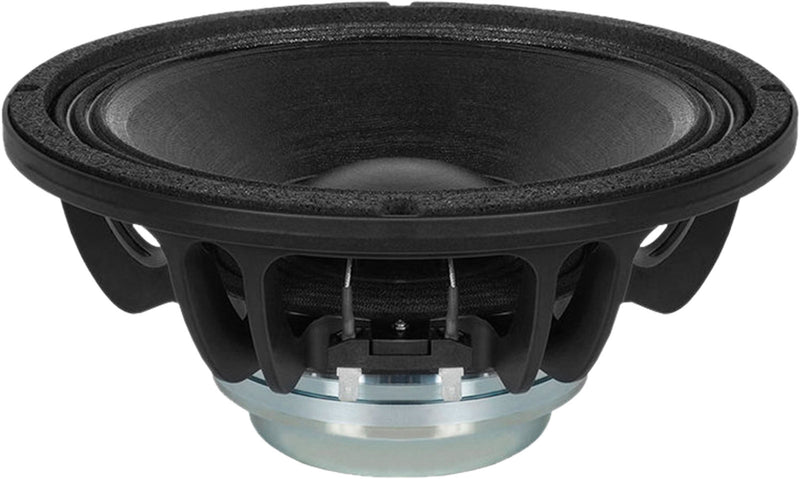

B&C Speakers 10 NW 76 16 Ohms

A Performance-Oriented 10-Inch B&C in the Neodymium Family

The B&C 10NW76 follows the "high efficiency + low mass" approach typical of neodymium magnet speakers. This 10-inch format is at the heart of compact PA systems, where a fast bass, clean low-midrange, and excellent dynamics are sought without adding weight to the enclosure. Thanks to its bass/midrange design, it is suitable for both two-way configurations and multi-way systems where definition and impact in the lower spectrum are crucial.

Intended Uses and Target Profiles

This speaker is aimed at integrators, loudspeaker manufacturers, technicians, and DIY enthusiasts who want a 10-inch driver capable of delivering substantial output in a reasonable enclosure volume. In sound reinforcement, it is particularly suited for compact front-of-house speakers, stage monitors (wedges), and mobile systems where weight reduction is a tangible advantage.

Its recommended enclosure volume of 26 liters with a tuning at 65 Hz facilitates the design of a compact bass-reflex box. In this context, it is relevant for projects requiring a tight and usable response, with a good balance between bass extension and punch, provided that appropriate crossover filtering is applied (depending on the driver/tweeter pairing and directivity goals).

Design and Key Performance Features

Power Handling and Control

With a power rating of 800 W AES, the 10NW76 is built to operate at sustained high levels. The 3-inch (76 mm) copper wire voice coil contributes to thermal dissipation and operational stability when the speaker is heavily driven, an essential aspect for both live performance and fixed installations.

Low-Midrange Responsiveness and Projection

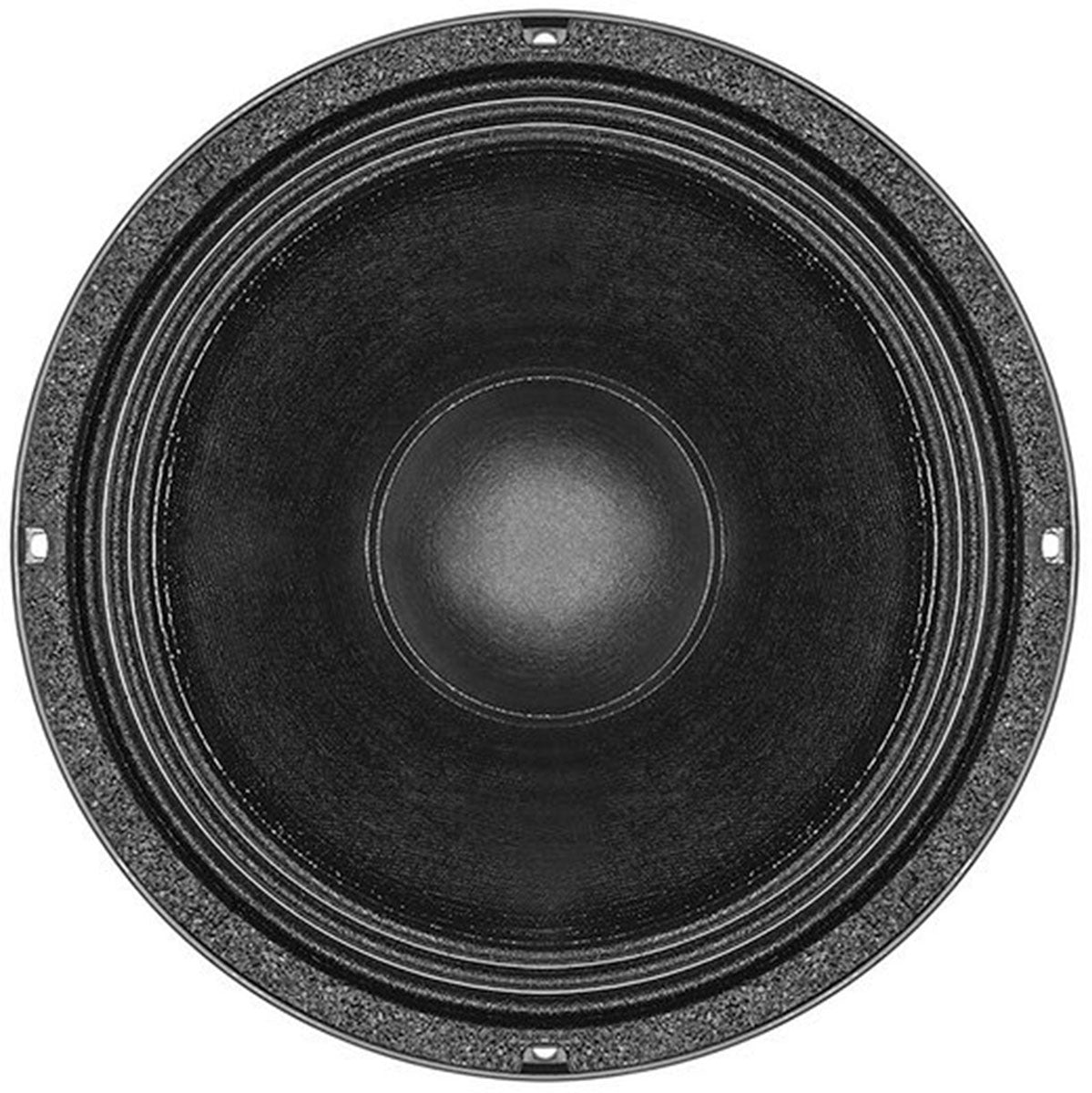

The exponential cone is designed to enhance efficiency and projection while maintaining a frequency response up to 3.5 kHz. This operating range allows the 10-inch driver to cover a broad portion of the useful spectrum, especially in the low-midrange area where attack and intelligibility are often critical.

Mechanical Robustness and Field Use

The triple-roll suspension combined with a single spider forms a mechanically reliable assembly. The waterproof treatment of the cone (front and back) is a significant advantage for applications exposed to ambient humidity, temperature variations, and transport stresses, ensuring longevity in professional environments.

Compactness and Weight

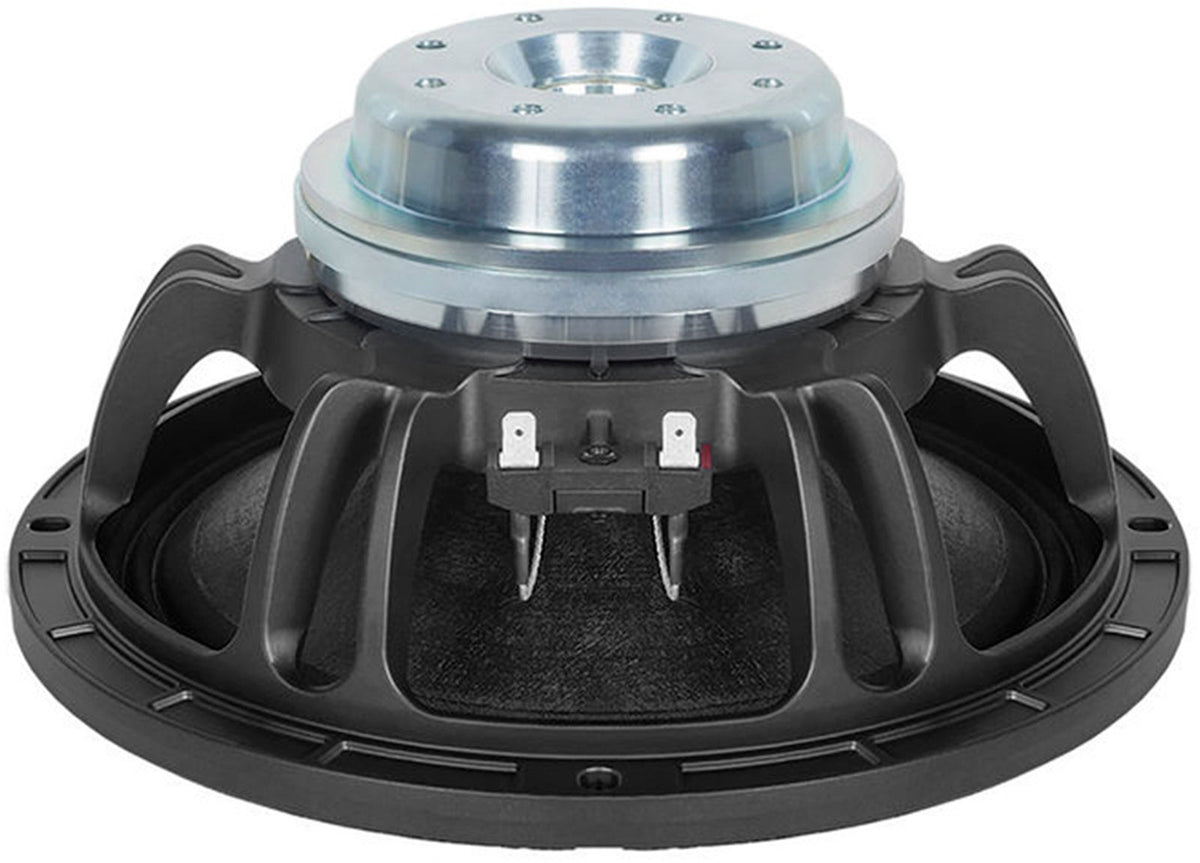

Its neodymium magnet keeps the weight at 3.8 kg, simplifying speaker handling and helping to keep the total system weight down. The dimensions (overall diameter 261 mm, height 119 mm) facilitate integration into many 10-inch enclosures, especially when internal space optimization is required.

Technical specifications
