Blackmagic Design ATEM 1 M/E Constellation 4K

Name: ATEM 1 M/E Constellation 4K
Brand: Blackmagic Design
SKU: 426014
Price: 1846.00 EUR
Availability: InStock

1.846,00 €VAT incl.

0,90 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 426014

EAN : 9338716008692

This item is covered for 3 years

Information

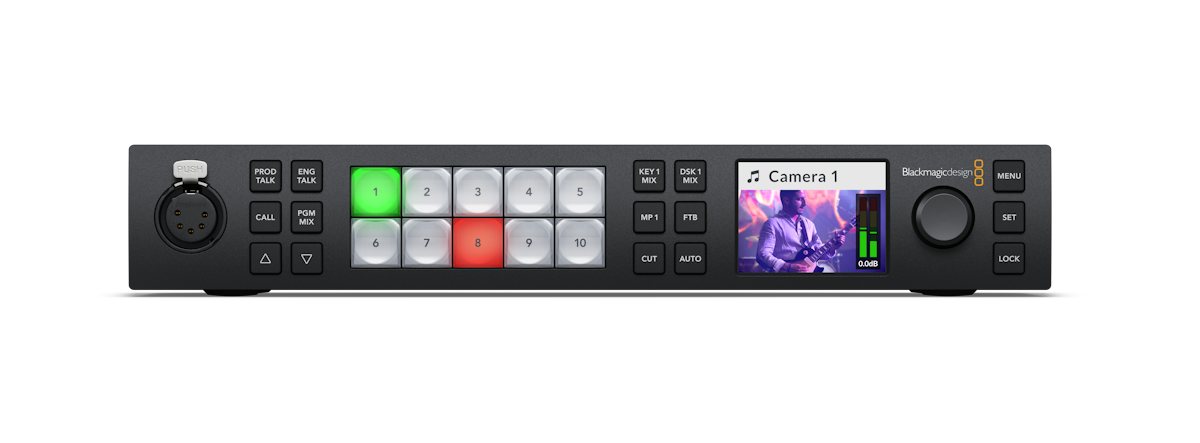

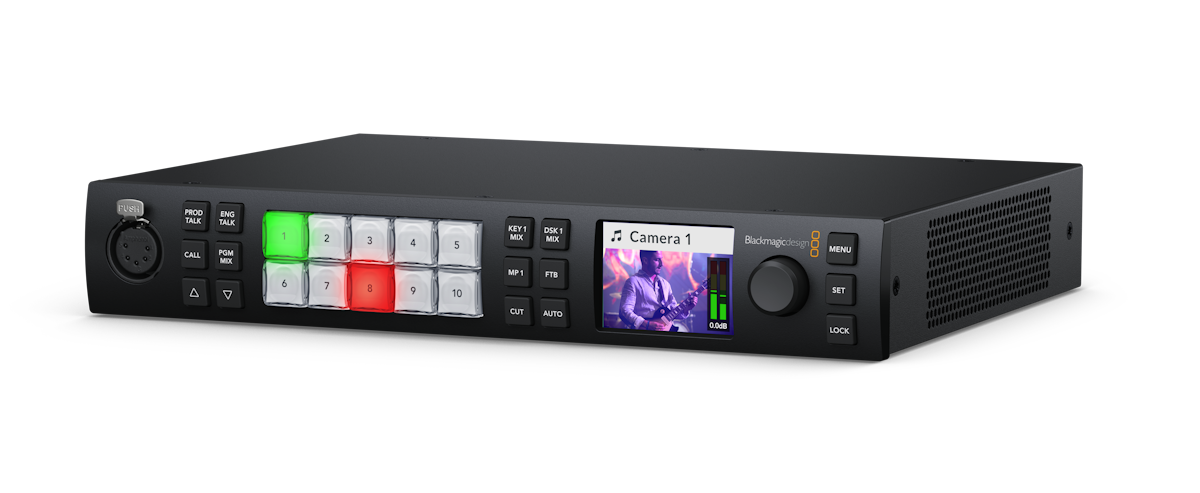

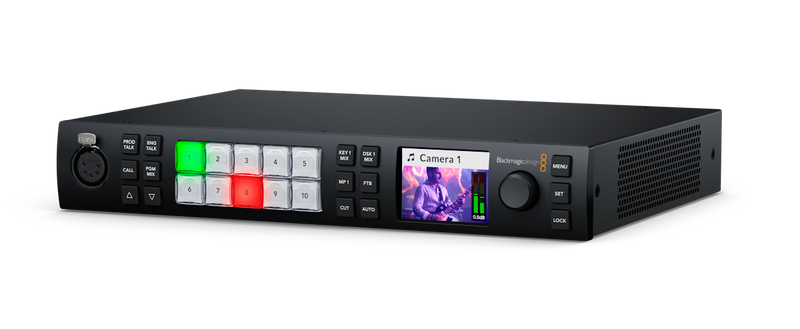

Essential Information About the ATEM 1 M/E Constellation 4K Video Mixer
• 10 12G-SDI inputs with standard and format conversion on each input, plus 6 fully routable 12G-SDI outputs (AUX, program, preview, clean feed).
• Ultra HD production up to 2160p60 with 4 advanced chroma keyers, 1 DVE, Stinger transitions, and multi view up to 16 windows.
• USB-C webcam output at 720p or 1080p for streaming, built-in tally network, and 28-channel Fairlight mixer (6-band EQ, full dynamics).
• Internal timecode, genlock Tri-Sync or Black Burst, control via software or optional hardware panels.

ATEM 1 M/E Constellation 4K

1.846,00 €VAT incl.

0,90 € Ecotax included

Reference price

A Modern Evolution of the 1 M/E Format, Designed for Ultra HD

Within the ATEM family, the 1 M/E format is a classic for compact control rooms. The ATEM 1 M/E Constellation 4K adopts this "all-in-one" approach and integrates it into a current workflow: 12G-SDI on all I/O, native Ultra HD processing, extended multi view, and embedded Fairlight audio. Compared to older 1 M/E generations, the experience gains flexibility thanks to conversion on each input, a USB-C webcam output directly usable for streaming, and a more ambitious keying engine for green screen studios.

A 4K Switcher for Mobile Control Rooms, Corporate, and Demanding Live Productions

This video mixer is aimed at teams who need to produce quickly, cleanly, and reliably: corporate events, houses of worship, e-sports, education, multicam recordings, small broadcasters, and mobile control rooms. The 6 routable 12G-SDI outputs facilitate distribution (program, preview, stage returns, recorders, LED walls), while the 16-view multi view secures the production by keeping all sources and key statuses under control. For online broadcasts, the USB-C webcam output simplifies integration into a computer without additional capture hardware.

Technical specifications

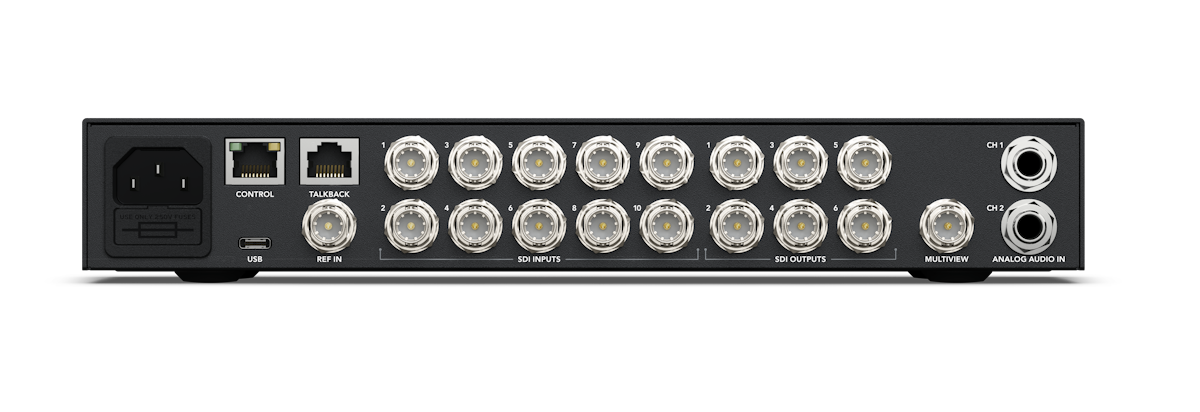

Category	mixer	Inputs	10x SDI, Ref in SDI, 2x Jack 6,35
Video format	2160p	Option to increase the number of outputs	No
Number of screens	1.0000	Option to increase the number of inputs	No
Video processing	10-bits	Weight	1.87 kg
Outputs	6x SDI, SDI Multiview	Dimensions (mm)	280 x 226 x 44

Questions frequently asked

Does the ATEM 1 M/E Constellation 4K support mixed HD and 4K cameras?

The 10 12G-SDI inputs feature synchronization as well as format and frame rate converters. The switcher supports HD signals up to 1080p60 and Ultra HD up to 2160p60. Sources can thus be aligned despite differing output standards.

How many cameras can be connected to this Blackmagic switcher?

This switcher has 10 12G-SDI video inputs.

Can the program be streamed to a computer without a capture card?

A USB-C output presents the program as a UVC webcam. The signal is available in 720p or 1080p at the program’s frame rate. This USB 2.0 connection facilitates use with streaming software on a computer.

What green screen options does this video switcher offer?

Four advanced chroma keyers are available for green screen setups. The engine also includes 1 DVE, 1 downstream keyer, and 5 linear or luma keyers. A total of seven layers can be managed.

How are sources controlled during a multicam live production?

The configurable multiview displays from 4 to 16 windows with labels, audio meters, and tally states. The 6 12G-SDI outputs are routable to provide program feed, preview, or returns.
